MC74LCX07 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> logic> MC74LCX07

MC74LCX07: DescriptionLVC/LCX/Z SERIES, HEX 1-INPUT NON-INVERT GATE, PDSO14; Categorysemiconductor logic; File Size144KB，6 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn

Download Datasheet Parametric Compare View All

MC74LCX07 Overview

LVC/LCX/Z SERIES, HEX 1-INPUT NON-INVERT GATE, PDSO14

MC74LCX07 Parametric

Parameter Name	Attribute value
Number of functions	6
Number of terminals	14
Minimum operating temperature	-40 Cel
Maximum operating temperature	85 Cel
Rated supply voltage	2.5
Minimum supply/operating voltage	2 V
Maximum supply/operating voltage	5.5 V
Processing package description	LEAD FREE, SOIC-14
each_compli	Yes
EU RoHS regulations	Yes
China RoHS regulations	Yes
state	Active
Logic IC type	BUFFER
sub_category	Gates
series	LVC/LCX/Z
jesd_30_code	R-PDSO-G14
jesd_609_code	e3
load_capacitance__cl_	50 pF
max_i_ol_	0.0240 Am
moisture_sensitivity_level	NOT SPECIFIED
Number of inputs	1
Output characteristics	OPEN-DRAIN
Packaging Materials	PLASTIC/EPOXY
ckage_code	SOP
ckage_equivalence_code	SOP14,.25
packaging shape	RECTANGULAR
Package Size	SMALL OUTLINE
cking_method	RAIL
eak_reflow_temperature__cel_	260
wer_supplies__v_	3.3
._delay_nom_su	3 ns
propagation delay TPD	3.8 ns
qualification_status	COMMERCIAL
schmitt_trigge	NO
seated_height_max	1.75 mm
surface mount	YES
Craftsmanship	CMOS
Temperature level	INDUSTRIAL
terminal coating	MATTE TIN
Terminal form	GULL WING
Terminal spacing	1.27 mm
Terminal location	DUAL
ime_peak_reflow_temperature_max__s_	40
length	8.65 mm
width	3.9 mm

Preview

Download Datasheet

View All

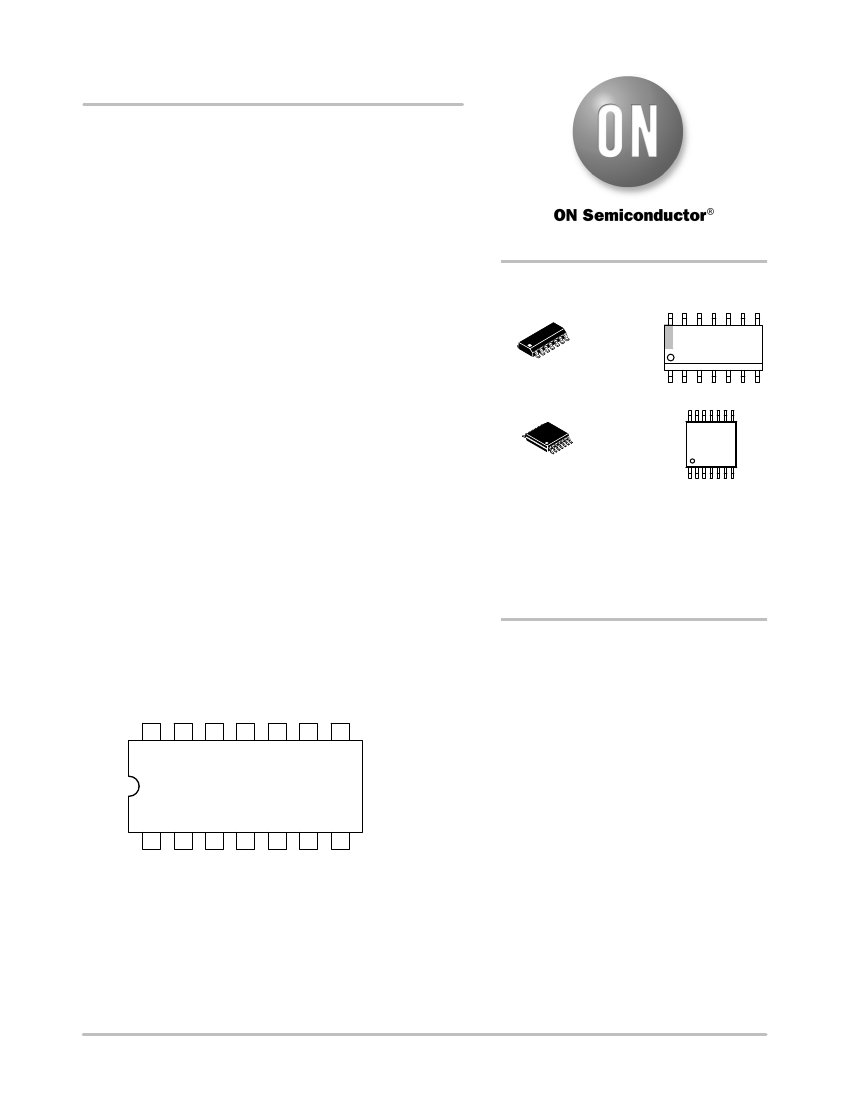

MC74LCX07

Low-Voltage CMOS Hex

Buffer with Open Drain

Outputs

With 5 V−Tolerant Inputs

The MC74LCX07 is a high performance hex buffer operating from

a 2.3 to 3.6 V supply. High impedance TTL compatible inputs

significantly reduce current loading to input drivers. These LCX

devices have open drain outputs which provide the ability to set output

levels, or do active−HIGH AND or active−LOW OR functions. A V

specification of 5.5 V allows MC74LCX07 inputs to be safely driven

from 5.0 V devices.

Features

http://onsemi.com

MARKING

DIAGRAMS

SOIC−14

D SUFFIX

CASE 751A

TSSOP−14

DT SUFFIX

CASE 948G

LCX

ALYWG

LCX07G

AWLYWW



Designed for 2.3 to 3.6 V V

Operation

5.0 V Tolerant Inputs/Outputs

LVTTL Compatible

LVCMOS Compatible

24 mA Output Sink Capability

Near Zero Static Supply Current (10

mA)

Substantially Reduces

System Power Requirements



Latchup Performance Exceeds 500 mA



Wired−OR, Wired−AND



Output Level Can Be Set Externally Without Affecting Speed of

Device



ESD Performance:

Human Body Model >1500 V;

Machine Model >200 V



These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS

Compliant

= Assembly Location

L, WL

= Wafer Lot

Y, YY

= Year

W, WW = Work Week

= Pb−Free Package

(Note: Microdot may be in either location)

ORDERING INFORMATION

See detailed ordering and shipping information in the package

dimensions section on page 2 of this data sheet.

GND

Figure 1. Pinout: 14−Lead (Top View)



Semiconductor Components Industries, LLC, 2012

October, 2012

−

Rev. 14

Publication Order Number:

MC74LCX07/D

MC74LCX07 Related Products

	MC74LCX07	MC74LCX07MG	MC74LCX07MELG	MC74LCX07MEL	MC74LCX07M
Description	LVC/LCX/Z SERIES, HEX 1-INPUT NON-INVERT GATE, PDSO14	LVC/LCX/Z SERIES, HEX 1-INPUT NON-INVERT GATE, PDSO14	LVC/LCX/Z SERIES, HEX 1-INPUT NON-INVERT GATE, PDSO14	LVC/LCX/Z SERIES, HEX 1-INPUT NON-INVERT GATE, PDSO14	LVC/LCX/Z SERIES, HEX 1-INPUT NON-INVERT GATE, PDSO14
Number of functions	6	6	6	6	6
Number of terminals	14	14	14	14	14
Minimum operating temperature	-40 Cel	-40 °C	-40 °C	-40 °C	-40 °C
Maximum operating temperature	85 Cel	85 °C	85 °C	85 °C	85 °C
series	LVC/LCX/Z	LVC/LCX/Z	LVC/LCX/Z	LVC/LCX/Z	LVC/LCX/Z
Output characteristics	OPEN-DRAIN	OPEN-DRAIN	OPEN-DRAIN	OPEN-DRAIN	OPEN-DRAIN
surface mount	YES	YES	YES	YES	YES
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
length	8.65 mm	10.2 mm	10.2 mm	10.2 mm	10.2 mm
width	3.9 mm	5.275 mm	5.275 mm	5.275 mm	5.275 mm
Is it Rohs certified?	-	conform to	conform to	conform to	conform to
Maker	-	ON Semiconductor	ON Semiconductor	ON Semiconductor	ON Semiconductor
Parts packaging code	-	SOIC	SOIC	SOIC	SOIC
package instruction	-	SOP, SOP14,.3	SOP, SOP14,.3	SOP, SOP14,.3	SOP, SOP14,.3
Contacts	-	14	14	14	14
Reach Compliance Code	-	unknow	unknow	unknow	unknow
JESD-30 code	-	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14
JESD-609 code	-	e4	e4	e4	e4
Load capacitance (CL)	-	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	-	BUFFER	BUFFER	BUFFER	BUFFER
MaximumI(ol)	-	0.024 A	0.024 A	0.024 A	0.024 A
Number of entries	-	1	1	1	1
Package body material	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	-	SOP	SOP	SOP	SOP
Encapsulate equivalent code	-	SOP14,.3	SOP14,.3	SOP14,.3	SOP14,.3
Package shape	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	-	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
method of packing	-	RAIL	TAPE AND REEL	TAPE AND REEL	RAIL
Peak Reflow Temperature (Celsius)	-	260	260	NOT SPECIFIED	260
power supply	-	3.3 V	3.3 V	3.3 V	3.3 V
Prop。Delay @ Nom-Su	-	3 ns	3 ns	3 ns	3 ns
propagation delay (tpd)	-	3.8 ns	3.8 ns	3.8 ns	3.8 ns
Certification status	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Schmitt trigger	-	NO	NO	NO	NO
Maximum seat height	-	2.05 mm	2.05 mm	2.05 mm	2.05 mm
Maximum supply voltage (Vsup)	-	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	-	2 V	2 V	2 V	2 V
Nominal supply voltage (Vsup)	-	2.5 V	2.5 V	2.5 V	2.5 V
technology	-	CMOS	CMOS	CMOS	CMOS
Terminal surface	-	Nickel/Palladium/Gold (Ni/Pd/Au)	Nickel/Palladium/Gold (Ni/Pd/Au)	Nickel/Palladium/Gold (Ni/Pd/Au)	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal pitch	-	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Maximum time at peak reflow temperature	-	40	40	NOT SPECIFIED	40
Base Number Matches	-	1	1	1	1
