HIF3E-34PA-2.54DS datasheet, PDF

Datasheet> All Categories > The connector> The connector> HIF3E-34PA-2.54DS

HIF3E-34PA-2.54DS: Description34 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size117KB，2 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/

Download Datasheet Parametric View All

HIF3E-34PA-2.54DS Overview

34 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER

HIF3E-34PA-2.54DS Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	DIRECTLY SOLDERED TO THE BOARD
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Manufacturer's serial number	HIF3E
Plug contact pitch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.244 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	34
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

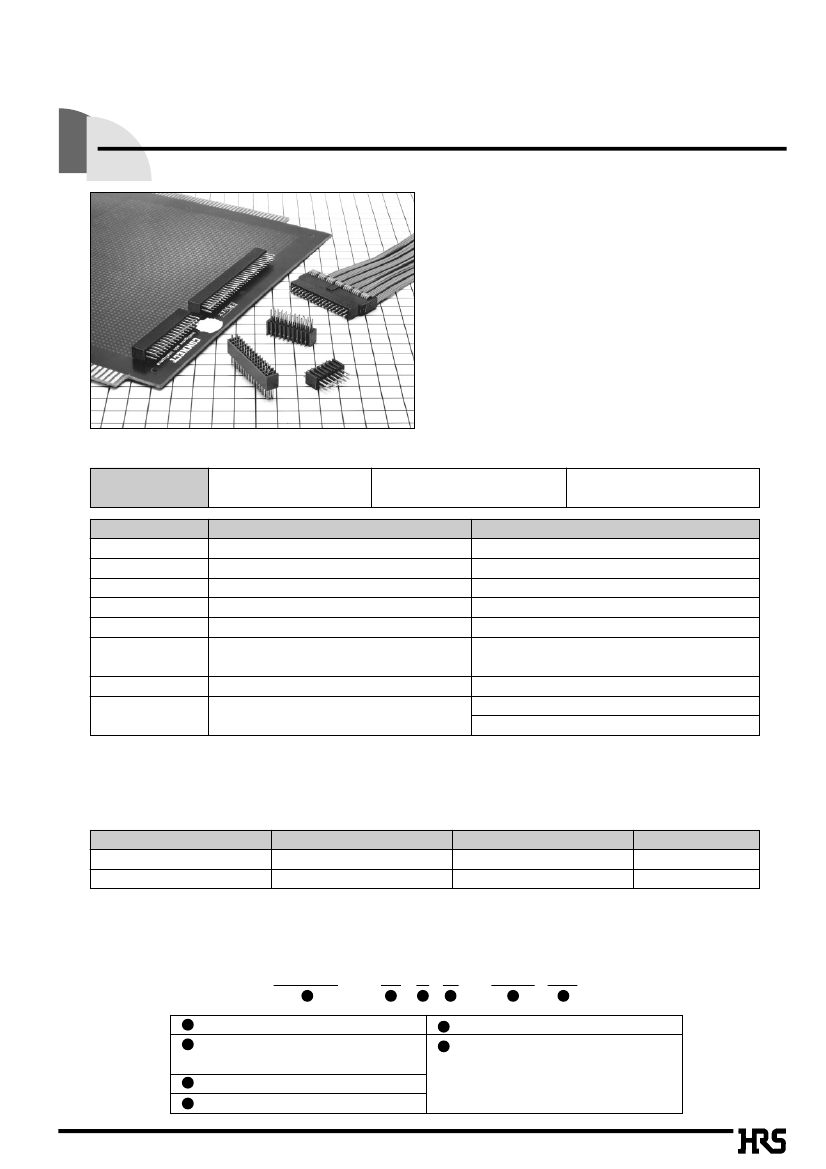

Ribbon Cable Connector (Pin Header)

HIF3E Series

sFeatures

1. Product Variation

The straight type connector is connected vertical to the

printed board, and the right angle type connector is

connected horizontal to the printed board.

2. Compatibility

This pin header is compatible with HIF3B series.

sApplications

Computers, terminal equipment, PPC, various kinds of

electronic equipment, business machines, etc.

sProduct

Specifications

Rating

Current rating: 1A

Voltage rating: 200V AC

Specification

1000M

ohms

min.

500V DC

650V AC/1 minute

0.1A

Operating Temperature Range:–55 to

+85ç

(Note 1)

Operating Moisture Range:40 to 80%

Storage Temperature Range:–10 to

+60ç

(Note 2)

Storage Humidity Range:40 to 70% (Note 2)

Condition

Item

1. Insulation Resistance

2. Withstanding voltage

3. Contact Resistance

4. Vibration

No flashover or insulation breakdown.

15m

ohms

max.

No electrical discontinuity of 1µs or more

Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.

96 hours at temperature of 40ç and humidity of 90% to 95%

(–55ç: 30 minutes

➝15

to 35ç: 5 minutes max.

125ç: 30 minutes

➝15

to 35ç: 5 minutes max.) 5 cycles

500 cycles

Humidity (Steady state)

Insulation resistance: 1000M

ohms

min.

6. Temperature Cycle

No damage, cracks, or parts looseness.

7. Durability (Mating/un-mating) Contact resistance: 15m

ohms

max.

8. Resistance to Soldering heat

No deformation of components affecting performance.

Flow: 260ç for 10 seconds

Manual soldering: 300ç for 3 seconds

Note 1: Includes temperature rise caused by current flow.

Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature

Range and Humidity range covers non conducting condition of installed connectors in storage, shipment or during

transportation.

sMaterial

Part

Insulator

Contact

Material

PBT

Brass

Finish

Black

selective gold plating

Remarks

UL94V-0

---------------

sOrdering

Information

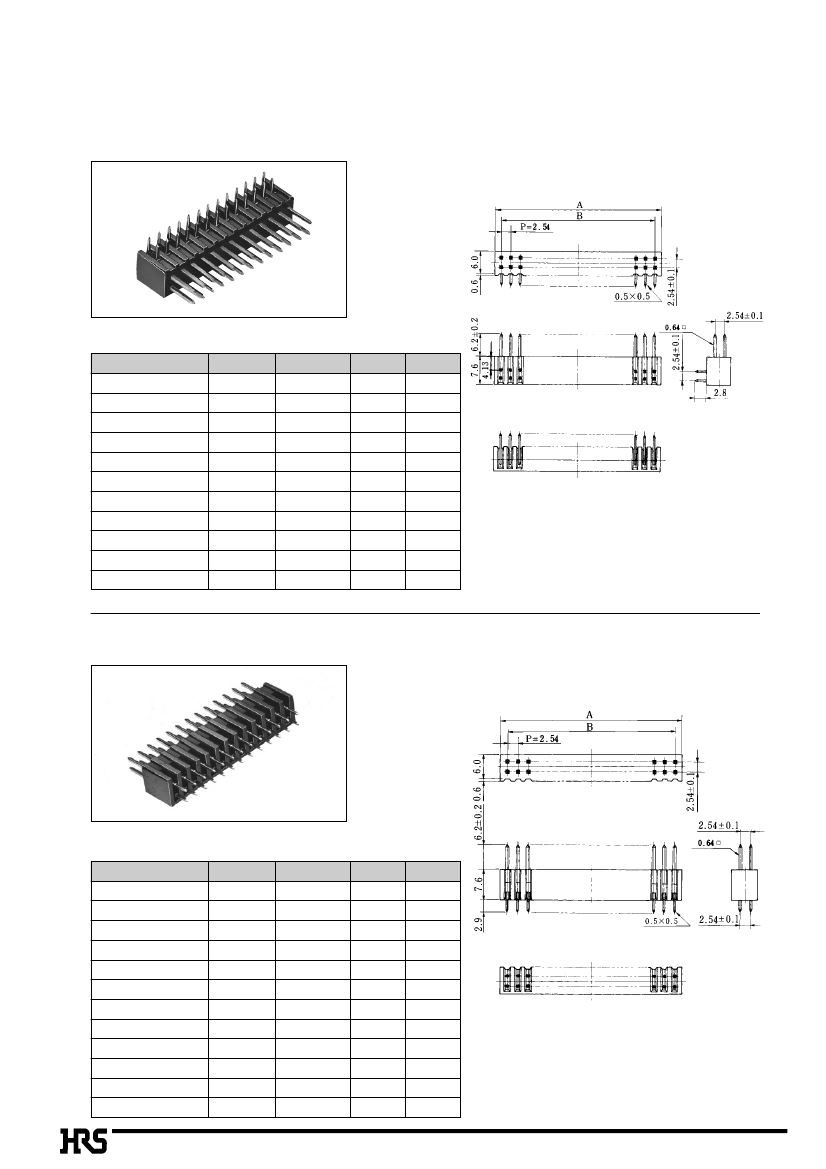

HIF3E

Series Name: HIF 3E

P A - 2.54 DS

Contact Pitch: 2.54mm

Contact type DSS: Right angle type

DSA: Straight type

Number of contacts: 8, 10, 12, 16, 18, 20,

26, 30, 34, 40, 50, 60

P: Pin header

A: Selective gold plating

B53

Recommended Resources

STK4161II audio IC circuit diagram
