HIF3F-50PA-2.54DS datasheet, PDF

Datasheet> All Categories > The connector> The connector> HIF3F-50PA-2.54DS

HIF3F-50PA-2.54DS: Description50 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size113KB，3 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/

Download Datasheet Parametric View All

HIF3F-50PA-2.54DS Overview

50 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER

HIF3F-50PA-2.54DS Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Hirose
Reach Compliance Code	unknow
Other features	POLARIZED
body width	0.354 inch
subject depth	0.547 inch
body length	2.807 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	650VAC V
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	HIF3F
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	CENTER
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	50
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

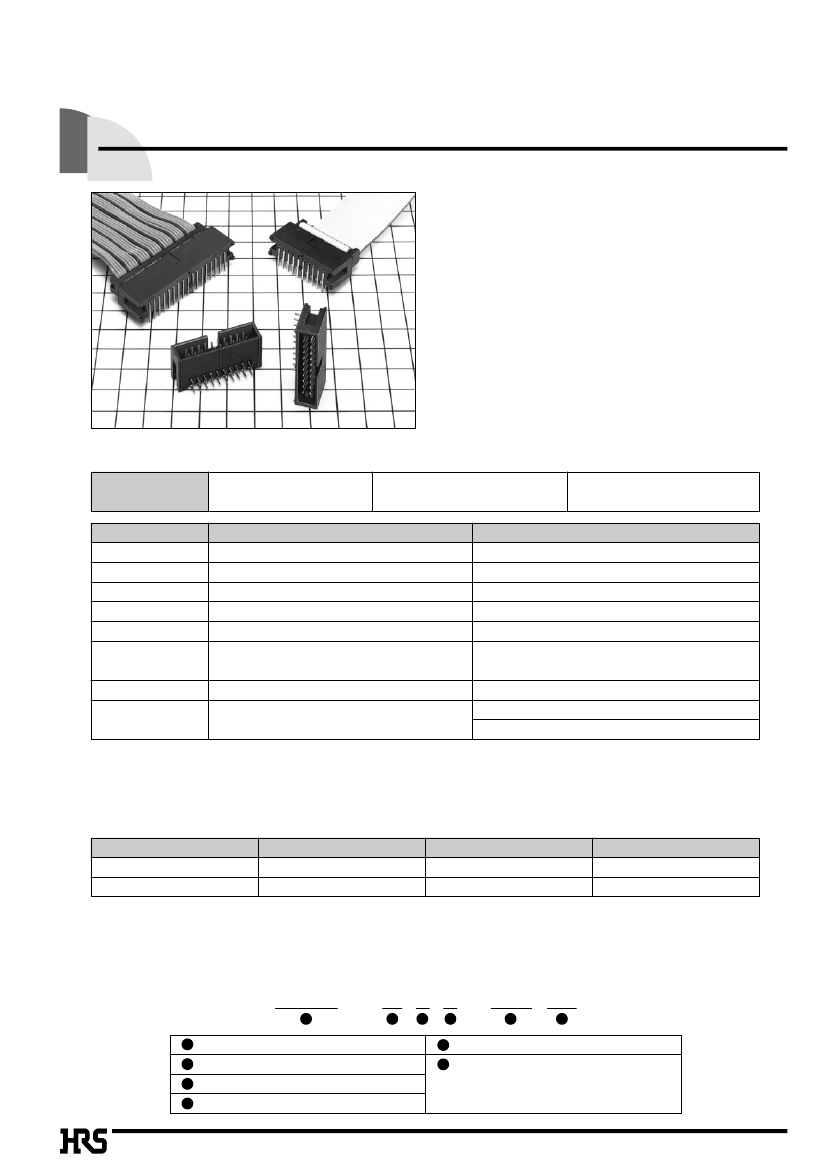

Box type Pin Header to Prevent Mis-insertion

HIF3F Series

sFeatures

1. Prevent to Reverse Insertion

The pin header to prevent reverse insertion is equipped

with contact protective walls to the HIF3E series.

2. Compatibility

This pin header is compatible with HIF3B series.

sApplications

Computers, terminal equipment, PPC, various kinds of

electronic equipment, office automation machines, etc.

sProduct

Specifications

Rating

Current rating: 1A

Voltage rating: 200V AC

Specification

Operating Temperature Range:–55 to

+85ç

(Note 1)

Operating Moisture Range:40 to 80%

Storage Temperature Range:–10 to

+60ç(Note

Storage Humidity Range:40 to 70% (Note 2)

Condition

Item

1. Insulation Resistance 1000M

ohms

min.

2. Withstanding voltage

No flashover or insulation breakdown.

3. Contact Resistance 15m

ohms

max.

4. Vibration

No electrical discontinuity of 1µs or more

Humidity (Steady state)

Insulation resistance: 1000M

ohms

min.

6. Temperature Cycle

No damage, cracks, or parts looseness.

7. Durability (Mating/un-mating) Contact resistance15m

ohms

max.

8. Resistance to

Soldering heat

500V DC

650V AC/1 minute

0.1A

Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.

96 hours at temperature of 40ç and humidity of 90% to 95%

(–55ç: 30 minutes

➝

15 to 35ç: 5 minutes max.

125ç: 30 minutes

➝

15 to 35ç: 5 minutes max.) 5 cycles

500 cycles

No deformation of components affecting performance.

Flow: 260ç for 10 seconds

Manual soldering: 300ç for 3 seconds

Note 1: Includes temperature rise caused by current flow.

Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature

Range and Humidity range covers non conducting condition of installed connectors in storage, shipment or during

transportation.

sMaterial

Part

Insulator

Contact

Material

PBT

Brass

Finish

Black

selective gold plating

Remarks

UL94V-0

---------------

sOrdering

Information

HIF3F

Series Name: HIF 3F

P A - 2.54 DS

Contact Pitch: 2.54mm

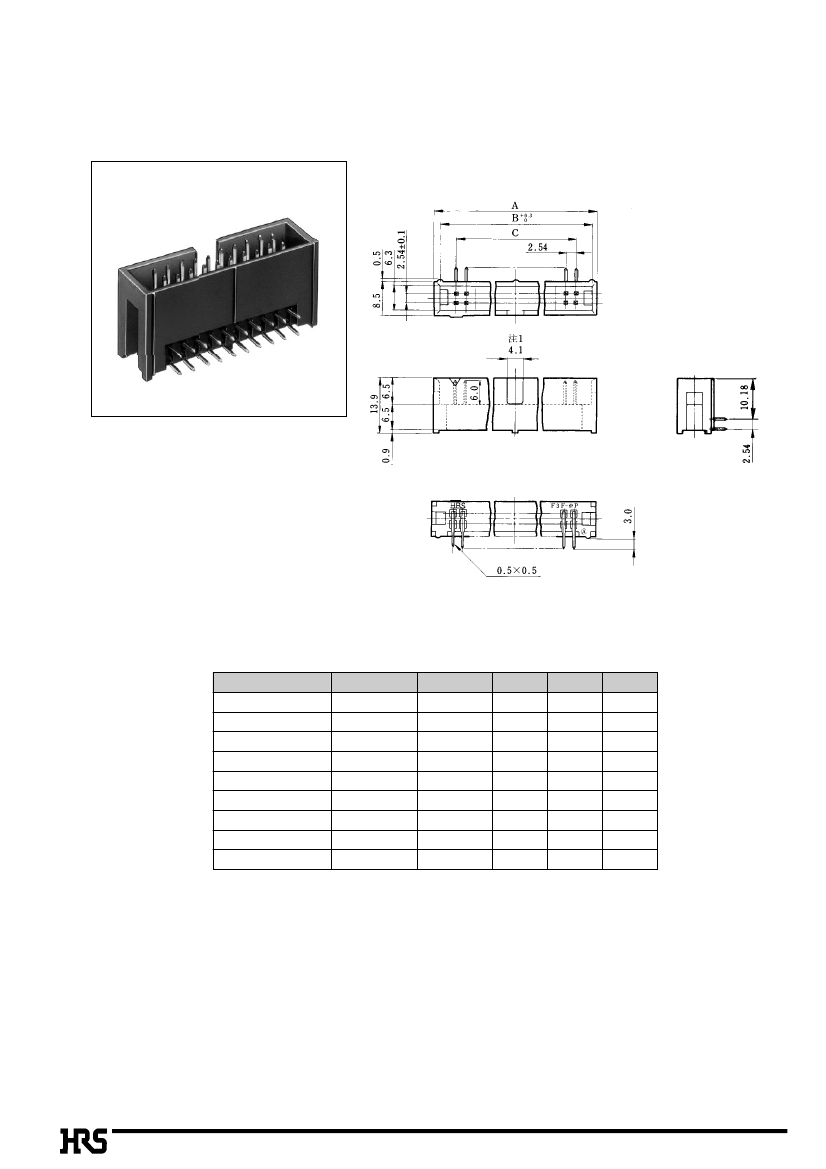

Terminal type DS: Right angle type

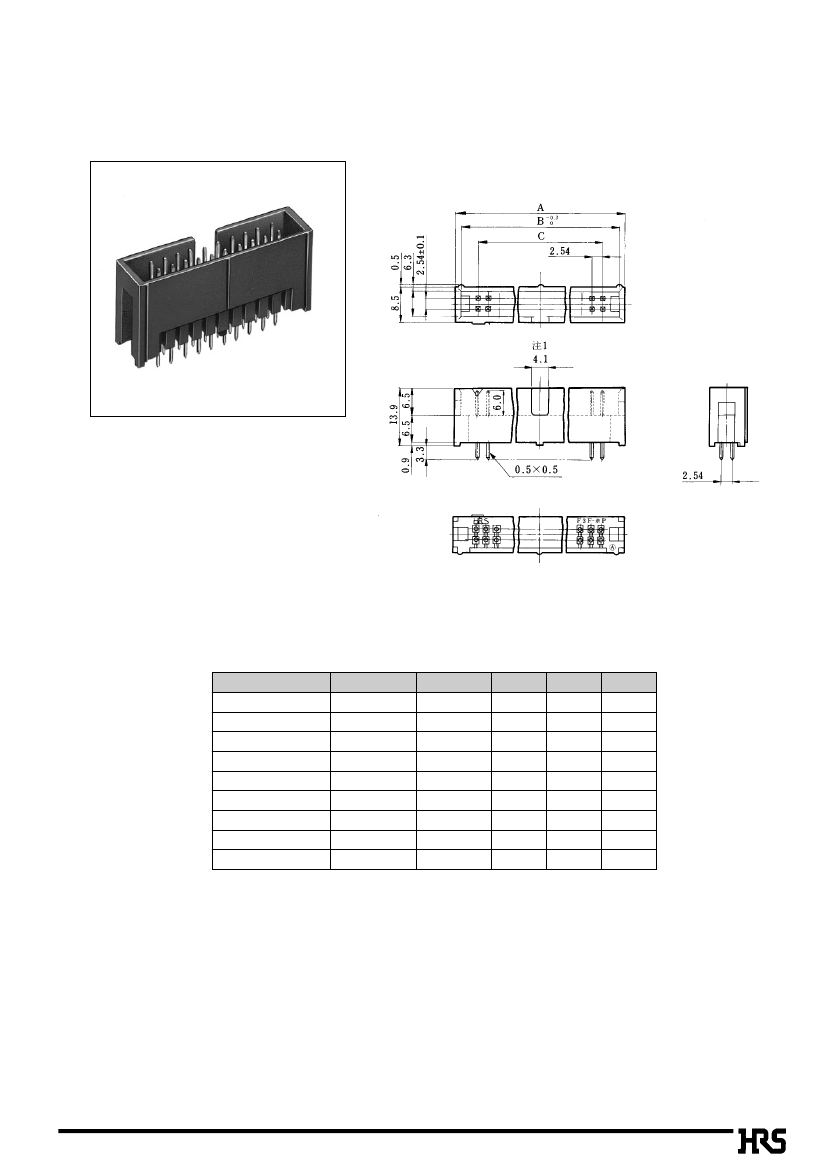

DSA: Straight type

Number of contacts: 10, 16, 20, 26, 30, 34, 40, 50, 60

P: Pin header

A: Selective gold plating

B50
