CT25-44S5-K222: DescriptionD Subminiature Connector, 44 Contact(s), Female, Solder Terminal,; CategoryThe connector The connector; File Size299KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

CT25-44S5-K222 Overview

D Subminiature Connector, 44 Contact(s), Female, Solder Terminal,

CT25-44S5-K222 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	CT25-44P5-L228
Mixed contacts	NO
Installation type	BOARD
Housing size	3/B
Termination type	SOLDER
Total number of contacts	44
Base Number Matches	1

Preview

Download Datasheet

View All

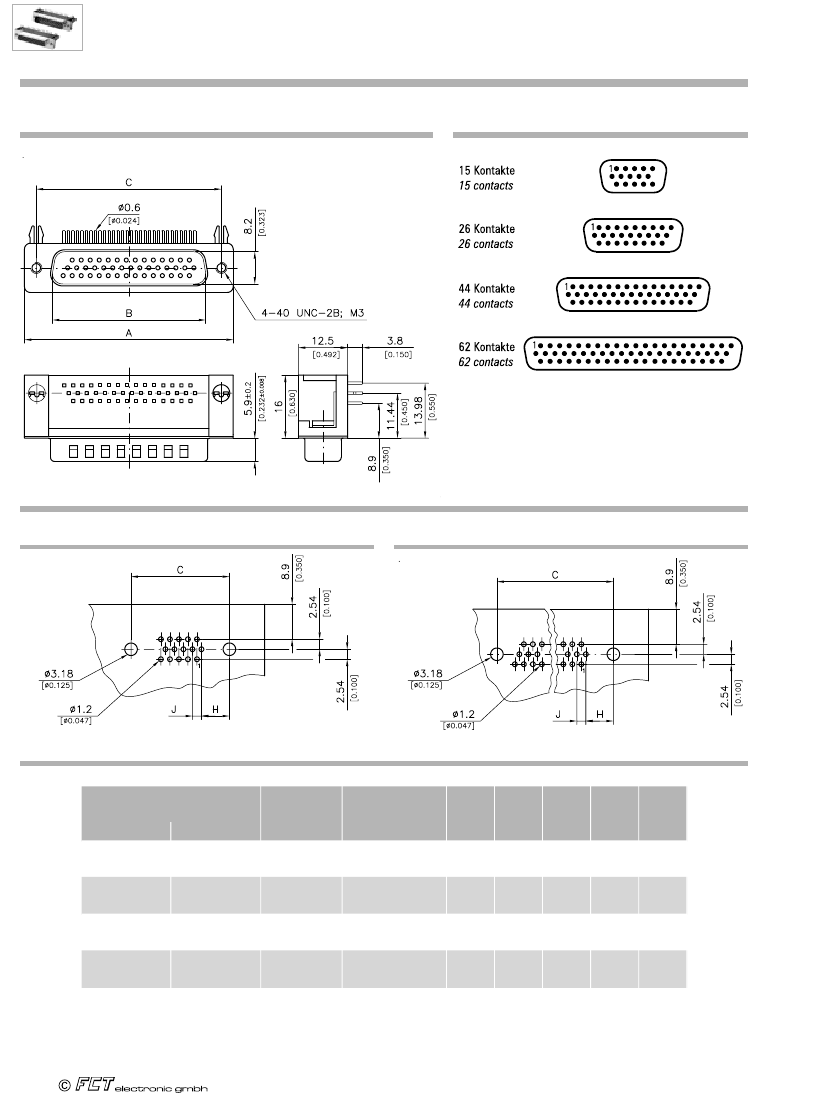

Stift: Abgewinkelter Leiterplattenanschluss

Pin: Right angled PCB termination

Abmessungen

Dimensions

Wahlweise mit 4-40 UNC-2B bzw.

M3 Gewindeniet im Steckerflansch

lieferbar.

Choice of 4-40 UNC-2B or M3 clinch

nut on connector flange available.

Gestanzte Kontakte

Stamped contacts

Stiftsteckverbinder, Frontansicht

Pin connector, front view

Leiterplattenlochbild (Bestückungsseite)

PCB hole pattern (mounting side)

Lochbild 15polig

Hole pattern 15 contacts

Lochbild 26, 44 und 62polig

Hole pattern 26, 44 and 62 contacts

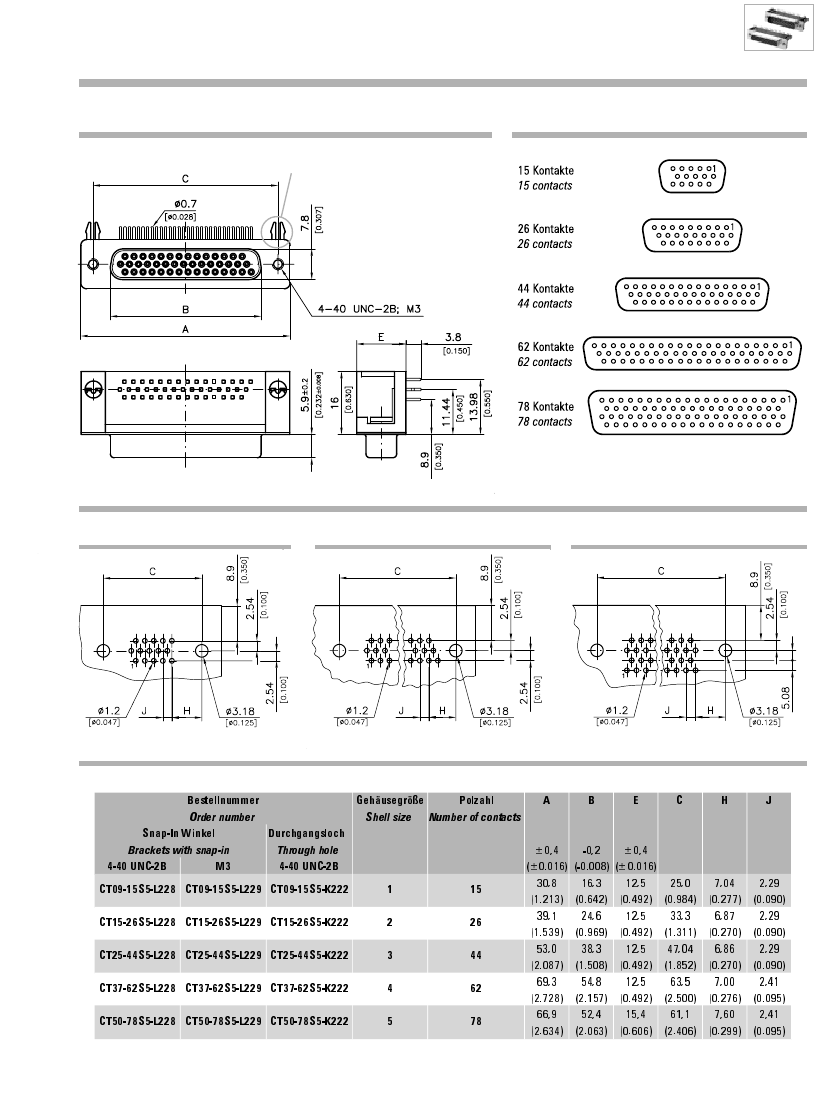

Abmessungen

Dimensions

%HVWHOOQXPPHU

2UGHU QXPEHU

81&%

&73/ &73/

*HKlXVHJU|H

3RO]DKO

6KHOO VL]H 1XPEHU RI FRQWDFWV

TECHNISCHE ÄNDERUNGEN VORBEHALTEN - MAßE IN MILLIMETER (INCHES IN KLAMMERN)
