752161102JPTR7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> 752161102JPTR7

752161102JPTR7: DescriptionRES NET,NON-SPECIFIED,1K OHMS,25WV,5% +/-TOL,-200,200PPM TC,4710 CASE; CategoryPassive components The resistor; File Size208KB，6 Pages; ManufacturerCTS; Environmental Compliance

Download Datasheet Parametric View All

752161102JPTR7 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	752161102JPTR7	-	-	View	Buy Now

752161102JPTR7 Overview

RES NET,NON-SPECIFIED,1K OHMS,25WV,5% +/-TOL,-200,200PPM TC,4710 CASE

752161102JPTR7 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	CTS
package instruction	SMT, 4710
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Rectangular
JESD-609 code	e3
Manufacturer's serial number	752(DRT,BUSSED)
Network Type	Bussed
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	2.41 mm
Package length	11.81 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	2.03 mm
method of packing	TR, 7 Inch
Rated power dissipation(P)	0.12 W
resistance	1000 Ω
Resistor type	ARRAY/NETWORK RESISTOR
series	752
size code	4710
Temperature Coefficient	-200,200 ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Tolerance	5%
Operating Voltage	25 V
Base Number Matches	1

Preview

Download Datasheet

View All

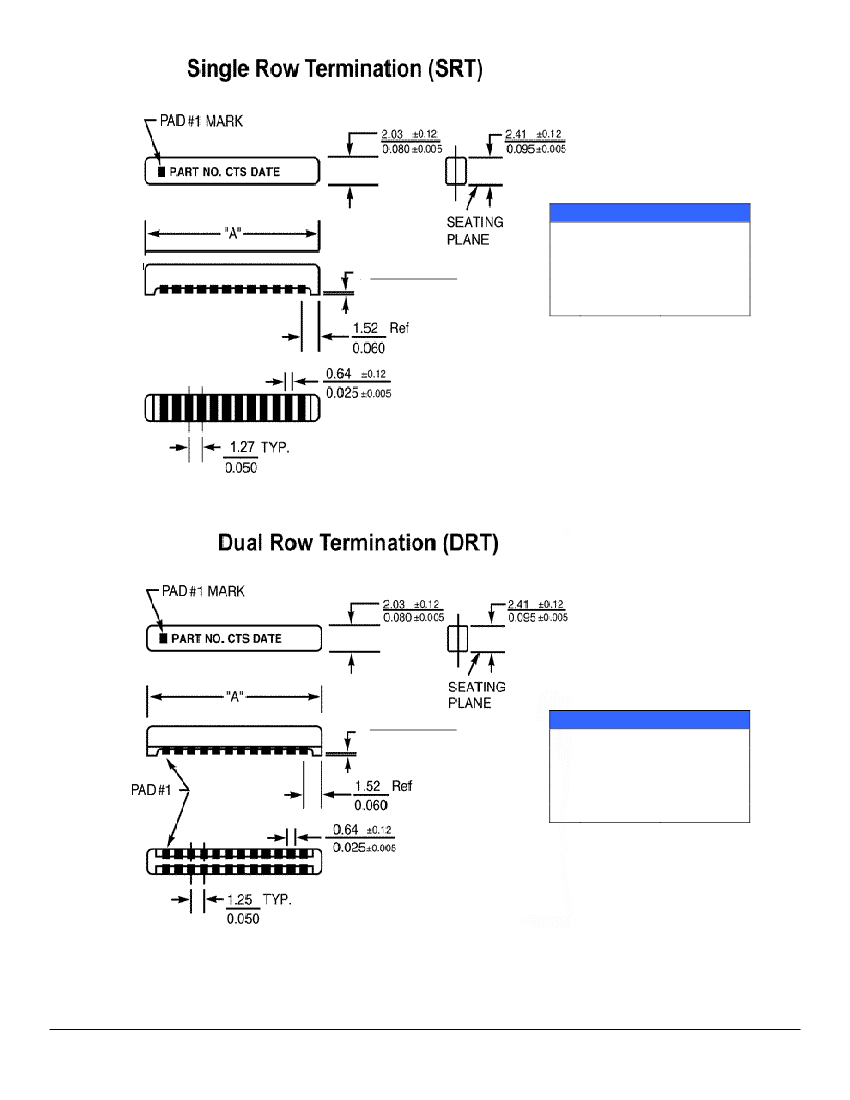

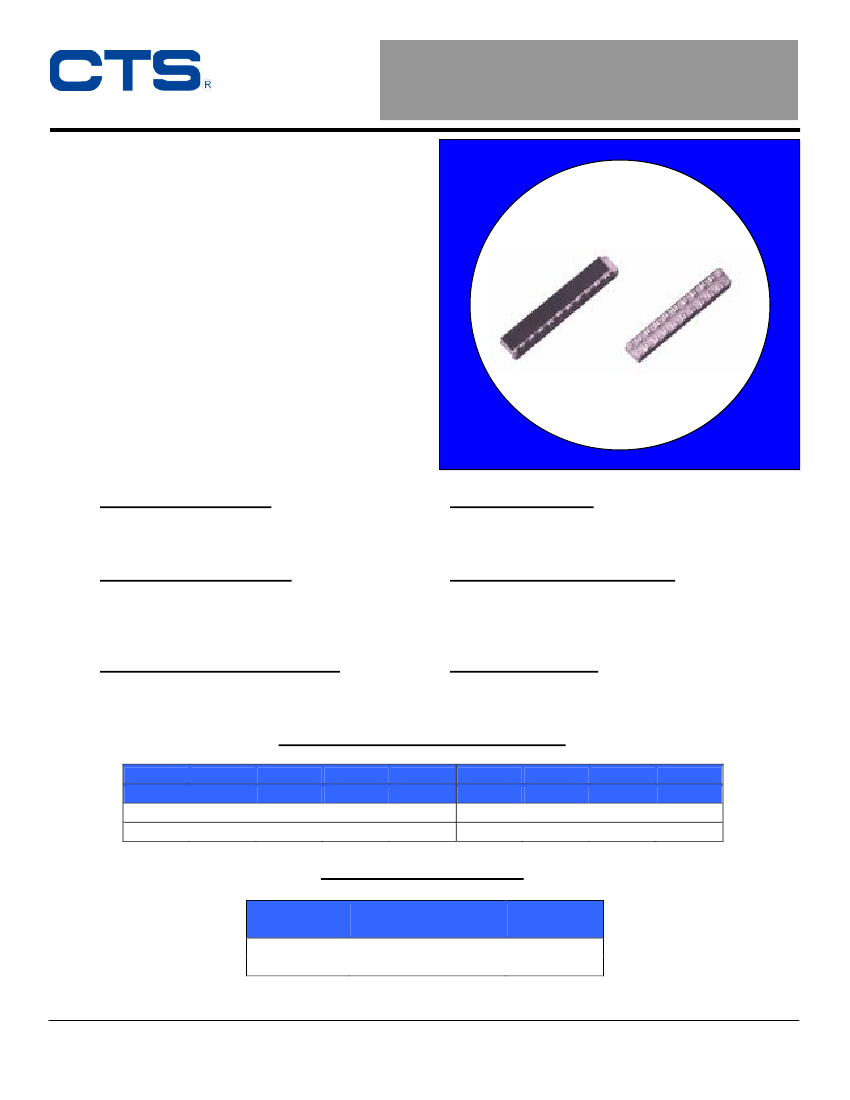

Leadless Surface Mount Series 752

Technical

Data

Features

•

High Density Packaging

Low profile

Inputs/Outputs Available:

Single Row Terminations (SRT) – 8, 9, 10, 12

Dual Row Terminations (DRT) – 16, 18, 20, 24

Nickel Barrier Solder-Coated Pads

Designed For Visual Inspection of Solder Joints

Designed For Board Cleaning

Tape & Reel Packaging

Application Specific Circuits Are Available

Compatible With Reflow Solder Process

RoHS Compliant

Resistance Tolerance:

Standard: ±2% or 0.5Ω (whichever is greater)

Special: ±1% or 0.3Ω (whichever is greater)

Resistance Range:

Standard: 10Ω to 1 MegΩ

Temperature Coefficient:

Standard: ±200PPM/°C

Special: ±100PPM/°C

(33Ω to 1 MegΩ)

Maximum Operating Voltage:

25V not to exceed rated power

Operating Temperature Range:

-55°C to + 125°C

Dielectric Strength:

00 VAC

Power Rating (Total Network Power):

Number of inputs/outputs (watts)

SRT

DRT

@25°C

@70°C

1.2

0.8

1.3

0.85

1.4

0.9

1.7

1.1

1.4

0.9

1.5

0.95

1.6

1.3

Maximum Resistor Power:

(Not to Exceed Total Network Power)

Bussed & Dual

Terminator Schematic

0.12w

0.08w

Isolated

Schematic

0.24w

0.16w

January 2007

@25°C

@70°C

1 of 6

CTS Electronic Components

www.ctscorp.com
