DM54LS08J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> DM54LS08J

DM54LS08J: DescriptionAND Gate, LS Series, 4-Func, 2-Input, TTL, CDIP14, CERAMIC, DIP-14; Categorylogic logic; File Size121KB，6 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

DM54LS08J Overview

AND Gate, LS Series, 4-Func, 2-Input, TTL, CDIP14, CERAMIC, DIP-14

DM54LS08J Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	DIP, DIP14,.3
Contacts	14
Reach Compliance Code	unknown
series	LS
JESD-30 code	R-GDIP-T14
JESD-609 code	e0
length	19.43 mm
Logic integrated circuit type	AND GATE
MaximumI(ol)	0.004 A
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	8.8 mA
Prop。Delay @ Nom-Sup	18 ns
propagation delay (tpd)	18 ns
Certification status	Not Qualified
Schmitt trigger	NO
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1

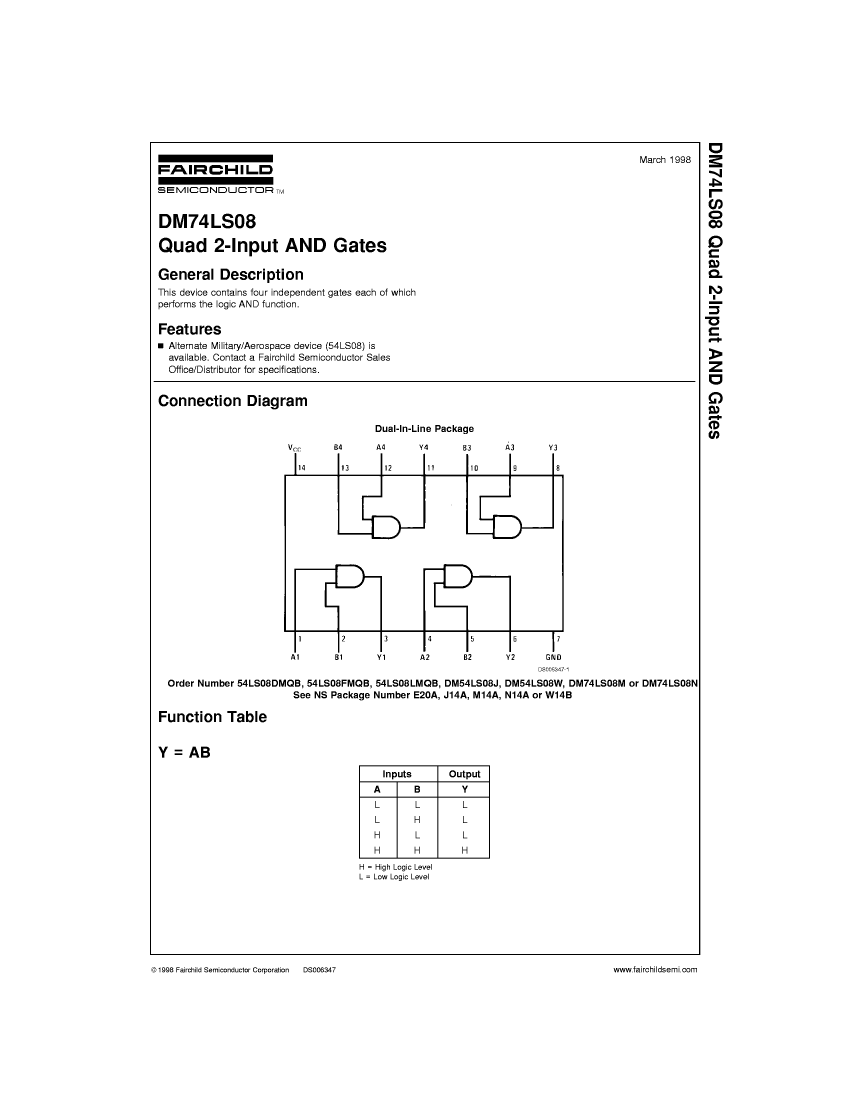

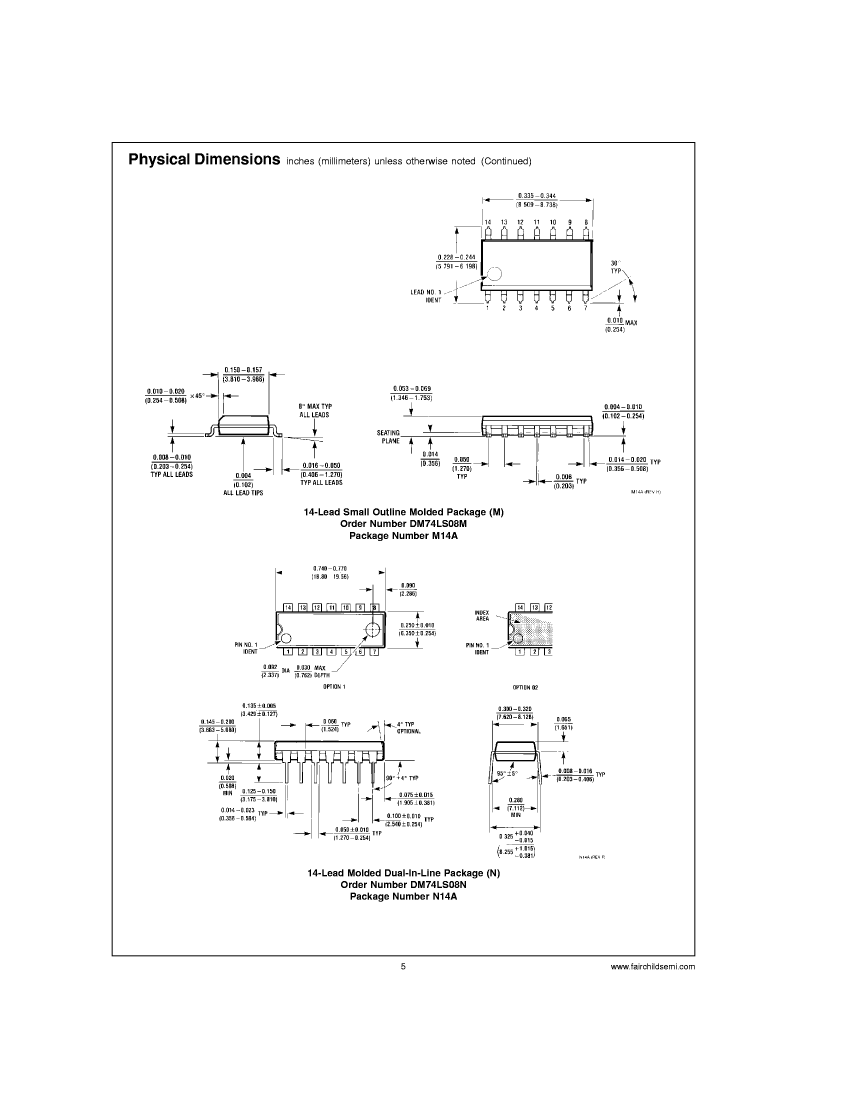

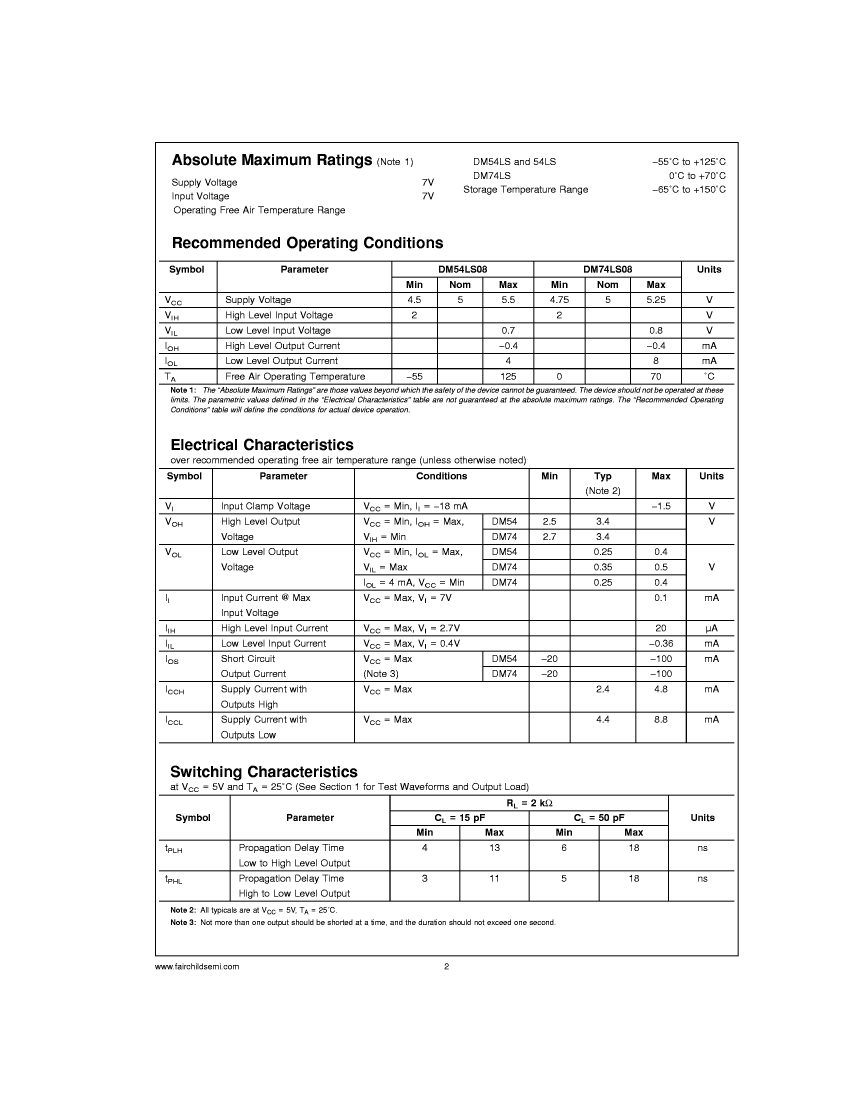

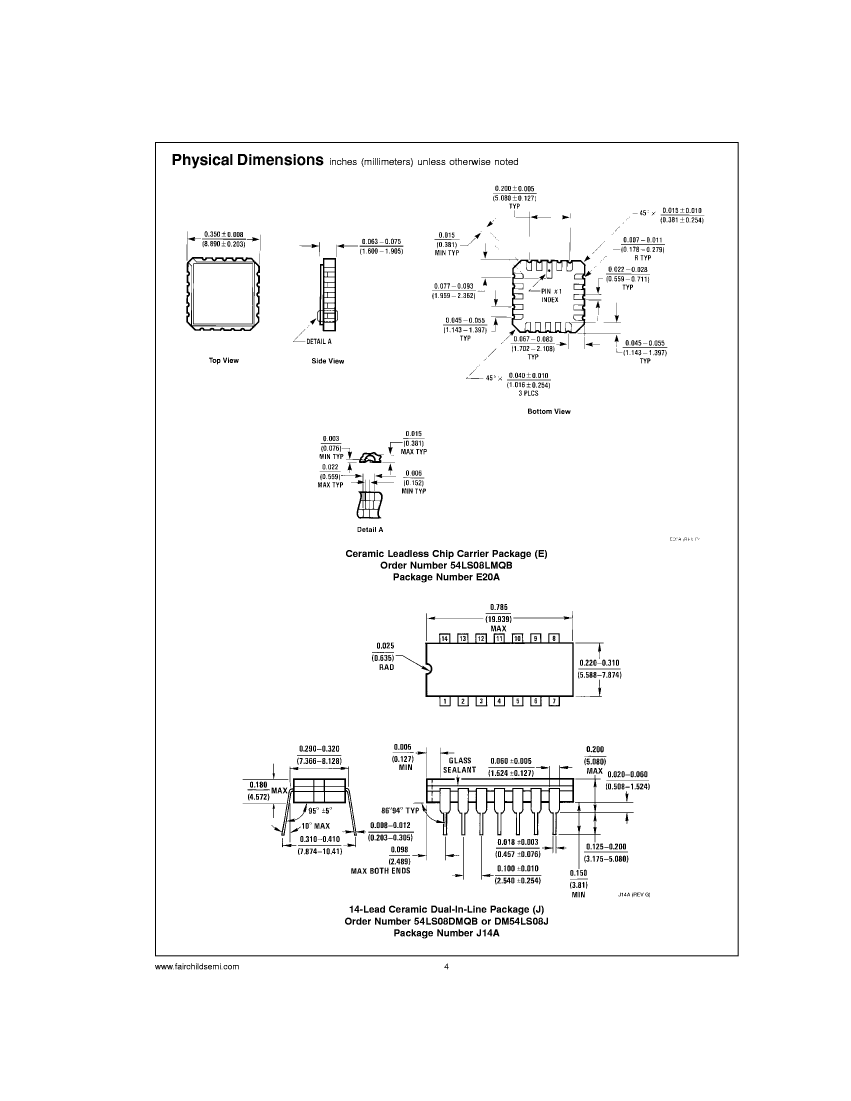

Preview

Download Datasheet

View All

DM54LS08J Related Products

	DM54LS08J	54LS08DMQB	54LS08FMQB	54LS08LMQB	DM54LS08W
Description	AND Gate, LS Series, 4-Func, 2-Input, TTL, CDIP14, CERAMIC, DIP-14	AND Gate, LS Series, 4-Func, 2-Input, TTL, CDIP14, CERAMIC, DIP-14	AND Gate, LS Series, 4-Func, 2-Input, TTL, CDFP14, CERAMIC, FP-14	AND Gate, LS Series, 4-Func, 2-Input, TTL, CQCC20, CERAMIC, LCC-20	AND Gate, LS Series, 4-Func, 2-Input, TTL, CDFP14, CERAMIC, FP-14
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	DIP	DIP	DFP	QLCC	DFP
package instruction	DIP, DIP14,.3	CERAMIC, DIP-14	CERAMIC, FP-14	CERAMIC, LCC-20	CERAMIC, FP-14
Contacts	14	14	14	20	14
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
series	LS	LS	LS	LS	LS
JESD-30 code	R-GDIP-T14	R-GDIP-T14	R-GDFP-F14	S-CQCC-N20	R-GDFP-F14
JESD-609 code	e0	e0	e0	e0	e0
Logic integrated circuit type	AND GATE	AND GATE	AND GATE	AND GATE	AND GATE
MaximumI(ol)	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A
Number of functions	4	4	4	4	4
Number of entries	2	2	2	2	2
Number of terminals	14	14	14	20	14
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP	DFP	QCCN	DFP
Encapsulate equivalent code	DIP14,.3	DIP14,.3	FL14,.3	LCC20,.35SQ	FL14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR
Package form	IN-LINE	IN-LINE	FLATPACK	CHIP CARRIER	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V	5 V
Maximum supply current (ICC)	8.8 mA	8.8 mA	8.8 mA	8.8 mA	8.8 mA
Prop。Delay @ Nom-Sup	18 ns	18 ns	18 ns	18 ns	18 ns
propagation delay (tpd)	18 ns	18 ns	18 ns	18 ns	18 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Schmitt trigger	NO	NO	NO	NO	NO
Maximum seat height	5.08 mm	5.08 mm	2.032 mm	1.905 mm	2.032 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	YES	YES
technology	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	FLAT	NO LEAD	FLAT
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	QUAD	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	7.62 mm	6.2865 mm	8.89 mm	6.2865 mm
Base Number Matches	1	1	1	1	1
length	19.43 mm	19.43 mm	-	8.89 mm	-
Maker	-	Fairchild	Fairchild	Fairchild	Fairchild
Filter level	-	MIL-STD-883 Class B	MIL-STD-883 Class B	MIL-STD-883 Class B	-
