25CTQ035-006PBF datasheet, PDF

Datasheet> All Categories > Discrete semiconductor> diode> 25CTQ035-006PBF

25CTQ035-006PBF: DescriptionRectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 35V V(RRM), Silicon; CategoryDiscrete semiconductor diode; File Size124KB，4 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

25CTQ035-006PBF Overview

Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 35V V(RRM), Silicon

25CTQ035-006PBF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	International Rectifier （ Infineon ）
package instruction	R-PSFM-T3
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	FREE WHEELING DIODE
application	GENERAL PURPOSE
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.71 V
JESD-30 code	R-PSFM-T3
JESD-609 code	e3
Maximum non-repetitive peak forward current	990 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	15 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	250
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	35 V
Maximum reverse current	1750 µA
surface mount	NO
technology	SCHOTTKY
Terminal surface	MATTE TIN OVER NICKEL
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	30
Base Number Matches	1

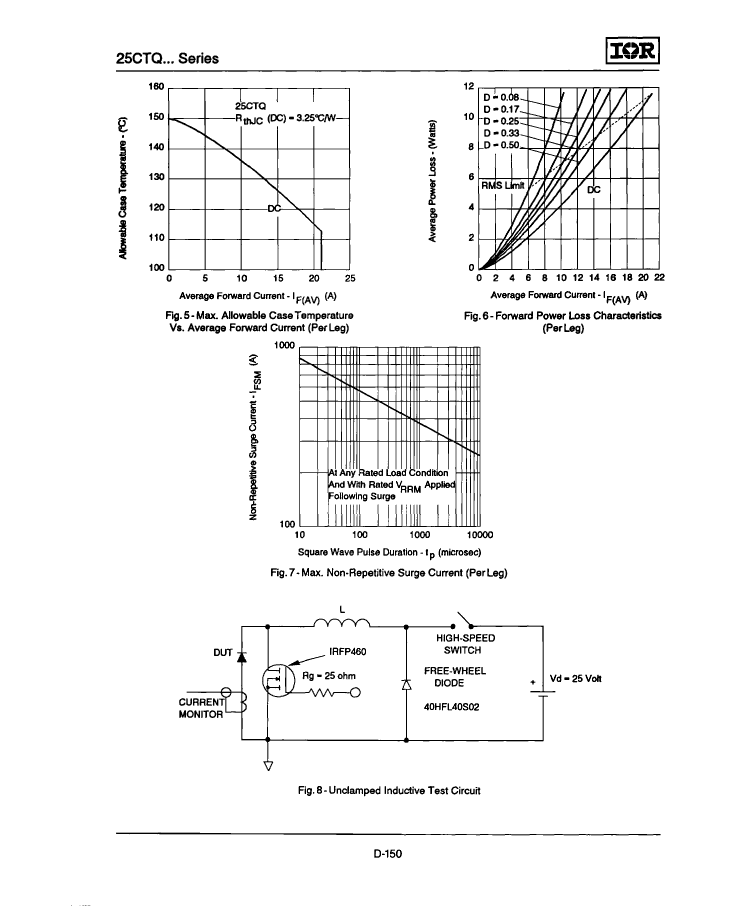

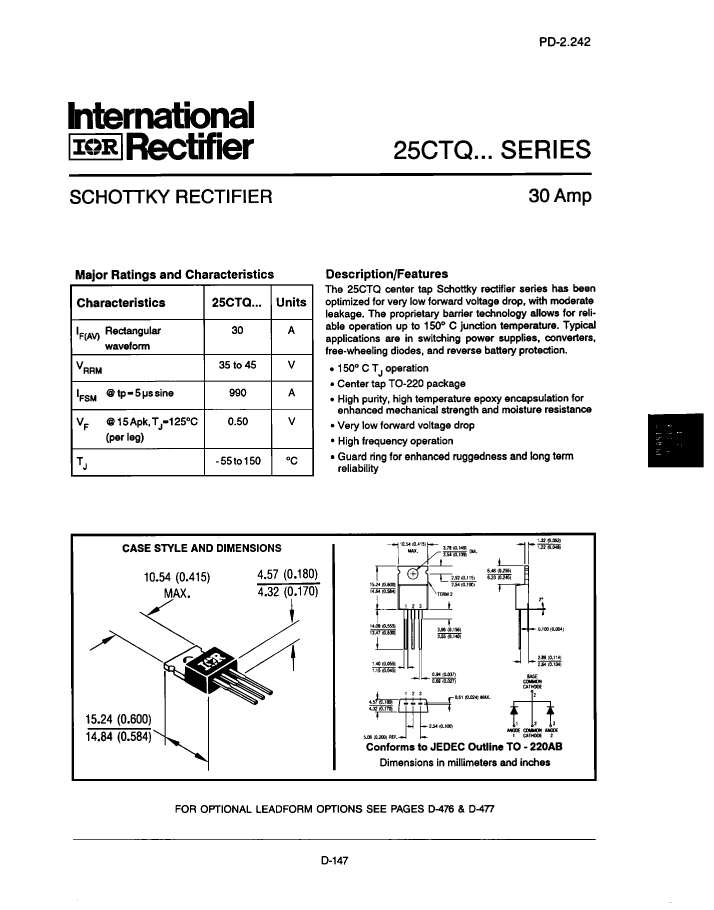

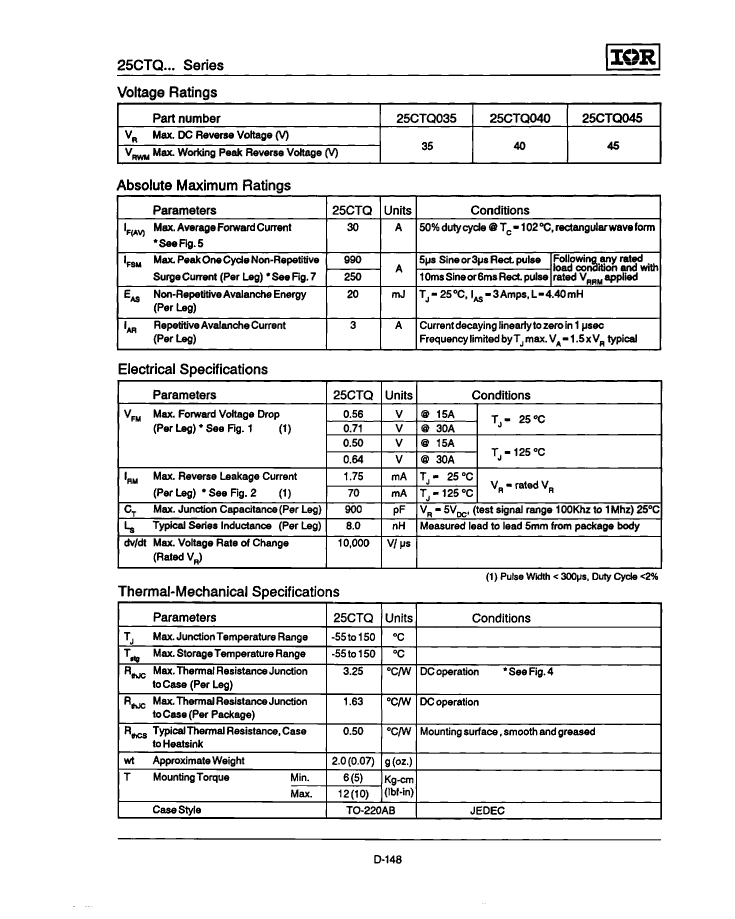

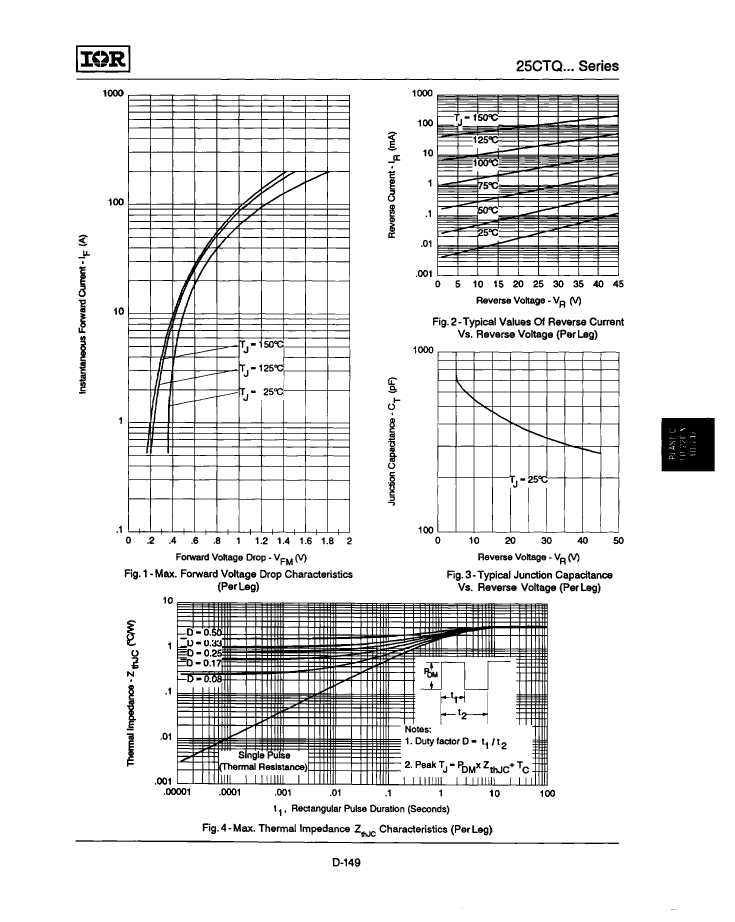

Preview

Download Datasheet

View All

25CTQ035-006PBF Related Products

	25CTQ035-006PBF	25CTQ035-006	25CTQ045-006PBF	25CTQ040-006PBF	25CTQ040-006	25CTQ045-006
Description	Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 35V V(RRM), Silicon	Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 35V V(RRM), Silicon	Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 45V V(RRM), Silicon	Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 40V V(RRM), Silicon	Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 40V V(RRM), Silicon	Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 45V V(RRM), Silicon
Is it Rohs certified?	conform to	incompatible	conform to	conform to	incompatible	incompatible
Maker	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）
package instruction	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	FREE WHEELING DIODE	FREE WHEELING DIODE	FREE WHEELING DIODE	FREE WHEELING DIODE	FREE WHEELING DIODE	FREE WHEELING DIODE
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.71 V	0.71 V	0.71 V	0.71 V	0.71 V	0.71 V
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
JESD-609 code	e3	e0	e3	e3	e0	e0
Maximum non-repetitive peak forward current	990 A	990 A	990 A	990 A	990 A	990 A
Number of components	2	2	2	2	2	2
Phase	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current	15 A	15 A	15 A	15 A	15 A	15 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	250	225	260	260	225	225
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	35 V	35 V	45 V	40 V	40 V	45 V
Maximum reverse current	1750 µA	1750 µA	1750 µA	1750 µA	1750 µA	1750 µA
surface mount	NO	NO	NO	NO	NO	NO
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal surface	MATTE TIN OVER NICKEL	TIN LEAD	MATTE TIN OVER NICKEL	MATTE TIN OVER NICKEL	TIN LEAD	TIN LEAD
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	30	30	40	40	30	30
Is it lead-free?	Lead free	-	Lead free	Lead free	Contains lead	Contains lead
Base Number Matches	1	1	1	1	-	-
