MC74HC1G32 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> logic> MC74HC1G32

MC74HC1G32: DescriptionHC/UH SERIES, 2-INPUT OR GATE, PDSO5; Categorysemiconductor logic; File Size75KB，6 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn

Download Datasheet Parametric View All

MC74HC1G32 Overview

HC/UH SERIES, 2-INPUT OR GATE, PDSO5

MC74HC1G32 Parametric

Parameter Name	Attribute value
Number of functions	1
Number of terminals	5
Maximum operating temperature	125 Cel
Minimum operating temperature	-55 Cel
Maximum supply/operating voltage	6 V
Minimum supply/operating voltage	2 V
Rated supply voltage	3 V
Processing package description	SC-70, SC-88A, SOT-353, 5 PIN
state	DISCONTINUED
Craftsmanship	CMOS
packaging shape	Rectangle
Package Size	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
surface mount	Yes
Terminal form	GULL WING
Terminal spacing	0.6500 mm
terminal coating	tin lead
Terminal location	pair
Packaging Materials	Plastic/Epoxy
Temperature level	MILITARY
series	HC/UH
Logic IC type	or
Number of inputs	2
propagation delay TPD	155 ns

Preview

Download Datasheet

View All

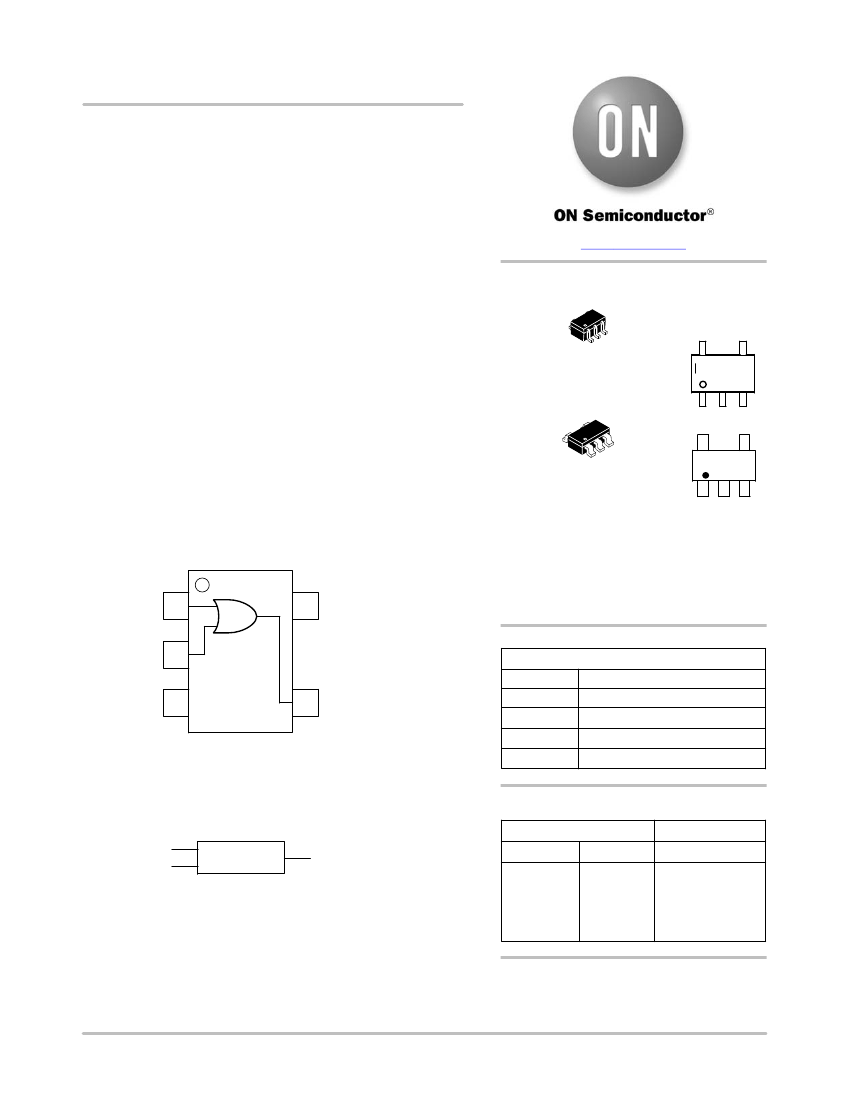

MC74HC1G32

Single 2-Input OR Gate

The MC74HC1G32 is a high speed CMOS 2−input OR gate

fabricated with silicon gate CMOS technology.

The internal circuit is composed of multiple stages, including a

buffer output which provides high noise immunity and stable output.

The MC74HC1G32 output drive current is 1/2 compared to

MC74HC series.

Features

www.onsemi.com

MARKING

DIAGRAMS

•

High Speed: t

= 7 ns (Typ) at V

= 5 V

Low Power Dissipation: I

= 1

(Max) at T

= 25°C

High Noise Immunity

Balanced Propagation Delays (t

pLH

= t

pHL

)

Symmetrical Output Impedance (I

= I

= 2 mA)

Chip Complexity: FET = 44

NLV Prefix for Automotive and Other Applications Requiring

Unique Site and Control Change Requirements; AEC−Q100

Qualified and PPAP Capable

•

These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS

Compliant

SC−88A / SOT−353 / SC−70

DF SUFFIX

CASE 419A

TSOP−5 / SOT−23 / SC−59

DT SUFFIX

CASE 483

H4 M

IN B

H4 = Device Code

= Date Code*

= Pb−Free Package

(Note: Microdot may be in either location)

*Date Code orientation and/or position may vary

depending upon manufacturing location.

IN A

PIN ASSIGNMENT

IN B

IN A

GND

OUT Y

GND

OUT Y

Figure 1. Pinout

FUNCTION TABLE

Inputs

IN A

IN B

≥

OUT Y

Output

Figure 2. Logic Symbol

ORDERING INFORMATION

See detailed ordering and shipping information in the package

dimensions section on page 4 of this data sheet.

Semiconductor Components Industries, LLC, 2016

February, 2016 − Rev. 14

Publication Order Number:

MC74HC1G32/D
