BSE-120-01-L-D-EM2 datasheet, PDF

Datasheet> All Categories > The connector> The connector> BSE-120-01-L-D-EM2

BSE-120-01-L-D-EM2: DescriptionBoard Stacking Connector, 240 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal, Socket,; CategoryThe connector The connector; File Size269KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

BSE-120-01-L-D-EM2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BSE-120-01-L-D-EM2	-	-	View	Buy Now

BSE-120-01-L-D-EM2 Overview

Board Stacking Connector, 240 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal, Socket,

BSE-120-01-L-D-EM2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	2 weeks
Body/casing type	SOCKET
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	BSE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.8 mm
Termination type	SURFACE MOUNT
Total number of contacts	240
Base Number Matches	1

Preview

Download Datasheet

View All

REVISION M

DO NOT

SCALE FROM

THIS PRINT

.0995 2.526 REF

(No OF POSITIONS x .0315[.800]) + .5975[15.177] REF

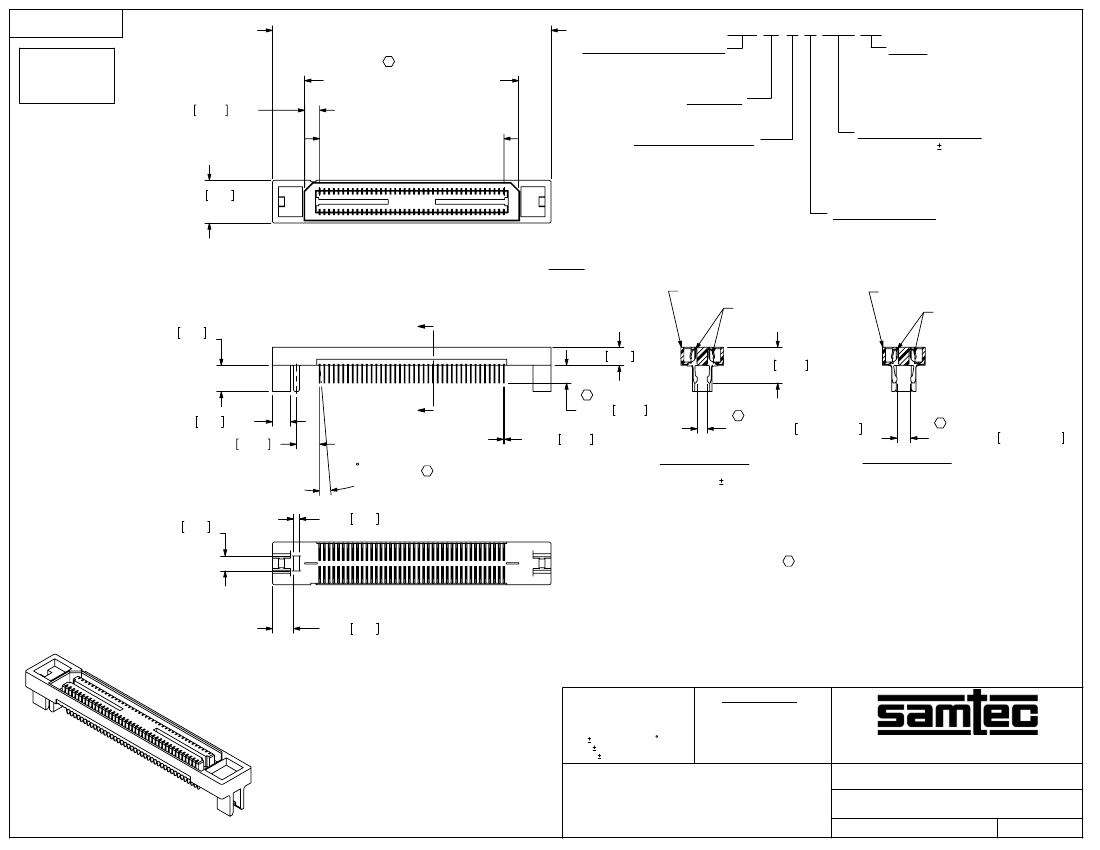

BSE-XXX-01-X-D-EMX-XX

No OF POSITIONS (PER ROW)

-020, -040, -060

** -080, **-100, **-120

LEAD STYLE

-01

PLATING SPECIFICATION

-L: LIGHT SELECTIVE GOLD WITH

MATTE TIN TAILS

(USE C-162-XX-L)

-F: FLASH SELECTIVE GOLD WITH

MATTE TIN TAILS

(USE C-162-XX-F)

-H: HEAVY GOLD

(USE C-162-XX-H)

OPTION

-GP: GUIDE POST (60 POS MAX)

(USE BSE-XXX-01-EM2-GP)

[SEE SHEET 2, FIG. 2 -

AVAILABLE ONLY ON -EM2]

EDGE MOUNT THICKNESS

-EM2: .064[1.63] .004 PCB

(USE BSE-XXX-01-D-EM2 & C-162-01-X)

-EM3:

(USE BSE-XXX-01-D-EM3

& C-162-02-X)

(No OF POSITIONS x .0315[.800])

+.1675[4.255] REF

(No OF POSITIONS -1) x .0315[.800]

.285 7.24

REF

SEE NOTE 6

ROW SPECIFICATION

-D: DOUBLE (USE BSE-XXX-01-D-EMX)

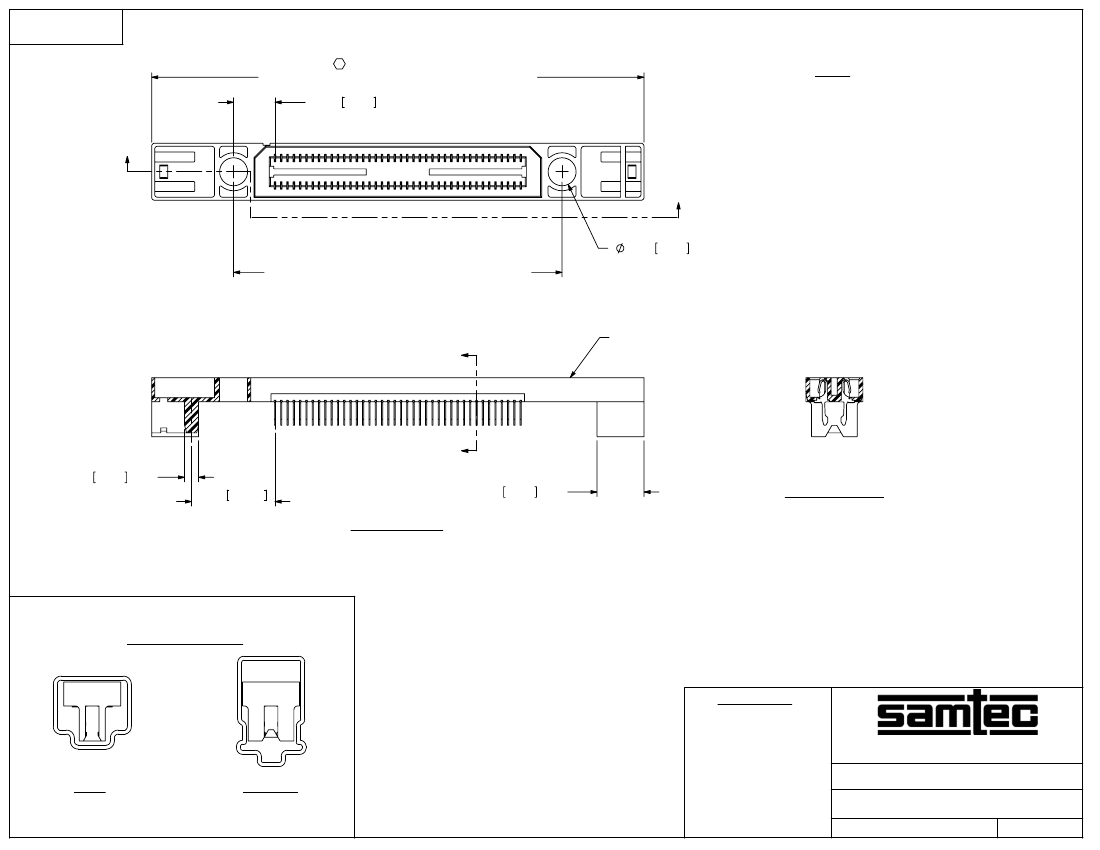

BSE-040-01-X-D-EM2 SHOWN

BSE-XXX-01-D-EM2

C-162-01-X

.175 4.45

REF

BSE-XXX-01-D-EM3

C-162-02-X

FIG. 1

**SEE NOTE 7

"A"

.120 3.05 REF

.2380 6.045

.120 3.05 REF

.1545 3.923

"A"

.1180 2.997

.0060 0.152 REF

.0660±.0030 1.676±0.076

.0920±.0030 2.338±0.076

2 MAX SWAY

(TYP)

.040 1.02 REF

EDGE MOUNT THICKNESS

-EM2: .064[1.63] .004 PCB

SECTION "A-A"

.100 2.54

REF

EDGE MOUNT THICKNESS

-EM3:

SEE NOTE 6

(DIFFERENT AS SHOWN, OTHERWISE

SAME AS -EM2 PCB THICKNESS)

SECTION "A-A"

NOTES:

REPRESENTS A CRITICAL DIMENSION.

2. CONTACT RETENTION: 4 OZ MIN.

3. DELETED.

4. PARTS ARE "MOLD TO POSITION".

5. MAX VARIANCE OF .002.

6. -EM3 IS NOT A STANDARD OFFERING;

AVAILABLE AS AN ASP ONLY. PLEASE CONTACT

SAMTEC INTERCONNECT PROCESSING GROUP

WITH ORDER INQUIRIES.

7. FOR NEWAPPLICATIONS REQUIRING THESE POSITIONS

PLEASE CONTACT SAMTEC INTERCONNNECT PROCESSING

GROUP.

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN INCHES.

TOLERANCES ARE:

DECIMALS

.140 3.56 REF

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

.XX: .01[.3]

.XXX: .005[.13]

.XXXX: .0020[.051]

ANGLES

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail: info@SAMTEC.com

code: 55322

DESCRIPTION:

DWG. NO.

MATERIAL:

DO NOT SCALE DRAWING

SHEET SCALE: 1.5:1

INSULATOR: VECTRA E130i, COLOR: BLACK

CONTACT: PHOS BRONZE, 510 SPRING TEMPER

THICKNESS: .0060

F:\DWG\MISC\MKTG\BSE-XXX-01-X-D-EMX-XX-MKT.SLDDRW

.8mm EDGE MOUNT MI SOCKET ASSEMBLY

BSE-XXX-01-X-D-EMX-XX

5/25/2000

SHEET

BY:

DEAN P
