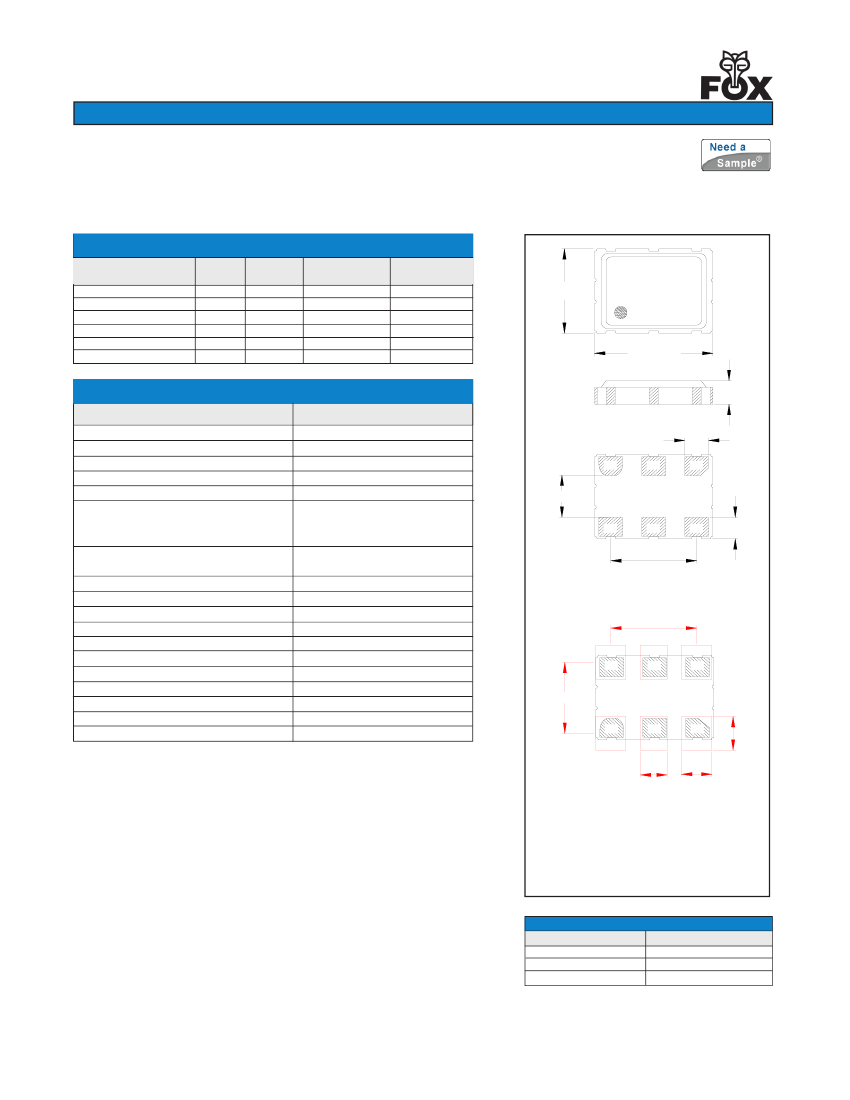

3.3V HCSL oscillator
Model: F730SL SERIES
Page 1 of 2
RoHS Compliant / REACH Compliant
Rev. 2/11/2013
http://www.foxonline.com/need_a_sample.htm
FEATURES
• HCL Differential Output
• Low Phase Jitter (under 1pS RMS 12kHz~ 20MHz)
• Tape and Reel
(2,000 pcs. STD)
• PART nUMbER SELECTIon
Part Number
843-Frequency-xxxxx
843A-Frequency-xxxxx
843B-Frequency-xxxxx
843C-Frequency-xxxxx
843D-Frequency-xxxxx
843E-Frequency-xxxxx
Model
Number
F730SL
F730SLR
F735SL
F73SLR
F736SL
F736SLR
Frequency
Operating
Stability
1
Temperature (ºC)
±100PPM
0 ~ +70
-40 ~ +85
±100PPM
0 ~ +70
±50PPM
±50PPM
-40 ~ +85
±25PPM
0 ~ +70
±25PPM
-40 ~ +85
Frequency
Range (MHz)
15.000 ~ 160.000
15.000 ~ 160.000
15.000 ~ 160.000
15.000 ~ 160.000
15.000 ~ 160.000
15.000 ~ 160.000
5.1 Max
T OP
M a rk ing
7.1 Max
1.40
• ELECTRICAL CHARACTERISTICS
PARAMETERS
Frequency Range (F
o
)
Storage Temperature Range (T
stg
)
Supply Voltage
(V
dd
)
Input Current
(I
dd
)
Output Symmetry (Cross Point)
Rise/Fall Time (0.175 ~ 0.525V)
15.000 ~ 99.999999 MHz
100.000 ~ 160.000 MHz
Output Voltage
(V
ol
)
(V
oh
)
Output Swing
(V
opp
)
Output Load
Standby Current
Start-up Time
(T
s
)
Output Disable Time
2
Output Enable Time
2
Aging (per year @ 25ºC)
Phase Jitter (12kHz ~ 20MHz)
Maximum Soldering Temp / Time
Moisture Sensitivity Level (MSL)
Termination Finish
1
2
MAX
(unless otherwise noted)
15.000 ~ 160.000 MHz
-55ºC ~ +125ºC
3.3V ± 5%
40mA
45% ~ 55%
1.0nS
0.7nS
-0.15
~ 0.15V
0.66 ~ 0.85V
0.65V Min
50 Ohms to GND
10µA
10µA
200nS
10mS
±3 PPM
1 pS RMS
260ºC / 10 Seconds
1
Au
1.4
#1
#2
#3
2.46
#6
#5
#4
1.27
5.08
R e c om m e nde d
S o ld e r P a d L a y o u t
5.08
#6
#5
#4
4.2
#1
T O P V ie w
#2
#3
2
Inclusive of 25ºC tolerance, operating temperature range.
An internal pullup resistor from pin 1 to pin 6 allows active output if pin 1 is left open.
Note: A 0.01µF capacitor should be placed between V
dd
(Pin 6) and GND (Pin3) to minimize
power supply noise.
Drawing is for reference to critical specifications defined by size measurements.
Certain non-critical visual attributes, such as side castellations, reference pin shape, etc. may
vary. All specifications subject to change without notice.
1.6
1.8
P i n C o n n e c t io n s
#1 E/D
#2 n.C.
#3 GnD
#4 output_1
#5 output_2
#6 V
DD
All dimensions are in millimeters.

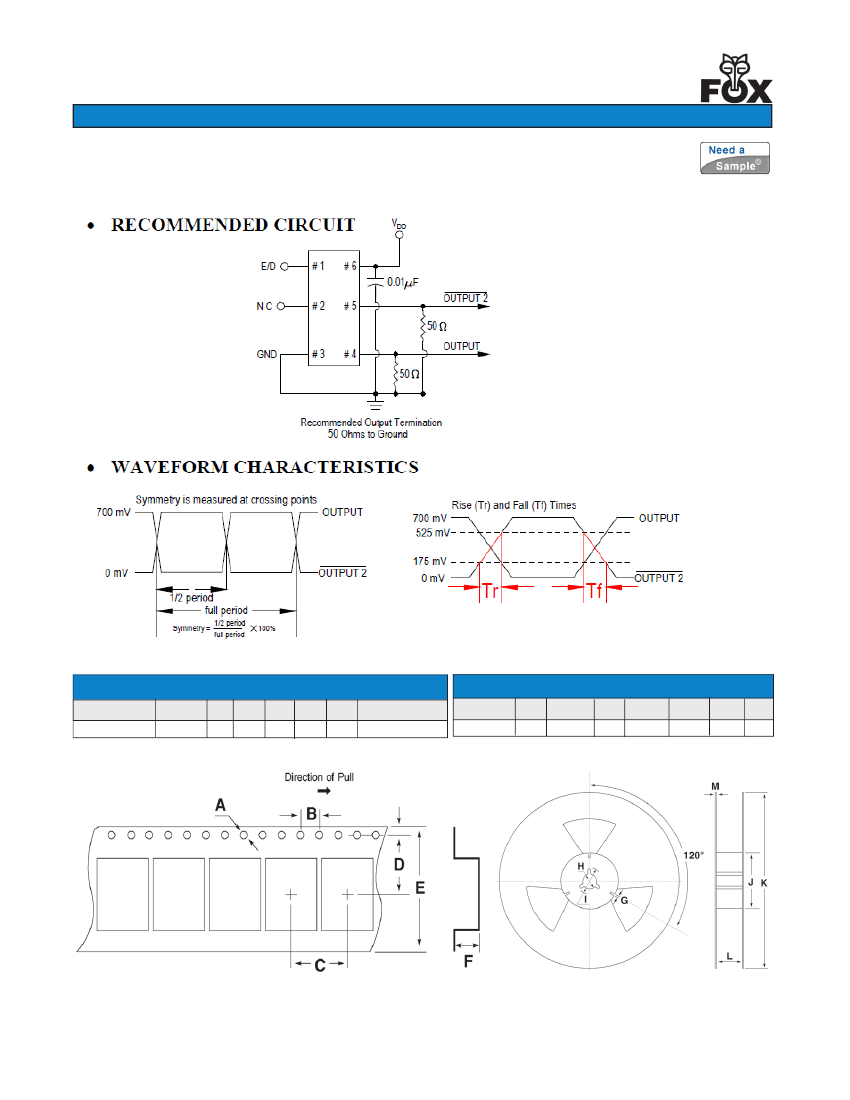

• EnAbLE / DISAbLE FUnCTIon
OUTPUT
(Pin 4, Pin 5)
(Pin 1)
2
ACTIVE
OPEN
ACTIVE
'1' Level V
ih
≥
70% V
dd
High Z
'0' Level V
il
≤
30% V
dd
FOXElectronics 5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554 www.foxonline.com
EMEA Tel: +44 .1283.568153 | Canada +1.888.438.2369 | Asia Hong Kong Tel: +852.2854.4285 | Japan Tel: +81.3.3374.2079
© 2013 FOX ELECTRONICS | An Integrated Device Technology, Inc. company | ISO9001:2008 Certified
3.3V HCSL oscillator
Model: F730SL SERIES
Page 2 of 2
RoHS Compliant / REACH Compliant
Rev. 2/11/2013
http://www.foxonline.com/need_a_sample.htm
• TAPE SPECIFICATIonS
(millimeters)
MoDEL
F730SL
b C
A
∅1.55
4.0 8.0
D E
F
STD Reel QTY
7.5 16.0 2.0
2,000
• REEL SPECIFICATIonS
(millimeters)
MoDEL G
I
J
K
L
H
M
F730SL
2.5
∅13.2 ∅21 ∅60.5 ∅180
17.0 1.5
