70 MHz Standard Filter FOR base Station application
Part Number ACTF070013/PK10

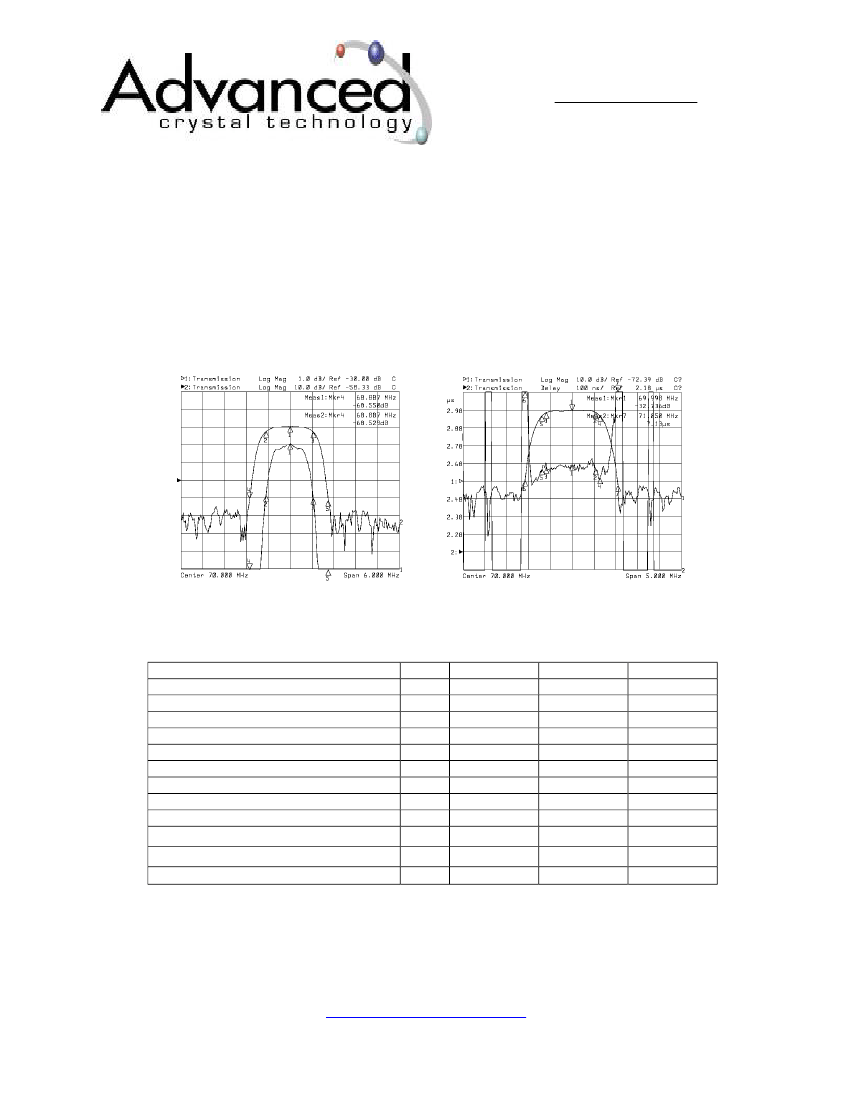

Typical Performance
Typical
Performance
Horizontal: 0.6MHz/Div
Vertical: 1&10dB/Div
Horizontal: 0.5MHz/Div
Vertical: 100ns/Div
Specifications
Parameter
Centre Frequency
Insertion Loss at F
0
1 dB Bandwidth
3 dB Bandwidth
40dB Bandwidth
Passband Variation
Phase Linearity
Group Delay Variation
Absolute Delay
Ultimate Rejection
Substrate Material
Ambient Temperature
Unit
MHz
dB
MHz
MHz
MHz
dB
Deg
nsec
usec
dB
-
°C
Minimum
69.9
0.90
1.20
Typical
70
33
1.13
1.32
2.13
0.4
100
2.7
48
Quartz
25
Maximum
70.1
2.30
0.5
45
50
In keeping with our ongoing policy of product evolvement and improvement, the above specification is subject to change without
notice.
ISO9001: 2000 Registered - Registration number 6830/2
For quotations or further information please contact us at:
3 The Business Centre, Molly Millars Lane, Wokingham, Berks, RG41 2EY, UK
Issue : 1 C1
Date : SEPT 04
http://www.actcrystals.com
1 OF 2
Tel : +44 118 979 1238
Fax : +44 118 979 1283
Email: info@actcrystals.com

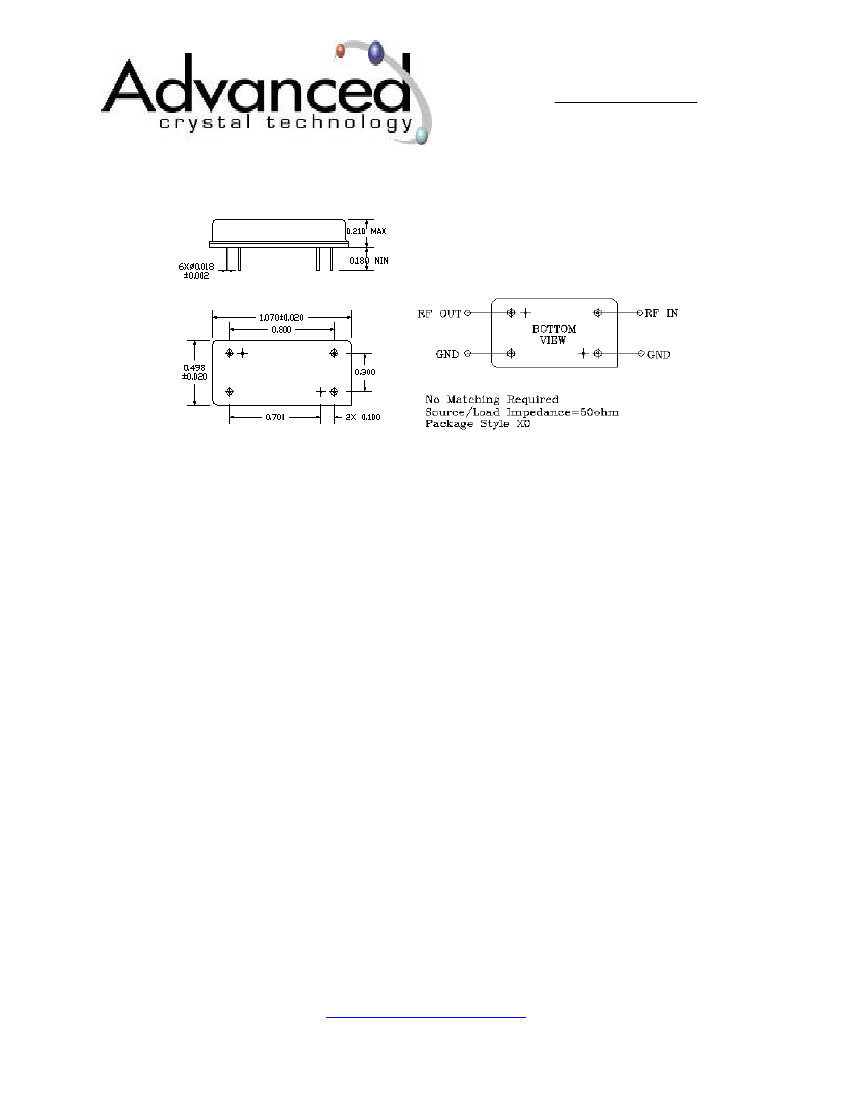

Package
i
CAUTION: Electrostatic Sensitive Device. Observe precautions for handling!
1.
Unless noted otherwise, all measurements are made with the filter installed in the specified test
fixture that is connected to a 50
Ω
test system with VSWR
≤1.2:1.
The test fixture L and C are
adjusted for minimum insertion loss at the filter centre frequency, f
C
. Note that insertion loss,
bandwidth, and passband shape are dependent on the impedance matching component values and
quality.
2.
3.
Unless noted otherwise, specifications apply over the entire specified operating temperature range.
The specifications of this device are based on the test circuit shown above and subject to change or
obsolescence without notice.
4.
All equipment designs utilizing this product must be approved by the appropriate government
agency prior to manufacture or sale.
5.
Our liability is only assumed for the Surface Acoustic Wave (SAW) component(s) per se, not for
applications, processes and circuits implemented within components or assemblies.
In keeping with our ongoing policy of product evolvement and improvement, the above specification is subject to change without
notice.
ISO9001: 2000 Registered - Registration number 6830/2
For quotations or further information please contact us at:
3 The Business Centre, Molly Millars Lane, Wokingham, Berks, RG41 2EY, UK
Issue : 1 C1
Date : SEPT 04
http://www.actcrystals.com
2 OF 2
