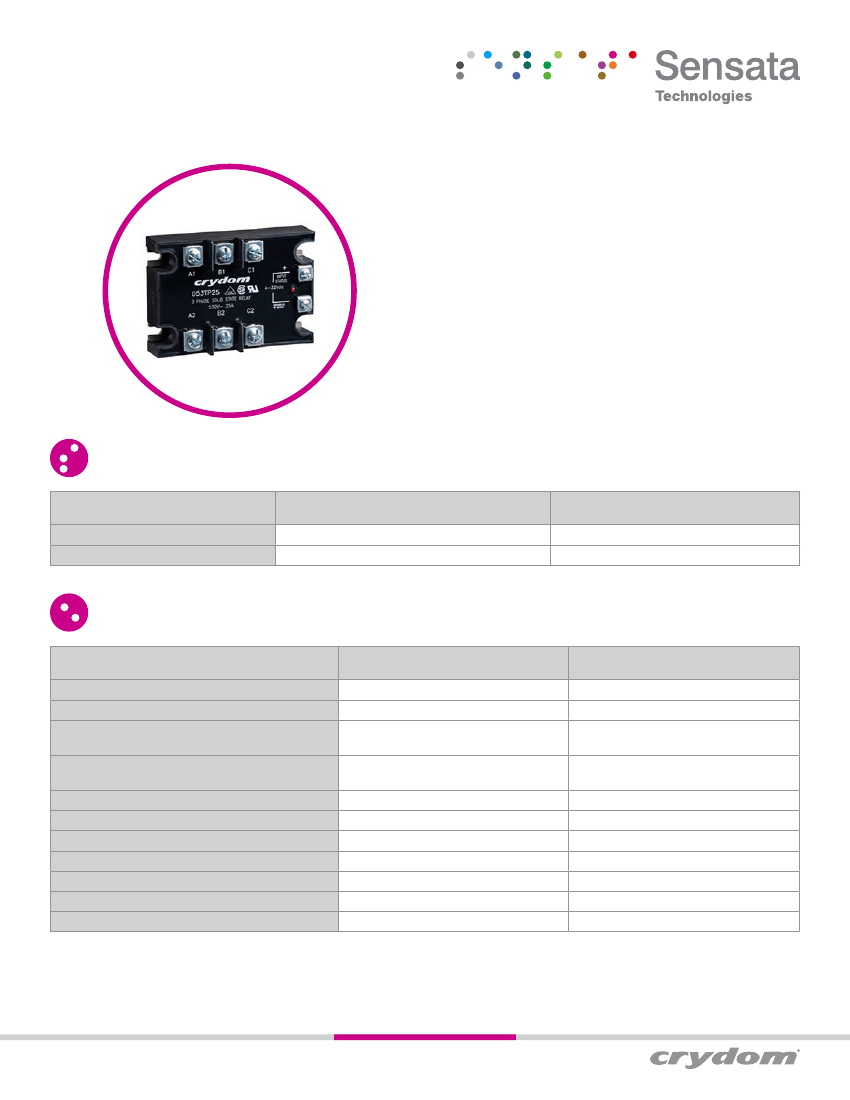

53TP
|
SERIES IP00
PANEL MOUNT
Features
• Three-phase solid-state relay; Ratings 25 A, 50 A
per phase @ 48-530 VAC
• 2 package styles IP00 or IP20 (See IP20 spec sheet
for more information)
• SCR output for heavy industrial loads
• Transient protection built in
• AC or DC control
• Zero-crossing (resistive loads) or random-fire
(inductive loads) output
• LED input status indicator
• UL Recognized, CE Compliant to EN60950-1
PRODUCT SELECTION
Control Voltage
90-280 VAC
4-32 VDC
25 A
A53TP25D
D 53TP25D
50 A
A53TP50D
D53TP50D
OUTPUT SPECIFICATIONS AC OUTPUT
1
Description
Operating Voltage (47-63Hz) [Vrms]
Transient Overvoltage [Vpk]
2
Maximum Off-State Leakage Current @ Rated Voltage
[mArms]
Minimum Off-State dv/dt @ Maximum Rated Voltage [V/
sec]
3
Maximum Load Current [Arms]
4
Minimum Load Current [Arms]
Maximum Surge Current 50-60 Hz (16.6ms) [Apk]
Maximum On-State Voltage Drop @ Rated Current [Vpk]
Thermal Resistance Junction to Case (Rjc) [°C/W]
Maximum I²t for Fusing 50-60 Hz (8.3 msec) [A² sec]
Minimum Power Factor (with Maximum Load)
25 A
48-530
1200
10
500
25
0.05
239/250
1.6
1.02
285/260
0.5
50 A
48-530
1200
10
500
50
0.05
597/625
1.6
0.63
1779/1620
0.5
Page 1
Copyright © 2018 Sensata Technologies, Inc.
www.sensata.com
INPUT SPECIFICATIONS
1
Description
Control Voltage Range
Minimum Turn-On Voltage
Minimum Turn-Off Voltage
Minimum Input Current (for on-state)
Maximum Input Current
Nominal Input Impedance
Maximum Turn-On Time [msec]
5
Maximum Turn-Off Time [msec]
D53
4-32 VDC
4.0 VDC
1.0 VDC
19 mA @ 4V
25 mA @ 32V
Current Limiter
1/2 Cycle
1/2 Cycle
A53
90-280 Vrms
90 Vrms
10 Vrms
2.2 mA @ 120V
10mA @ 240V
Current Limiter
50
50
GENERAL SPECIFICATIONS
1
Description
Dielectric Strength, Input/Output/Base (50/60Hz)
Minimum Insulation Resistance (@ 500 V DC)
Maximum Capacitance, Input/Output
Ambient Operating Temperature Range
Ambient Storage Temperature Range
Weight (typical)
Encapsulation
Terminals
Screws and Saddle clamps
Input Terminal Screw Torque Range:[in lbs/Nm]
Output Terminal Screw Torque Range:[in lbs/Nm]
Parameters
4000 Vrms
10
9
Ohms
8 pF
-40ºC to 80ºC
-40ºC to 125ºC
10.3 oz (315g)
Thermally conductive Epoxy
Nickel plated Brass
Zinc plated Steel
8-10 / 0.9-1.1
15-20 / 1.7-2.2
THERMAL DERATE INFORMATION
A53TP25D, D53TP25D
D53TP50D, D53TP50D
100
180
.25°C/W
80
90
95
100
105
Base Plate Temp [ °C]

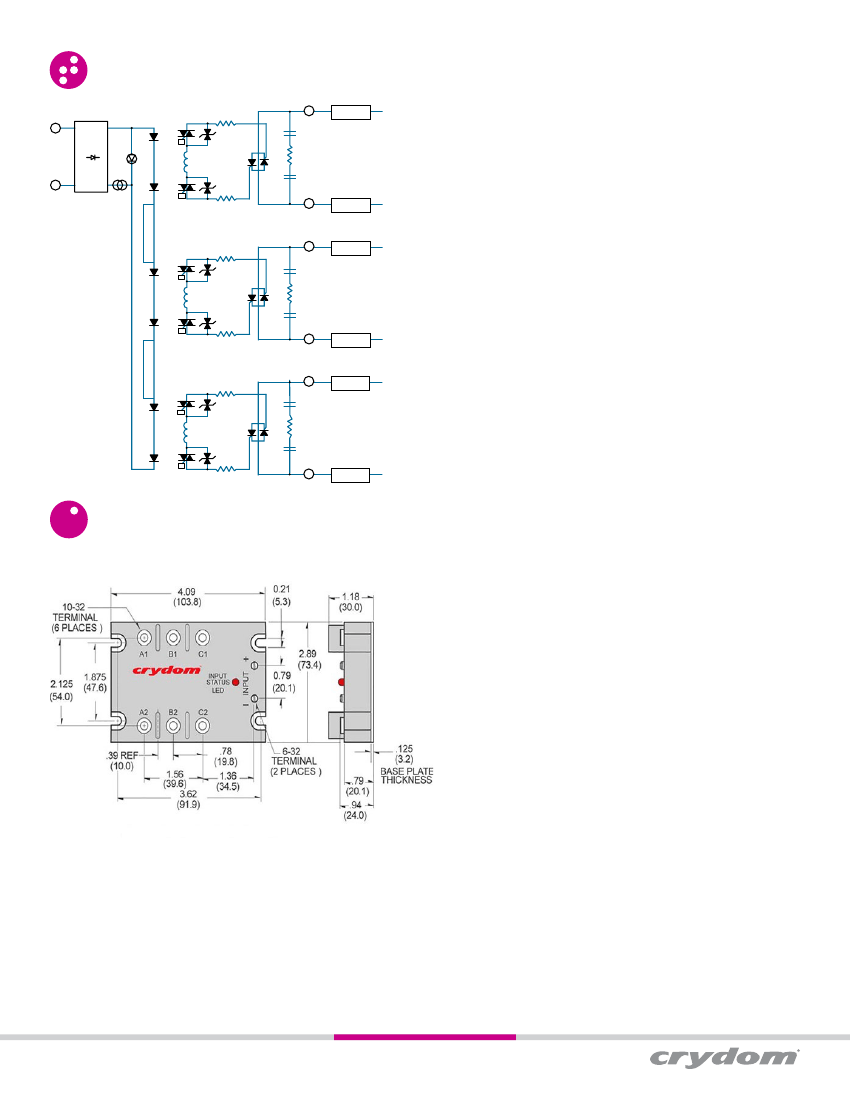

Page 2
0.5°C/W
Base Plate Temp [ °C]
1°C/W
105
150
Power Dissipation
Power Dissipation
60
.5°C/W
120
90
60
30
1°C/W
1.5°C/W
110
40
1.5°C/W
115
110
115
120
20
120
0
5
10
15
20
25
20
40
60
80
0
10
°C]
20
30
40
50
20
40
60
80
°C]
Load Currect [Arms]
Max Ambient Temp. [
Load Currect [Arms]
Max Ambient Temp. [
Copyright © 2018 Sensata Technologies, Inc.
www.sensata.com
GENERAL NOTES
All parameters at 25°C unless otherwise specified.
Relay will self trigger between 900-1200 Vpk.
(3)
Off-State dv/dt test method per EIA/NARM standard RS-443, paragraph 13.11.1
(4)
Heat sinking required, see page 4 for derating curves.
(5)
Turn-on time for Random turn-on versions is 0.02 msec (DC Control Models)
(1)
(2)
AGENCY APPROVALS & CERTIFICATIONS
Input:
EN61000-4-2, Level 3 ESD
EN61000-4-4, Level 3 Burst
Output:
EN61000-4-2, Level 4 ESD
EN61000-4-4, Level 4 Burst EN61000-4-5, Level 4 Surge
EN60950: Meets the requirements of sections 1.5: 1,7 : 2.9: 2.10.5.3: 4.2: 4.5: 4.7:
:
LR 81689
E116950
REG.- Nr. 5941
WARNINGS
RISK OF MATERIAL DAMAGE AND HOT ENCLOSURE
• The product’s side panels may be hot, allow the product to cool before touching
• Follow proper mounting instructions including torque values
• Do not allow liquids or foreign objects to enter this product
Failure to follow these instructions can result in serious injury, or equipment damage.
HAZARD OF ELECTRIC SHOCK, EXPLOSION OR ARC FLASH
• Disconnect all power before installing or working with this equipment
• Verify all connections and replace all covers before turning on power
Failure to follow these instructions will result in death or serious injury.
Page 5
Sensata Technologies, Inc. (“Sensata”) data sheets are solely intended to assist designers (“Buyers”) who are developing systems that
incorporate Sensata products (also referred to herein as “components”). Buyer understands and agrees that Buyer remains responsible
for using its independent analysis, evaluation and judgment in designing Buyer’s systems and products. Sensata data sheets have
been created using standard laboratory conditions and engineering practices. Sensata has not conducted any testing other than that
specifically described in the published documentation for a particular data sheet. Sensata may make corrections, enhancements,
improvements and other changes to its data sheets or components without notice.
Buyers are authorized to use Sensata data sheets with the Sensata component(s) identified in each particular data sheet. HOWEVER, NO
OTHER LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE TO ANY OTHER SENSATA INTELLECTUAL PROPERTY RIGHT, AND
NO LICENSE TO ANY THIRD PARTY TECHNOLOGY OR INTELLECTUAL PROPERTY RIGHT, IS GRANTED HEREIN. SENSATA DATA SHEETS
ARE PROVIDED “AS IS”. SENSATA MAKES NO WARRANTIES OR REPRESENTATIONS WITH REGARD TO THE DATA SHEETS OR USE
OF THE DATA SHEETS, EXPRESS, IMPLIED OR STATUTORY, INCLUDING ACCURACY OR COMPLETENESS. SENSATA DISCLAIMS
ANY WARRANTY OF TITLE AND ANY IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, QUIET
ENJOYMENT, QUIET POSSESSION, AND NON-INFRINGEMENT OF ANY THIRD PARTY INTELLECTUAL PROPERTY RIGHTS WITH REGARD
TO SENSATA DATA SHEETS OR USE THEREOF.
All products are sold subject to Sensata’s terms and conditions of sale supplied at
www.sensata.com
SENSATA ASSUMES NO LIABILITY
FOR APPLICATIONS ASSISTANCE OR THE DESIGN OF BUYERS’ PRODUCTS. BUYER ACKNOWLEDGES AND AGREES THAT IT IS SOLELY
RESPONSIBLE FOR COMPLIANCE WITH ALL LEGAL, REGULATORY AND SAFETY-RELATED REQUIREMENTS CONCERNING ITS PRODUCTS,
AND ANY USE OF SENSATA COMPONENTS IN ITS APPLICATIONS, NOTWITHSTANDING ANY APPLICATIONS-RELATED INFORMATION
OR SUPPORT THAT MAY BE PROVIDED BY SENSATA.
Mailing Address: Sensata Technologies, Inc., 529 Pleasant Street, Attleboro, MA 02703, USA.
CONTACT US
Americas
+1 (877) 502 5500
sales.crydom@sensata.com
Europe, Middle East & Africa
+44 (1202) 416170
ssr-info.eu@sensata.com
Asia Pacific
sales.isasia@list.sensata.com
China
+86 (21) 2306 1500
Japan
+81 (45) 277 7117
Korea
+82 (31) 601 2004
India
+91 (80) 67920890
Rest of Asia
+886 (2) 27602006
ext 2808
Copyright © 2018 Sensata Technologies, Inc.
Rev. 03/29/18 ECN 20395 FDE-07-01 Rev. B
www.sensata.com
