26RIA20 datasheet, PDF - EEWORLD Datasheet

26RIA20: DescriptionSilicon Controlled Rectifier, 40A I(T)RMS, 25000mA I(T), 200V V(DRM), 200V V(RRM), 1 Element, TO-208AA; CategoryAnalog mixed-signal IC Trigger device; File Size52KB，1 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/

Download Datasheet Parametric View All

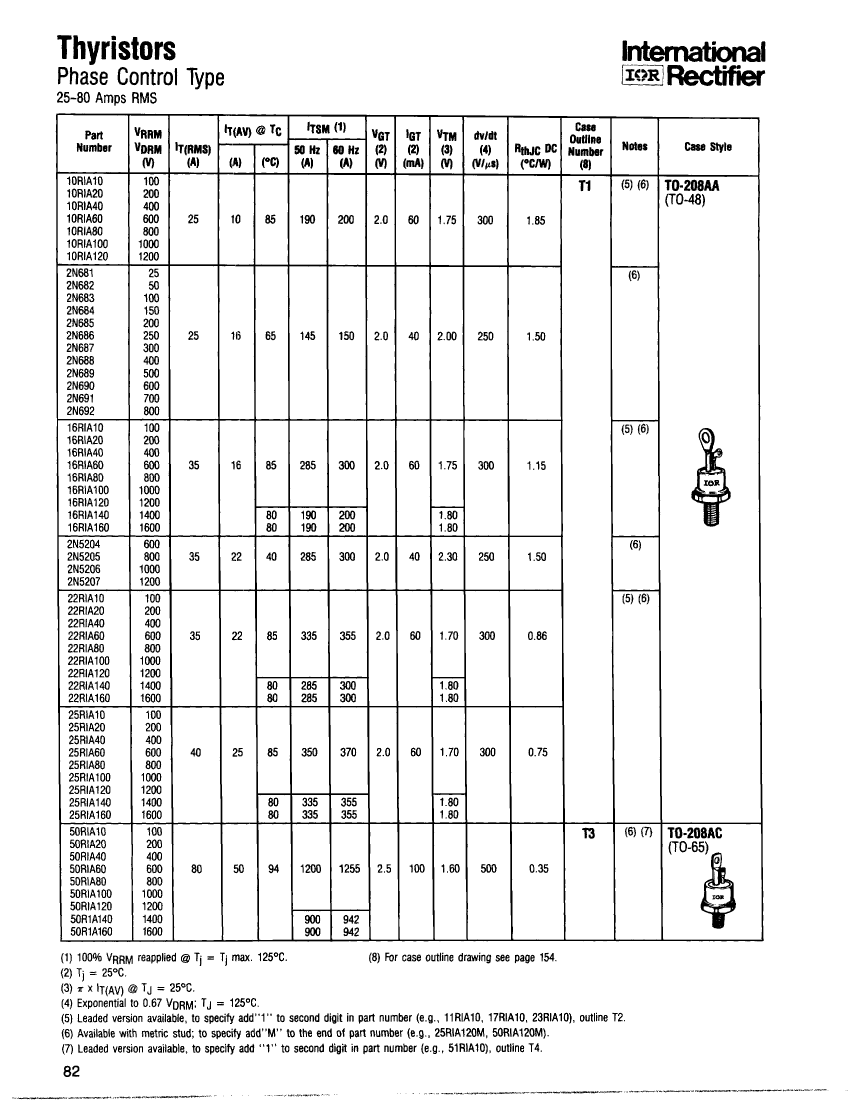

26RIA20 Overview

Silicon Controlled Rectifier, 40A I(T)RMS, 25000mA I(T), 200V V(DRM), 200V V(RRM), 1 Element, TO-208AA

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	International Rectifier （ Infineon ）
package instruction	POST/STUD MOUNT, O-MUPM-H3
Reach Compliance Code	compliant
ECCN code	EAR99
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	300 V/us
Maximum DC gate trigger current	60 mA
Maximum DC gate trigger voltage	2 V
JEDEC-95 code	TO-208AA
JESD-30 code	O-MUPM-H3
JESD-609 code	e0
On-state non-repetitive peak current	370 A
Number of components	1
Number of terminals	3
Maximum on-state current	25000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum rms on-state current	40 A
Off-state repetitive peak voltage	200 V
Repeated peak reverse voltage	200 V
surface mount	NO
Terminal surface	TIN LEAD
Terminal form	HIGH CURRENT CABLE
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SCR
Base Number Matches	1
