RF, Microwave and Datalink Contacts
for MIL-DTL-38999, SuperNine
®
, Mighty Mouse and
Micro-Crimp
®
Connectors
Low-Loss Matched-Impedance Coaxial Contacts

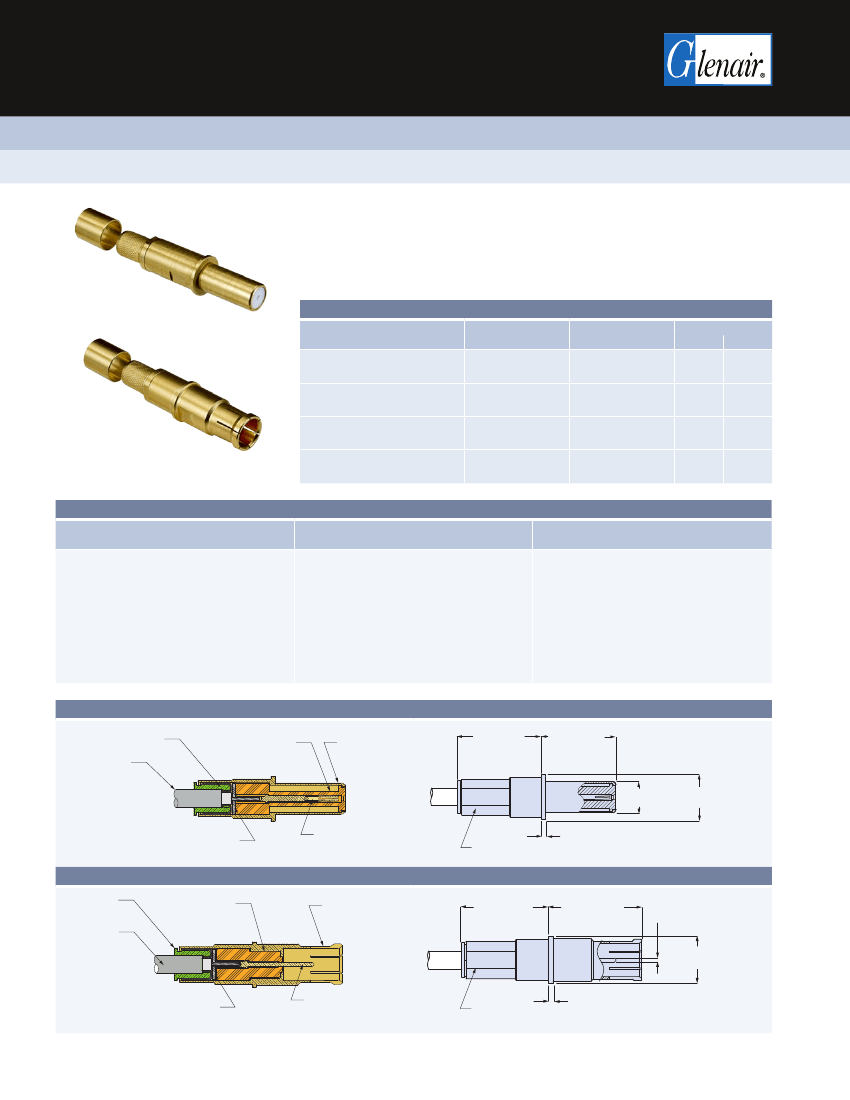

Size #8 75 Ohm Matched-Impedance Coaxial Contacts
Size 8 coax contacts fit aerospace-grade digital video cable. 75 ohm nominal impedance. 0-4
GHz frequency range. Crimp termination. Supplied as unassembled kit with contact body,
center contact, outer ferrule and sealing boot. These snap-in, rear-release contacts fit Glenair
Series 80 Mighty Mouse connectors and MIL-DTL-38999 Series I, III and IV connectors with
size 8 contact cavities. Gold-plated copper alloy, fluoroplastic insulators.
Pin Contact
Size 8 75 Ohm Matched-Impedance Coaxial Contacts
Cable
V75268, V76261, V73263
(PIC™ Wire and Cable)
RG179
(M17/94-RG179)
V78209
(PIC™ Wire and Cable)
Pin Contact
852-056-01F
852-056-02F
852-082-01F
852-082-02F
Socket Contact
852-057-01F
852-057-02F
852-083-01F
852-083-02F
A Hex Crimp
In.
mm.
.218
.128
.231
.231
5.54
3.25
5.87
5.87
Socket Contact
LMR-240-75
(Times Microwave)
Technical Data
Specifications
Q
Q
Q
Q
Q
Q
Q
Q
Construction
Q
Connector Compatibility
Q
Q
Q
Operating temperature: -650C. to +2000C.
Dielectric withstanding voltage: 500 Vac
rms at sea level
Current rating: 1 ampere
VSWR: 1.25:1 max. @ 4 GHz
75 ohm nominal impedance
Durability: 500 mating cycles
Shock: EIA-364-27 condition D
Vibration: EIA-364-28 condition VI, letter J
Q
Q
Center contact, body, retainer, clamp
nut, ferrule:
copper alloy, 50 microinches
gold over nickel plating
Front and rear insulator:
fluoropolymer
Sealing boot:
fluorosilicone rubber, glass-
filled PEI
MIL-DTL-38999 Series I, III and IV
Glenair Series 23 SuperNine®
Glenair Series 80 Mighty Mouse
Pin Contact 852-056
CRIMP
FERRULE
CABLE
(REF)
FRONT
INSULATOR
BODY
.562 (14.27)
MAX
.517 (13.13)
± .003 (0.08)
.219 (5.56) Ø.316 (8.03)
.217 (5.51) .313 (7.95)
REAR
INSULATOR
CENTER
CONTACT
A
HEX CRIMP
.033 (0.84)
.029 (0.74)
Socket Contact 852-057
CRIMP
FERRULE
CABLE
(REF)
FRONT
INSULATOR
BODY
.562 (14.27)
MAX
.625 (15.88)
± .006 (0.15)
Ø .0240 ± .0005
(0.61 ± 0.01)
Ø.316 (8.03)
.313 (7.95)
REAR
INSULATOR
CENTER
CONTACT
A
HEX CRIMP
.033 (0.84)
.029 (0.74)
14
© 2016 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324 • High-Speed Contacts
Dimensions in Inches (millimeters) are subject to change without notice.
RF, Microwave and Datalink Contacts
for MIL-DTL-38999, SuperNine
®
, Mighty Mouse and
Micro-Crimp
®
Connectors
Low-Loss Matched-Impedance Coaxial Contacts
Size #8 75 Ohm Matched-Impedance Coaxial Contacts

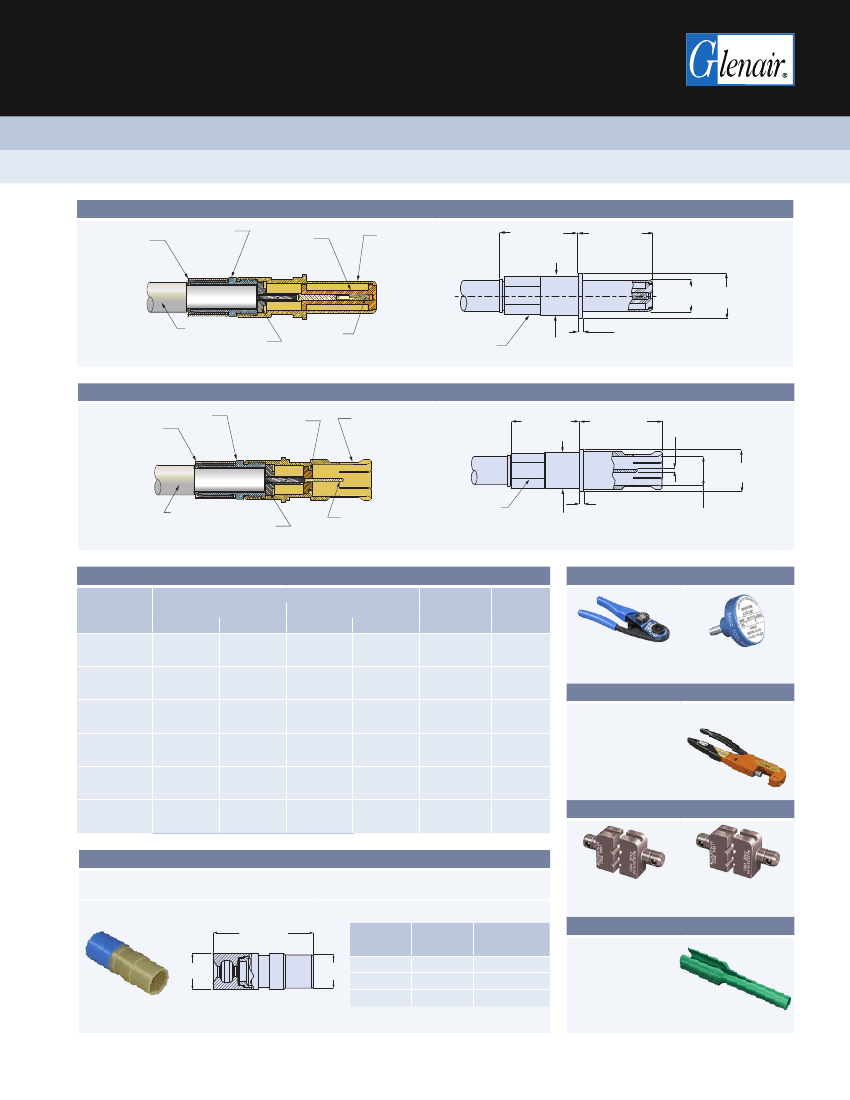

Pin Contact 852-082
CRIMP
FERRULE
RETAINER
FRONT
INSULATOR
BODY
.562 (14.27)
MAX
.517 (13.13)
± .003 (0.08)
.219 (5.56) Ø.316 (8.03)
.217 (5.51) .313 (7.95)
CABLE
(REF)
CENTER
CONTACT
.033 (0.84)
.029 (0.74)
REAR
INSULATOR
.231 (5.87)
HEX CRIMP
.276 (7.01)
.271 (6.88)
Socket Contact 852-083
RETAINER
CRIMP
FERRULE
FRONT
INSULATOR
BODY
.562 (14.27)
MAX
.625 (15.88)
± .006 (0.15)
Ø .0240 ± .0005
(0.61 ± 0.01)
Ø.316 (8.03)
.313 (7.95)
.231 (5.87)
HEX CRIMP
.033 (0.84)
.029 (0.74)
CABLE
(REF)
REAR
INSULATOR
CENTER
CONTACT
.276 (7.01)
.271 (6.88)
MATES WITH .219/.217
(5.56/5.51) PIN
Crimp Tools, Removal Tool, Assembly Instruction Sheet
Contact Part
Number
852-056-01F
852-056-02F
852-057-01F
852-057-02F
852-082
852-083
Inner Contact Crimp Tools
Assembly
Instruction
Sheet
AI85028
AI85059
AI85028
AI85059
AI85060
AI85036
(M22520/2-01)
(M22520/2-01)
(M22520/2-01)
(M22520/2-01)
(M22520/2-01)
(M22520/2-01)
Crimp Tools
Inner Contact
Shield Crimp Sleeve
Crimper
Positioner
Crimper
Hex Die
809-015
809-240
809-129
859-047
(M22520/2-37)
(M22520/2-37)
(M22520/2-37)
(M22520/2-37)
(M22520/2-37)
(M22520/2-37)
(M22520/5-01)
(M22520/5-01)
(M22520/5-01)
(M22520/5-01)
(M22520/5-01)
(M22520/5-01)
Removal
Tool
(M81969/14-12)
(M81969/14-12)
(M81969/14-12)
(M81969/14-12)
(M81969/14-12)
(M81969/14-12)
(M22520/5-45)
(M22520/5-03)
859-049
859-049
809-015
809-240
809-240
809-129
809-130
(
M22520/2-01
)
809-015
(
M22520/2-37
)
809-240
Shield Crimp Tool
809-015
809-129
809-129
(M22520/5-45)
(M22520/5-03)
(M22520/5-45)
(M22520/5-45)
859-047
809-130
859-049
809-015
809-015
809-240
809-240
859-049
859-049
(
M22520/5-01
)
809-129
809-129
809-129
859-047
859-047
809-015
809-240
859-049
Hex Die
Sealing Boot
Sealing boots are supplied with contacts. To order contacts less
the sealing boot, remove the "F" suffix from the part number.
.985 (25.02)
MAX
.326
(8.28)
(
M22520/5-03
)
809-130
(
M22520/5-45
)
859-047
.350
(8.89)
Wire Dia. Wire Dia. Part Number
(in.)
(mm.)
.090 – .130 2.3 – 3.3
859-042-01
.130 – .170 3.3 – 4.3
859-042-02
.170 – .205 4.3 – 5.2
859-042-03
Removal Tool
(
M81969/14-12
)
859-049
© 2016 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324 • High-Speed Contacts
Dimensions in Inches (millimeters) are subject to change without notice.
15
