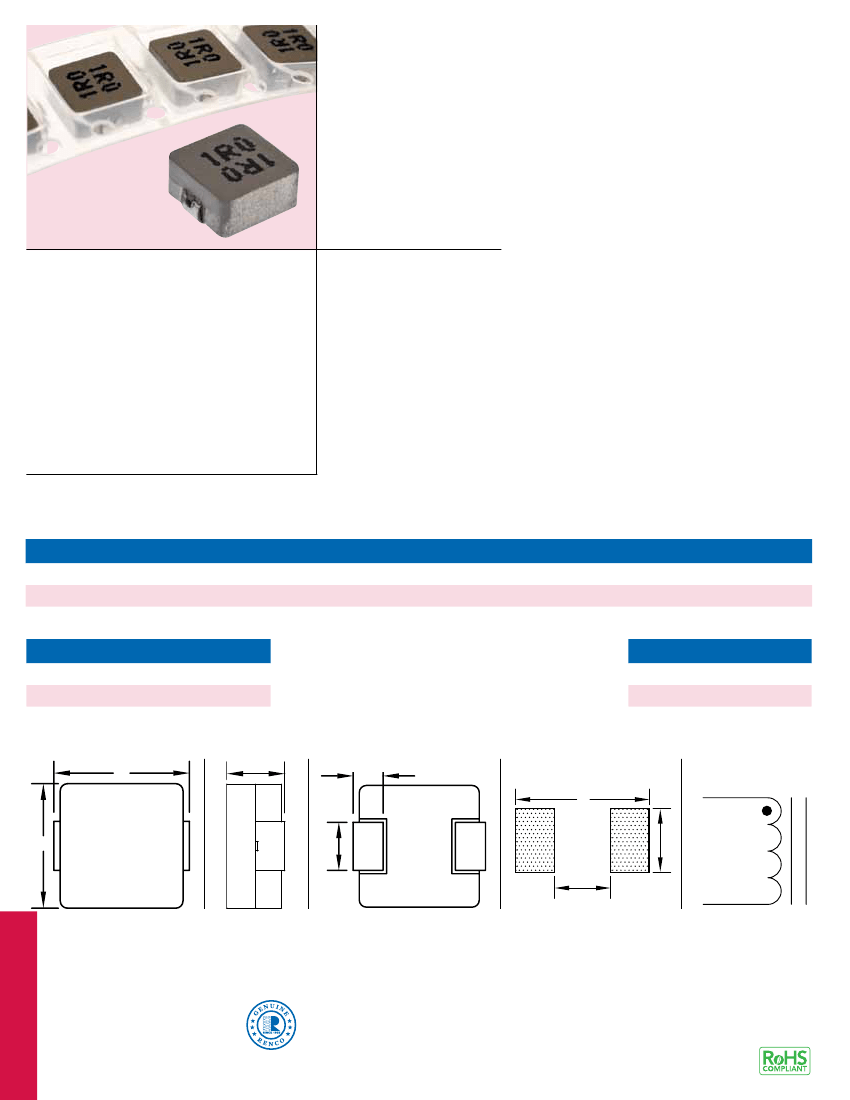

RL-9580-4
DESCRIPTION
•
High Current SMD Inductor
HIGH CURRENT SMD INDUCTOR
FEATURES & APPLICATIONS
•
•
•
•
•
•
•
Lowest height in this package footprint
Shielded construction
Lowest DCR/µH in this package size
Handles high transient current spikes without saturation
Ultra low EMI due to composite construction
Frequency up to 5 MHz
Typical applications include: notebook computers,
desktop computers, server applications, high current POL
converters, and low-profile, high-current power supplies
ENVIRONMENTAL DATA
•
•
Storage temperature range:
-55°C to +130°C
Operating temperature range:
-40°C to +130°C
PACKAGING INFORMATION
• Packaging information: pg. 492
Verify operation with sample in actual circuit. Order samples at www.rencousa.com.
MECHANICAL DIMENSIONS
U.S. Standard (mm)
PART NUMBER
RL-9580-4-3.0
RL-9580-4-4.0
RL-9580-4-5.0
A (MAX.)
0.453 (11.50)
0.453 (11.50)
0.453 (11.50)
B (MAX.)
0.406 (10.30)
0.406 (10.30)
0.406 (10.30)
C (MAX.)
0.118 (3.00)
0.158 (4.00)
0.197 (5.00)
D ±0.012 (0.3)
0.118 (3.00)
0.118 (3.00)
0.118 (3.00)
E ±0.012 (0.3)
0.091 (2.30)
0.091 (2.30)
0.079 (2.00)
F (REF.)
0.535 (13.60)
0.535 (13.60)
0.535 (13.60)
PART NUMBER
RL-9580-4-3.0
RL-9580-4-4.0
RL-9580-4-5.0
TOP VIEW
A
PART WEIGHT
1.700g (0.060oz)
2.442g (0.086oz)
3.034g (0.107oz)
SIDE VIEW
C
G (REF.)
0.138 (3.50)
0.138 (3.50)
0.138 (3.50)
BOTTOM VIEW
E
F
1
H (REF.)
0.213 (5.40)
0.213 (5.40)
0.213 (5.40)
RECOMMENDED
LAND PATTERN
SCHEMATIC
B
D
H
G
2
SURFACE MOUNTS
RENCO ELECTRONICS INC.
595 International Place, Rockledge, FL 32955-4200 USA • www.rencousa.com • ISO 9001 Certified
Toll Free Engineering Hot Line: 800.645.5828 • P: 321.637.1000 • F: 321.637.1600
RL-9580-4
Renco Part No.
RL-9580-4-3.0
RL-9580-4-3.0-R36M
RL-9580-4-3.0-R47M
RL-9580-4-3.0-R56M
RL-9580-4-3.0-1R0M
RL-9580-4-3.0-1R5M
RL-9580-4-3.0-2R2M
RL-9580-4-3.0-3R3M
RL-9580-4-3.0-4R7M
RL-9580-4-3.0-5R6M
RL-9580-4-3.0-6R8M
RL-9580-4-3.0-8R2M
RL-9580-4-3.0-100M
Inductance
(µH)
0.36 ± 20%
0.47 ± 20%
0.56 ± 20%
1.00 ± 20%
1.50 ± 20%
2.20 ± 20%
3.30 ± 20%
4.70 ± 20%
5.60 ± 20%
6.80 ± 20%
8.20 ± 20%
10.00 ± 20%
Isat
(A)
40.0
33.0
24.0
20.0
20.0
16.0
14.0
13.0
12.0
9.5
8.5
8.0
Irms
(A)
23.0
20.0
16.0
15.0
13.0
12.0
9.0
7.0
7.0
6.5
6.0
5.0
DCR (mOhms)
TYP. @ 25ºC
1.3
2.1
2.6
4.6
6.5
8.0
14.5
20.5
28.0
30.2
42.0
50.0
DCR (mOhms)
MAX. @ 25ºC
1.6
2.5
3.0
6.0
7.5
9.0
16.0
22.5
32.5
35.0
48.0
55.0
NOTES:
1. Isat - DC CURRENT THAT WILL CAUSE INDUCTANCE TO DROP BY 20%
2. Irms - CURRENT THAT CAUSES THE TEMPERATURE TO RISE APPROX. 40ºC ABOVE AMBIENT OF 25ºC
3. ELECTRICAL SPECIFICATIONS MEASURED AT 25ºC
4. INDUCTANCE TESTED AT 100 kHz, 1.0Vrms
RENCO ELECTRONICS INC.
595 International Place, Rockledge, FL 32955-4200 USA • www.rencousa.com • ISO 9001 Certified
Toll Free
Engineering Hot Line: 800.645.5828 • P: 321.637.1000 • F: 321.637.1600
SURFACE MOUNTS
RL-9580-4
Renco Part No.
RL-9580-4-4.0
RL-9580-4-4.0-R22M
RL-9580-4-4.0-R36M
RL-9580-4-4.0-R39M
RL-9580-4-4.0-R45M
RL-9580-4-4.0-R56M
RL-9580-4-4.0-R68M
RL-9580-4-4.0-1R0M
RL-9580-4-4.0-1R5M
RL-9580-4-4.0-2R2M
RL-9580-4-4.0-3R3M
RL-9580-4-4.0-4R7M
RL-9580-4-4.0-5R6M
RL-9580-4-4.0-6R8M
RL-9580-4-4.0-100M
RL-9580-4-4.0-150M
RL-9580-4-4.0-330M
Inductance
(µH)
0.22 ± 20%
0.36 ± 20%
0.39 ± 20%
0.45 ± 20%
0.56 ± 20%
0.68 ± 20%
1.00 ± 20%
1.50 ± 20%
2.20 ± 20%
3.30 ± 20%
4.70 ± 20%
5.60 ± 20%
6.80 ± 20%
10.00 ± 20%
15.00 ± 20%
33.00 ± 20%
Isat
(A)
60.0
60.0
60.0
45.0
40.0
39.0
36.0
33.0
27.0
20.0
17.0
14.0
13.5
12.0
10.0
5.0
Irms
(A)
35.0
31.0
30.0
29.0
25.0
22.0
18.0
16.0
12.0
11.0
10.0
9.0
8.5
7.5
6.25
3.5
DCR (mOhms)
TYP. @ 25ºC
0.80
1.05
1.10
1.30
1.60
2.40
3.00
4.00
6.50
10.80
15.00
17.00
17.50
27.00
40.00
92.00
DCR (mOhms)
MAX. @ 25ºC
1.0
1.2
1.3
1.5
1.8
2.7
3.3
4.6
7.0
11.8
15.5
19.3
23.3
30.0
45.0
112.0
Renco Part No.
RL-9580-4-5.0
RL-9580-4-5.0-R30M
RL-9580-4-5.0-1R0M
RL-9580-4-5.0-2R2M
RL-9580-4-5.0-100M
Inductance
(µH)
0.30 ± 20%
1.00 ± 20%
2.20 ± 20%
10.00 ± 20%
Isat
(A)
65.0
30.0
24.0
13.5
Irms
(A)
38.0
22.0
16.0
8.0
DCR (mOhms)
TYP. @ 25ºC
0.57
2.80
5.40
25.0
DCR (mOhms)
MAX. @ 25ºC
0.61
3.50
6.00
29.0
NOTES:
1. Isat - DC CURRENT THAT WILL CAUSE INDUCTANCE TO DROP BY 20%
2. Irms - CURRENT THAT CAUSES THE TEMPERATURE TO RISE APPROX. 40ºC ABOVE AMBIENT OF 25ºC
3. ELECTRICAL SPECIFICATIONS MEASURED AT 25ºC
4. INDUCTANCE TESTED AT 100 kHz, 1.0Vrms
