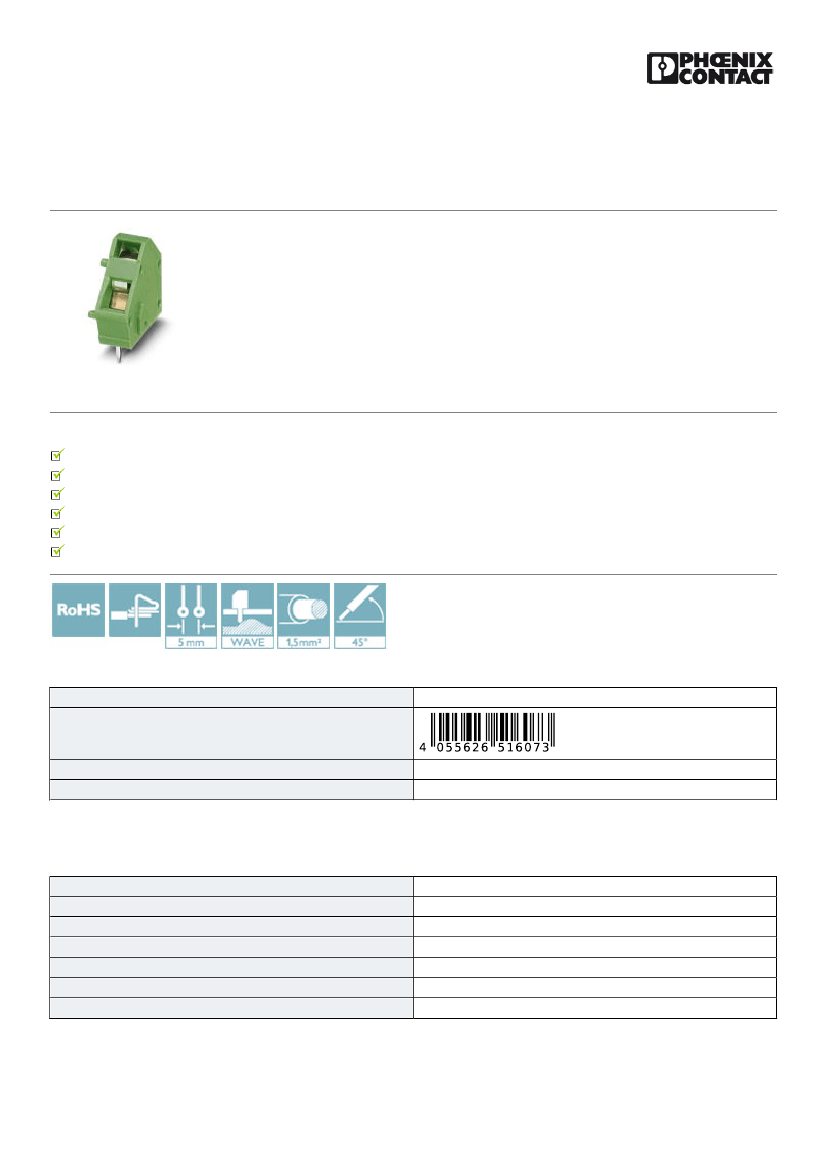

ZFKDSA 1,5C-5,0-4 EX BUBD21-24 - 1025428
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB terminal block, pitch: 5 mm, number of positions: 4, connection method: Spring-cage connection,
mounting: Wave soldering, color: blue
The figure shows a 1-pos. version
of the product
Your advantages
Defined contact force ensures that contact remains stable over the long term
Clamping space opened by means of fixed screwdriver enables convenient conductor connection
Angled connection enables multi-row arrangement on the PCB
Satisfies the more stringent safety requirements of “Ex e” protection according to IEC 60079-7 for potentially explosive areas
The latching on the side enables various numbers of positions to be combined
Two solder pins reduce the mechanical strain on the soldering spots
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
4055626516073
85369010
1
Technical data
Dimensions
Length [ l ]
Pitch
Height
Height [ h ]
Solder pin [P]
Pin spacing
Hole diameter
14.1 mm
5 mm
13 mm
16.5 mm
3.5 mm
5.08 mm
1.1 mm
General
01/03/2019 Page 1 / 3
https://www.phoenixcontact.com/in/products/1025428
ZFKDSA 1,5C-5,0-4 EX BUBD21-24 - 1025428
Technical data
General
Range of articles
Nominal cross section
Number of positions
ZFKDS(A) 1,5C-EX
1.5 mm²
4
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Classifications
eCl@ss
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27261100
27261100
27440401
27440401
27440401
ETIM
ETIM 5.0
ETIM 6.0
EC002643
EC002643
Approvals
Approvals
Approvals
cULus Recognized
Ex Approvals
Approval details
cULus Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
D
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E60425-19941110
B
250 V
10 A
26-12
300 V
10 A
26-12
