2N5205PBF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> 2N5205PBF

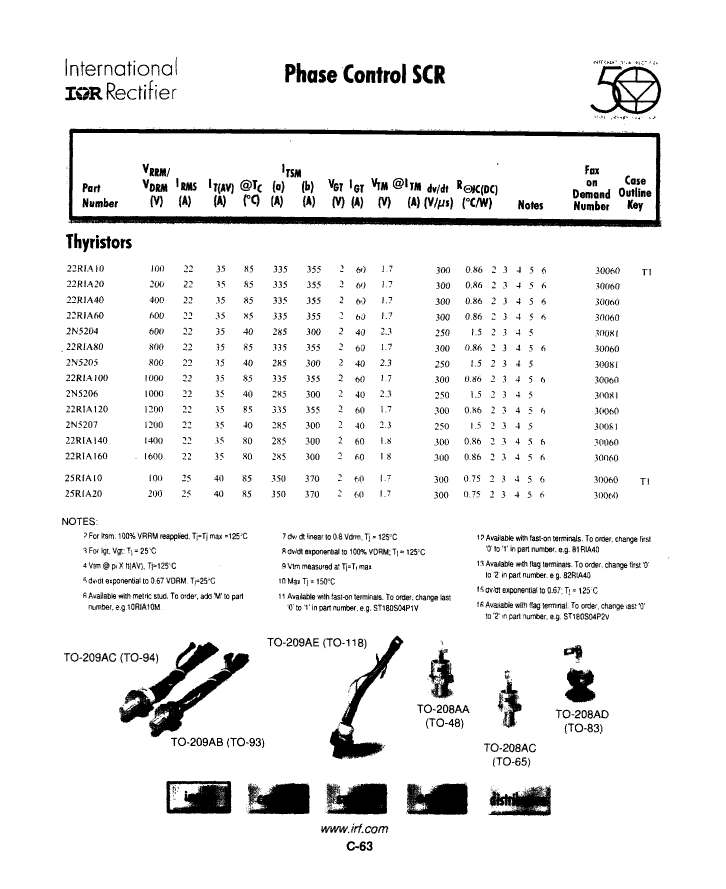

2N5205PBF: DescriptionSilicon Controlled Rectifier, 22A I(T)RMS, 800V V(DRM), 800V V(RRM), 1 Element, TO-208AA; CategoryAnalog mixed-signal IC Trigger device; File Size40KB，1 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

2N5205PBF Overview

Silicon Controlled Rectifier, 22A I(T)RMS, 800V V(DRM), 800V V(RRM), 1 Element, TO-208AA

2N5205PBF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	International Rectifier （ Infineon ）
package instruction	POST/STUD MOUNT, O-MUPM-D2
Reach Compliance Code	compliant
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	250 V/us
Maximum DC gate trigger current	40 mA
Maximum DC gate trigger voltage	2 V
JEDEC-95 code	TO-208AA
JESD-30 code	O-MUPM-D2
Number of components	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum rms on-state current	22 A
Off-state repetitive peak voltage	800 V
Repeated peak reverse voltage	800 V
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER
Maximum time at peak reflow temperature	40
Trigger device type	SCR
Base Number Matches	1

Preview

Download Datasheet

View All

2N5205PBF Related Products

	2N5205PBF	2N5206PBF	2N5204PBF	2N5207PBF
Description	Silicon Controlled Rectifier, 22A I(T)RMS, 800V V(DRM), 800V V(RRM), 1 Element, TO-208AA	Silicon Controlled Rectifier, 22A I(T)RMS, 1000V V(DRM), 1000V V(RRM), 1 Element, TO-208AA	Silicon Controlled Rectifier, 22A I(T)RMS, 600V V(DRM), 600V V(RRM), 1 Element, TO-208AA	Silicon Controlled Rectifier, 22A I(T)RMS, 1200V V(DRM), 1200V V(RRM), 1 Element, TO-208AA
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）
package instruction	POST/STUD MOUNT, O-MUPM-D2	POST/STUD MOUNT, O-MUPM-D2	POST/STUD MOUNT, O-MUPM-D2	POST/STUD MOUNT, O-MUPM-D2
Reach Compliance Code	compliant	compliant	compliant	compliant
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Critical rise rate of minimum off-state voltage	250 V/us	250 V/us	250 V/us	250 V/us
Maximum DC gate trigger current	40 mA	40 mA	40 mA	40 mA
Maximum DC gate trigger voltage	2 V	2 V	2 V	2 V
JEDEC-95 code	TO-208AA	TO-208AA	TO-208AA	TO-208AA
JESD-30 code	O-MUPM-D2	O-MUPM-D2	O-MUPM-D2	O-MUPM-D2
Number of components	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Package body material	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND
Package form	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT
Peak Reflow Temperature (Celsius)	260	260	260	260
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	22 A	22 A	22 A	22 A
Off-state repetitive peak voltage	800 V	1000 V	600 V	1200 V
Repeated peak reverse voltage	800 V	1000 V	600 V	1200 V
surface mount	NO	NO	NO	NO
Terminal form	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER	UPPER	UPPER
Maximum time at peak reflow temperature	40	40	40	40
Trigger device type	SCR	SCR	SCR	SCR
Minimum operating temperature	-65 °C	-65 °C	-	-65 °C
