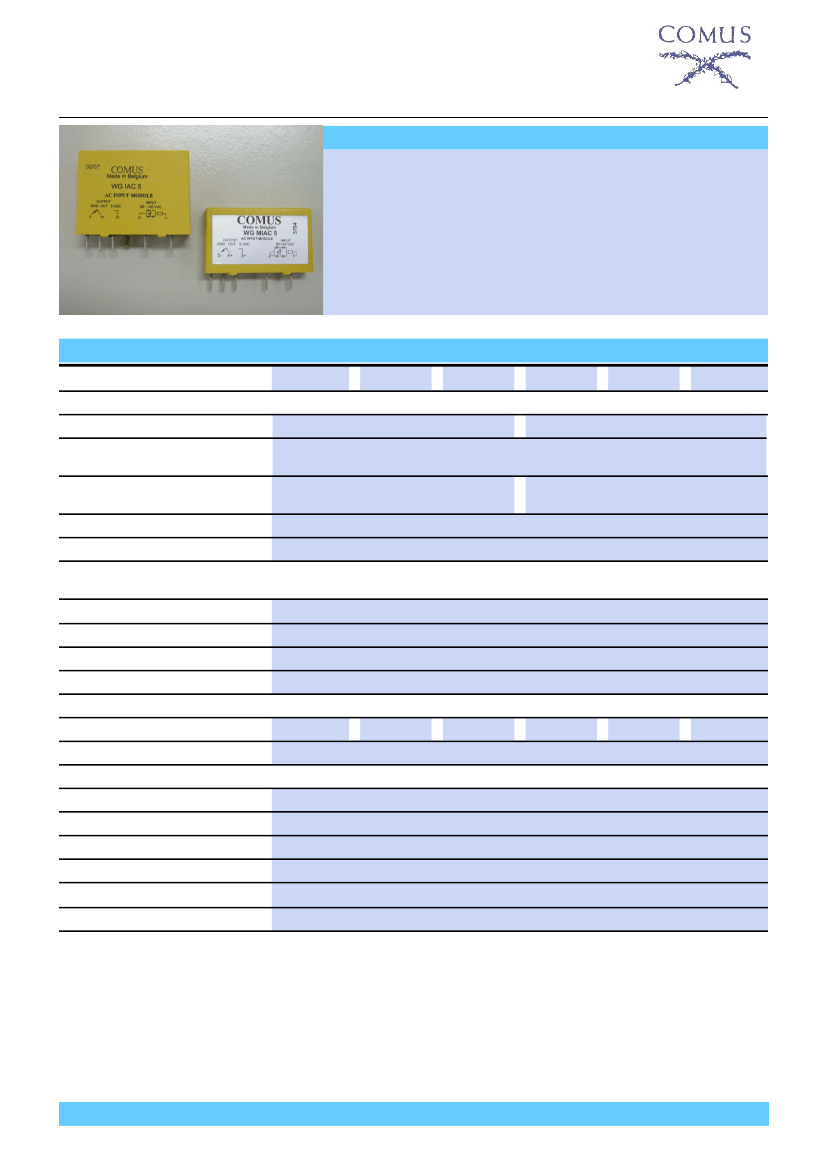

Datasheet WG (M) IAC

Features

Output

Input

Transistor

AC + DC

Comus International Bvba

Overhaamlaan 40

3700 Tongeren, Belgium

Phone: +32 12390400

Fax: +32 12235754

Email: info@comus.be

www.comus.be

Applications

Monitoring of electronic load circuits

Technical data

WG (M) IAC...

Input circuit

Input voltage range 1)

Allowable input voltage for output

off-state

Allowable input current for output

off-state

Input current max. 2)

Operation frequency

Output circuit

Pin 4+5

open collector

Output voltage 3)

Output current max.

Output voltage drop max.

Leakage current max.

Logic supply

Supply voltage range

Supply current max. 5)

General data

Turn-on time max. 4)

Turn-off time max. 4)

Isolation voltage

Operating temperature

Approvals

20 ms

30 ms

4.000 V

-20...+80 °

Pin 3+5

2,75...6 VDC

9...18 VDC

20...30 VDC

2,75...6 VDC

9...18 VDC

20...30 VDC

30 VDC

50 mA

200 mV

10 µA

3 mA

10 mA

47...63 Hz

Pin 1+2

90...140 VAC/DC

40 VAC/DC

2 mA

180...280 VAC/DC

15A

24A

16 mA

Input modules will operate on DC or AC input voltage.

At maximum input voltage.

Breakdown voltage of output transistor

At nominal logic supply voltage, output voltage of logic circuit 30VDC, output current of logic circuit 25mA, input voltage

120V AC and TA = +25°

C..

With external LED indicator on mounting boards, 18mA without LED.

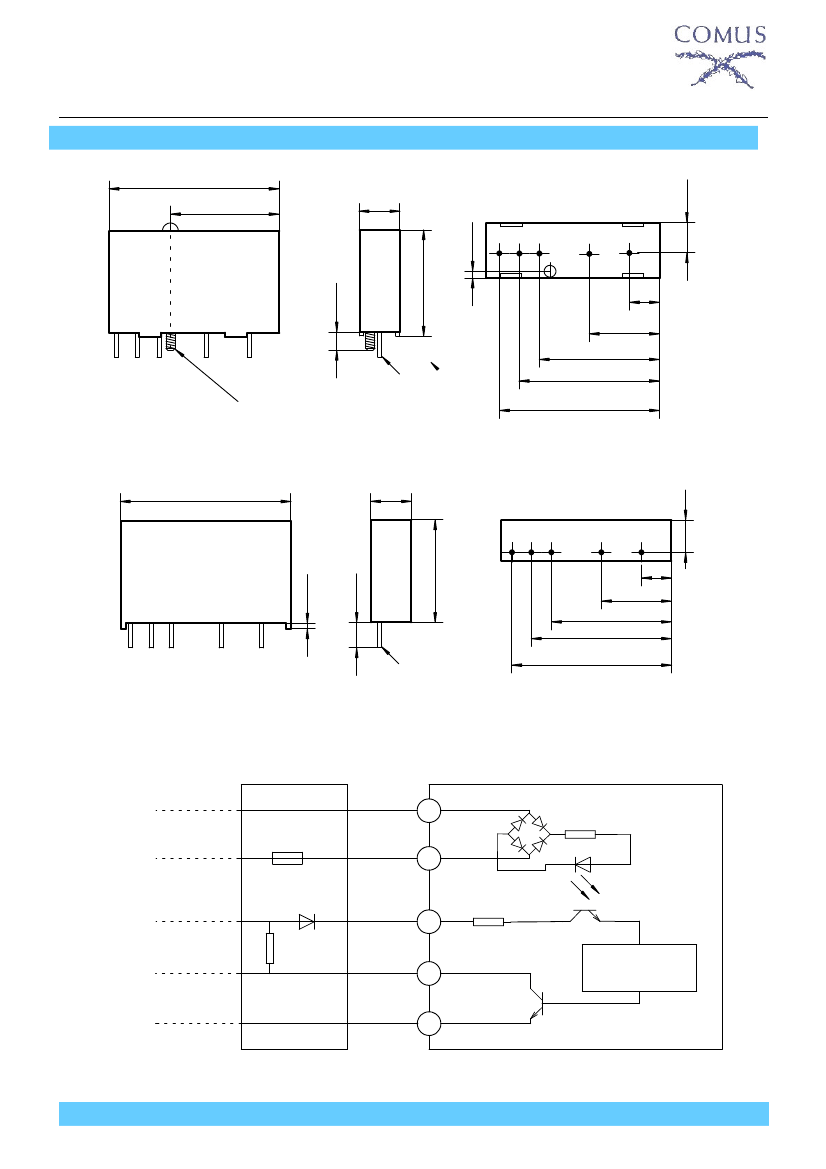

Page 1

www.comus.be

Rev. 1 ECN 07042401

Comus International, Belgium : + 32 (0)12 390 400, France : + 33 (0) 1 43 96 86 10, USA : + 1 973 777 6900 - Assemtech, UK : +44 (0) 1255 862 236
