Z8610804PSC datasheet, PDF - EEWORLD Datasheet

Z8610804PSC: DescriptionMicrocontroller, 8-Bit, MROM, Z8 CPU, 4MHz, CMOS, PDIP18,; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，28 Pages; ManufacturerIXYS

Download Datasheet Parametric Compare View All

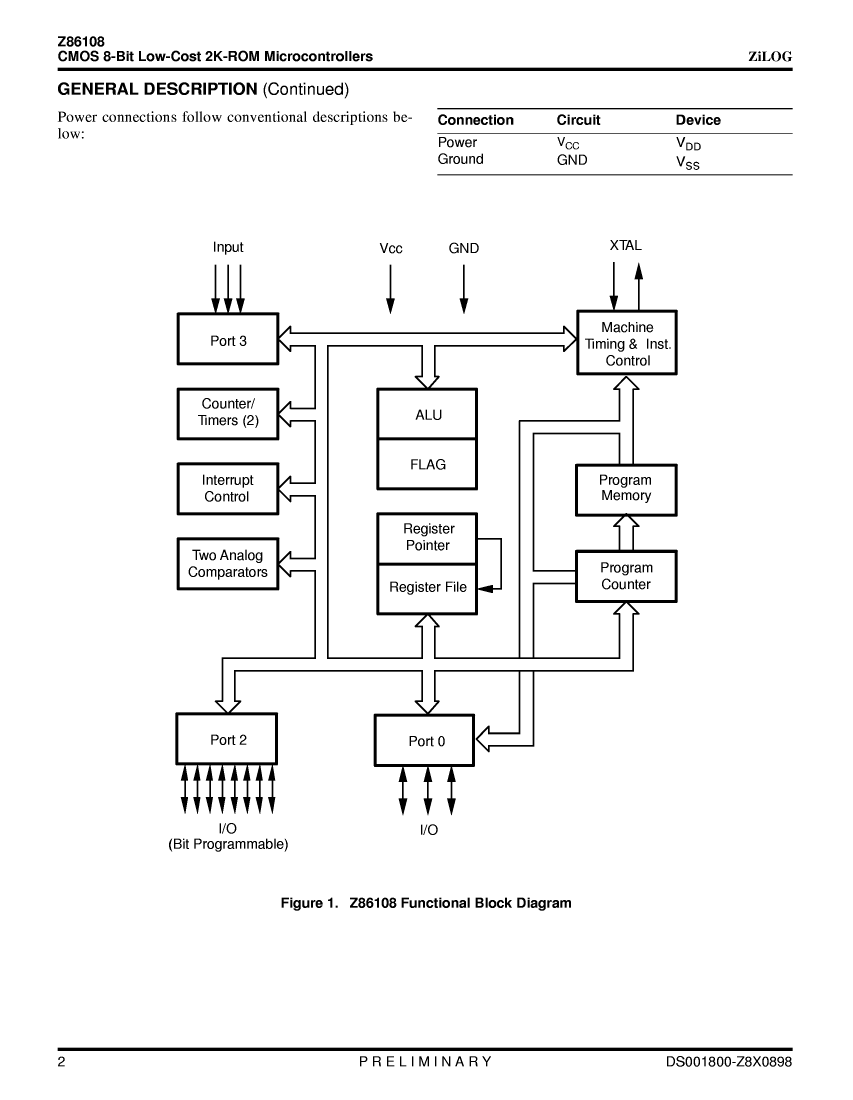

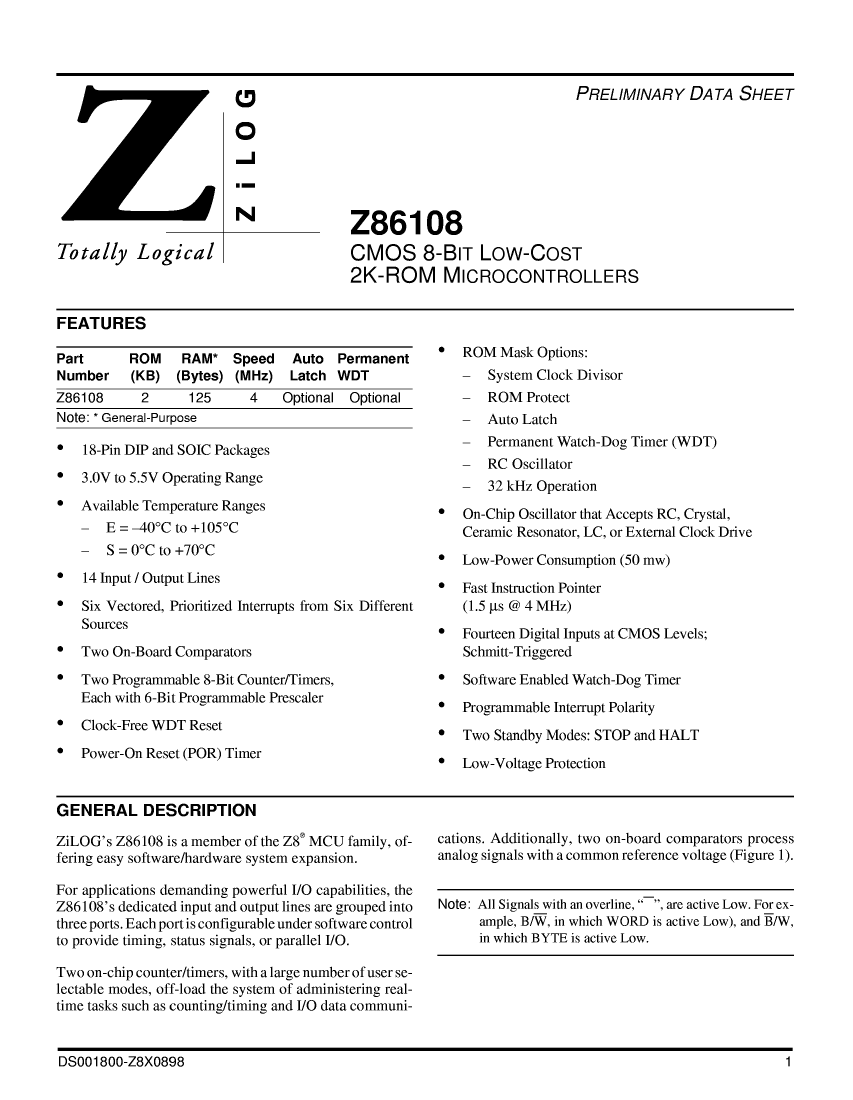

Z8610804PSC Overview

Microcontroller, 8-Bit, MROM, Z8 CPU, 4MHz, CMOS, PDIP18,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	IXYS
package instruction	DIP, DIP18,.3
Reach Compliance Code	unknown
Has ADC	NO
Address bus width
bit size	8
CPU series	Z8
maximum clock frequency	4 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PDIP-T18
length	22.86 mm

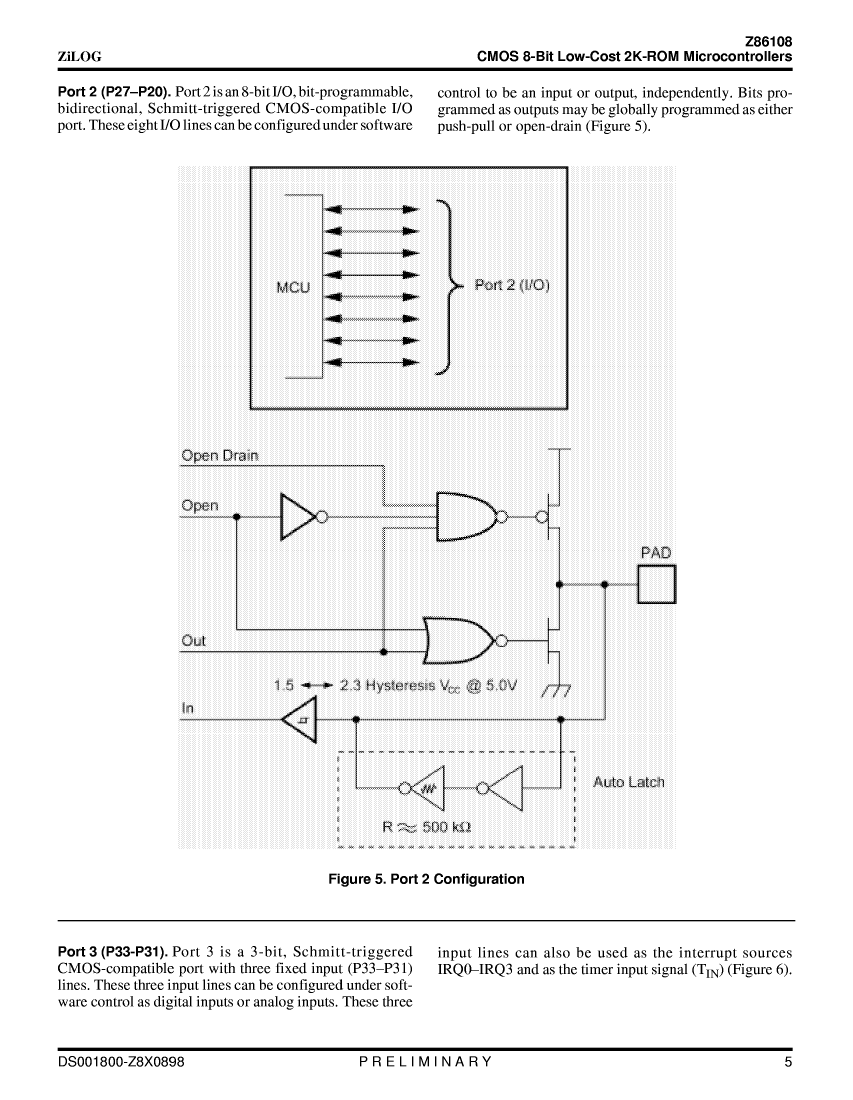

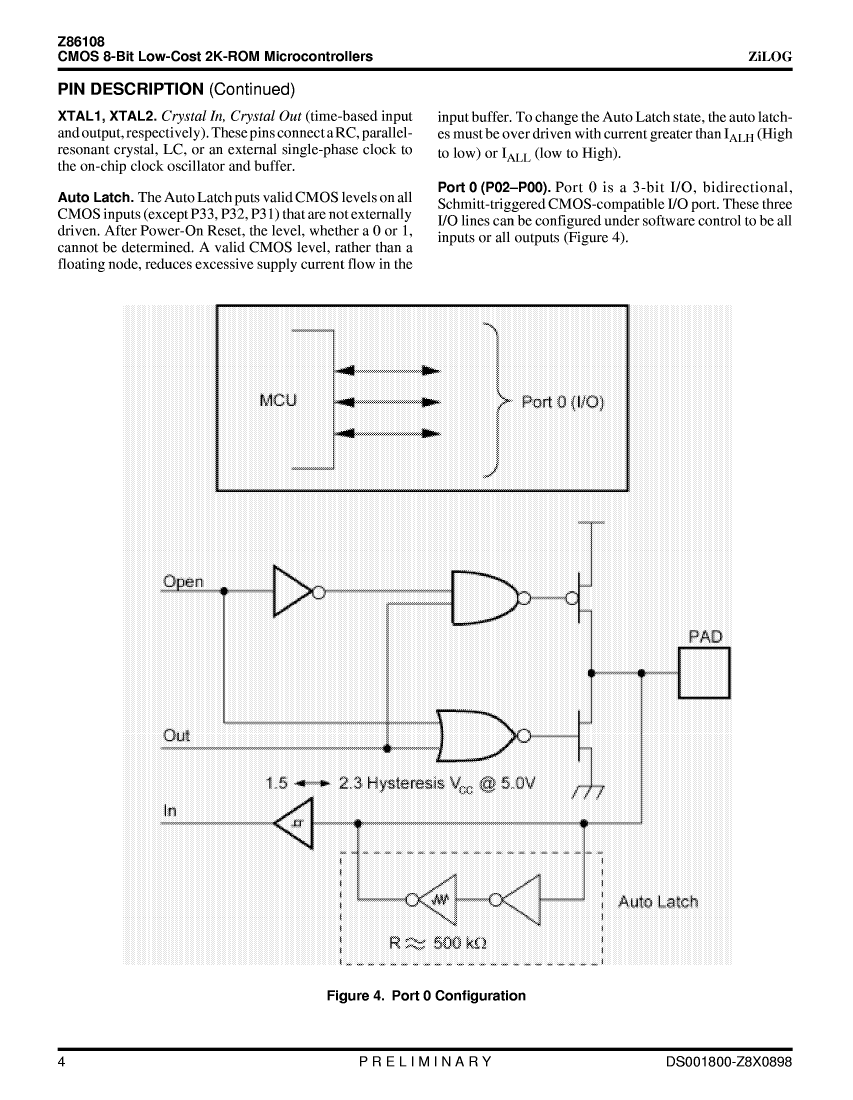

Number of I/O lines	14

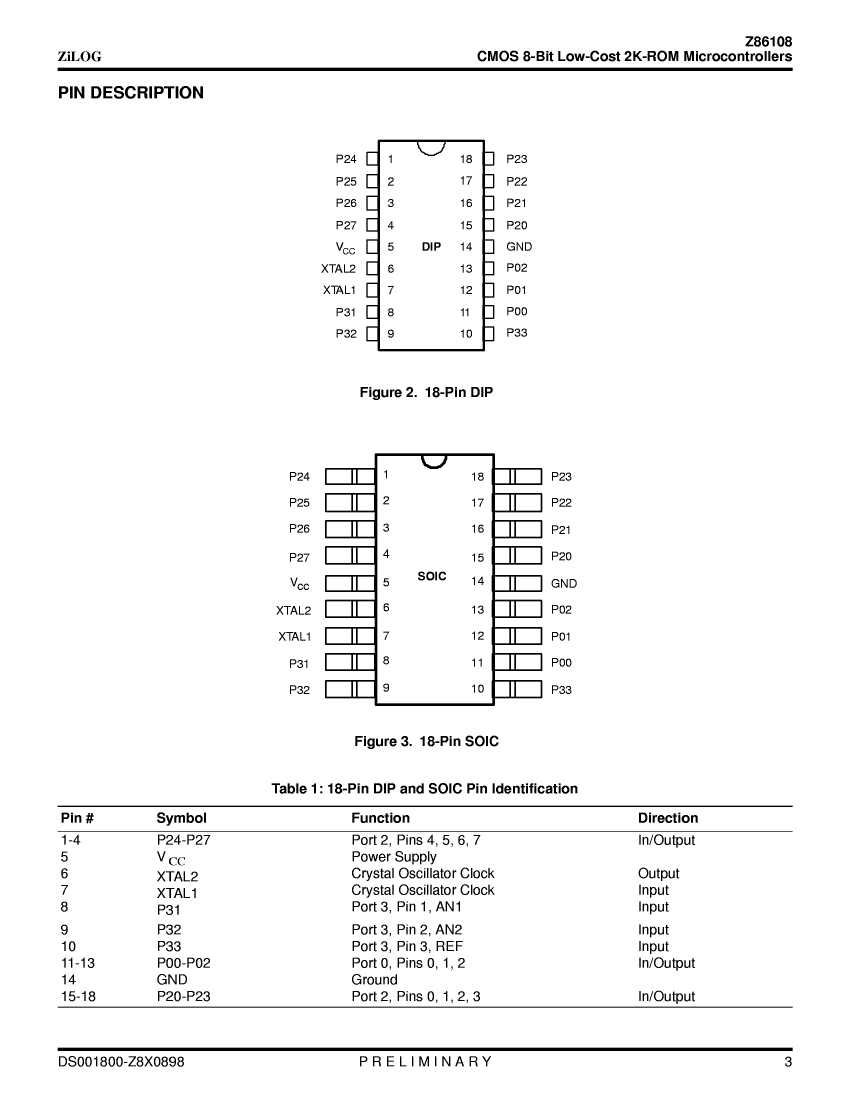

Number of terminals	18
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP18,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	3.3/5 V
Certification status	Not Qualified
RAM (bytes)	125
rom(word)	2048
ROM programmability	MROM
speed	4 MHz
Maximum slew rate	4.4 mA
Maximum supply voltage	3.6 V
Minimum supply voltage	3 V
Nominal supply voltage	3.3 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

	Z8610804PSC	Z8610804SEC
Description	Microcontroller, 8-Bit, MROM, Z8 CPU, 4MHz, CMOS, PDIP18,	Microcontroller, 8-Bit, MROM, Z8 CPU, 4MHz, CMOS, PDSO18,
Is it Rohs certified?	incompatible	incompatible
Maker	IXYS	IXYS
package instruction	DIP, DIP18,.3	SOP, SOP18,.4
Reach Compliance Code	unknown	unknown
Has ADC	NO	NO
bit size	8	8
CPU series	Z8	Z8
maximum clock frequency	4 MHz	4 MHz
DAC channel	NO	NO
DMA channel	NO	NO
JESD-30 code	R-PDIP-T18	R-PDSO-G18
length	22.86 mm	11.55 mm
Number of I/O lines	14	14
Number of terminals	18	18
Maximum operating temperature	70 °C	85 °C
PWM channel	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP
Encapsulate equivalent code	DIP18,.3	SOP18,.4
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE
power supply	3.3/5 V	3.3/5 V
Certification status	Not Qualified	Not Qualified
RAM (bytes)	125	125
rom(word)	2048	2048
ROM programmability	MROM	MROM
speed	4 MHz	4 MHz
Maximum slew rate	4.4 mA	4.4 mA
Maximum supply voltage	3.6 V	3.6 V
Minimum supply voltage	3 V	3 V
Nominal supply voltage	3.3 V	3.3 V
surface mount	NO	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL
width	7.62 mm	7.5 mm
Base Number Matches	1	1
