54F623/BSA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54F623/BSA

54F623/BSA: DescriptionBus Transceiver, F/FAST Series, 1-Func, 8-Bit, True Output, TTL, CDFP20,; Categorylogic logic; File Size216KB，5 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

54F623/BSA Overview

Bus Transceiver, F/FAST Series, 1-Func, 8-Bit, True Output, TTL, CDFP20,

54F623/BSA Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
Other features	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION
series	F/FAST
JESD-30 code	R-CDFP-F20
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS TRANSCEIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	FLATPACK
Maximum supply current (ICC)	140 mA
propagation delay (tpd)	8 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	FLAT
Terminal location	DUAL
Base Number Matches	1

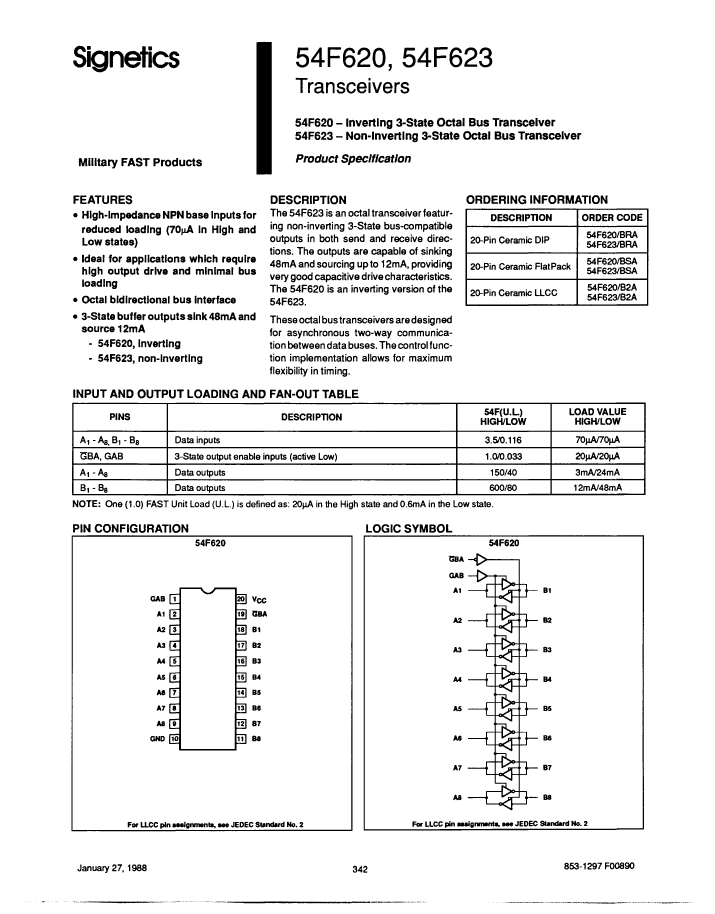

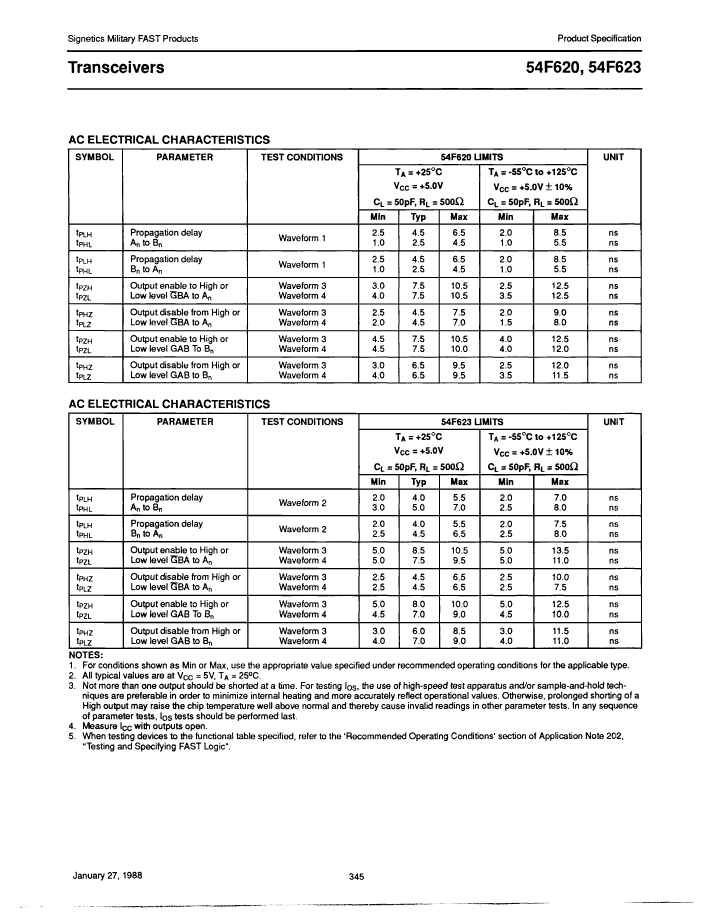

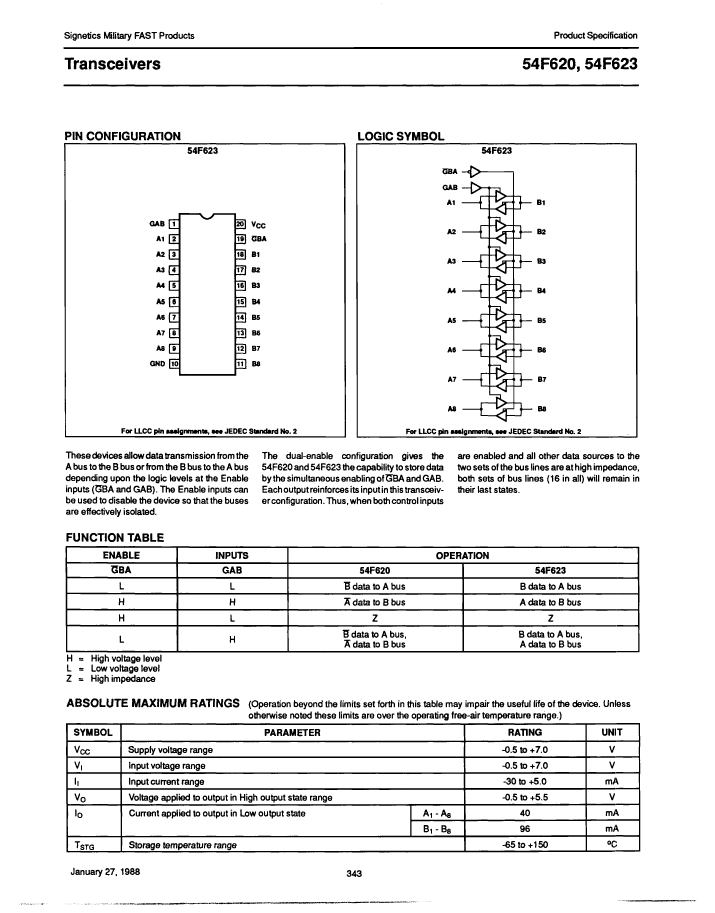

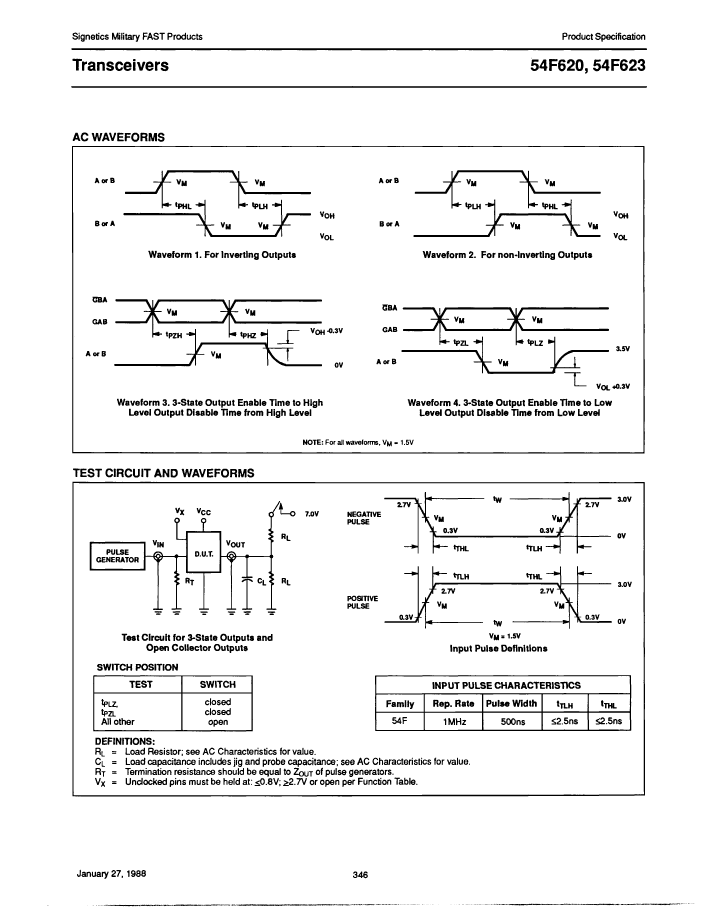

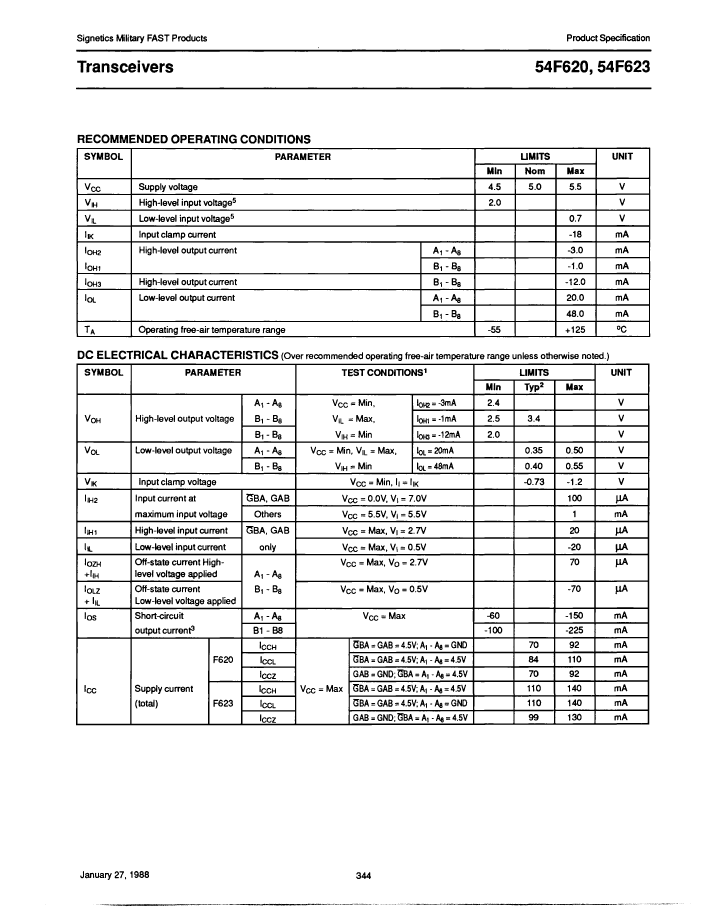

Preview

Download Datasheet

View All

54F623/BSA Related Products

	54F623/BSA	54F623/BRA	54F623/B2A	54F620/BRA	54F620/B2A	54F620/BSA
Description	Bus Transceiver, F/FAST Series, 1-Func, 8-Bit, True Output, TTL, CDFP20,	Bus Transceiver, F/FAST Series, 1-Func, 8-Bit, True Output, TTL, CDIP20,	Bus Transceiver, F/FAST Series, 1-Func, 8-Bit, True Output, TTL, CQCC20,	Bus Transceiver, F/FAST Series, 1-Func, 8-Bit, Inverted Output, TTL, CDIP20,	Bus Transceiver, F/FAST Series, 1-Func, 8-Bit, Inverted Output, TTL, CQCC20,	Bus Transceiver, F/FAST Series, 1-Func, 8-Bit, Inverted Output, TTL, CDFP20,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Other features	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION
series	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST
JESD-30 code	R-CDFP-F20	R-CDIP-T20	S-CQCC-N20	R-CDIP-T20	S-CQCC-N20	R-CDFP-F20
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER
Number of digits	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1
Number of ports	2	2	2	2	2	2
Number of terminals	20	20	20	20	20	20
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	INVERTED	INVERTED	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR
Package form	FLATPACK	IN-LINE	CHIP CARRIER	IN-LINE	CHIP CARRIER	FLATPACK
Maximum supply current (ICC)	140 mA	140 mA	140 mA	110 mA	110 mA	110 mA
propagation delay (tpd)	8 ns	8 ns	8 ns	5.5 ns	5.5 ns	5.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	NO	YES	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	FLAT	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	NO LEAD	FLAT
Terminal location	DUAL	DUAL	QUAD	DUAL	QUAD	DUAL
Base Number Matches	1	1	1	1	1	1
