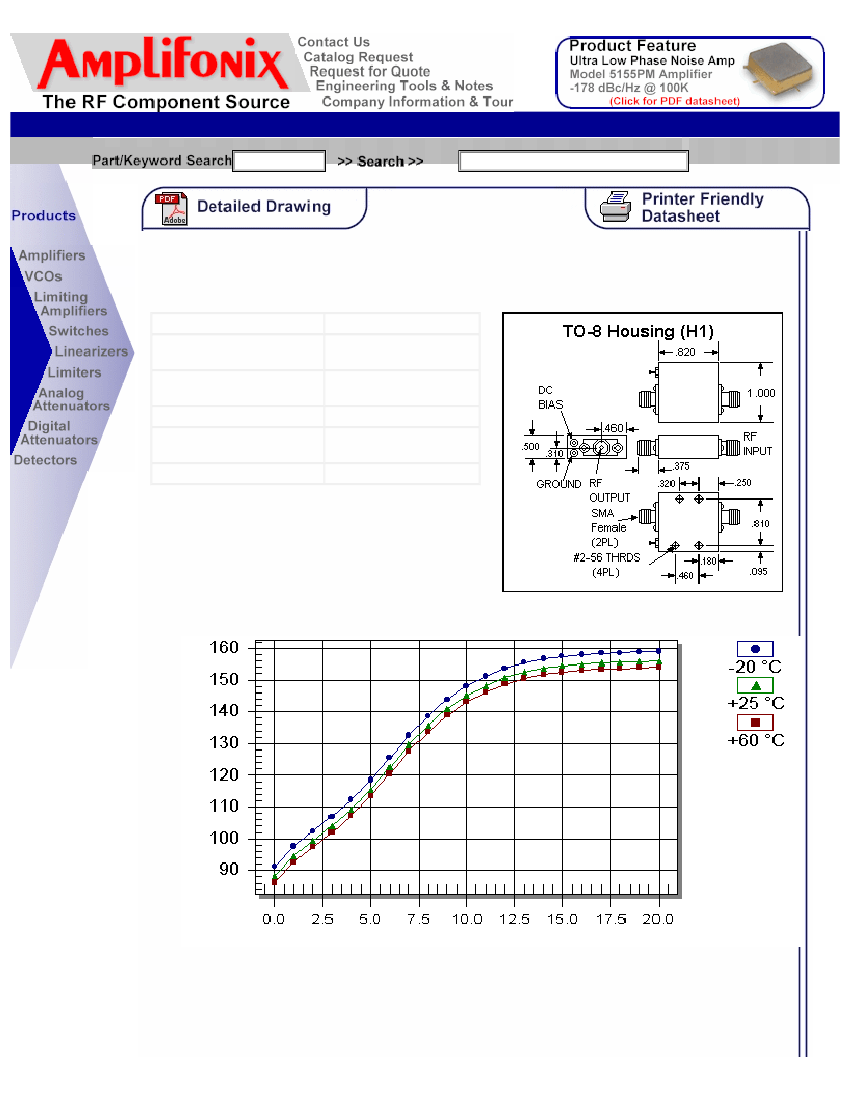

BXO9009 / SXO9009 VCO Performance Datasheet
Cross Reference Guide
BXO9009 / SXO9009*
* Part number for additional environmental screening.
Performance Data
Frequency
P
1dB
Harmonics
Phase Noise @ 100 kHz
Power Supply
Tuning Voltage
100.0 - 150.0 MHz
10.0 dBm Typical
7.0 dBm Min
-12.0 dBC Typical
-8.0 dBC Max
-125.0 dBC/Hz Typical
10.0 Volts
9.5 mA
1.0 - 15.0 V
Package Drawing
Frequency
MHz
Tuning Voltage (V)
P
1dB
Compression Point
http://www.amplifonix.com/bin/vco_sheet.pl?Pnum=TOM9009&Pack=H1 (1 of 2) [1/25/2005 10:06:09 AM]
BXO9009 / SXO9009 VCO Performance Datasheet
dBm
Tuning Voltage (V)
Performance vs Tuning Voltage
Tuning Voltage
(Volts)
0.0
1.0
2.0
3.0
4.0
5.0
6.0
7.0
8.0
9.0
10.0
11.0
12.0
13.0
14.0
15.0
16.0
17.0
18.0
19.0
20.0
Frequency
(MHz)
88.2
94.6
99.4
104.0
109.3
115.5
122.5
129.6
135.7
140.9
145.1
148.2
150.7
152.5
153.7
154.5
155.0
155.4
155.6
155.9
156.0
Tuning Voltage Sensitivity
(MHz/V)
-
6.4
4.8
4.6
5.3
6.2
7.0
7.1
6.1
5.2
4.2
3.1
2.5
1.8
1.2
0.8
0.5
0.4
0.2
0.3
0.1
Power
(dBm)
10.3
10.2
10.2
10.2
10.2
10.2
10.2
10.2
10.2
10.1
10.1
10.1
10.1
10.1
10.1
10.1
10.1
10.1
10.1
10.1
10.1
Amplifonix | 2707 Black Lake Place | Philadelphia, PA 19154
Tel: 215.464.4000 | FAX: 215.464.4001 | Email:
info@amplifonix.com
http://www.amplifonix.com/bin/vco_sheet.pl?Pnum=TOM9009&Pack=H1 (2 of 2) [1/25/2005 10:06:09 AM]
