42585 datasheet, PDF - EEWORLD Datasheet

42585: DescriptionGeneral Purpose Inductor, 500uH, 10%, 2 Element, SMD,; CategoryPassive components inductor; File Size99KB，1 Pages; ManufacturerPico Electronics Inc.

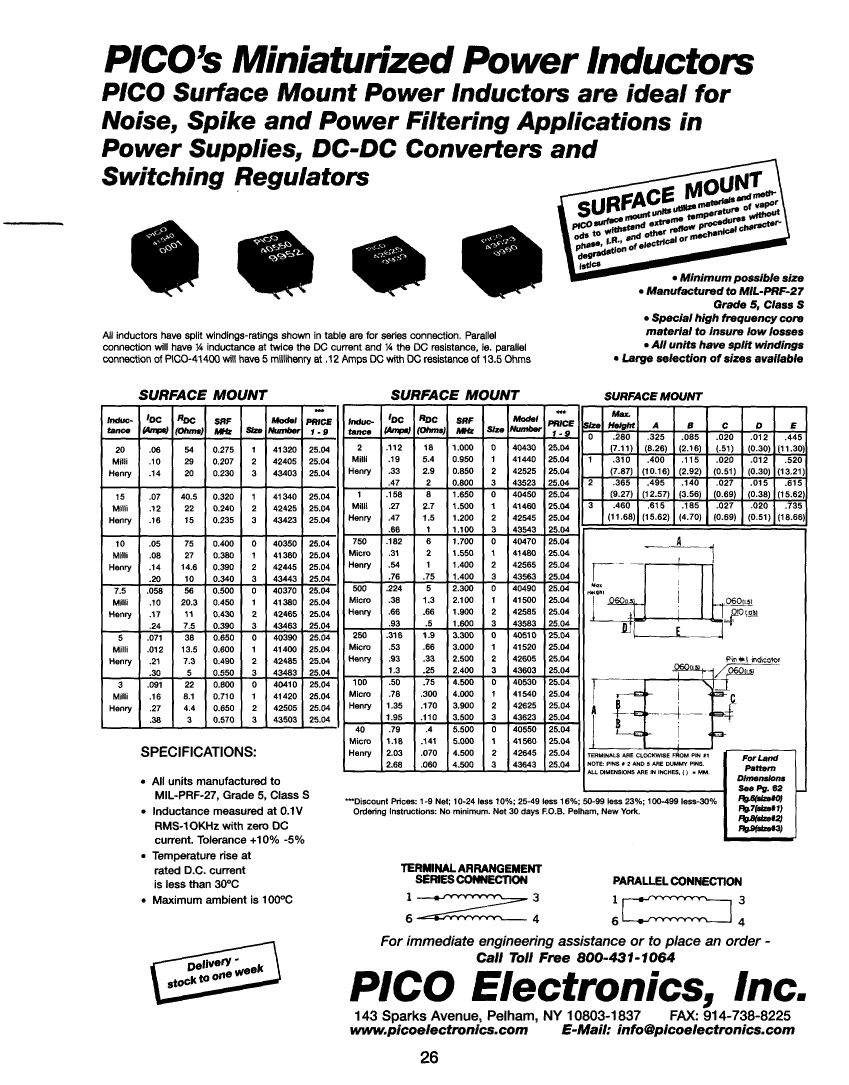

Download Datasheet Parametric Compare View All

42585 Overview

General Purpose Inductor, 500uH, 10%, 2 Element, SMD,

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Pico Electronics Inc.
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Plastic Housing
DC Resistance	0.66 Ω
Nominal inductance(L)	500 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e0
Number of functions	2
Number of terminals	6
Maximum operating temperature	100 °C
Package form	SMT
Maximum rated current	0.66 A
self resonant frequency	1.9 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	SERIES CONNECTED
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Terminal location	DUAL IN-LINE
Terminal shape	GULL WING
Test frequency	0.01 MHz
Tolerance	10%
Base Number Matches	1

	42585	42465	43643
Description	General Purpose Inductor, 500uH, 10%, 2 Element, SMD,	General Purpose Inductor, 7500uH, 10%, 2 Element, SMD,	General Purpose Inductor, 40uH, 10%, 2 Element, SMD,
Is it lead-free?	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Pico Electronics Inc.	Pico Electronics Inc.	Pico Electronics Inc.
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
structure	Plastic Housing	Plastic Housing	Miniature
DC Resistance	0.66 Ω	11 Ω	0.06 Ω
Nominal inductance(L)	500 µH	7500 µH	40 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
JESD-609 code	e0	e0	e0
Number of functions	2	2	2
Number of terminals	6	6	6
Maximum operating temperature	100 °C	100 °C	100 °C
Package form	SMT	SMT	SMT
Maximum rated current	0.66 A	0.17 A	2.68 A
self resonant frequency	1.9 MHz	0.43 MHz	4.5 MHz
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	NO	NO
special characteristics	SERIES CONNECTED	SERIES CONNECTED	SERIES CONNECTED
surface mount	YES	YES	YES
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal location	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE
Terminal shape	GULL WING	GULL WING	GULL WING
Test frequency	0.01 MHz	0.01 MHz	0.01 MHz
Tolerance	10%	10%	10%
