HLST-119-07-G-D datasheet, PDF

Datasheet> All Categories > The connector> The connector> HLST-119-07-G-D

HLST-119-07-G-D: DescriptionBoard Connector, 38 Contact(s), 2 Row(s), Hermaphroditic, Straight, Solder Terminal, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size988KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

HLST-119-07-G-D Overview

Board Connector, 38 Contact(s), 2 Row(s), Hermaphroditic, Straight, Solder Terminal, Socket, ROHS COMPLIANT

HLST-119-07-G-D Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	TIGER BUY CONTACT, POLARIZED
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	GOLD (10) OVER NICKEL (50)
Contact point gender	HERMAPHRODITIC
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	HLST
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	38
Base Number Matches	1

Preview

Download Datasheet

View All

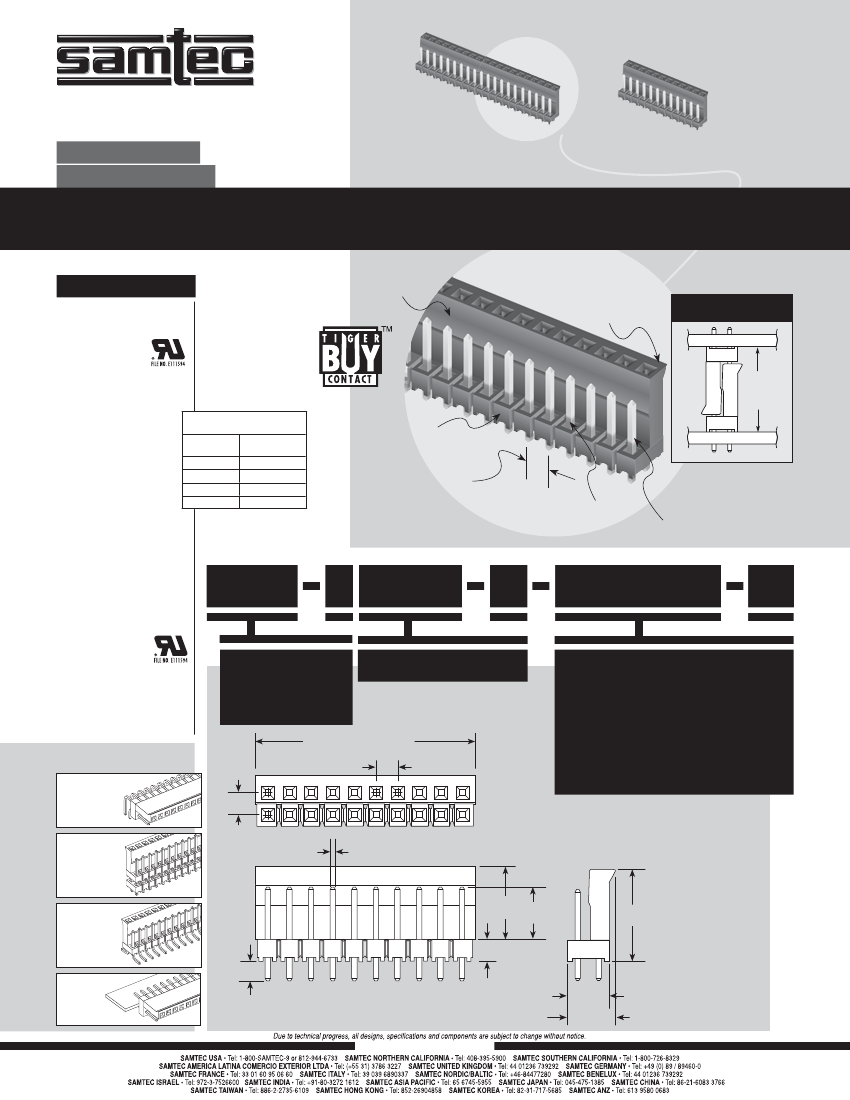

F-213 SUPPLEMENT

LST–112–07–G–D

LST–120–07–G–D

(2,54 mm) .100"

LST, HLST SERIES

SELF-MATING HERMAPHRODITIC STRIP

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?LST or

www.samtec.com?HLST

Mates with:

LST, HLST

Hermaphroditic self-mating

combination

header/socket

system

Polarized

APPLICATION

LST

Insulator Material:

LST: Black

Glass Filled Polyester

Terminal Material:

Phosphor Bronze

Contact Material:

Phosphor Bronze

Plating:

Au or Sn over 50µ"

(1,27 µm) Ni

Operating Temp Range:

-55°C to +125°C with Gold

-55°C to +105°C with Tin

Insertion Depth:

(3,68 mm) .145" to

(6,35 mm) .250"

Insertion Force:

(Single contact only)

6 oz (1,67 N) avg

Withdrawal Force:

(Single contact only)

4 oz (1,11 N) avg

Cycles:

100 with 10µ" (0,25 µm) Au

RoHS Compliant:

Yes

Lead–Free Solderable:

Wave Only

CURRENT RATING

(PER CONTACT)

AMBIENT

5 Contacts

TEMP

20°C

6.0A

40°C

5.3A

60°C

4.2A

80°C

3.0A

One part

number for

both socket

and terminal

(2,54 mm)

.100" pitch

(0,64 mm) .025"

square post

(13,59)

.535

MATED

HEIGHT

Locking feature

increases unmating

force and provides

audible “click” when

properly mated

TYPE

STRIP

NO. PINS

PER ROW

PLATING

OPTION

HLST

Same as LST except:

Insulator Material:

Liquid Crystal Polymer

(Socket Black, Header Natural)

Lead-Free Solderable:

Yes

Note:

Some lengths,

styles and options are

non-standard, non-returnable.

LST

= Standard

02 thru 30

–F

= Gold ﬂash on contact area,

Matte Tin on tail

HLST

= High Temperature

–G

= 10µ" (0,25 µm) Gold on contact area,

Gold ﬂash on balance

No. of Positions x (2,54)

.100 + (0,51) .020

(2,54) .100

(2,54)

.100

(0,64)

.025

Also Available

Right

Angle

Call Samtec.

–T

= Matte Tin

Note:

Other Gold plating options available.

Contact Samtec.

Elevated

Call Samtec.

Surface

Mount

(8,51)

.335 (6,10)

.240

(2,54)

.100

(2,29)

.090

(5,08)

.200

(5,84)

.230

(11,05)

.435

Call Samtec.

Edge

Mount

Call Samtec.

WWW.SAMTEC.COM
