Miniature PCB Power Relay
HG4115
TYPICAL APPLICATIONS
Industrial controls
Commercial applications
Home appliances
FEATURES
Most popular power relay
Up to 30A switching capacity
DC and AC coil available
CONTACT RATING
Form
Resistive
Max. Switching Current
Max. Switching Voltage
Max. Continuous Current
Max. Switching Power
Min. Load
Voltage
240VAC
28VDC
1 Form A (H)
30A
30A
30A
30A
8.31KVA,
900W
1 Form B (D)
15A
10A
15A
277VAC/30VDC
15A
4.155KVA,
450W
1A, 5VDC/12VAC
1 Form C (Z)
NO
20A
20A
20A
20A
5.54KVA,
600W
NC
10A
10A
10A
10A
2.77KVA, 300W
UL/CSA RATING
Load Type
General Purpose
Resistive
Motor
LRA/FLA
Tungsten
Ballast
Voltage
240VAC
240VAC
28VDC
240VAC
120VAC
240VAC
120VAC
120VAC
277VAC
1 Form A (H)
30A
30A
20A
2HP
1HP
80A/30A
98A/22A
TV5
10A
1 Form B (D)
15A
15A
10A
0.5HP
0.25HP
30A/10A
TV3
3A
1 Form C (Z)
NO
20A
20A
20A
2HP
1HP
50A/20A
TV5
10A
NC
10A
10A
10A
0.5HP
0.25HP
20A/7A
TV3
3A
CONTACT DATA
Material
Initial Contact Resistance
Mechanical
Service Life
Electrical
AgCdO, AgSnOInO
50 mΩ, max. at 0.1A, 6VDC
10
7
ops.
10
5
ops.
COIL DATA
Type
Coil Voltage
Code
005
006
009
012
024
048
110
012A
024A
110A
220A
Nominal
Voltage
(VDC/VAC)
5
6
9
12
24
48
110
12
24
110
220
Resistance
(Ω) ±10%
27
40
97
155
660
2560
10330
26
106
2750
11000
Must Operate
Voltage max.
(VDC/VAC)
3.75
4.50
6.75
9.00
18.00
36.00
82.50
10.20
20.40
93.50
187.00
Must Release
Voltage min.
(VDC/VAC)
0.5
0.6
0.9
1.2
2.4
4.8
11.0
1.8
3.6
16.0
33.0
DC
AC
CHARACTERISTICS
Operate Time
Release Time
Insulation Resistance
Dielectric Strength
Shock Resistance
Vibration Resistance
Power Consumption
Ambient Temperature
Weight
15 ms for DC coil; 20 ms for AC coil, max.
10 ms for DC coil; 15 ms for AC coil, max.
1000 MΩ, at 500 VDC, 50%RH
1500 Vrms, 1 min. between open contacts
1500 Vrms, 1 min. between coil and contacts
10 g, 11ms, functional; 100 g destructive
DA 1.5mm, 10 - 55 Hz
DC Coil: 0.9W; AC Coil: 2VA, approx.
-55 to 85ºC operating; -55 to 130ºC storage
Open: 20g; Covered: 26g, approx.
HG4115
1/2
HG4115
ORDERING DESIGNATION
Example:
HG4115 /
012-
Z
1
C
F
6
Model
Coil Voltage Code
DC/AC
Nil: DC Coil
A: AC Coil
Contact Form
H: 1 Form A; D: 1 Form B; Z: 1 Form C
Version
Nil: Open; 1: Sealed; 2: Dust Cover
Contact Materal
C: AgCdO; S: AgSnOInO
Thermal Class
Nil: UL Class B; F: UL Class F
Creepage Distance
Nil: UL 508 Spacing
6: UL 873 Spacing

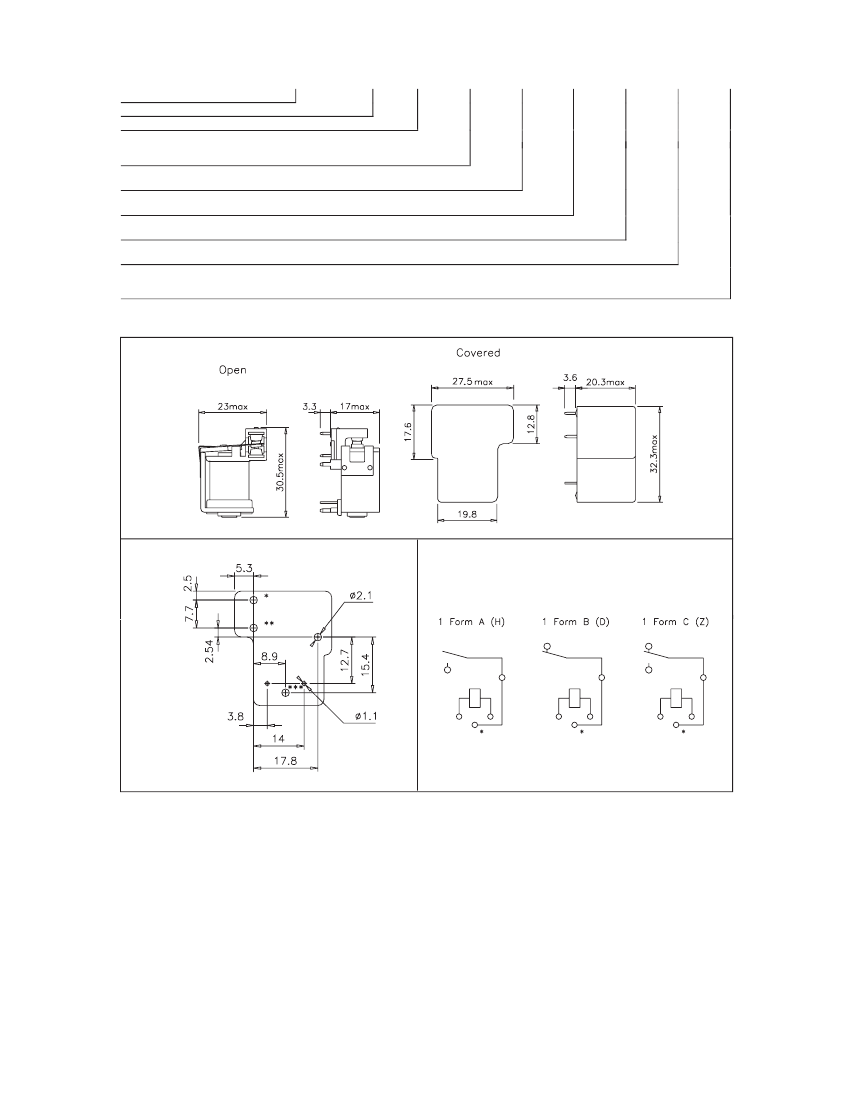

OVERALL DIMENSIONS, MOUNTING HOLES AND WIRING DIAGRAMS (mm)
Overall Dimensions
Mounting Holes (Bottom View)
Wiring Diagrams (Bottom View)
NOTES
1.
2.
3.
4.
5.
6.
All parameters, unless otherwise specified, are measured at ambient temperature 23ºC.
In mounting holes drawing, the * holes is not needed for 1 Form A, the ** hole is not needed for 1 Form B. The *** hole is not
needed for UL873 spacing version
In wiring diagrams drawing the * terminal is not present for UL873 spacing version.
To exert optimum electrical life, please remove the tape of sealed version after cleaning process.
Custom-made services available with operational quantity. Please let us know your special requirements.
Specifications subject to change without prior notice.
DB LECTRO INC. 3600 boul. Matte suite I Brossard Qc J4Z-2Z2
TEL: (450)-444-1424 FAX:(450)-444-4714
HG4115
2/2
