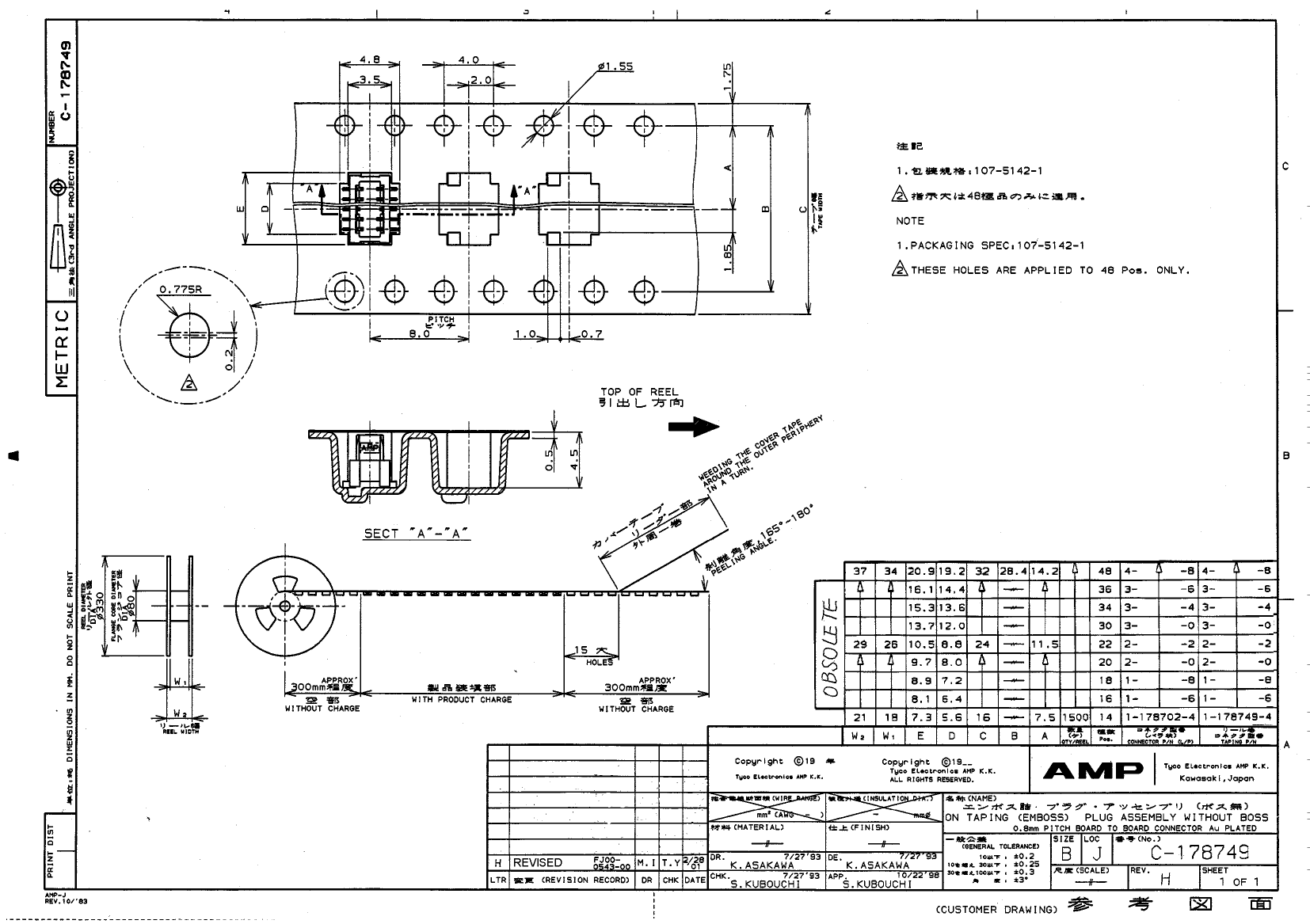

Preview

3-178749-6: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,36 CONTACTS,SKT,0.031 PITCH,WHITE; CategoryThe connector The connector; File Size49KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

3-178749-6 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,36 CONTACTS,SKT,0.031 PITCH,WHITE

3-178749-6 Parametric

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
body width	0.126 inch
subject depth	0.167 inch
body length	0.622 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN-PB
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	35 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	50VAC V
Insulation resistance	500000000 Ω
Insulator color	WHITE
insulator material	POLYESTER
Manufacturer's serial number	178749
Plug contact pitch	0.031 inch
Installation method	STRAIGHT
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-30 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.905 mm
Rated current (signal)	0.5 A
reliability	COMMERCIAL
Terminal pitch	0.7874 mm
Total number of contacts	36
Base Number Matches	1

Preview

Download Datasheet

View All

3-178749-6 Related Products

	3-178749-6	1-178749-6	1-178749-8	3-178749-4	2-178749-0	3-178749-0	2-178749-2
Description	HEADER CONNECTOR,PCB MNT,RECEPT,36 CONTACTS,SKT,0.031 PITCH,WHITE	16 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, PLUG	HEADER CONNECTOR,PCB MNT,RECEPT,18 CONTACTS,SKT,0.031 PITCH,WHITE	HEADER CONNECTOR,PCB MNT,RECEPT,34 CONTACTS,SKT,0.031 PITCH,WHITE	CONNECTOR, 20 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, PLUG	HEADER CONNECTOR,PCB MNT,RECEPT,30 CONTACTS,SKT,0.031 PITCH,WHITE	HEADER CONNECTOR,PCB MNT,RECEPT,22 CONTACTS,SKT,0.031 PITCH,WHITE
Reach Compliance Code	unknown	unknown	unknown	unknown	unknow	unknown	unknown
Body/casing type	RECEPTACLE	PLUG	RECEPTACLE	RECEPTACLE	PLUG	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD STACKING CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD STACKING CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	FEMALE	MALE	FEMALE	FEMALE	MALE	FEMALE	FEMALE
Manufacturer's serial number	178749	178749	178749	178749	178749	178749	178749
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Number of rows loaded	2	2	2	2	2	2	2
Terminal pitch	0.7874 mm	0.8 mm	0.7874 mm	0.7874 mm	0.8 mm	0.7874 mm	0.7874 mm
Total number of contacts	36	16	18	34	20	30	22
Maker	TE Connectivity	-	-	TE Connectivity	-	TE Connectivity	TE Connectivity
body width	0.126 inch	-	0.126 inch	0.126 inch	-	0.126 inch	0.126 inch
subject depth	0.167 inch	-	0.167 inch	0.167 inch	-	0.167 inch	0.167 inch
body length	0.622 inch	-	0.339 inch	0.591 inch	-	0.528 inch	0.441 inch
Contact to complete cooperation	SN-PB	-	SN-PB	SN-PB	-	SN-PB	SN-PB
Contact material	PHOSPHOR BRONZE	-	PHOSPHOR BRONZE	PHOSPHOR BRONZE	-	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Contact resistance	35 mΩ	-	35 mΩ	35 mΩ	-	35 mΩ	35 mΩ
Contact style	BELLOWED TYPE	-	BELLOWED TYPE	BELLOWED TYPE	-	BELLOWED TYPE	BELLOWED TYPE
Dielectric withstand voltage	50VAC V	-	50VAC V	50VAC V	-	50VAC V	50VAC V
Insulation resistance	500000000 Ω	-	500000000 Ω	500000000 Ω	-	500000000 Ω	500000000 Ω
Insulator color	WHITE	-	WHITE	WHITE	-	WHITE	WHITE
insulator material	POLYESTER	-	POLYESTER	POLYESTER	-	POLYESTER	POLYESTER
Plug contact pitch	0.031 inch	-	0.031 inch	0.031 inch	-	0.031 inch	0.031 inch
Number of connectors	ONE	-	ONE	ONE	-	ONE	ONE
PCB row number	2	-	2	2	-	2	2
Maximum operating temperature	105 °C	-	105 °C	105 °C	-	105 °C	105 °C
Minimum operating temperature	-30 °C	-	-30 °C	-30 °C	-	-30 °C	-30 °C
PCB contact pattern	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
PCB contact row spacing	1.905 mm	-	1.905 mm	1.905 mm	-	1.905 mm	1.905 mm
Rated current (signal)	0.5 A	-	0.5 A	0.5 A	-	0.5 A	0.5 A
reliability	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL
Base Number Matches	1	-	-	1	1	1	1
