ZGL41-100 thru ZGL41-200A
Vishay Semiconductors
formerly General Semiconductor
Surface Mount Glass Passivated Zeners
DO-213AB
SOLDERABLE ENDS
1st BAND
0
D2 = D1 + 0.008 (0.20)
-
Zener Voltage
100 to 200V
Steady State Power
1.0W
Mounting Pad Layout
0.157 (4.00)
MAX
D2
D1=
0.105
0.095
(2.67)
(2.41)
0.049 (1.25) MIN
0.118 (3.00) MIN
0.022 (0.56)
0.018 (0.46)
0.205 (5.2)
0.185(4.7)
1st band denotes type and positive end (cathode)
0.022 (0.56)
0.018 (0.46)
Dimensions in inches
and (millimeters)
0.256 (6.50)
REF
Mechanical Data
Case:
JEDEC DO-213AB molded plastic body over
passivated junction
Terminals:
Solder plated, solderable per MIL-STD-750,
Method 2026
Polarity:
Red band denotes Zener diode and
positive end (cathode)
Mounting Position:
Any
Weight:
0.0046oz., 0.116g
Packaging codes/options:
26/5K per 13” Reel (12mm tape), 60K/box
46/1.5K per 7” Reel (12mm tape), 30K/box
Features
• Plastic package has Underwriters Laboratory Flammability
Classification 94V-0
• For surface mount applications
• Glass passivated junction
• Low Zener impedance
• Low regulation factor
• High temperature soldering guaranteed:
250°C/10 seconds at terminals
Maximum Ratings and Electrical Characteristics
(T
Operating junction and storage temperature range: T
J
, T
STG
: -55°C to +150°C
Nominal Zener
Voltage at I
ZT
(Note 1)
A
= 25°C unless otherwise noted)
Type
V
Z
(V)
Test Current
I
ZT
(mA)
Maximum Zener
Dynamic Impedance
Z
ZT
at
Z
ZK
at I
ZK
I
ZT
(Ω)
(Ω)
(mA)
Maximum DC Reverse
Maximum Max. Instantaneous
Leakage Current
Surge Current Forward Voltage
at V
R
(Note 2)
at 200mA
I
R
(µA)
V
R
(V)
I
RM
(mAdc)
V
F
(V)
ZGL41-100
ZGL41-110
ZGL41-120
ZGL41-130
ZGL41-140
ZGL41-150
ZGL41-160
ZGL41-170
ZGL41-180
ZGL41-190
ZGL41-200
100
110
120
130
140
150
160
170
180
190
200
3.7
3.4
3.1
2.9
2.7
2.5
2.3
2.2
2.1
2.0
1.9
250
300
380
450
525
600
700
800
900
1050
1200
3100
4000
4500
5000
5500
6000
6500
6750
7000
7500
8000
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
76.0
83.6
91.2
98.8
106.4
114.0
121.6
129.2
136.9
144.4
152.0
10.0
9.1
8.3
7.7
7.1
6.7
6.3
5.9
5.6
5.3
5.0
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
Notes:
(1) Standard voltage tolerance is ±10%, Suffix A = ±5%
(2) Surge current is a non-repetitive, 8.3ms pulse width square wave or equivalent sine-wave superimposed on I
ZT
per JEDEC Method
(3) Maximum steady state power dissipation is 1.0 watt at T
T
= 75°C
Document Number 88409
02-May-02
www.vishay.com
1
ZGL41-100 thru ZGL41-200A
Vishay Semiconductors
formerly General Semiconductor
Ratings and
Characteristic Curves
(T
A
= 25°C unless otherwise noted)

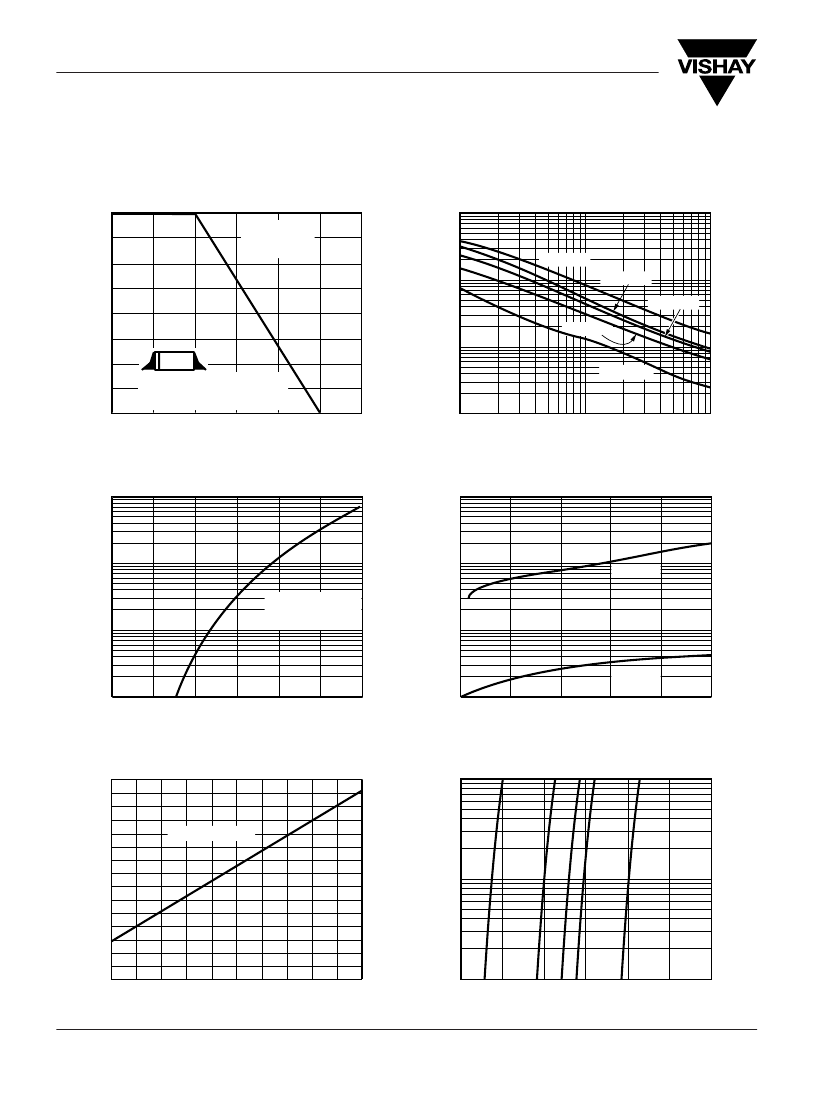

Fig. 1 -- Maximum Continuous Power
Dissipation
P
M(AV) --
Average Power Dissipation (W)
1.0
60Hz
Resistive or
Inductive Load
0.75
10,000
Fig. 2 -- Typical Zener Impedance
Z
Z
-- Dynamic Zener Impedance (Ω)
V
Z
= 200V
1,000
V
Z
= 180V
V
Z
= 150V
V
Z
= 120V
100
V
Z
= 100V
0.5
0.25
P.C.B. Mounted on
0.31 x 0.31 x 0.08 (8 x 8 x 2mm)
Copper Areas Pads
0
25
50
75
100
125
150
175
10
0.1
1
10
Terminals Temperature (
°
C)
I
ZT
-- Zener Test Current (mA)
Fig. 3 -- Typical Instantaneous Forward
Characteristics
10
10
Fig. 4 -- Typical Reverse Characteristics
Instantaneous Reverse Current (µA)
Instantaneous Forward Current (A)
1
1
T
J
= 100°C
0.1
Pulse Width = 300µs
1% Duty Cycle
T
J
= 25°C
0.1
T
J
= 25°C
0.01
0
20
40
60
80
100
0.01
0.4
0.6
0.8
1
1.2
1.4
1.6
Instantaneous Forward Voltage (V)
Percent of Rated Zener Voltage (%)
Fig. 5 -- Steady State Power
Derating Curve
θV
Z
-- Temperature Coefficient (mV/°C)
10
220
200
Tested at Rated I
ZT
180
160
140
120
100
80
100 110 120 130 140 150 160 170 180 190 200
Fig. 6 -- Typical Zener Voltage
I
ZT
-- Test Zener Current (mA)
1
0.1
100
150
200
250
V
Z
— Zener Voltage (V)
www.vishay.com
2
V
Z
-- Zener Voltage (V)
Document Number 88409
02-May-02
