DM54LS20W datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> DM54LS20W

DM54LS20W: DescriptionNAND Gate, LS Series, 2-Func, 4-Input, TTL, CDFP14, CERAMIC, FP-14; Categorylogic logic; File Size121KB，6 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

DM54LS20W Overview

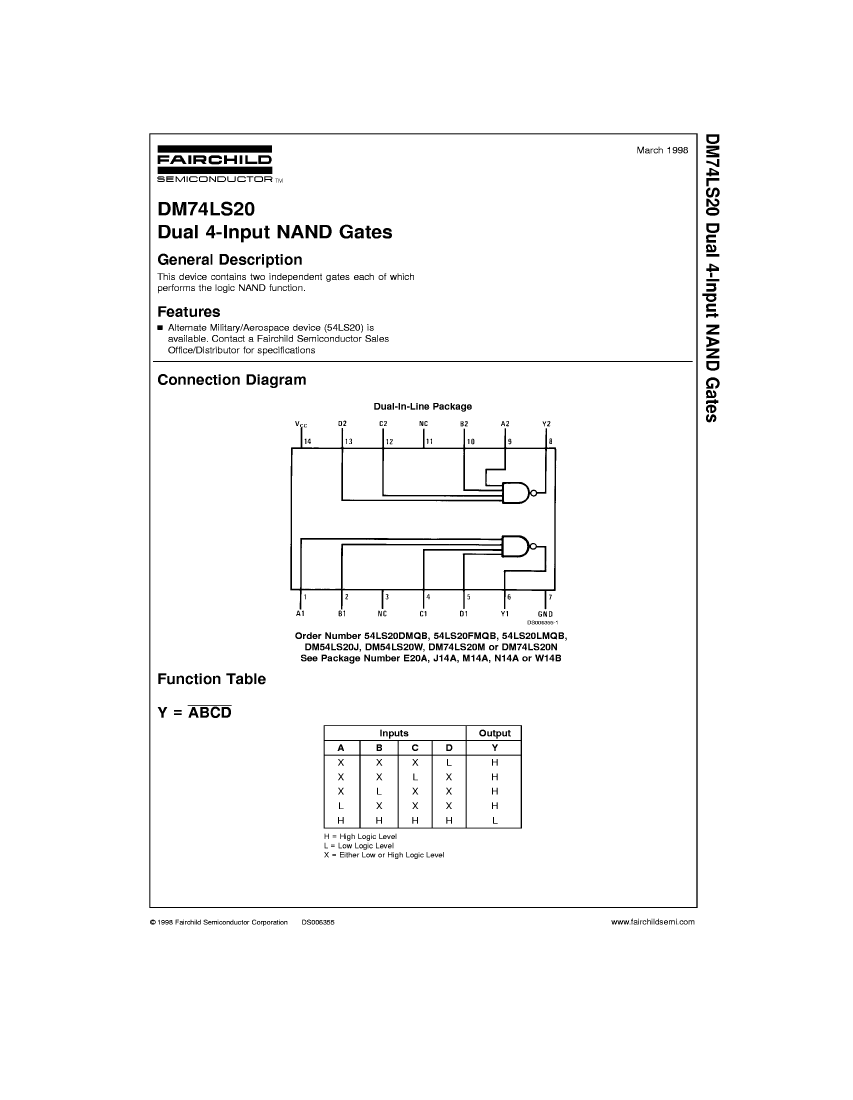

NAND Gate, LS Series, 2-Func, 4-Input, TTL, CDFP14, CERAMIC, FP-14

DM54LS20W Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DFP
package instruction	DFP, FL14,.3
Contacts	14
Reach Compliance Code	compliant
series	LS
JESD-30 code	R-GDFP-F14
JESD-609 code	e0
Logic integrated circuit type	NAND GATE
MaximumI(ol)	0.004 A
Number of functions	2
Number of entries	4
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DFP
Encapsulate equivalent code	FL14,.3
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	5 V
Maximum supply current (ICC)	2.2 mA
Prop。Delay @ Nom-Sup	15 ns
propagation delay (tpd)	15 ns
Certification status	Not Qualified
Schmitt trigger	NO
Maximum seat height	2.032 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
width	6.2865 mm
Base Number Matches	1

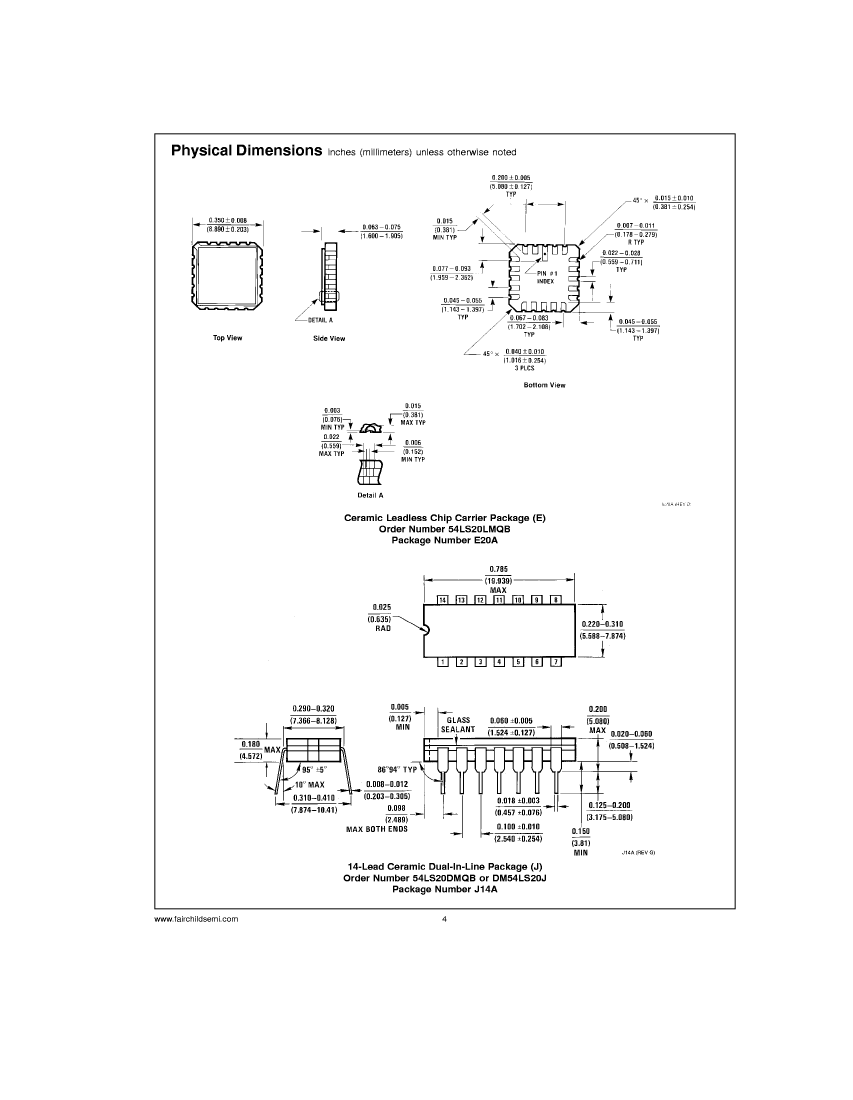

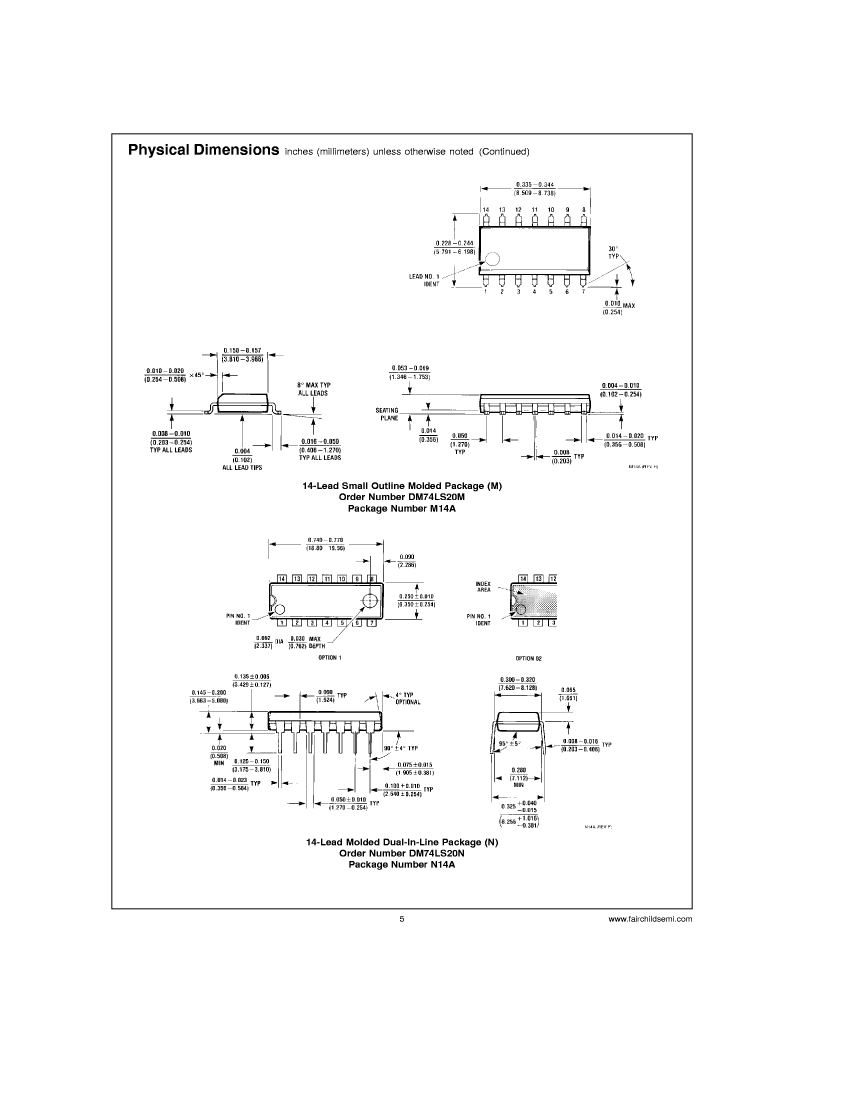

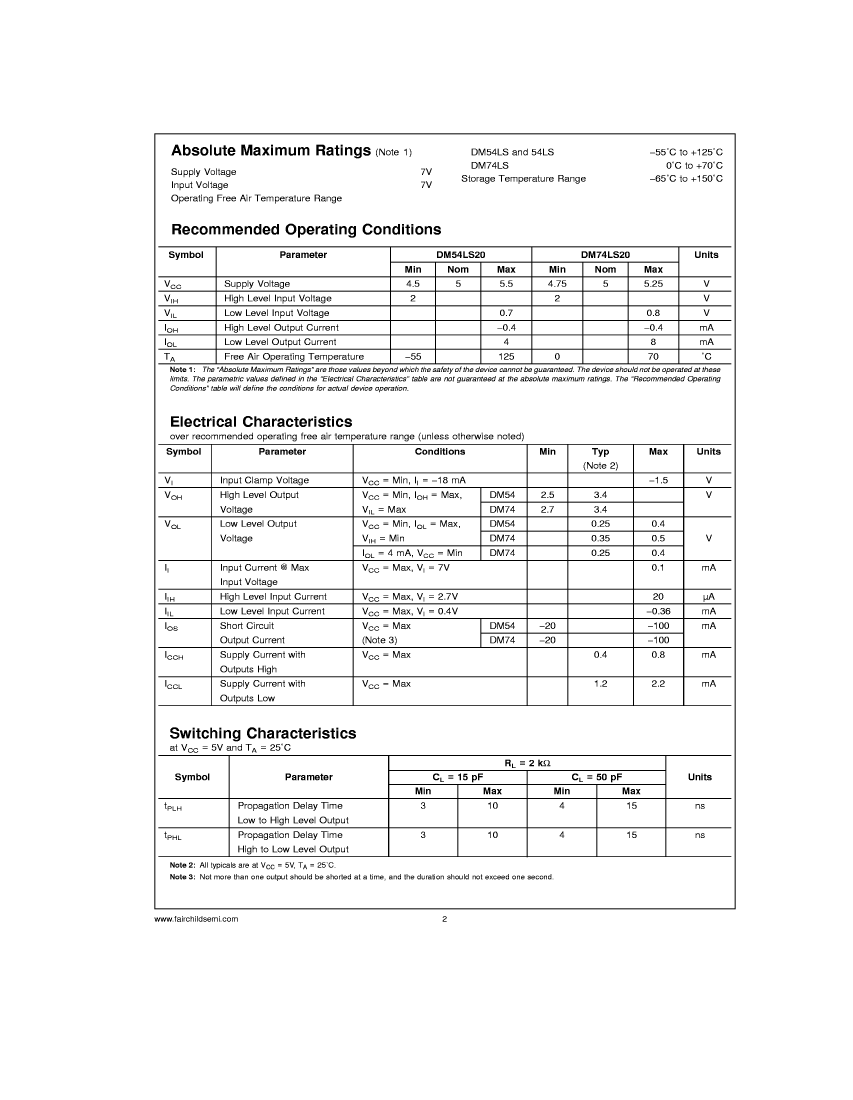

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

DM54LS20W Related Products

	DM54LS20W	DM54LS20J	54LS20LMQB	54LS20DMQB	54LS20FMQB
Description	NAND Gate, LS Series, 2-Func, 4-Input, TTL, CDFP14, CERAMIC, FP-14	NAND Gate, LS Series, 2-Func, 4-Input, TTL, CDIP14, CERAMIC, DIP-14	NAND Gate, LS Series, 2-Func, 4-Input, TTL, CQCC20, CERAMIC, LCC-20	NAND Gate, LS Series, 2-Func, 4-Input, TTL, CDIP14, CERAMIC, DIP-14	NAND Gate, LS Series, 2-Func, 4-Input, TTL, CDFP14, CERAMIC, FP-14
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	DFP	DIP	QLCC	DIP	DFP
package instruction	DFP, FL14,.3	DIP, DIP14,.3	QCCN, LCC20,.35SQ	DIP, DIP14,.3	DFP, FL14,.3
Contacts	14	14	20	14	14
Reach Compliance Code	compliant	compliant	compliant	unknown	compliant
series	LS	LS	LS	LS	LS
JESD-30 code	R-GDFP-F14	R-GDIP-T14	S-CQCC-N20	R-GDIP-T14	R-GDFP-F14
JESD-609 code	e0	e0	e0	e0	e0
Logic integrated circuit type	NAND GATE	NAND GATE	NAND GATE	NAND GATE	NAND GATE
MaximumI(ol)	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A
Number of functions	2	2	2	2	2
Number of entries	4	4	4	4	4
Number of terminals	14	14	20	14	14
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DFP	DIP	QCCN	DIP	DFP
Encapsulate equivalent code	FL14,.3	DIP14,.3	LCC20,.35SQ	DIP14,.3	FL14,.3
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE	CHIP CARRIER	IN-LINE	FLATPACK
power supply	5 V	5 V	5 V	5 V	5 V
Maximum supply current (ICC)	2.2 mA	2.2 mA	2.2 mA	2.2 mA	2.2 mA
Prop。Delay @ Nom-Sup	15 ns	15 ns	15 ns	15 ns	15 ns
propagation delay (tpd)	15 ns	15 ns	15 ns	15 ns	15 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Schmitt trigger	NO	NO	NO	NO	NO
Maximum seat height	2.032 mm	5.08 mm	1.905 mm	5.08 mm	2.032 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	NO	YES
technology	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	FLAT
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	QUAD	DUAL	DUAL
width	6.2865 mm	7.62 mm	8.89 mm	7.62 mm	6.2865 mm
Base Number Matches	1	1	1	1	1
length	-	19.43 mm	8.89 mm	19.43 mm	-
Filter level	-	-	MIL-STD-883 Class B	MIL-STD-883 Class B	MIL-STD-883 Class B
