DAC70BH-COB-IBI datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> converter> DAC70BH-COB-IBI

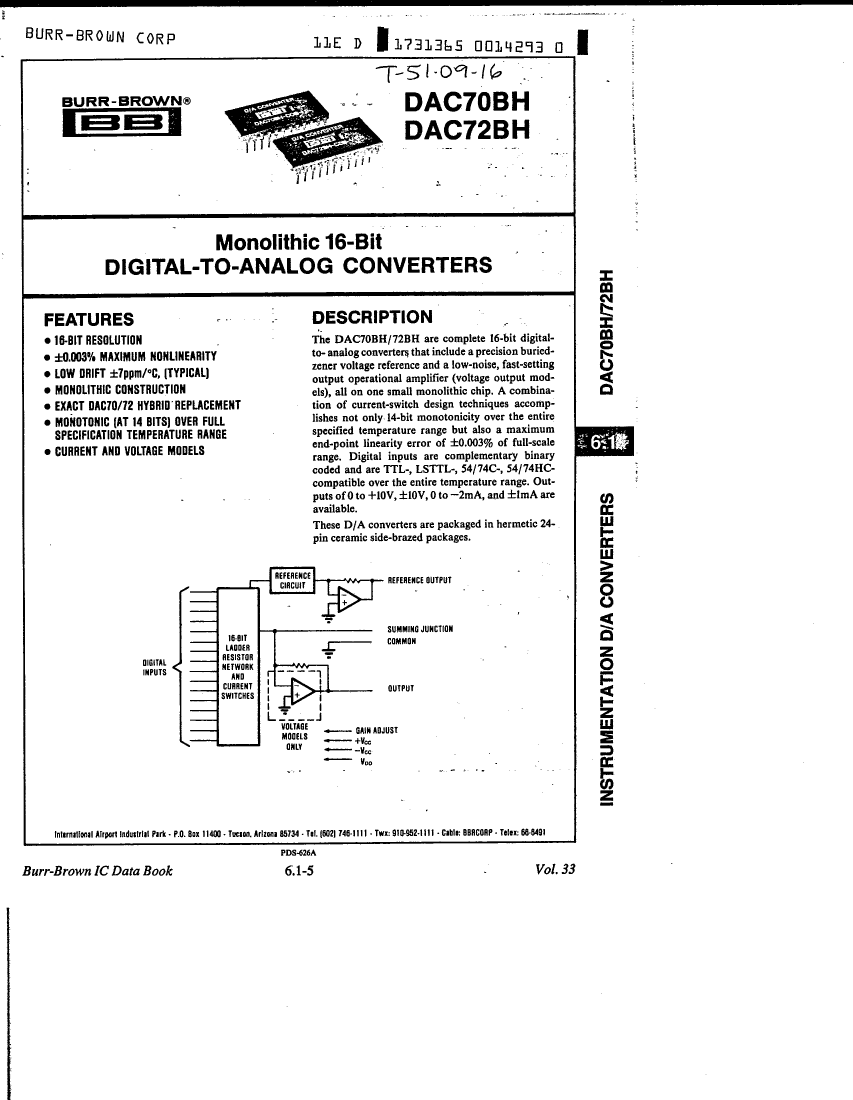

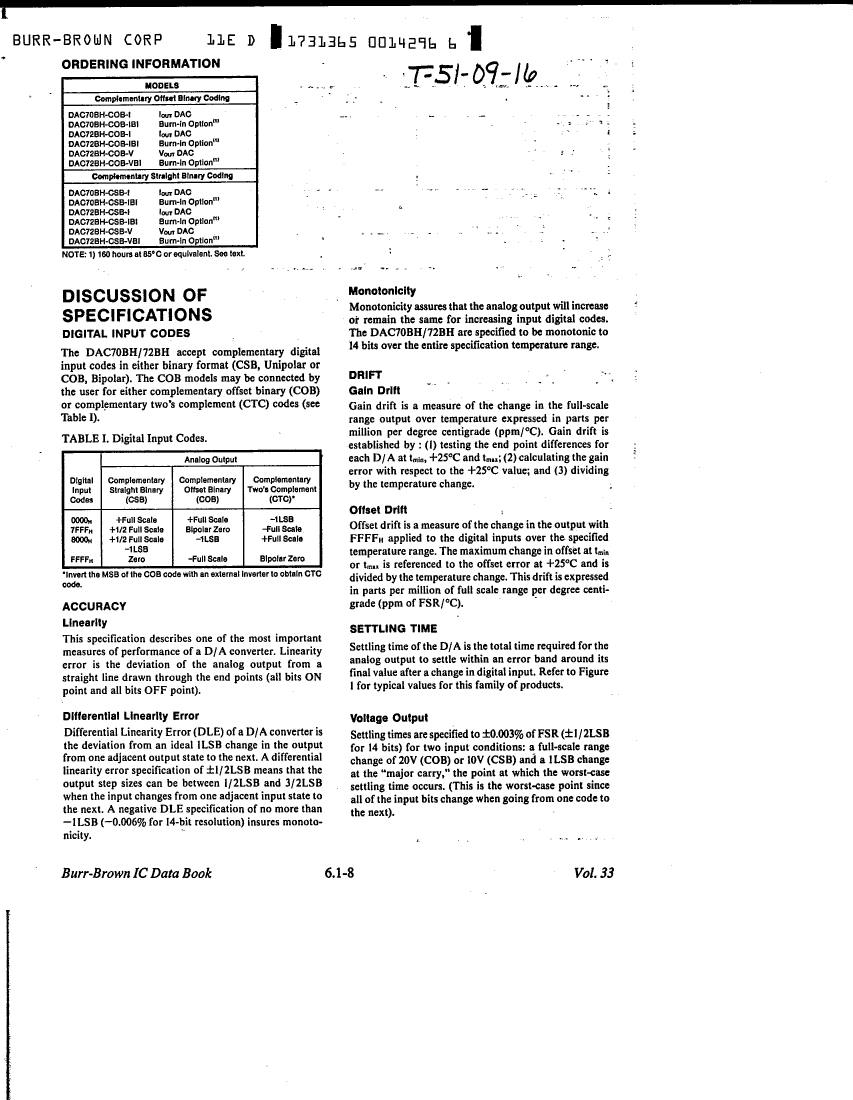

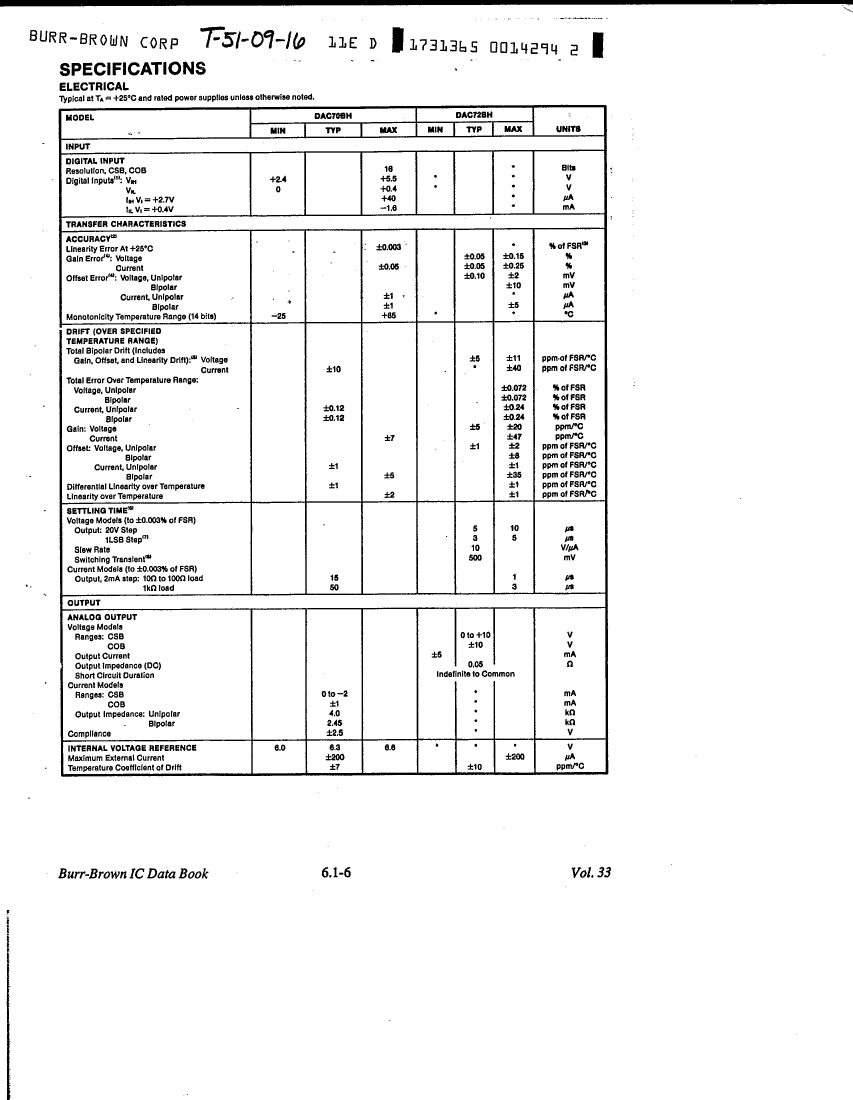

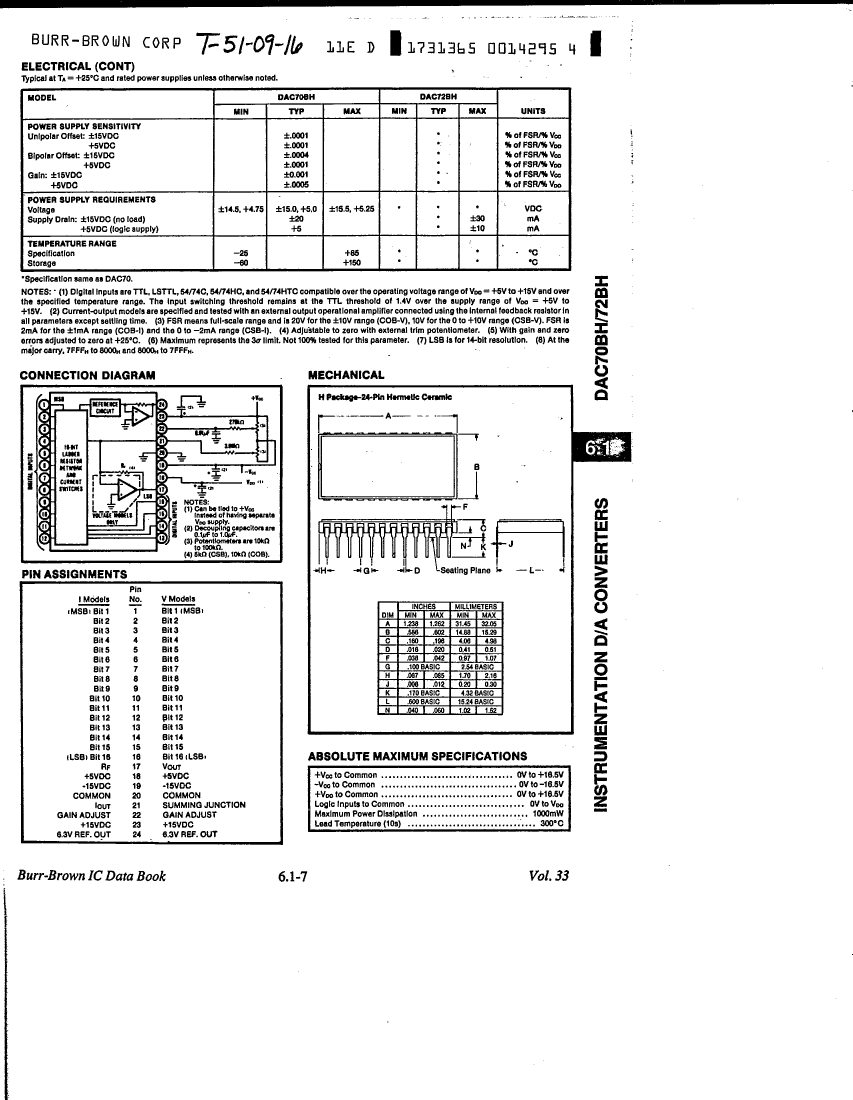

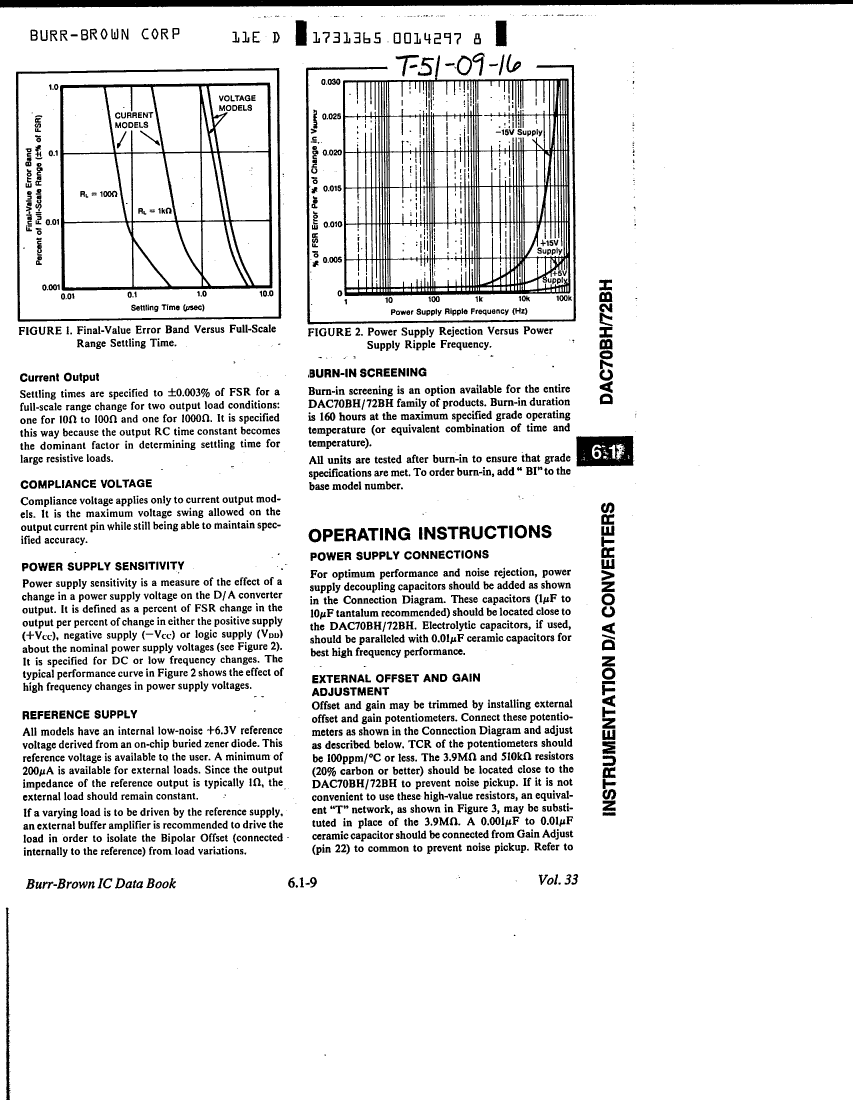

DAC70BH-COB-IBI: DescriptionD/A Converter, 1 Func, Parallel, Word Input Loading, 50us Settling Time, CDIP24,; CategoryAnalog mixed-signal IC converter; File Size737KB，8 Pages; ManufacturerBurr-Brown; Websitehttp://www.burr-brown.com/

Download Datasheet Parametric Compare View All

DAC70BH-COB-IBI Overview

D/A Converter, 1 Func, Parallel, Word Input Loading, 50us Settling Time, CDIP24,

DAC70BH-COB-IBI Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Burr-Brown
Reach Compliance Code	unknown
Converter type	D/A CONVERTER
Enter bit code	COMPLEMENTARY 2\'S COMPLEMENT, COMPLEMENTARY OFFSET BINARY
Input format	PARALLEL, WORD
JESD-30 code	R-CDIP-T24
JESD-609 code	e0
Maximum linear error (EL)	0.003%
Nominal negative supply voltage	-15 V
Number of digits	16
Number of functions	1
Number of terminals	24
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5,+-15 V
Certification status	Not Qualified
Nominal settling time (tstl)	50 µs
Nominal supply voltage	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

DAC70BH-COB-IBI Related Products

	DAC70BH-COB-IBI	DAC70BH-COB-I	DAC72BH-COB-V	DAC72BH-COB-VBI	DAC72BH-COB-I	DAC72BH-COB-IBI
Description	D/A Converter, 1 Func, Parallel, Word Input Loading, 50us Settling Time, CDIP24,	D/A Converter, 1 Func, Parallel, Word Input Loading, 50us Settling Time, CDIP24,	D/A Converter, 1 Func, Parallel, Word Input Loading, 5us Settling Time, CDIP24,	D/A Converter, 1 Func, Parallel, Word Input Loading, 5us Settling Time, CDIP24,	D/A Converter, 1 Func, Parallel, Word Input Loading, 3us Settling Time, CDIP24,	D/A Converter, 1 Func, Parallel, Word Input Loading, 3us Settling Time, CDIP24,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
Enter bit code	COMPLEMENTARY 2\'S COMPLEMENT, COMPLEMENTARY OFFSET BINARY	COMPLEMENTARY 2\'S COMPLEMENT, COMPLEMENTARY OFFSET BINARY	COMPLEMENTARY 2'S COMPLEMENT, COMPLEMENTARY OFFSET BINARY	COMPLEMENTARY 2'S COMPLEMENT, COMPLEMENTARY OFFSET BINARY	COMPLEMENTARY 2\'S COMPLEMENT, COMPLEMENTARY OFFSET BINARY	COMPLEMENTARY 2\'S COMPLEMENT, COMPLEMENTARY OFFSET BINARY
Input format	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD
JESD-30 code	R-CDIP-T24	R-CDIP-T24	R-CDIP-T24	R-CDIP-T24	R-CDIP-T24	R-CDIP-T24
JESD-609 code	e0	e0	e0	e0	e0	e0
Maximum linear error (EL)	0.003%	0.003%	0.003%	0.003%	0.003%	0.003%
Nominal negative supply voltage	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of digits	16	16	16	16	16	16
Number of functions	1	1	1	1	1	1
Number of terminals	24	24	24	24	24	24
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP24,.6	DIP24,.6	DIP24,.6	DIP24,.6	DIP24,.6	DIP24,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	5,+-15 V	5,+-15 V	5,+-15 V	5,+-15 V	5,+-15 V	5,+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal settling time (tstl)	50 µs	50 µs	5 µs	5 µs	3 µs	3 µs
Nominal supply voltage	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	Burr-Brown	Burr-Brown	-	-	Burr-Brown	Burr-Brown
Base Number Matches	1	1	1	1	-	-
package instruction	-	DIP, DIP24,.6	DIP, DIP24,.6	DIP, DIP24,.6	DIP, DIP24,.6	DIP, DIP24,.6
Maximum stabilization time	-	-	10 µs	10 µs	3 µs	3 µs
Maximum slew rate	-	-	30 mA	30 mA	30 mA	30 mA
