EML6243-200.00MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> EML6243-200.00MHZ

EML6243-200.00MHZ: DescriptionLVPECL Output Clock Oscillator, 200MHz Nom, HERMETICALLY SEALED, CERAMIC, J LEADED, 6-PIN; CategoryPassive components oscillator; File Size206KB，2 Pages; ManufacturerConnor-Winfield; Websitehttp://www.conwin.com/

Download Datasheet Parametric Compare View All

EML6243-200.00MHZ Overview

LVPECL Output Clock Oscillator, 200MHz Nom, HERMETICALLY SEALED, CERAMIC, J LEADED, 6-PIN

EML6243-200.00MHZ Parametric

Parameter Name	Attribute value
Maker	Connor-Winfield
Reach Compliance Code	unknown
Other features	TAPE AND REEL; DIFFERENTIAL LVPECL OUTPUT; 10 YEARS AGING AVAILABLE
maximum descent time	1 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Manufacturer's serial number	EML6243
Installation features	SURFACE MOUNT
Nominal operating frequency	200 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	LVPECL
Output load	50 OHM
physical size	13.97mm x 8.89mm x 4.06mm
longest rise time	1 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %
Base Number Matches	1

Preview

Download Datasheet

View All

THE CONNOR-WINFIELD CORP.

2111 COMPREHENSIVE DRIVE.

AURORA, IL 60505.

FAX (630) 851-5040.

PHONE (630) 851-4722.

www.conwin.com

PRODUCT

D ATA

SHEET

CRYSTAL CONTROLLED OSCILLATORS

CW 0434

EML6243

200.00M

SURFACE MOUNT 3.3V LVPECL CLOCK

ABSOLUTE MAXIMUM RATINGS

PARAMETER

Storage Temperature

Supply Voltage

(Vcc)

UNITS

MINIMUM

-55

-0.5

MINIMUM

19.44

-50

-40

3.135

NOMINAL

3.3

-60

-90

-100

-125

-135

MAXIMUM

125

7.0

MAXIMUM

200

3.465

UNITS

°C

Vdc

TABLE 2.0

(Fo)

UNITS

MHz

ppm

°C

Vdc

ps rms

dBc/Hz

TABLE 3.0

MINIMUM

(High)

(Low)

(Voh)

(Vol)

2.275

NOMINAL

MAXIMUM

1.68

UNITS

Ohms

Vdc

NOTE

TABLE 1.0

NOTE

EML6243

DESCRIPTION

OPERATING SPECIFICATIONS

PARAME TER

Center Frequency

Total Frequency Tolerance

Operating Temperature Range

Supply Voltage

Supply Current

Jitter (BW=10Hz to 20MHz)

Jitter (BW=12kHz to 20MHz)

SSB Phase Noise at 10Hz offset

SSB Phase Noise at 100Hz offset

SSB Phase Noise at 1KHz offset

SSB Phase Noise at 10KHz offset

(Vcc)

(Icc)

The Connor-Winfield EML6243

is a fixed frequency surface

mount Crystal Controlled

Oscillator (XO) designed for

applications requiring low jitter

and tight frequency stability.

Operating at 3.3V supply

voltage, the EML6243 provides

LVPECL compatible outputs.

PECL OUTPUT CHARACTERISTICS

PARAMETER

LOAD

Voltage

FEATURES

3.3V OPERATION

Duty Cycle

Rise / Fall Time 20% to 80%

LVPECL DIFFERENTIAL OUTPUTS

LOW JITTER <1pS RMS

PACKAGE CHARACTERISTICS

Package

TABLE 4.0

Hermetically sealed, ceramic package with gol d plated J leads.

OVERALL FREQUENCY TOLERANCE:

±50ppm

TEMPERATURE RANGE:

-40 to 85°C

SURFACE MOUNT PACKAGE

TAPE AND REEL PACKAGING

Notes

1) Includes calibration, stability vs. temperature, s upply and load variations, shock, vibration and aging (10 years).

2) Output must be terminated into 50 ohms to Vcc – 2V or Thevenin equivalent.

3) Duty Cycle measured at 1.977V

ORDERING INFORMATION

EML6243

LVPECL

SERIES

- 200.00MHz

CENTER

FREQUENCY

Specifications subject to change without notice.

DATA SHEET #:

Ec211

PAGE

REV:

DATE:

11/16/04

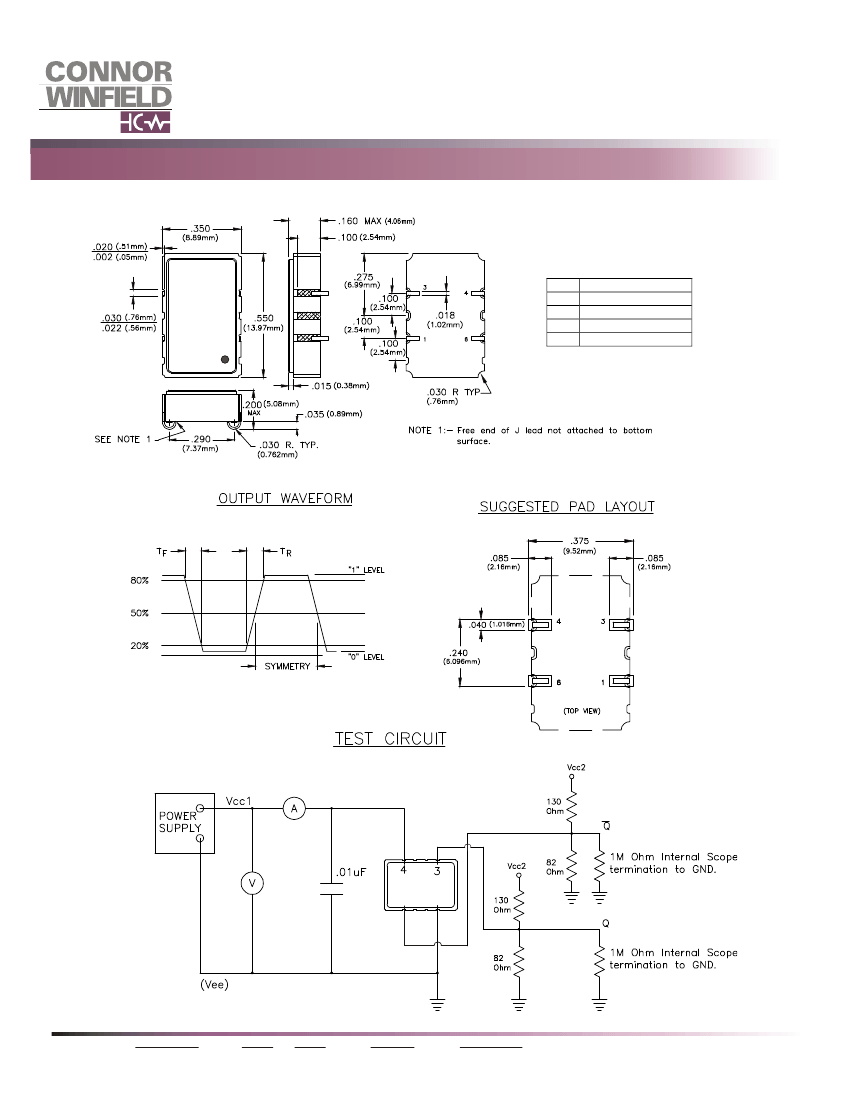

EML6243-200.00MHZ Related Products

	EML6243-200.00MHZ	EML6243-100.00MHZ	EML6243-FREQ
Description	LVPECL Output Clock Oscillator, 200MHz Nom, HERMETICALLY SEALED, CERAMIC, J LEADED, 6-PIN	LVPECL Output Clock Oscillator, 100MHz Nom, HERMETIC SEALED, J-LEADED, CERAMIC PACKAGE-4	LVPECL Output Clock Oscillator, 19.44MHz Min, 200MHz Max, HERMETICALLY SEALED, CERAMIC, J LEADED, 6-PIN
Maker	Connor-Winfield	Connor-Winfield	Connor-Winfield
Reach Compliance Code	unknown	unknown	unknown
Other features	TAPE AND REEL; DIFFERENTIAL LVPECL OUTPUT; 10 YEARS AGING AVAILABLE	DIFFERENTIAL OUTPUT; TAPE AND REEL	TAPE AND REEL; DIFFERENTIAL LVPECL OUTPUT; 10 YEARS AGING AVAILABLE
maximum descent time	1 ns	1 ns	1 ns
Frequency Adjustment - Mechanical	NO	NO	NO
frequency stability	50%	50%	50%
Manufacturer's serial number	EML6243	EML6243	EML6243
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Oscillator type	LVPECL	LVPECL	LVPECL
Output load	50 OHM	50 OHM	50 OHM
physical size	13.97mm x 8.89mm x 4.06mm	13.97mm x 8.89mm x 4.06mm	13.97mm x 8.89mm x 4.06mm
longest rise time	1 ns	1 ns	1 ns
Maximum supply voltage	3.465 V	3.465 V	3.465 V
Minimum supply voltage	3.135 V	3.135 V	3.135 V
Nominal supply voltage	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES
maximum symmetry	55/45 %	55/45 %	55/45 %
Nominal operating frequency	200 MHz	100 MHz	-
