How To Order

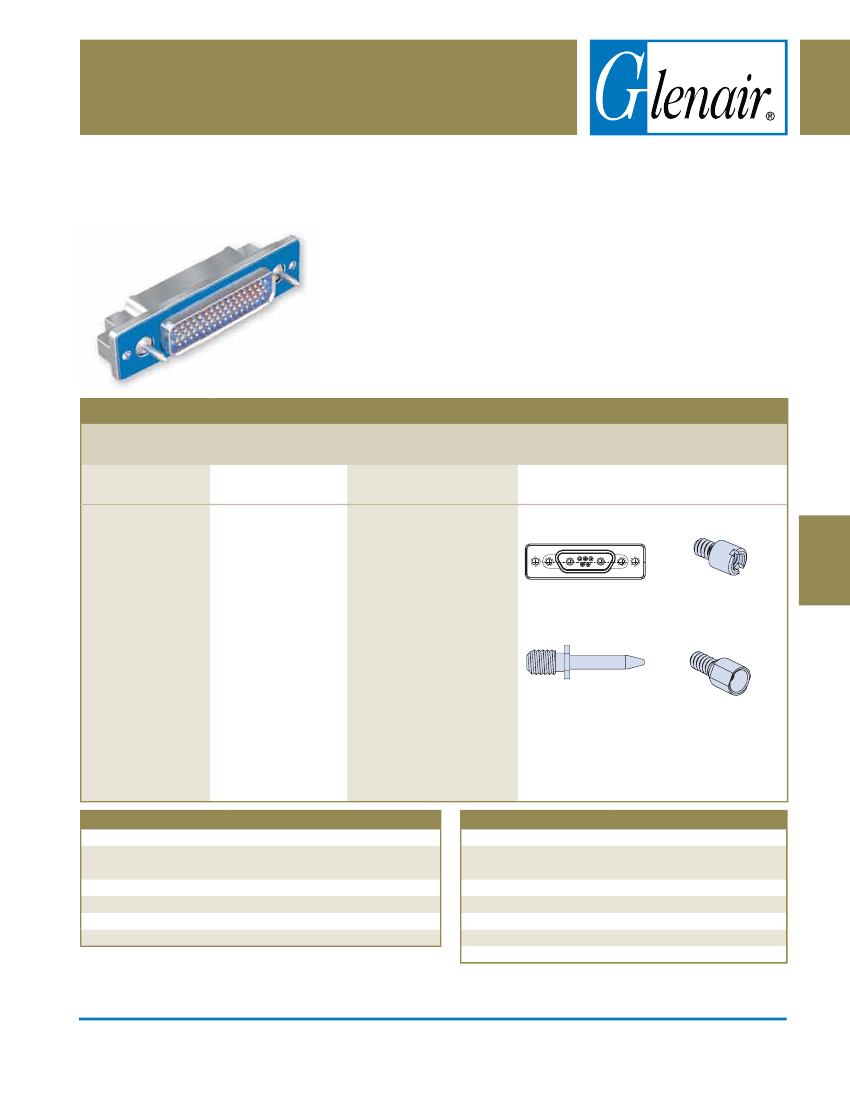

790-026P Panel Mount Receptacles
PIN CONTACTS WITH CRIMP TERMINATION
790-026P connectors are designed for rear-panel mounting and are
supplied with conductive panel gaskets. These connectors feature
machined aluminum shells,
fl
uorosilicone face seals and wire grommets
for environmental protection. Contacts are rear-release snap-in crimp
type. Connectors are supplied with crimp contacts packaged separately.
Size #23 signal pins accept up to #22 AWG wire. Size #16 contacts
accept #16-18 AWG wire. Size #12 contacts accept #12-14 AWG
wire. Size 12 and 16 cavities also accept coaxial contacts purchased
separately. Attach optional shielding adapters (799-016) for EMI
protection.
HOW TO ORDER
Sample Part Number
790-026P
Part Number
Rear Panel Mounted
Receptacle with Pin
Contacts
L-6P6
Shell Size -
Insert Arrangement
See Table 1 for
Available Insert
Arrangements
To order a connector
without size #16 or #12
power pins, substitute
“W” instead of “P” in the
insert arrangement.
Example:
36P2
is supplied with 2
power pins.
36W2
is supplied less
the power pins.
See Section B for
coaxial contacts
purchased separately.
MT
Shell Finish
Electroless Nickel
general purpose applications
G
Hardware Option
790-026P
M
Nickel-PTFE
1000 Hour Grey™
maximum corrosion protection
and durability
(non-reflective grey)
MT
No Hardware
N
Female Jackpost
P
Zinc-Nickel with Black
Chromate
tactical applications
(non-reflective black)
ZNU
Guide Pin
G
Female Guide Socket
S
Additional shell
fi
nishes are
listed on page C-9.
SPECIFICATIONS
Current Rating
Dielectric Withstanding
Voltage
Insulation Resistance
Operating Temperature
Shock
Vibration
#23 5 AMPS, #16 13 A., #12 23 A.
#23 500 VAC RMS, #12 and #16 1800
VAC RMS
5000 megohms minimum
-65° C. to +150° C.
300 g.
37 g.
Shell
Contacts
Insulators
MATERIALS AND FINISHES
Aluminum alloy
Copper alloy, 50 microinches gold
plated
Liquid crystal polymer (LCP)
Beryllium copper alloy
Flourosilicone rubber
300 series stainless steel
Fluorosilicone, conductive
Retention Clips
Interfacial Seal, Grommet
Hardware
Panel Gasket
Dimensions in Inches (millimeters) are subject to change without notice.
© 2011 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
E-1
Series 79
Panel Mount
Connectors
790-026P
Crimp Terminated Panel Mount Receptacles,
Pin Contacts
E
790-026P
Crimp Terminated Panel Mount Receptacles,
Pin Contacts
How To Order
Table I Contact Arrangements
Contact
Quantity
Layout
A-5
B-2P2
B-9
C-13
D-15
D-3P3
D-7P2
E-11P2
E-19
E-7P3
F-23
F-5P5
G-33
H-10P4
33
6
4
5
9
19
4
23
5
3
9
13
15
3
2
2
.007
(0.18)
SHELL
GUIDE PIN
WIRE (REF.)
#23 #16 #12
5
2
Series 79
Panel Mount
Connectors
Face View
F-15P2
13 2

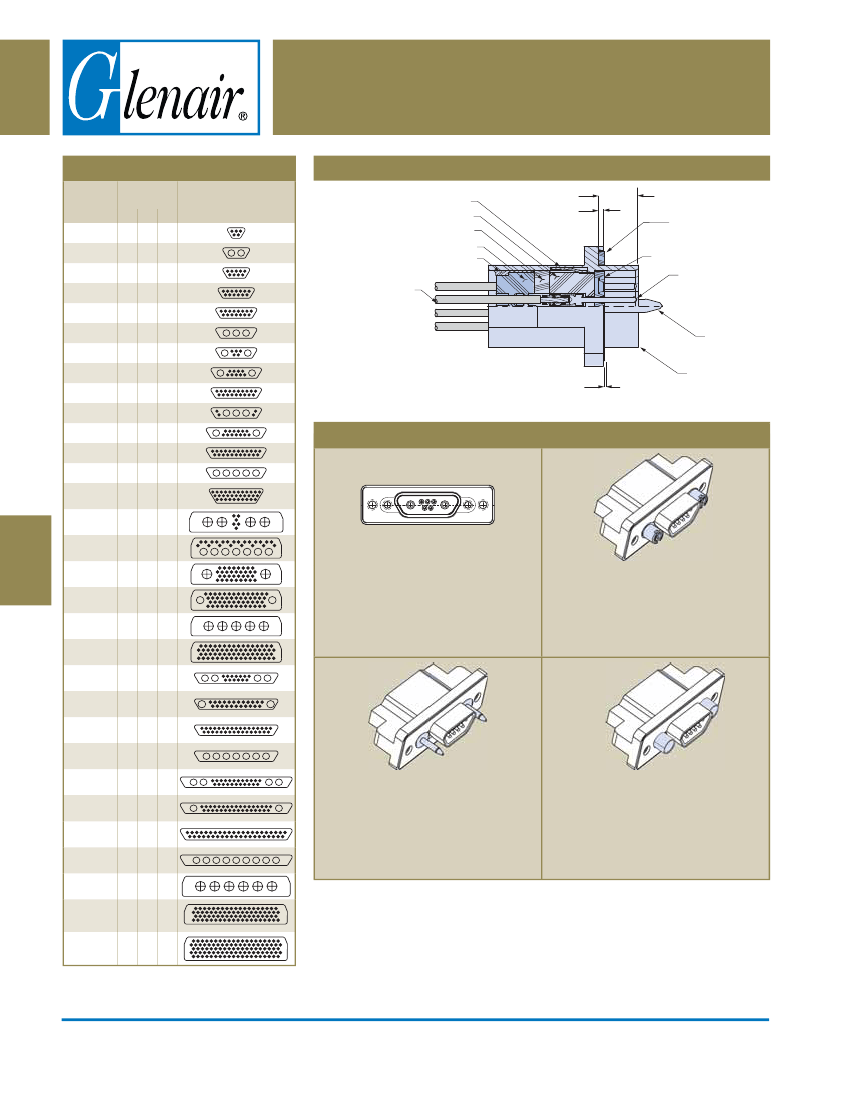

CROSS-SECTIONAL VIEW OF 790-026P
RETAINING CLIP
FRONT INSULATOR
REAR INSULATOR
GROMMET
POTTING
.195 (4.95)
.025 (0.64)
EMI GASKET
INTERFACIAL SEAL
PIN CONTACT
TABLE 2 HARDWARE OPTION
E
H-29P7
22 7
H-36P2
34
H-54P2
52 2
H-5P5
H-66
66
5
2
N
No Mating Hardware
Connector is supplied with threaded holes.
Shell sizes H and L have #6-32 threads, other
sizes have #4-40 threads. Thread depth is
.150" (3.8).
P
Jackposts
Connector is supplied with non-removable
stainless steel jackposts. Shell sizes H and L
have #4-40 UNC thread, other sizes have #2-
56 thread. Stainless steel.
J-17P4
13 4
J-25P2
23 2
J-33
J-7P7
33
7
K-27P4
23 4
K-35P2
33 2
K-43
K-9P9
L-6P6
L-78
M-102
78
102
43
9
6
G
Guide Pins
Connector is supplied with stainless steel
non-removable guide pins. Mates with type
"S" guide sockets on corresponding plug
connector.
S
Guide Sockets
Connector is supplied with stainless steel
non-removable bushings. Mates with type "G"
guide pins on corresponding plug connector.
