HF3030C-TM

Description
Three Phase EMI Filter, 500V, 60HzHz,
CategoryAnalog mixed-signal IC    filter
File Size180KB，5 Pages
ManufacturerSoshin Electric Co., Ltd.
Environmental Compliance
Download Datasheet Parametric View All

HF3030C-TM Overview

Three Phase EMI Filter, 500V, 60HzHz,

HF3030C-TM Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerSoshin Electric Co., Ltd.
Reach Compliance Codeunknown
CertificationUL; TUV
filter typeTHREE PHASE EMI FILTER
Maximum leakage current3 mA
Installation typePANEL MOUNT
working frequency60Hz Hz
Rated current30 A
Rated voltage500 V
Base Number Matches1

Preview

Download Datasheet

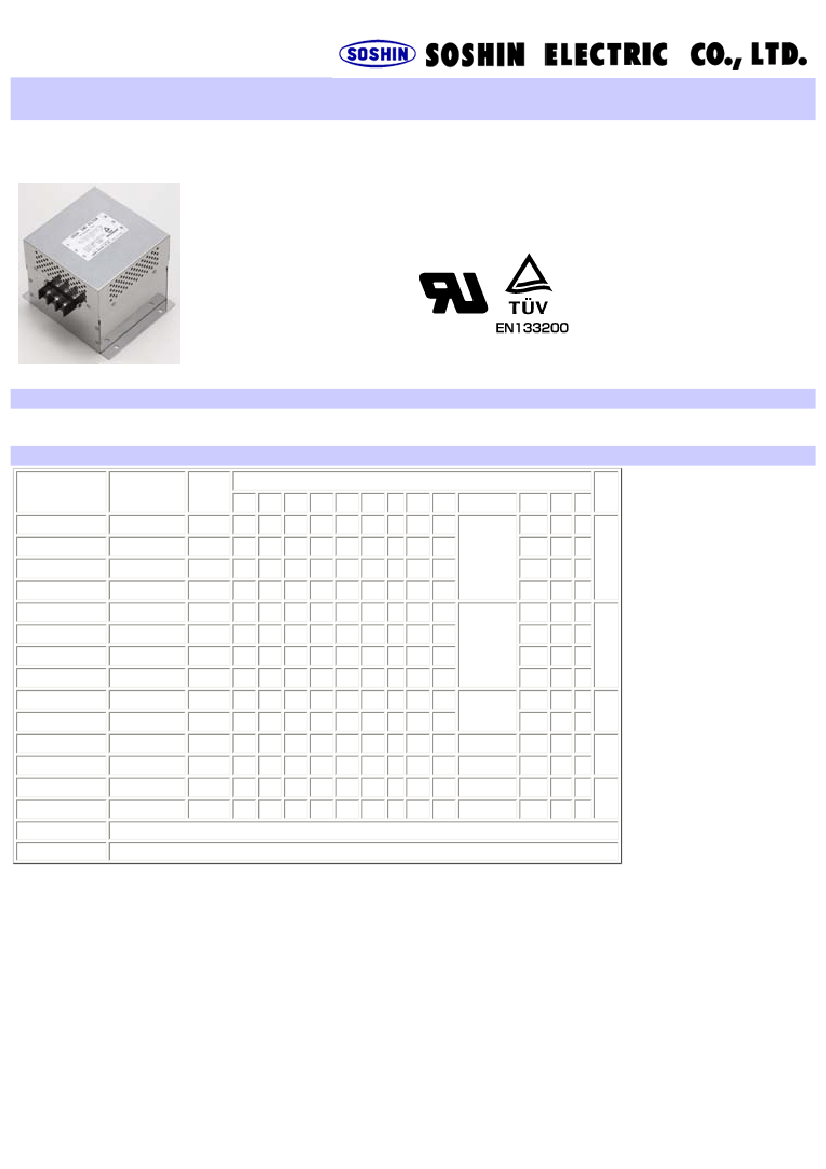

HF3000C-TM Series
3 Phase & 3 lines 500VAC
for EMC directive,class A,B
Standard of High attenuation Type
UL1283,EN133200(TUV)
Application
IGBT inverter/AC servo/NC controller etc.
Specifications
Part No.
HF3005C-TM
HF3010C-TM
HF3015C-TM
HF3020C-TM
HF3030C-TM
HF3040C-TM
HF3050C-TM
HF3060C-TM
HF3080C-TM
HF3100C-TM
HF3150C-TM
HF3200C-TM
HF3250C-TM
HF3300C-TM
Rated Current Weight
5A
10A
15A
20A
30A
40A
50A
60A
80A
100A
150A
200A
250A
300A
2Kg
2Kg
2Kg
2Kg
Dimmension [mm]
A
B
C
D
E
F
G
H
J
K
L
M N
180 140 90 170 155 140 32 130 65
180 140 90 170 155 140 32 130 65
180 140 90 170 155 140 32 130 65
180 140 90 170 155 140 32 130 65
R2.75 L7
M4 M4
M4 M4
M4 M4
M4 M4
M5 M4
R3.24 L8
M5 M4
M6 M4
M6 M4
R4.25 L12
100
100
150
150
M8 M6
M8 M6
M10 M8 33
M10 M8 33
M10 M8 40
M10 M8 40

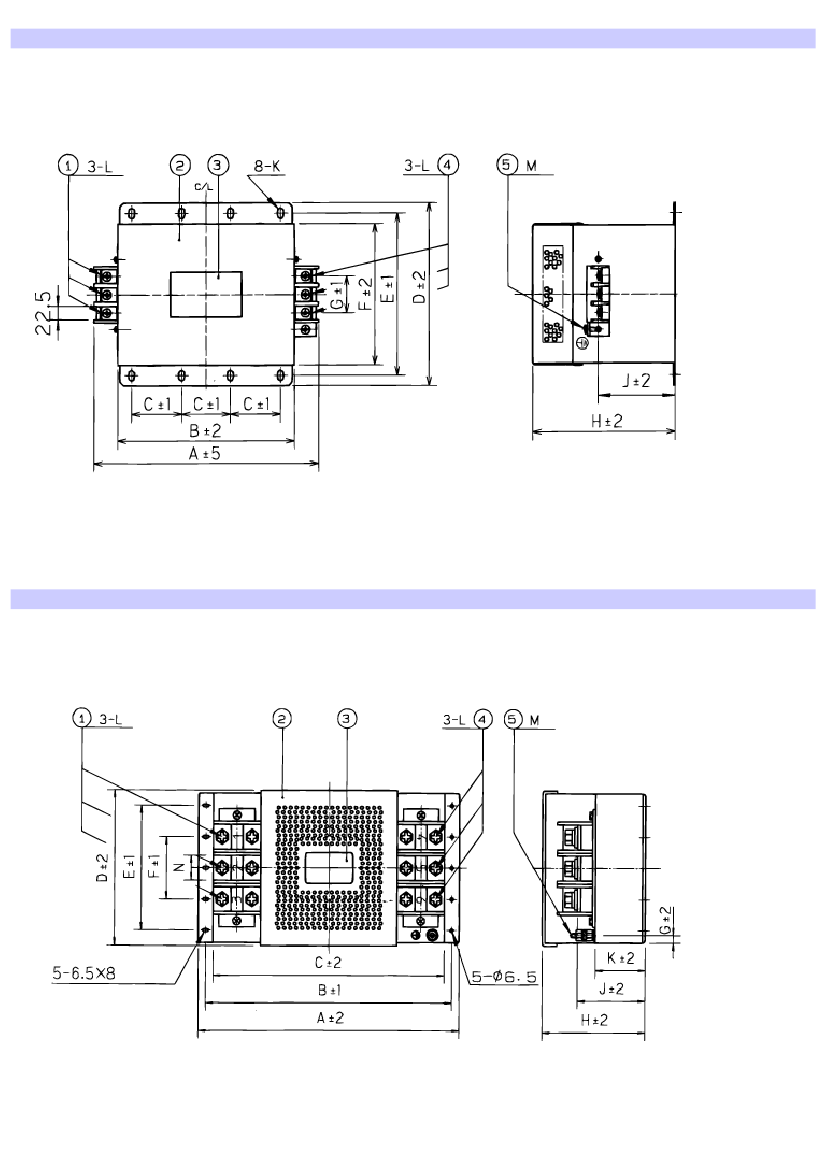

fig3
fig2

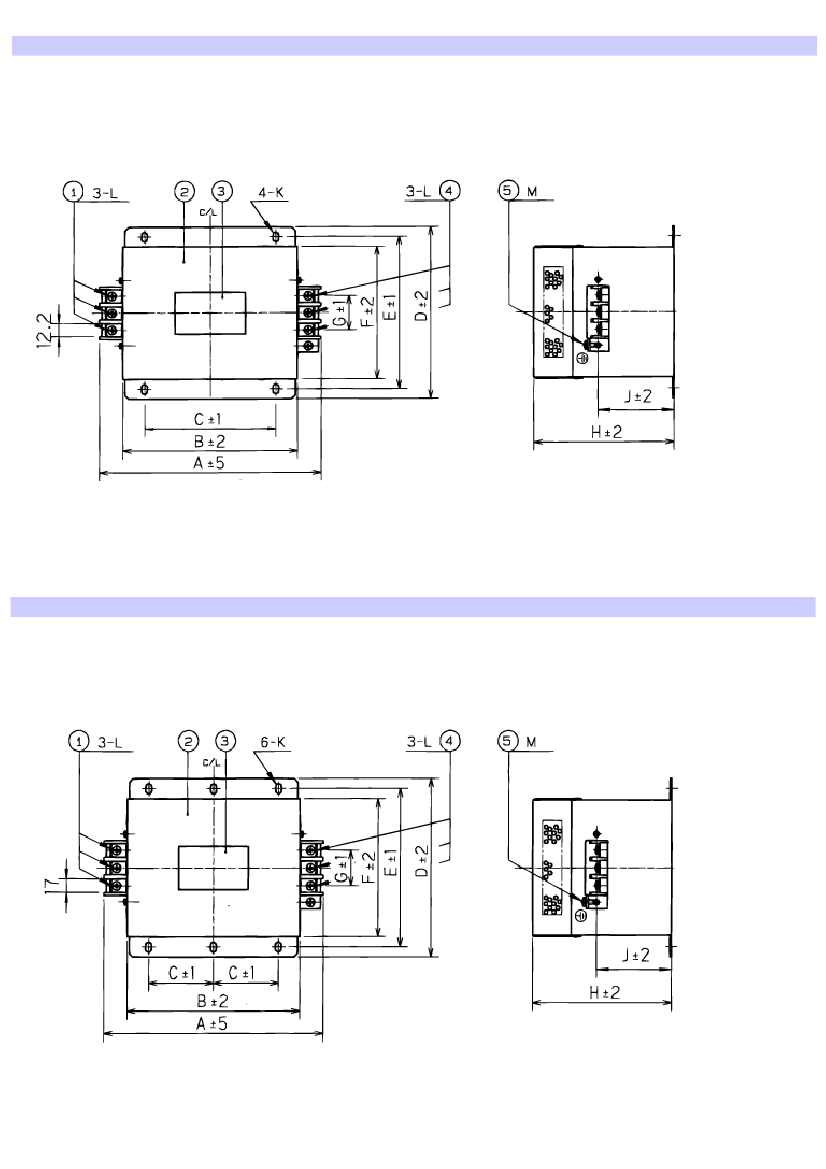

fig1
3.2Kg 260 210 85 155 140 125 44 140 70
5.5Kg 260 210 85 155 140 125 44 140 70
6.7Kg 290 240 100 190 175 160 44 170 100
10Kg 290 240 100 190 175 160 44 230 160
13Kg 405 350 100 220 200 180 56 210 135
14.5Kg 405 350 100 220 200 180 56 210 135
23Kg 570 550 530 230 190 100 15 210 140
23.5Kg 570 550 530 230 190 100 15 210 140
35Kg 670 650 630 280 240 150 20 260 190
35Kg 670 650 630 280 240 150 20 260 190

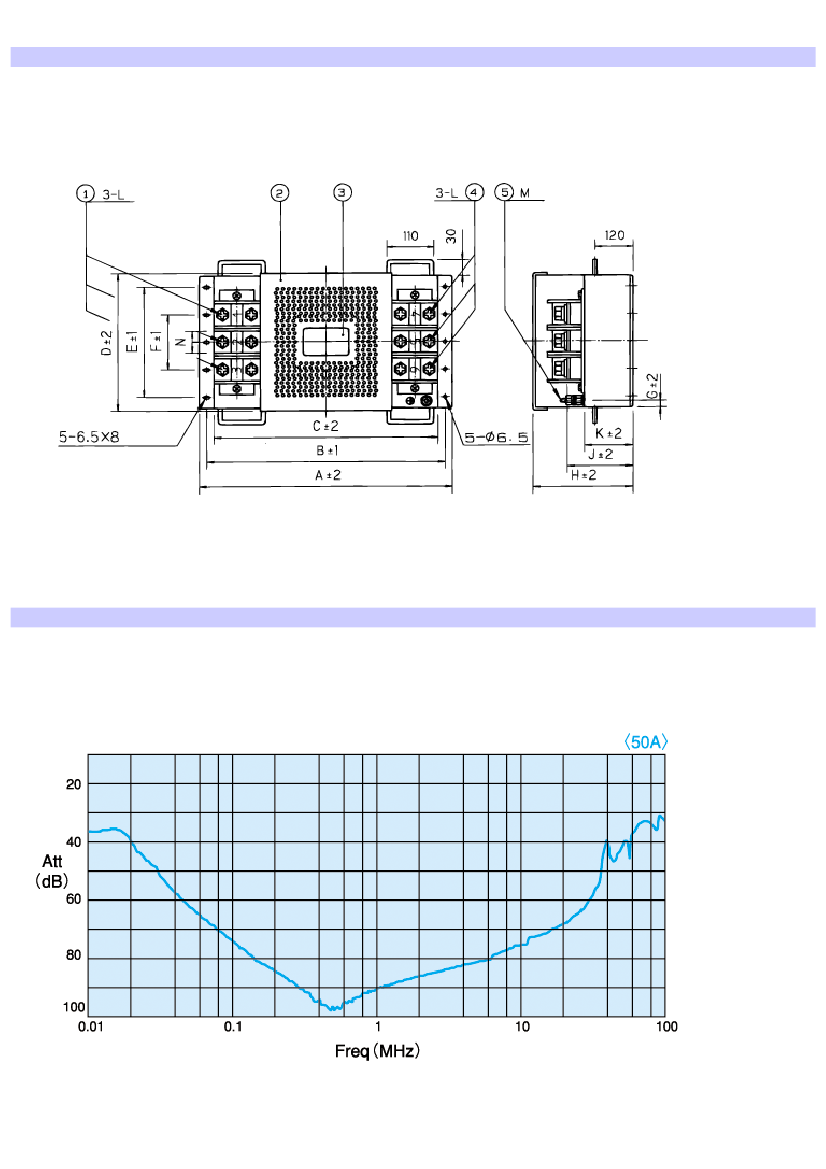

fig4
fig5
Rated Voltage 500VAC max
Leakage Current 3.0mA max / 500VAC 60Hz

Recommended Resources

LZQ1-10-55 type auto-coupling step-down starter starting circuit

STK4171II audio IC circuit diagram

Ground unbalance test circuit diagram

Voltage controlled gain amplifier circuit

Manual control Y-△ step-down starting circuit

Gas-smoke alarm circuit using bidirectional thyristor
