Mill-Max’s Highly Reliable, Precision-Machined Double Row SMT Sockets
Packaged on Tape and Reel

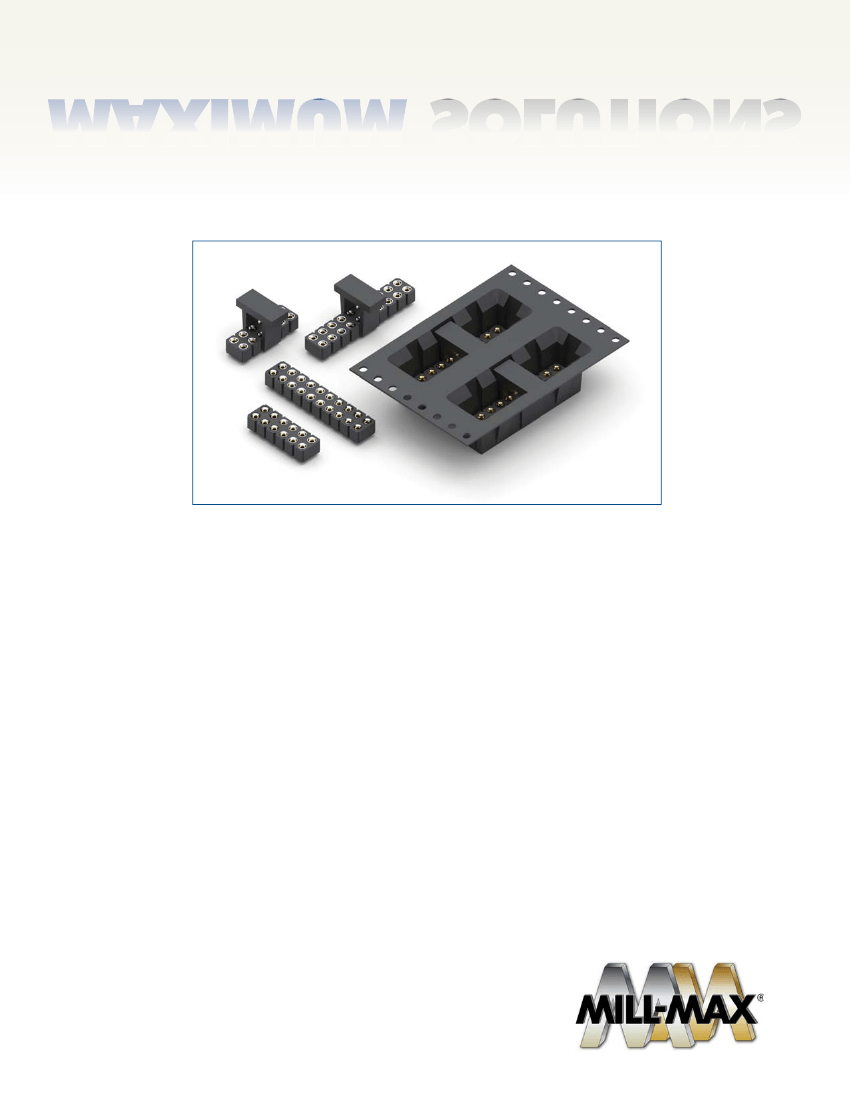

The new 406 series SMT socket strip from Mill-Max is ideal for socketing leaded IC devices
on SMT boards and for low profile board stacking applications. The connector is dual row,
.100” (2,54 mm) pitch, accepts standard IC leads and when used in combination with SMT
or through-hole headers, provides a reliable interconnect solution. It offers a low-profile
height of 0.146” (3,71mm) from the board surface and, when mated with a Mill-Max 429
Series SMT header, provides a board-to-board height of 0.300” (7,62mm). Secure mating
is established and maintained by four-finger contacts inside each precision-machined
receptacle body.
The pin base of 406 Series sockets is only 0.029” (0,74mm) in diameter, allowing for a
small PCB pad size and more space for routing traces. A co-planarity of 0.005” (0,13mm)
is achieved for up to 20 positions, and standard designs are available in 4- to 20-position
configurations. These sockets are manufactured with high-temperature insulators and are
compatible with all SMT soldering techniques, including RoHS-compliant environments.
The connectors are packaged 335 pieces per 13” reel and fitted with a vacuum pick-up
cap for enhanced accuracy and efficiency during pick-and-place assembly manufacturing.
For more information on the 406 Series and the complete line of precision-machined
interconnects from Mill-Max, please visit:
www.mill-max.com/PR642.
(10/13 -- PR642)
Mill-Max Mfg. Corp. • 190 Pine Hollow Road, Oyster Bay, NY 11771
516-922-6000 • Fax: 516-922-9253 •
www.mill-max.com
INTERCONNECTS

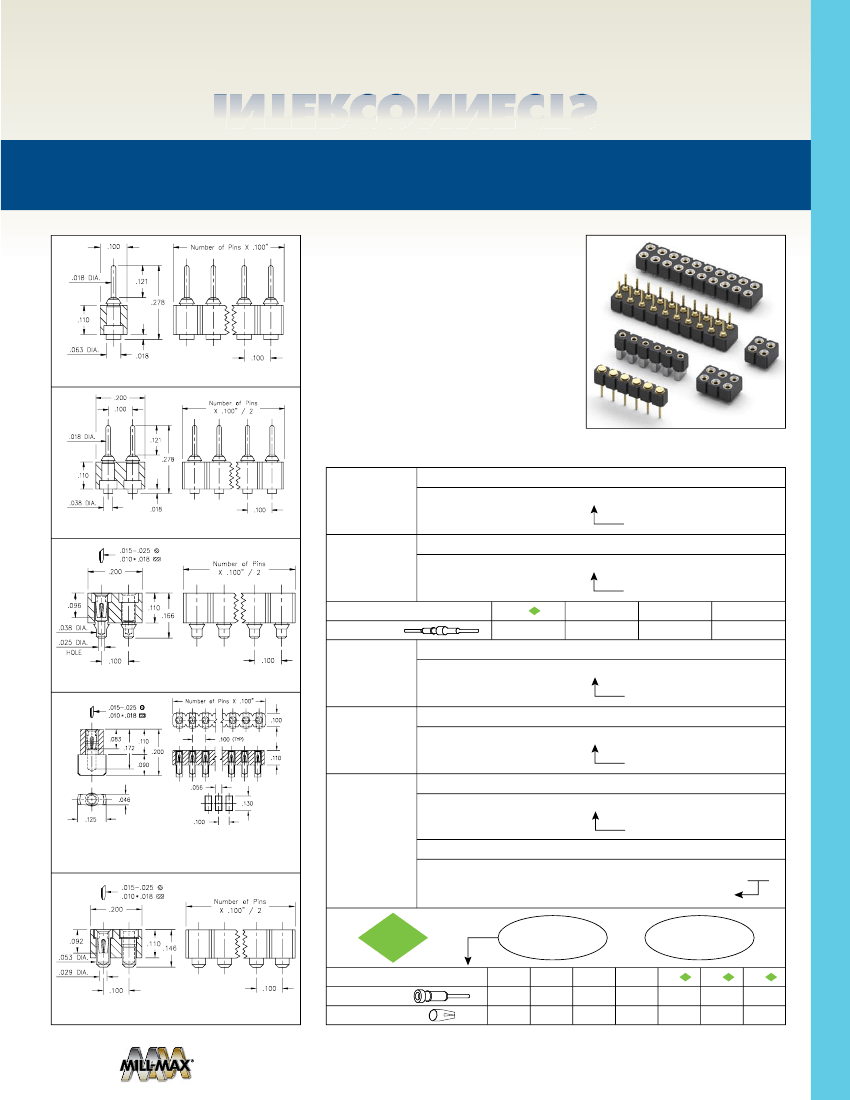

FIG. 1
Number of Pins
X .100" / 2
Series 329 and 429 pin interconnects feature
space saving, pad style SMT termination using
MM
#2956-X
pins. See page 218 for details
Series 429 and 414
combine
for a mated
height of .323”
Series 340, 406 and 414 surface mount sockets
use MM
#4078, #0668
and
#1434
receptacles.
See pages
162, 164
and
167
for details
Series 340, 406 and 414 receptacles use Hi-Rel,
4-finger BeCu
#30 contacts
rated at 3 amps.
Receptacles accept .015”-.025” diameter pins
See page 253 for details
Insulators are high temperature thermoplastic,
suitable for all soldering operations
ORDERING INFORMATION
Series
329...560
FIG. 2
Number of Pins
X .100" / 2
FIG. 1
Series
429...560
Single Row Surface Mount Pin Header
329-10-1_
_-00-560000
02-64
Specify number of pins
FIG. 2
SPECIFY PLATING
CODE XX=
Pin Plating
10
Double Row Surface Mount Pin Header
429-10-2_
_-00-560000
04-72
Specify number of pins
10
” Au
Series
414...117
FIG. 3
Number of Pins X .100"
FIG. 3
Series
340...780
Double Row Surface Mount Socket
414-XX-2_
_-41-117000
04-72
Specify number of pins
FIG. 4
Series
406...068
Footprint
Single Row Surface Mount Socket
340-XX-1_
_-30-780100
02-64
Specify number of pins
Double Row Surface Mount Socket
406-43-2
_ _-30-068000
04-20
Coplanarity .005”. For pin
counts >24
positions,
consult
Technical
Support.
Ordering Information:
Number of Pins
X .100" / 2
406-43-2XX-30-068001
Available on 44mm wide tape, 355 parts per
13”
reel
RoHS - 2
.200
.092
.053 DIA.
.029 DIA.
.100
.110
.146
2011/65/EU
XX=Plating Code
See
Below
99
For
Electrical, Mechanical
& Enviromental Data,
See page 264
.100
FIG. 5
SPECIFY PLATING
CODE XX=
Sleeve (Pin)
Contact (Clip)
41
43
200 ” Sn
30 ” Au
44
200 ” Sn
100
” Sn
200 ”Sn/Pb
200 ” Sn
100
”Sn/Pb
10
” Au
PAGE 49 | INTERCONNECTS
FIG. 4
FIG. 5
Specify number of pins
Tape and Reel Packaging
