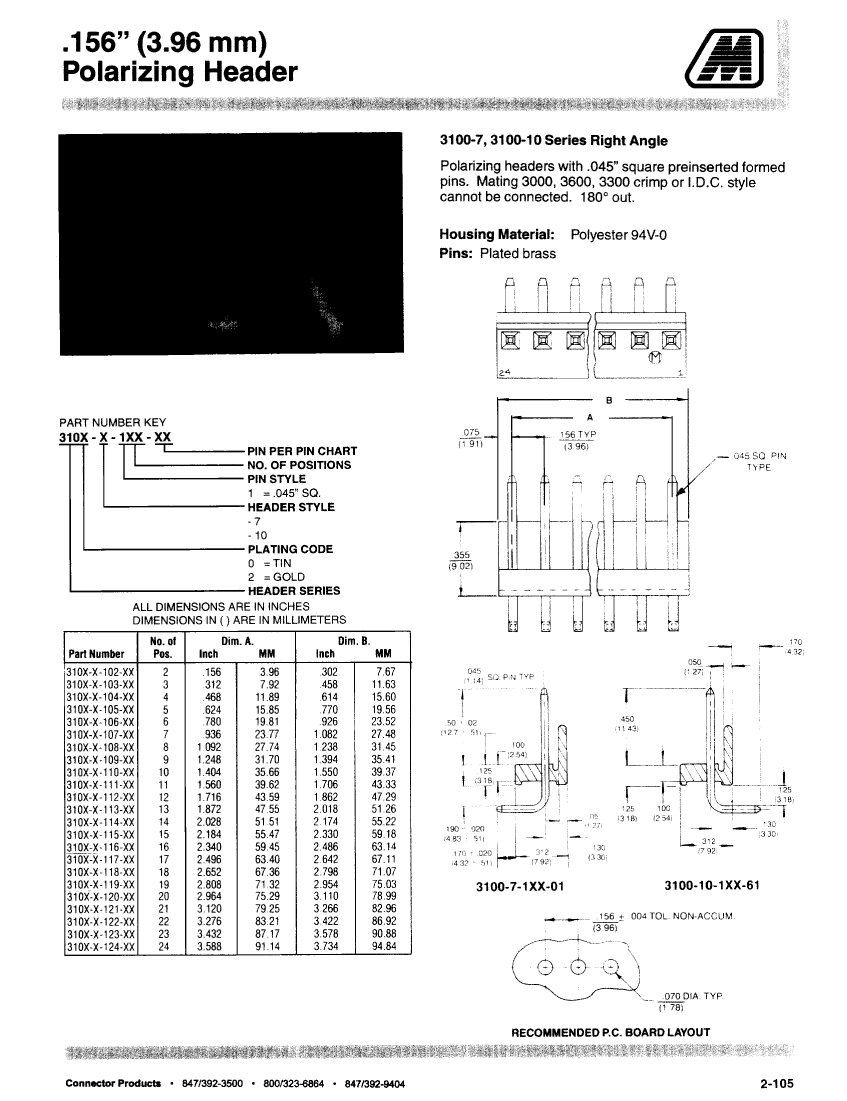

Board Connector, 11 Contact(s), 1 Row(s), Male, Right Angle, 0.156 inch Pitch, Solder Terminal, Receptacle
| Parameter Name | Attribute value |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | TOP POLARIZING |
| body width | 0.312 inch |
| subject depth | 0.545 inch |
| body length | 1.706 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | SN-PB ON NI |
| Contact completed and terminated | TIN OVER NICKEL |
| Contact point gender | MALE |
| Contact material | BRASS |
| contact mode | RECTANGULAR |
| Contact resistance | 5 mΩ |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 1500VAC V |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 8.896 N |
| Insulation resistance | 500000000000 Ω |
| insulator material | POLYESTER |
| JESD-609 code | e3 |
| MIL compliance | NO |
| Manufacturer's serial number | 3100-7 |
| Plug contact pitch | 0.156 inch |
| Mixed contacts | NO |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 1 |
| Number of rows loaded | 1 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -40 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| polarization key | HOUSING SIDE |
| Rated current (signal) | 7 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Terminal length | 0.17 inch |
| Terminal pitch | 3.96 mm |
| Termination type | SOLDER |
| Total number of contacts | 11 |
| UL Flammability Code | 94V-0 |
| Evacuation force-minimum value | .556 N |
| Base Number Matches | 1 |
| 3100-7-111-01 | 3102-7-111-01 | 3100-10-113-61 | 700777700B+/-10PPM | 3100-10-111-61 | 3102-7-113-01 | 3102-10-111-61 | 3102-10-113-61 | |
|---|---|---|---|---|---|---|---|---|
| Description | Board Connector, 11 Contact(s), 1 Row(s), Male, Right Angle, 0.156 inch Pitch, Solder Terminal, Receptacle | Board Connector, 11 Contact(s), 1 Row(s), Male, Right Angle, 0.156 inch Pitch, Solder Terminal, Receptacle | Board Connector, 13 Contact(s), 1 Row(s), Male, Right Angle, 0.156 inch Pitch, Solder Terminal, Receptacle | Fixed Resistor, Wire Wound, 0.25W, 7770ohm, 300V, 0.01% +/-Tol, -10,10ppm/Cel | Board Connector, 11 Contact(s), 1 Row(s), Male, Right Angle, 0.156 inch Pitch, Solder Terminal, Receptacle | Board Connector, 13 Contact(s), 1 Row(s), Male, Right Angle, 0.156 inch Pitch, Solder Terminal, Receptacle | Board Connector, 11 Contact(s), 1 Row(s), Male, Right Angle, 0.156 inch Pitch, Solder Terminal, Receptacle | Board Connector, 13 Contact(s), 1 Row(s), Male, Right Angle, 0.156 inch Pitch, Solder Terminal, Receptacle |
| Reach Compliance Code | unknown | unknown | unknown | compliant | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| JESD-609 code | e3 | e4 | e3 | e0 | e3 | e4 | e4 | e4 |
| Manufacturer's serial number | 3100-7 | 3100-7 | 3100-7 | 7000 | 3100-7 | 3100-7 | 3100-7 | 3100-7 |
| Maximum operating temperature | 105 °C | 105 °C | 105 °C | 145 °C | 105 °C | 105 °C | 105 °C | 105 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -65 °C | -40 °C | -40 °C | -40 °C | -40 °C |
| Guideline | UL, CSA | UL, CSA | UL, CSA | MIL-R-93 | UL, CSA | UL, CSA | UL, CSA | UL, CSA |
| Other features | TOP POLARIZING | TOP POLARIZING | WITH BOTTOM POLARIZING | - | WITH BOTTOM POLARIZING | TOP POLARIZING | WITH BOTTOM POLARIZING | WITH BOTTOM POLARIZING |
| body width | 0.312 inch | 0.312 inch | 0.312 inch | - | 0.312 inch | 0.312 inch | 0.312 inch | 0.312 inch |
| subject depth | 0.545 inch | 0.545 inch | 0.48 inch | - | 0.48 inch | 0.545 inch | 0.48 inch | 0.48 inch |
| body length | 1.706 inch | 1.706 inch | 2.018 inch | - | 1.706 inch | 2.018 inch | 1.706 inch | 2.018 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE | - | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | - | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | SN-PB ON NI | AU ON NI | SN ON NI | - | SN ON NI | AU ON NI | AU ON NI | AU ON NI |
| Contact completed and terminated | TIN OVER NICKEL | GOLD (15) OVER NICKEL | TIN OVER NICKEL | - | TIN OVER NICKEL | GOLD (15) OVER NICKEL | GOLD (15) OVER NICKEL | GOLD (15) OVER NICKEL |
| Contact point gender | MALE | MALE | MALE | - | MALE | MALE | MALE | MALE |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR | - | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact resistance | 5 mΩ | 5 mΩ | 5 mΩ | - | 5 mΩ | 5 mΩ | 5 mΩ | 5 mΩ |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | - | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT |
| DIN compliance | NO | NO | NO | - | NO | NO | NO | NO |
| Dielectric withstand voltage | 1500VAC V | 1500VAC V | 1500VAC V | - | 1500VAC V | 1500VAC V | 1500VAC V | 1500VAC V |
| Filter function | NO | NO | NO | - | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | - | NO | NO | NO | NO |
| maximum insertion force | 8.896 N | 8.896 N | 8.896 N | - | 8.896 N | 8.896 N | 8.896 N | 8.896 N |
| Insulation resistance | 500000000000 Ω | 500000000000 Ω | 500000000000 Ω | - | 500000000000 Ω | 500000000000 Ω | 500000000000 Ω | 500000000000 Ω |
| insulator material | POLYESTER | POLYESTER | POLYESTER | - | POLYESTER | POLYESTER | POLYESTER | POLYESTER |
| MIL compliance | NO | NO | NO | - | NO | NO | NO | NO |
| Plug contact pitch | 0.156 inch | 0.156 inch | 0.156 inch | - | 0.156 inch | 0.156 inch | 0.156 inch | 0.156 inch |
| Mixed contacts | NO | NO | NO | - | NO | NO | NO | NO |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | - | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD | BOARD | BOARD | - | BOARD | BOARD | BOARD | BOARD |
| Number of connectors | ONE | ONE | ONE | - | ONE | ONE | ONE | ONE |
| PCB row number | 1 | 1 | 1 | - | 1 | 1 | 1 | 1 |
| Number of rows loaded | 1 | 1 | 1 | - | 1 | 1 | 1 | 1 |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | - | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR | - | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| polarization key | HOUSING SIDE | HOUSING SIDE | HOUSING SIDE | - | HOUSING SIDE | HOUSING SIDE | HOUSING SIDE | HOUSING SIDE |
| Rated current (signal) | 7 A | 7 A | 7 A | - | 7 A | 7 A | 7 A | 7 A |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | - | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal length | 0.17 inch | 0.17 inch | 0.17 inch | - | 0.17 inch | 0.17 inch | 0.17 inch | 0.17 inch |
| Terminal pitch | 3.96 mm | 3.96 mm | 3.96 mm | - | 3.96 mm | 3.96 mm | 3.96 mm | 3.96 mm |
| Termination type | SOLDER | SOLDER | SOLDER | - | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 11 | 11 | 13 | - | 11 | 13 | 11 | 13 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | - | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
| Evacuation force-minimum value | .556 N | .556 N | .556 N | - | .556 N | .556 N | .556 N | .556 N |
