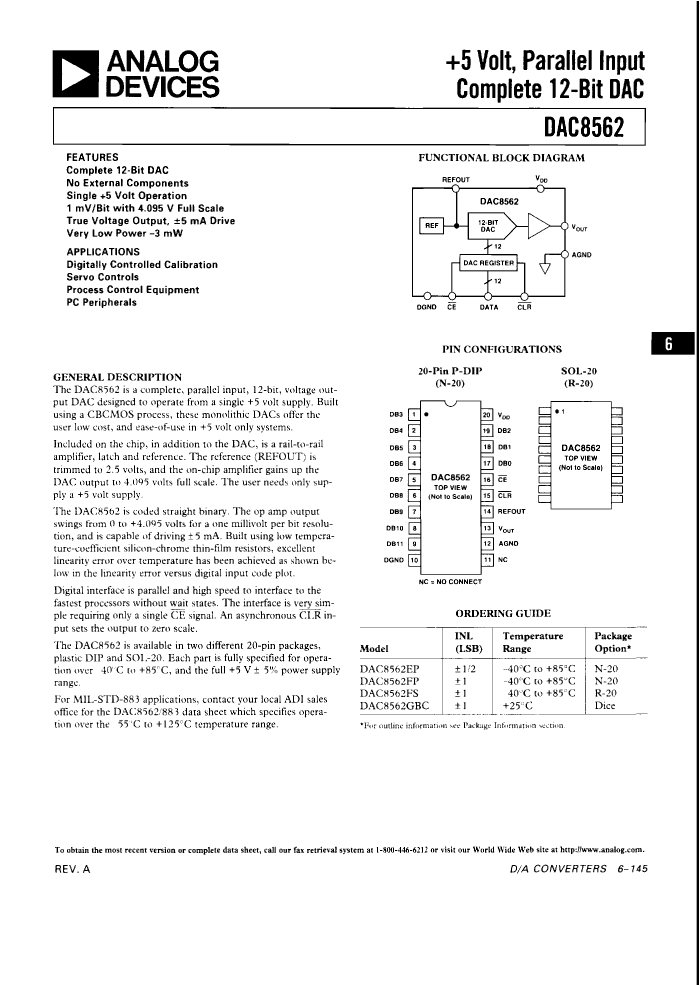

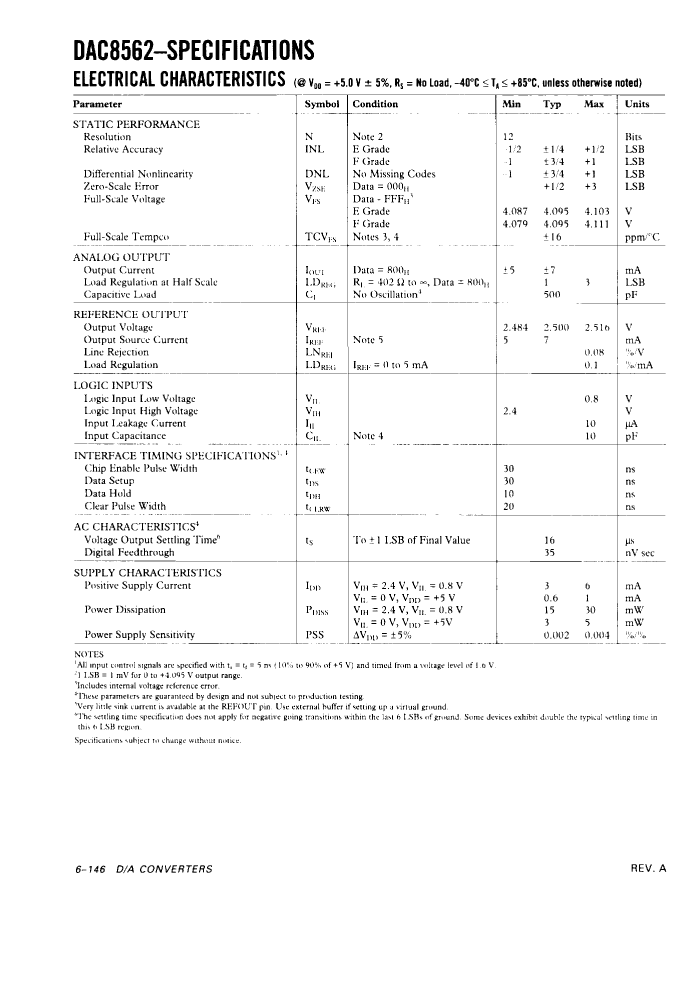

DAC8562FPZ: DescriptionPARALLEL, WORD INPUT LOADING, 16 us SETTLING TIME, 12-BIT DAC, PDIP20, PLASTIC, DIP-20; CategoryAnalog mixed-signal IC converter; File Size753KB，3 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

DAC8562FPZ Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DAC8562FPZ	-	-	View	Buy Now

DAC8562FPZ Overview

PARALLEL, WORD INPUT LOADING, 16 us SETTLING TIME, 12-BIT DAC, PDIP20, PLASTIC, DIP-20

DAC8562FPZ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Rochester Electronics
Parts packaging code	DIP
package instruction	DIP,
Contacts	20
Reach Compliance Code	unknown
Maximum analog output voltage	4.095 V
Minimum analog output voltage
Converter type	D/A CONVERTER
Enter bit code	BINARY
Input format	PARALLEL, WORD
JESD-30 code	R-PDIP-T20
JESD-609 code	e3
length	25.2 mm
Maximum linear error (EL)	0.0244%
Humidity sensitivity level	NOT APPLICABLE
Number of digits	12
Number of functions	1
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT APPLICABLE
Certification status	COMMERCIAL
Maximum seat height	5.33 mm
Nominal settling time (tstl)	16 µs
Nominal supply voltage	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal surface	MATTE TIN
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT APPLICABLE
width	7.62 mm
Base Number Matches	1
