8-1415063-1: DescriptionPOWER/SIGNAL RELAY, SPDT, LATCHED, 0.03A (COIL), 12VDC (COIL), 360mW (COIL), THROUGH HOLE-STRAIGHT MOUNT; CategoryMechanical and electronic products relay; File Size291KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

8-1415063-1 Overview

POWER/SIGNAL RELAY, SPDT, LATCHED, 0.03A (COIL), 12VDC (COIL), 360mW (COIL), THROUGH HOLE-STRAIGHT MOUNT

8-1415063-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	compliant
ECCN code	EAR99
body width	10 mm
body height	10 mm
Body length or diameter	20 mm
Maximum coil current (DC)	0.03 A
Coil operating voltage (DC)	9 V
Coil power	360 mW
Coil release voltage (DC)	9 V
Coil resistance	400 Ω
Maximum coil voltage (DC)	12 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	5A@250VAC
Maximum contact current (AC)	5 A
Maximum contact voltage (AC)	250 V
Contact/Output Power Type	AC
Electrical life	100000 Cycle(s)
Installation features	THROUGH HOLE-STRAIGHT MOUNT
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
method of packing	BULK
physical size	20mm x 10mm x 10mm
Guideline	CUL; UL; VDE
Relay action	LATCHED
Relay function	SPDT
Relay type	POWER/SIGNAL RELAY
seal	RT2
surface mount	NO
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

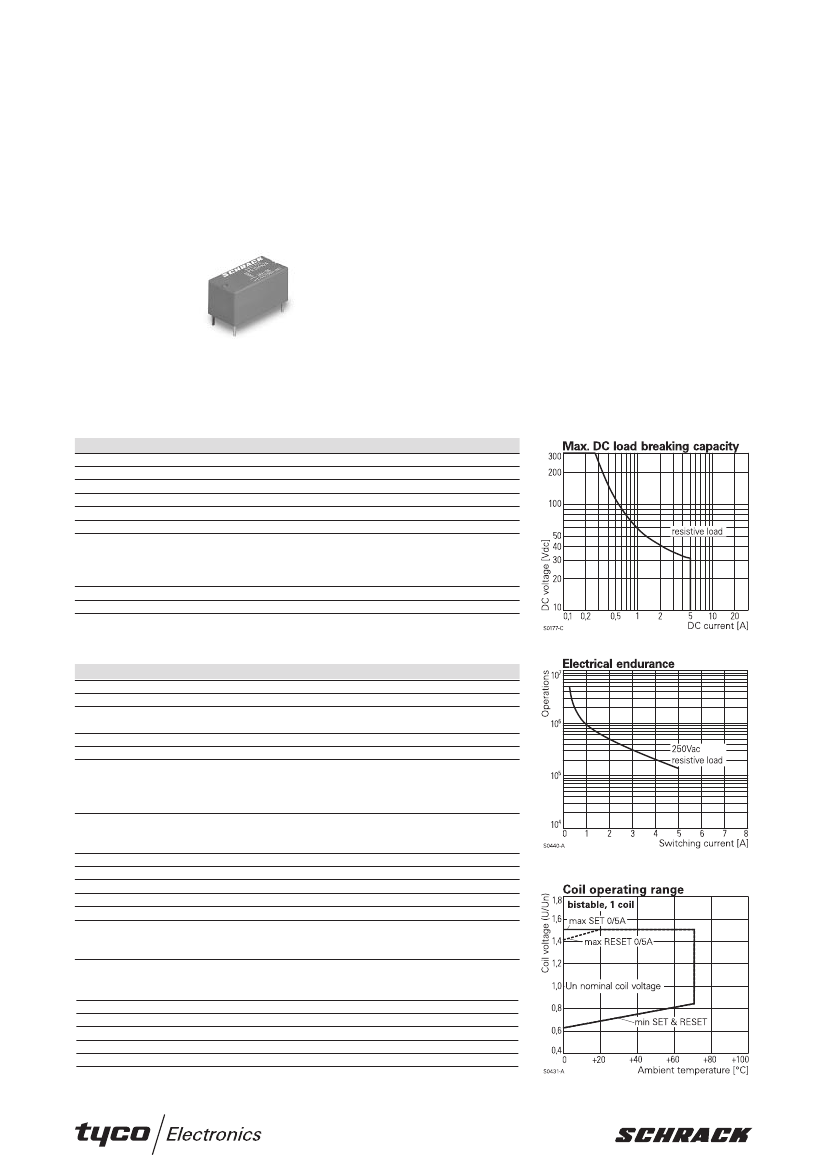

Miniature PCB Relay PE bistable

1pole 5 A, polarized bistable version

Features

·

1 C/O contact

Cadmium-free contacts

4 kV coil-contact

Insulation according to IEC 255

Ambient temperature 70 °C

Low height 10.0 mm

Applications

Room thermostats, electricity meters, domotic devices and white

goods

F0221-A

VZ

1 C/O contact

single contact

5A

250 Vac / 440 Vac

1250 VA

AgNi 90/10

Technical data of approved types on request

Contact data

Configuration

Type of contact

Rated current

Rated voltage / max.breaking voltage AC

Maximum breaking capacity AC

Contact material

Contact ratings

Type

Load

PE 014

5A, 250 Vac, on the C/O contact

Operations

10

5

Standard

VDE 0435

Nominal voltage

3...48 Vdc

Nominal coil power

typ. 360 mW

Minimum energization time

20 ms

Information on reduced pulse duration with higher energization voltages on demand

Max. energization time

1 min at <10%duty cycle

Reset voltage max.

120 % U

nom

at -40 °C

Coil data

Coil versions, bistable, 1 coil

Coil

Nominal

Pull-in

Reset

Coil

*

code

voltage

resistance

current

Vdc

c

mA

A03

C03

3

2.25

25+10%

120.0

A05

C05

5

3.75

69+10%

72.0

A06

C06

6

4.5

100+10%

60.0

A12

C12

12

9.0

400+10%

30.0

A24

C24

24

18.0

1600+10%

15.0

All figures are given for coil without preenergization, at ambient temperature +20°C

*

Coil codes A.. and C.. have opposite polarity; refer to coil operation table

Other coil voltages on request

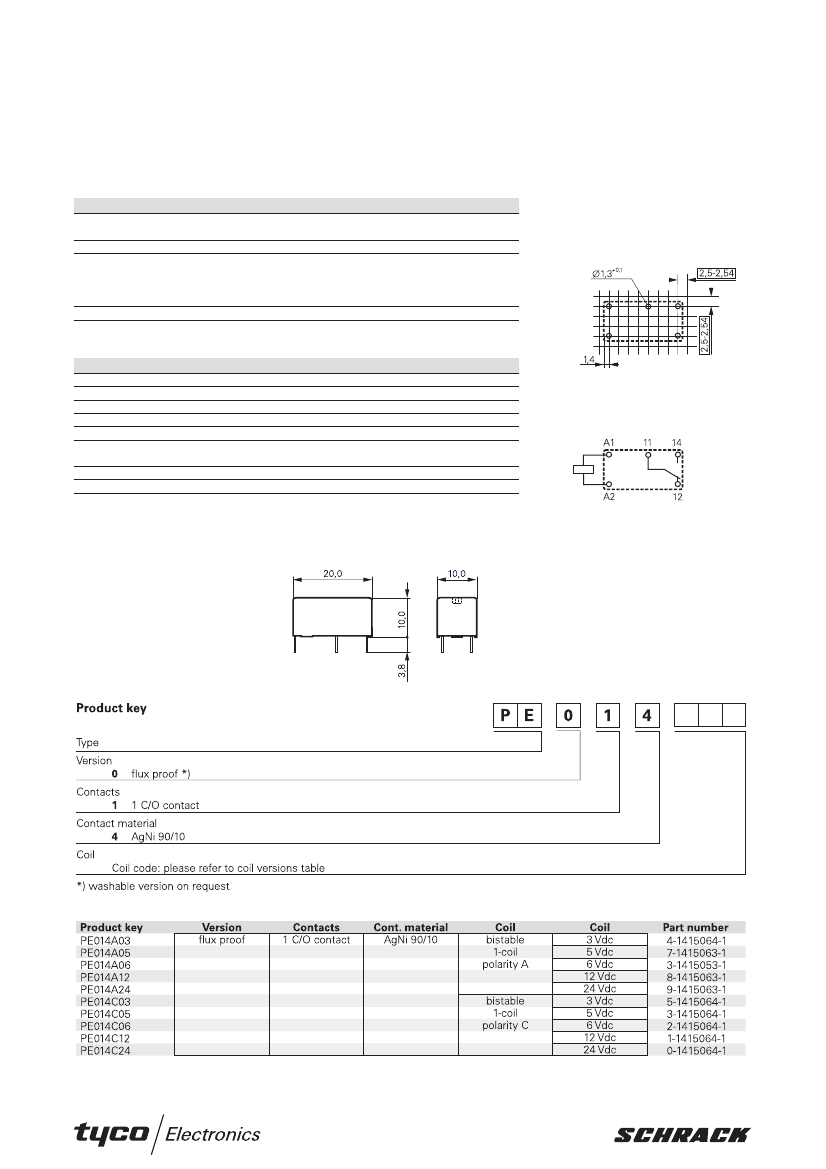

Coils - operation

version

coil terminals

pull-in

reset

Contact position not defined at delivery

Edition: 03/2002

A1

+

-

A..

A2

-

+

A1

-

+

C..

A2

+

-
