MB3216 SERIES
PART NUMBERING SYSTEM
MB
TYPE
3
2
1
6
－
3
1
0
DIMENSIONS
IMPEDANCE
SHAPES AND DIMENSIONS
UNIT：mm
SPECIFICATION TABLE
PART NUMBER
MB3216-310
MB3216-600
MB3216-900
MB3216-121
MB3216-151
MB3216-301
MB3216-601
MB3216-751
MB3216-102
MB3216-152
MB3216-202
IMPEDANCE (Ω)
at 100MHz
31±25%
60±25%
90±25%
120±25%
150±25%
300±25%
600±25%
750±25%
1000±25%
1500±25%(at50MHz)
2000±25%(at30MHz)
DCR (Ω)
(max)
0.20
0.30
0.30
0.20
0.30
0.30
0.30
0.80
1.00
1.00
0.60
IDC (mA)
(max)
500
400
300
300
300
300
200
200
200
200
100
Test equipment：HP-4291 A impedance analyzer or equivalent.
Coilmaster
Coilmaster Electronics Co., Ltd.
9F-1 No.398, Huan Bei Rd. Chung Li City, Taoyuan 320, Taiwan
Tel : +886-3-422-8279
Fax : +886-3-422-8734
E-mail :info@coilmaster.com.tw
Web Site : www.coilmaster.com.tw

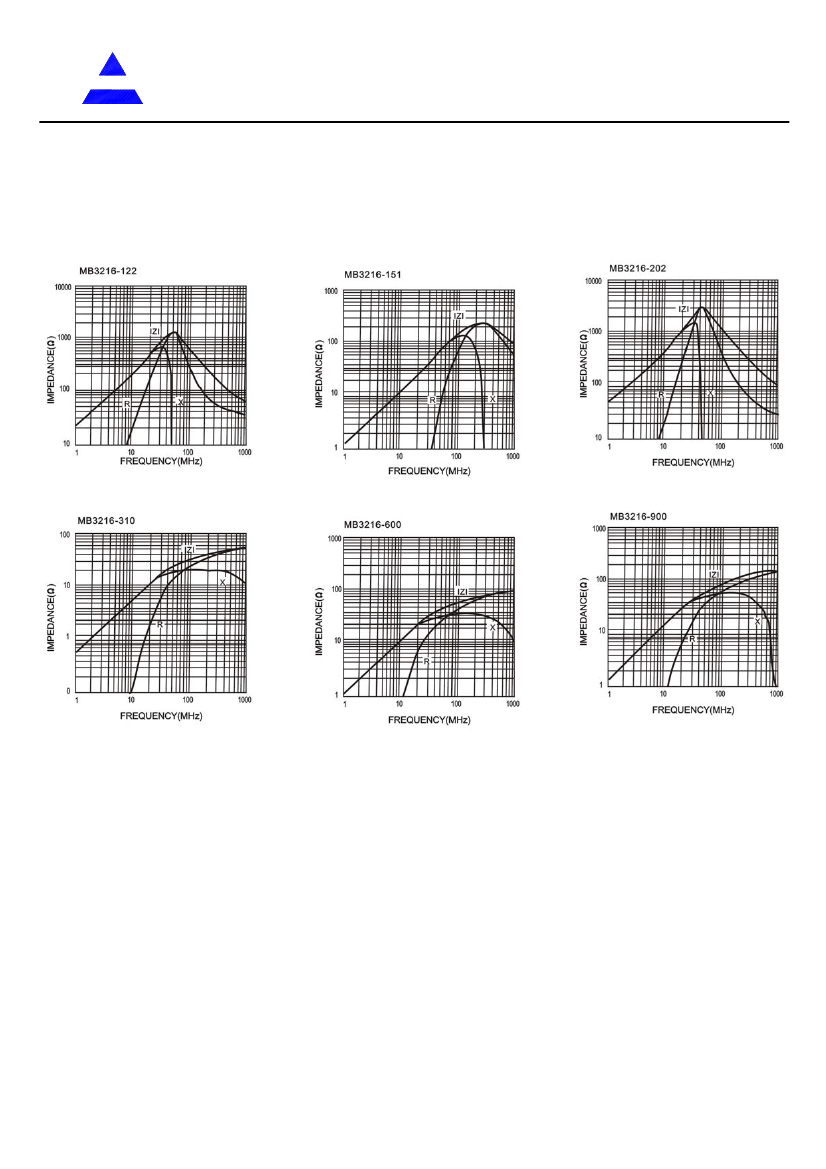

MB3216 SERIES
Coilmaster
Coilmaster Electronics Co., Ltd.
9F-1 No.398, Huan Bei Rd. Chung Li City, Taoyuan 320, Taiwan
Tel : +886-3-422-8279
Fax : +886-3-422-8734
E-mail :info@coilmaster.com.tw
Web Site : www.coilmaster.com.tw
MB3216 SERIES

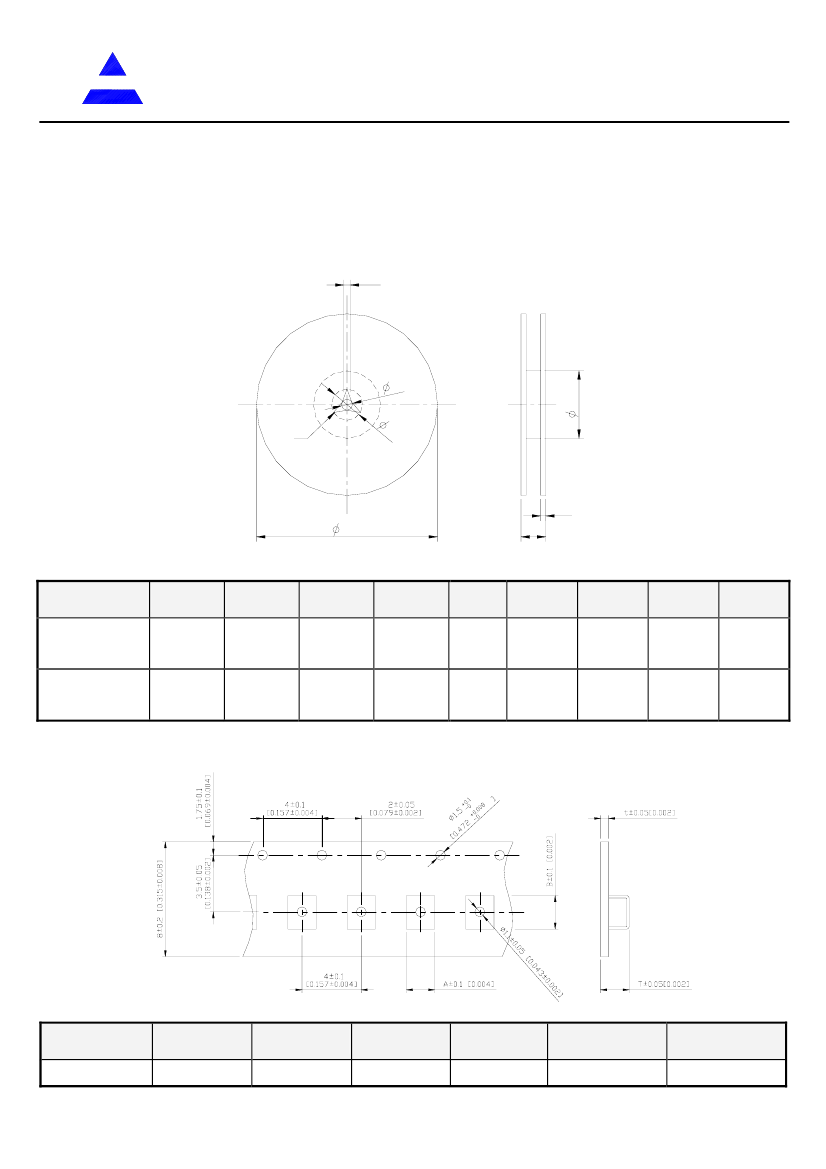

PACKAGING SPECIFICATION
E
C
R
D
A
W
A
T(ψ178mm)
Reel
T(ψ330mm)
Reel
ψ178±2
B
ψ60±1
C
ψ13±0.8
D
ψ21±0.8
E
2
W8
10±1.5
B
t
W12
14.5±1.5
t
1.27±0.2
R
1
ψ330±2
ψ100±2
ψ13±0.8
ψ21±0.8
2
10±1.5
14.5±1.5
1.27±0.2
1
TYPE
3216
A
1.90
B
3.50
T
1.40
t
0.2
T(ψ178mm)
3000 pcs/reel
T(ψ330mm)
10000 pcs/reel
