5BAF-LPBE6-50.0KHZ datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> filter> 5BAF-LPBE6-50.0KHZ

5BAF-LPBE6-50.0KHZ: DescriptionActive Filter, 1 Func, Bessel, Lowpass,; CategoryAnalog mixed-signal IC filter; File Size415KB，5 Pages; ManufacturerFrequency Devices

Download Datasheet Parametric Compare View All

5BAF-LPBE6-50.0KHZ Overview

Active Filter, 1 Func, Bessel, Lowpass,

5BAF-LPBE6-50.0KHZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Frequency Devices
package instruction	, MODULE,14LEAD,2.0
Reach Compliance Code	unknown
Number of functions	1
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Order	6TH
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	MODULE,14LEAD,2.0
Package form	MICROELECTRONIC ASSEMBLY
power supply	5 V
Certification status	Not Qualified
response	LOWPASS
Maximum supply current (Isup)	135 mA
Nominal supply voltage (Vsup)	5 V
Temperature level	OTHER
transfer characteristics	BESSEL
Base Number Matches	1

Preview

Download Datasheet

View All

5BAF Series

6-Pole

Description

Differential

Low-Pass Filters

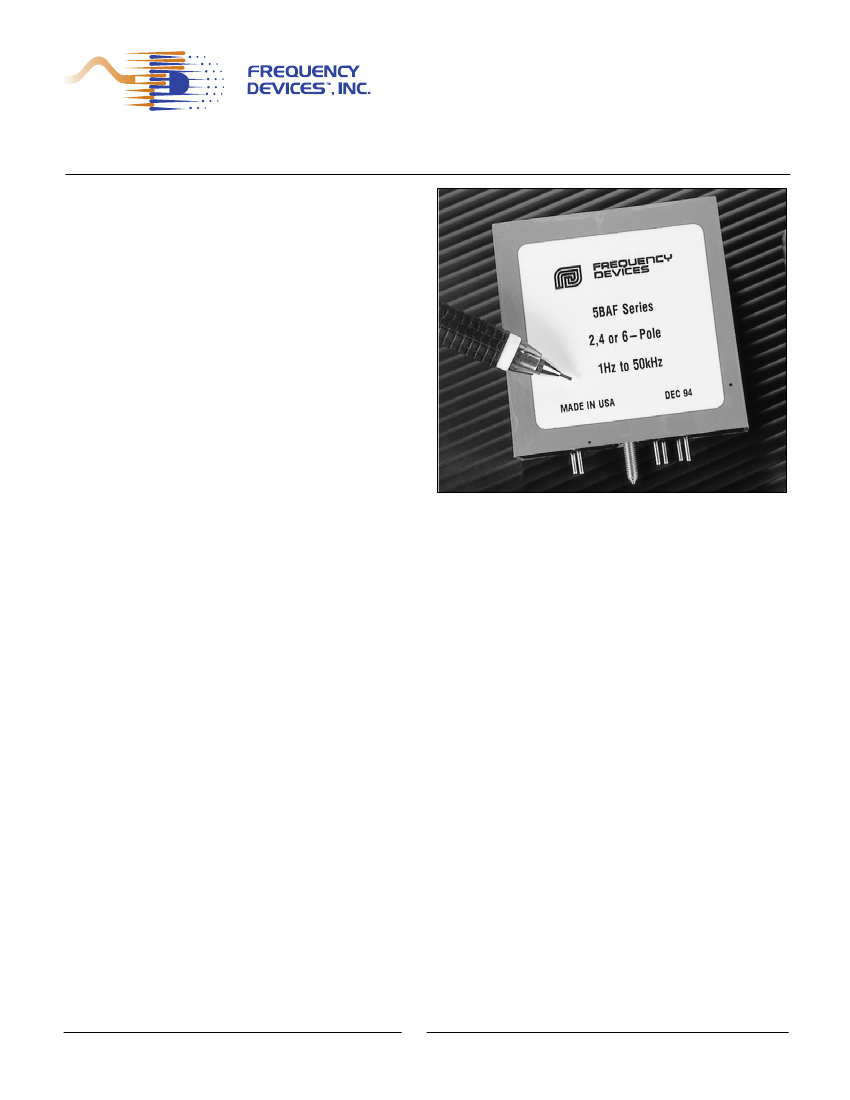

The 5BAF Series are differential-input 6-Pole

Butterworth or Bessel low-pass anti-alias filters that

are pin-out and package compatible with industry-

standard 5B Series signal conditioning modules.

Each filter comes factory tuned to a user-specified

corner frequency from 1 Hz to 50 kHz. These filters

are ideally suited to sharply limit A/D converter

bandwidth to eliminate aliasing higher frequency

input signals and noise.

To serve real-world applications, all 5BAF Series

filters are configured with a differential input having a

common mode rejection ratio of 74 dB (min.) at 1

kHz. A self contained dc-to-dc converter enables the

5BAF filters to operate from a non-critical +5 ±10%

volt power source key in many systems since +5V

logic power is readily available.

Features/Benefits:

• The 10 volt input range with an overall gain of 1

provides an excellent match to both the transducer

output and the data acquisition board input

• 5BAF modules allow for partitioning between sys-

tem segments providing a means to minimize

ground loops

• Factory tuned, no external clocks or adjustments

needed

• 5B plug-in compatible provides quick and easy in-

stallation

• Broad range of corner frequencies to meet a wide

range of applications

Applications

• Anti-alias filtering

• Vibration analysis

• Industrial and process control

• Noise reduction

• Signal reduction

• Test systems

Available Low-Pass Models:

. . . . . . . . . . . . . .Page

5BAF-LPBE6 6-pole Bessel . . . . . . . . . . . . . . . . .2

5BAF-LPBU6 6-pole Butterworth . . . . . . . . . . . . . .2

General Specifications:

Ordering information . . . . . . . . . . . . . . . . . . . . . . . .3

Pin-out/package data . . . . . . . . . . . . . . . . . . . . . . . .3

25 Locust St, Haverhill, Massachusetts 01830 • Tel: 800/252-7074, 978/374-0761 • FAX: 978/521-1839

e-mail: sales@freqdev.com • Web Address: http://www.freqdev.com

5BAF-LPBE6-50.0KHZ Related Products

	5BAF-LPBE6-50.0KHZ	5BAF-LPBU6-1.00HZ
Description	Active Filter, 1 Func, Bessel, Lowpass,	Active Filter, 1 Func, Butterworth, Lowpass,
Is it Rohs certified?	incompatible	incompatible
Maker	Frequency Devices	Frequency Devices
package instruction	, MODULE,14LEAD,2.0	XMA, MODULE,14LEAD,1.6
Reach Compliance Code	unknown	unknown
Number of functions	1	1
Number of terminals	14	14
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Encapsulate equivalent code	MODULE,14LEAD,2.0	MODULE,14LEAD,1.6
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified	Not Qualified
Maximum supply current (Isup)	135 mA	127 mA
Nominal supply voltage (Vsup)	5 V	5 V
Temperature level	OTHER	COMMERCIAL
Base Number Matches	1	1
