3980400000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> 3980400000

3980400000: DescriptionElectric Fuse, Medium Time Lag Blow, 0.4A, 65VAC, 65VDC, 50A (IR), Through Hole, TE5, HALOGEN FREE AND ROHS COMPLIANT; CategoryCircuit protection Circuit protection; File Size730KB，3 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3980400000 Overview

Electric Fuse, Medium Time Lag Blow, 0.4A, 65VAC, 65VDC, 50A (IR), Through Hole, TE5, HALOGEN FREE AND ROHS COMPLIANT

3980400000 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	HALOGEN FREE AND ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	RATED BREAKING CAPACITY AT 65 VDC: 50 A
Fusing characteristics	MEDIUM TIME LAG
body width	4 mm
body height	8 mm
Body length or diameter	8.5 mm
Circuit protection type	ELECTRIC FUSE
Fuse size	TE5
Joule integral nominal
Installation features	THROUGH HOLE
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	AMMO PACK; TAPE AND REEL
physical size	8.5mm x 4mm x 8mm
Rated breaking capacity	50 A
Rated current	0.4 A
Rated voltage	65 V
Rated voltage (AC)	65 V
Rated voltage (DC)	65 V
Guideline	UL
surface mount	NO
Terminal shape	PIN WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

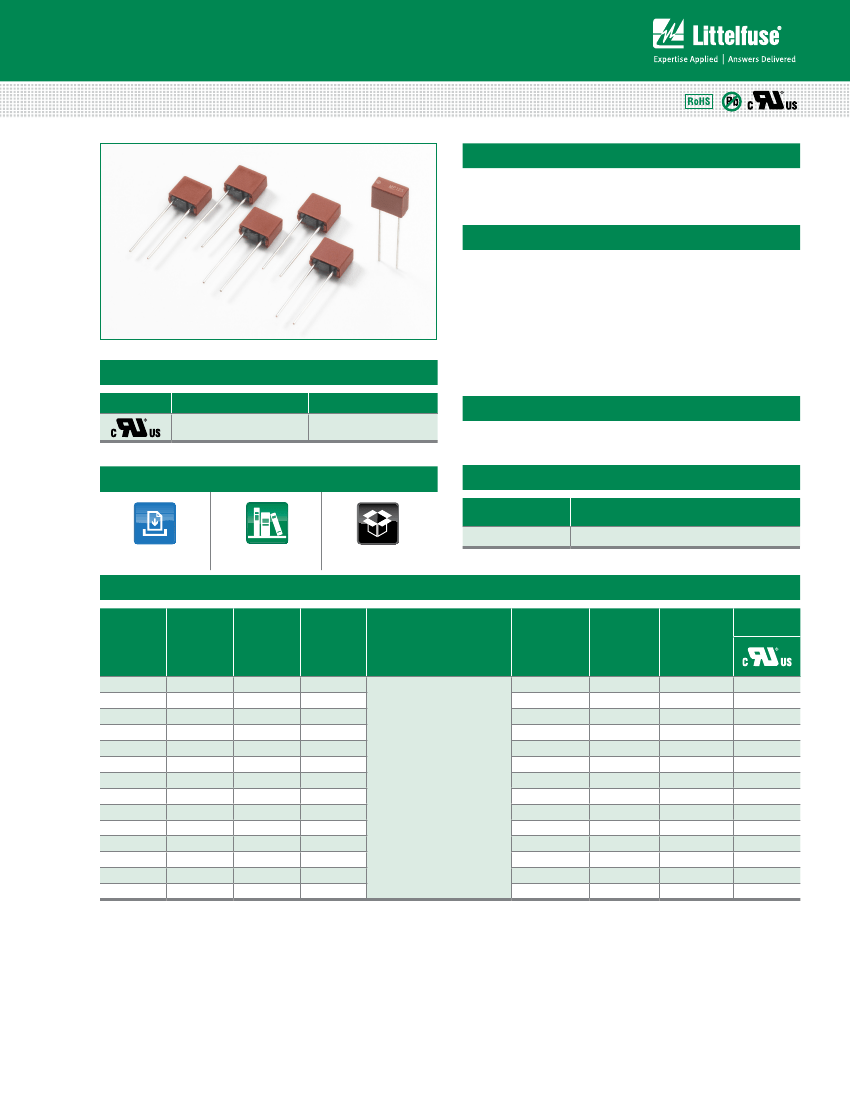

Radial Lead Fuses

TE5

> Medium Time-Lag > 398 Series

398 Series, TE5

Modul Protector

Fuse

Description

The 398 Series are TE5

short circuit protector, medium

time-Lag type, 65V rated fuses.

Features

• Reduced PCB space

requirements

• Highly defined cut-off

times

• Low internal resistance

Agency Approvals

Agency

Agency File Number

Ampere Range

• Flame resistant

encapsulated casing

• Available from 125mA

to 4A

• Halogen free

• Irreversible physical

separation

Applications

• Microprocessor protection

Electrical Characteristics

% of Ampere

Rating

300

Opening Time

10 Seconds,

Max.

E67006

125mA - 4A

Additional Information

Datasheet

Resources

Samples

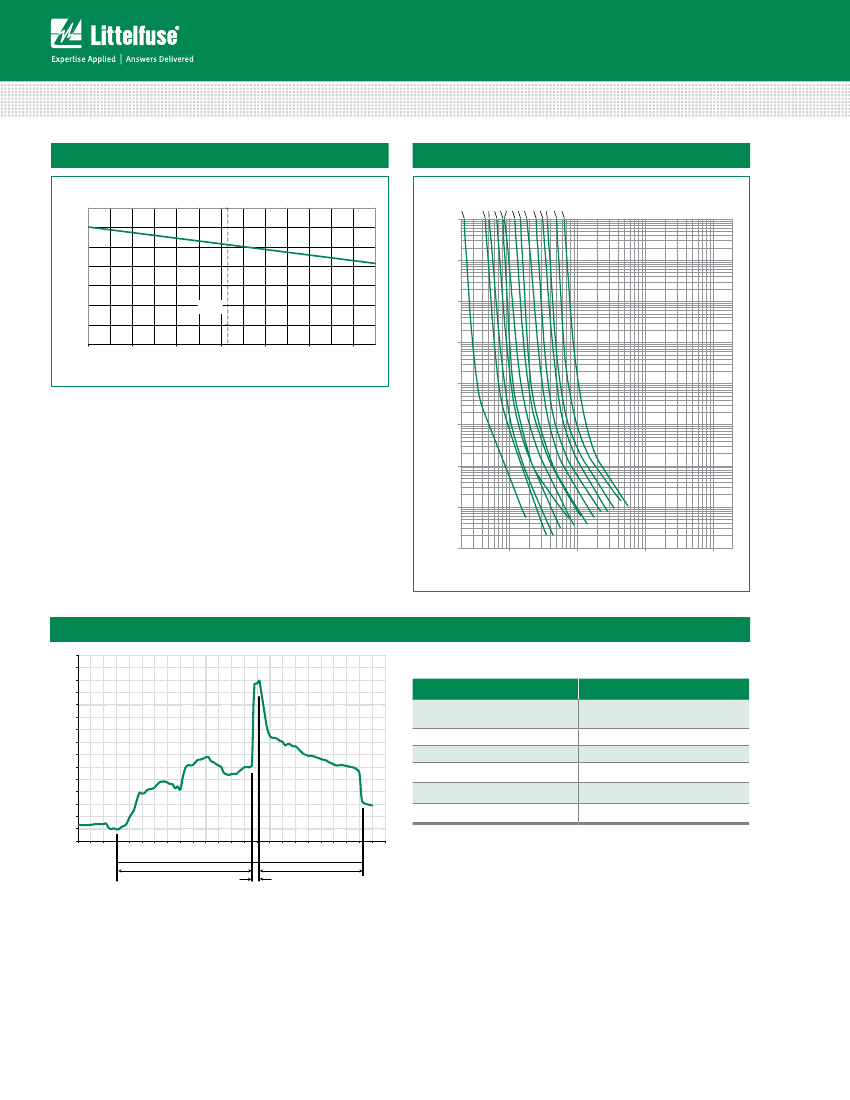

Electrical Characteristics

Cold

Resistance

0.1×I

typ.

(mΩ)

900

355

260

186

155

115

power

Disspation

1.0×I

max.

(mW)

120

140

170

210

320

425

550

650

1000

melting

Integral

10×I

typ.

0.0093

0.045

0.081

0.18

0.2

0.37

0.64

1.1

2.3

4.5

Agency

Approvals

Amp Code

Rated

Current

125mA

250mA

315mA

400mA

500mA

630mA

800mA

1.00A

1.25A

1.60A

2.00A

2.50A

3.15A

4.00A

marking

Code*

MP13

MP25

MP32

MP40

MP50

MP63

MP80

MP100

MP125

MP160

MP200

MP250

MP315

MP400

Voltage

Rating

65V

breaking Capacity

0125

0250

0315

0400

0500

0630

0800

1100

1125

1160

1200

1250

1315

1400

50A / 65 VAC/DC

50-60 Hz cosϕ=1.0

* Physical Marking on top of the device

Note: 1.00 means the number one with two decimal places. 1,000 means the number one thousand.

Specifications are subject to change without notice.

Revised: 12/19/13

3980400000 Related Products

	3980400000	3981125000	3980630000	3981315000	3981100000	3980800000	3981400000
Description	Electric Fuse, Medium Time Lag Blow, 0.4A, 65VAC, 65VDC, 50A (IR), Through Hole, TE5, HALOGEN FREE AND ROHS COMPLIANT	Electric Fuse, Medium Time Lag Blow, 1.25A, 65VAC, 65VDC, 50A (IR), Through Hole, TE5, HALOGEN FREE AND ROHS COMPLIANT	Electric Fuse, Medium Time Lag Blow, 0.63A, 65VAC, 65VDC, 50A (IR), Through Hole, TE5, HALOGEN FREE AND ROHS COMPLIANT	Electric Fuse, Medium Time Lag Blow, 3.15A, 65VAC, 65VDC, 50A (IR), Through Hole, TE5, HALOGEN FREE AND ROHS COMPLIANT	Electric Fuse, Medium Time Lag Blow, 1A, 65VAC, 65VDC, 50A (IR), Through Hole, TE5, HALOGEN FREE AND ROHS COMPLIANT	Electric Fuse, Medium Time Lag Blow, 0.8A, 65VAC, 65VDC, 50A (IR), Through Hole, TE5, HALOGEN FREE AND ROHS COMPLIANT	Electric Fuse, Medium Time Lag Blow, 4A, 65VAC, 65VDC, 50A (IR), Through Hole, TE5, HALOGEN FREE AND ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	HALOGEN FREE AND ROHS COMPLIANT	HALOGEN FREE AND ROHS COMPLIANT	HALOGEN FREE AND ROHS COMPLIANT	HALOGEN FREE AND ROHS COMPLIANT	HALOGEN FREE AND ROHS COMPLIANT	HALOGEN FREE AND ROHS COMPLIANT	HALOGEN FREE AND ROHS COMPLIANT
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	RATED BREAKING CAPACITY AT 65 VDC: 50 A	RATED BREAKING CAPACITY AT 65 VDC: 50 A	RATED BREAKING CAPACITY AT 65 VDC: 50 A	RATED BREAKING CAPACITY AT 65 VDC: 50 A	RATED BREAKING CAPACITY AT 65 VDC: 50 A	RATED BREAKING CAPACITY AT 65 VDC: 50 A	RATED BREAKING CAPACITY AT 65 VDC: 50 A
Fusing characteristics	MEDIUM TIME LAG	MEDIUM TIME LAG	MEDIUM TIME LAG	MEDIUM TIME LAG	MEDIUM TIME LAG	MEDIUM TIME LAG	MEDIUM TIME LAG
body width	4 mm	4 mm	4 mm	4 mm	4 mm	4 mm	4 mm
body height	8 mm	8 mm	8 mm	8 mm	8 mm	8 mm	8 mm
Body length or diameter	8.5 mm	8.5 mm	8.5 mm	8.5 mm	8.5 mm	8.5 mm	8.5 mm
Circuit protection type	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE
Fuse size	TE5	TE5	TE5	TE5	TE5	TE5	TE5
Joule integral nominal	-	2 J	-	23 J	1 J	-	40 J
Installation features	THROUGH HOLE	THROUGH HOLE	THROUGH HOLE	THROUGH HOLE	THROUGH HOLE	THROUGH HOLE	THROUGH HOLE
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
method of packing	AMMO PACK; TAPE AND REEL	AMMO PACK; TAPE AND REEL	AMMO PACK; TAPE AND REEL	AMMO PACK; TAPE AND REEL	AMMO PACK; TAPE AND REEL	AMMO PACK; TAPE AND REEL	AMMO PACK; TAPE AND REEL
physical size	8.5mm x 4mm x 8mm	8.5mm x 4mm x 8mm	8.5mm x 4mm x 8mm	8.5mm x 4mm x 8mm	8.5mm x 4mm x 8mm	8.5mm x 4mm x 8mm	8.5mm x 4mm x 8mm
Rated breaking capacity	50 A	50 A	50 A	50 A	50 A	50 A	50 A
Rated current	0.4 A	1.25 A	0.63 A	3.15 A	1 A	0.8 A	4 A
Rated voltage	65 V	65 V	65 V	65 V	65 V	65 V	65 V
Rated voltage (AC)	65 V	65 V	65 V	65 V	65 V	65 V	65 V
Rated voltage (DC)	65 V	65 V	65 V	65 V	65 V	65 V	65 V
Guideline	UL	UL	UL	UL	UL	UL	UL
surface mount	NO	NO	NO	NO	NO	NO	NO
Terminal shape	PIN WIRE	PIN WIRE	PIN WIRE	PIN WIRE	PIN WIRE	PIN WIRE	PIN WIRE
Base Number Matches	1	1	1	1	1	1	1
