S54H76W

Description

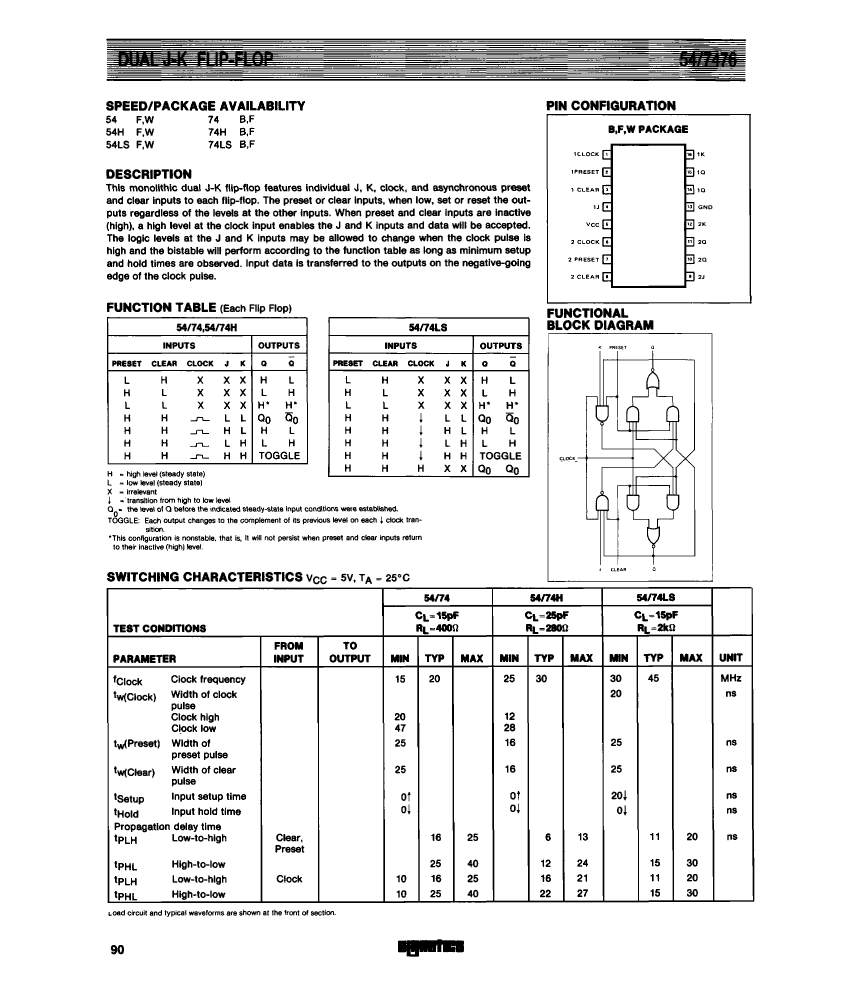

IC TTL/H/L SERIES, DUAL NEGATIVE EDGE TRIGGERED J-K FLIP-FLOP, COMPLEMENTARY OUTPUT, CQFP16, FF/Latch
Categorylogic    logic
File Size42KB,1 Pages
ManufacturerNXP
Websitehttps://www.nxp.com
Download Datasheet Parametric View All

S54H76W Overview

IC TTL/H/L SERIES, DUAL NEGATIVE EDGE TRIGGERED J-K FLIP-FLOP, COMPLEMENTARY OUTPUT, CQFP16, FF/Latch

S54H76W Parametric

Parameter NameAttribute value
MakerNXP
package instruction,
Reach Compliance Codeunknown
Other featuresMASTER SLAVE OPERATION
seriesTTL/H/L
JESD-30 codeR-CQFP-F16
Load capacitance (CL)25 pF
Logic integrated circuit typeJ-K FLIP-FLOP
Number of digits2
Number of functions2
Number of terminals16
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output polarityCOMPLEMENTARY
Package body materialCERAMIC, METAL-SEALED COFIRED
Package shapeRECTANGULAR
Package formFLATPACK
Maximum supply current (ICC)50 mA
propagation delay (tpd)27 ns
Certification statusNot Qualified
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyTTL
Temperature levelMILITARY
Terminal formFLAT
Terminal locationQUAD
Trigger typeNEGATIVE EDGE
minfmax25 MHz
Base Number Matches1
