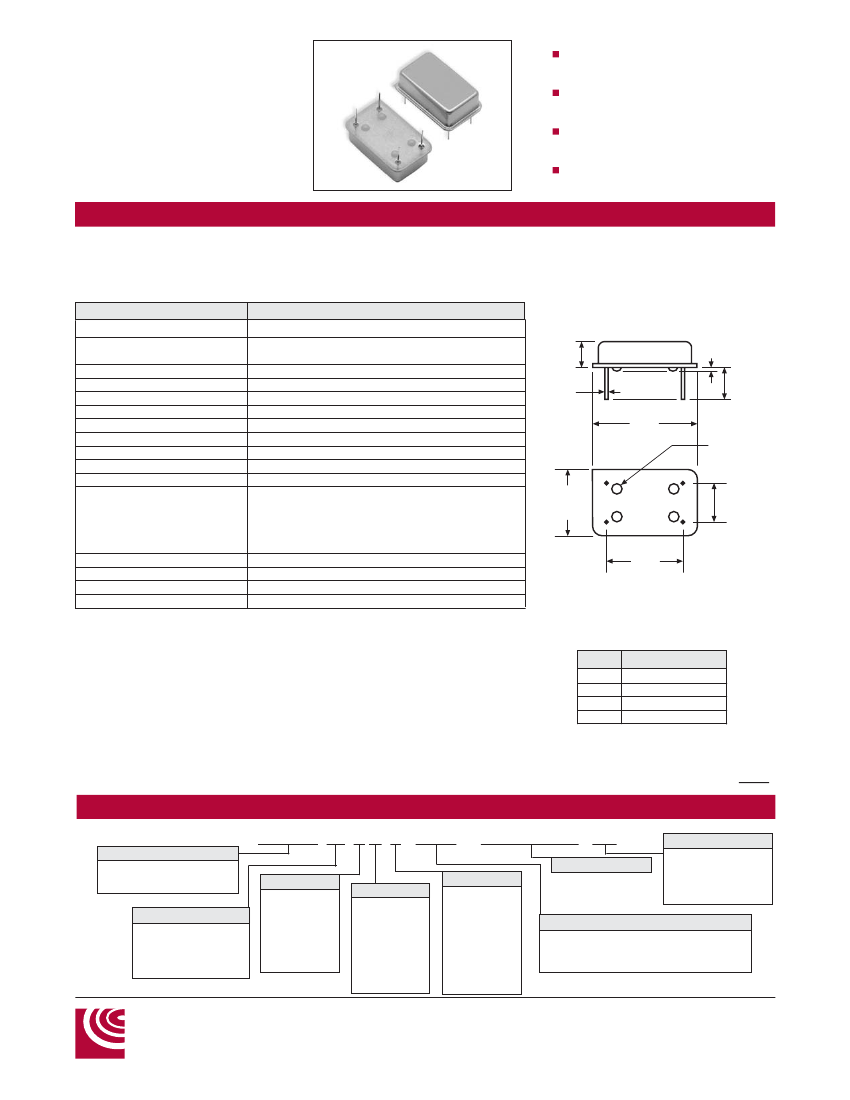

FMVPCL
SERIES
5.0 Vdc PECL VCXO
5.0 Vdc PECL
Precise Clock Edges
High Frequency /Low Noise
SMD Gull-Wing Option
14 PIN DIP
SPECIFICATIONS
05|issue1|110504
Parameter
Frequency Range
Overall Frequency Tolerance
Operating Temperature Range
Storage Temperature
Supply Voltage (Vdd)
Supply Current
Symmetry (Duty Cycle)
Logic Type
Output “0” Level (VOL)
Output “1” Level (VOH)
Jitter (typical)
Phase Noise (typical)
Specification
30.0 - 160.0 MHz
±25 ppm to ±100 ppm
(Inclusive of Operating Temp., Supply Voltage and Load)
FULL SIZE 14 PIN DIP
0.240
(6.1)
MAX.
0.020
(0.55)
0.800
(20.3)
MAX.
1
0.510
(12.95)
MAX.
14
0.600
(15.24)
8
7
0.031
(0.76)
MAX
0.250
(6.35)
MAX.
Control Voltage (Vc)
Rise and Fall Time
Linearity
Aging
0 to +70° C Std. (See Temp. Range)
-55° to +125° C
+5.2 Vdc (±0.5 Vdc)
100 mA max.
40/60% Std., 45/55% Avail. (See Spec. Options S)
ECL Squarewave, 100K Compatible
Vdd - 1.60 Vdc max.
Vdd - 1.02 Vdc min.
< 10 pico seconds, one sigma
10 Hz
-75dBc/Hz
100 Hz
-110dBc/Hz
1kHz
-125dBc/Hz
10kHz
-130dBc/Hz
100kHz
-140dBc/Hz
Nominal 2.5 Vdc, Range 0.5-4.5 Vdc, Positive Transfer
2 nS max.
±20% max. Std. , ±10% Available (See Spec. Option L)
±3 ppm first year max.
Insulated
Stand-Offs
0.300
(7.62)
All specifications subject to change without notice.
PIN FUNCTION TABLE
Pin
1
7
8
14
Function
Control Voltage (Vc)
Case Ground ( Vee)
Output
Supply Voltage (Vdd)
NOTE: Waveforms & Test Circuits on pages 48, 49
Standard Specifications for product indicated in
color
Dimensions:
Inches
(mm)
PART NUMBERING SYSTEM
Product Family
+5.0 Vdc PECL VCXO
Full-Size 14 Pin DIP
Overall Frequency Tol.
25 - ± 25 ppm
50 - ± 50 ppm
00 - ± 100 ppm
nn - ± Custom Value
MARKING: See Page 57, Format G
Options
GW - Gull Wing
PD - Parameter Data
CM - Custom Mark
BLANK - None Req’d.
FMVPCL 00 C G A S / L - XXX.XXXXXX - CM
Frequency (MHz)
Min. Pullability
B - ± 75 ppm
C - ± 100 ppm
D - ± 125 ppm
E - ± 150 ppm
X - Custom
Z - No Spec.
Max. Pullability
C - ± 100 ppm
D - ± 125 ppm
E - ± 150 ppm
F - ± 175 ppm
G - ± 200 ppm
X - Custom
Z - No Spec.
Temp. Range
A 0 to 70 °C
B -20 to 70 °C
C -40 to 85 °C
D -10 to 50 °C
E -10 to 60 °C
F -30 to 60 °C
J 0 to 50 °C
X - Custom
Spec. Options
S - Tight Symmetry (45/55%) Duty Cycle
L - Linearity ±10% Max.
Blank - None Required (Std.)
FREQUENCY MANAGEMENT |
INTERNATIONAL
15302 Bolsa Chica Street
Huntington Beach, CA 92649
ph (714) 373-8100 | fx (714) 373-8700
1-800-800-XTAL
[9825]
www.fmi-inc.com
52
