5353727-8: DescriptionHEADER CONNECTOR,PCB MNT,PLUG,100+100 CONTACTS,PIN,0.024 PITCH,SURFACE MOUNT TERMINAL,LOCKING; CategoryThe connector The connector; File Size484KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

5353727-8 Overview

HEADER CONNECTOR,PCB MNT,PLUG,100+100 CONTACTS,PIN,0.024 PITCH,SURFACE MOUNT TERMINAL,LOCKING

5353727-8 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	312884112
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8
Board mount options	PEG
body width	0.677 inch
subject depth	0.293 inch
body length	1.445 inch
Body/casing type	PLUG
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	200VAC V
Durability	50 Cycles
Filter function	NO
maximum insertion force	0.9 N
Insulation resistance	100000000 Ω
insulator material	POLYETHYLENE
Plug contact pitch	0.024 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	TWO
PCB row number	2+2
Number of rows loaded	2+2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.2/5.9 mm
Plating thickness	8u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
Terminal pitch	0.6 mm
Termination type	SURFACE MOUNT
Total number of contacts	200
UL Flammability Code	94V-0
Evacuation force-minimum value	0.1 N

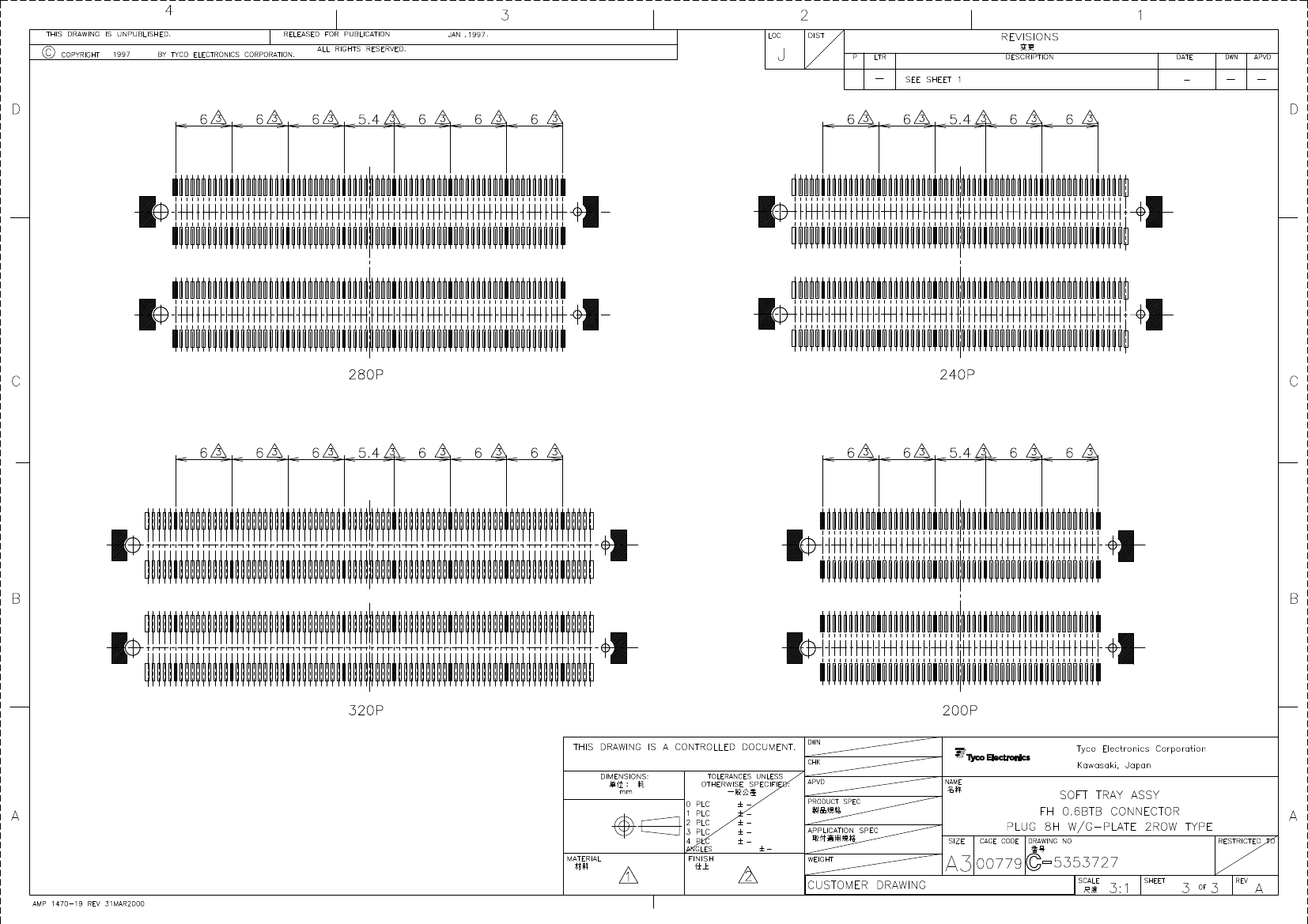

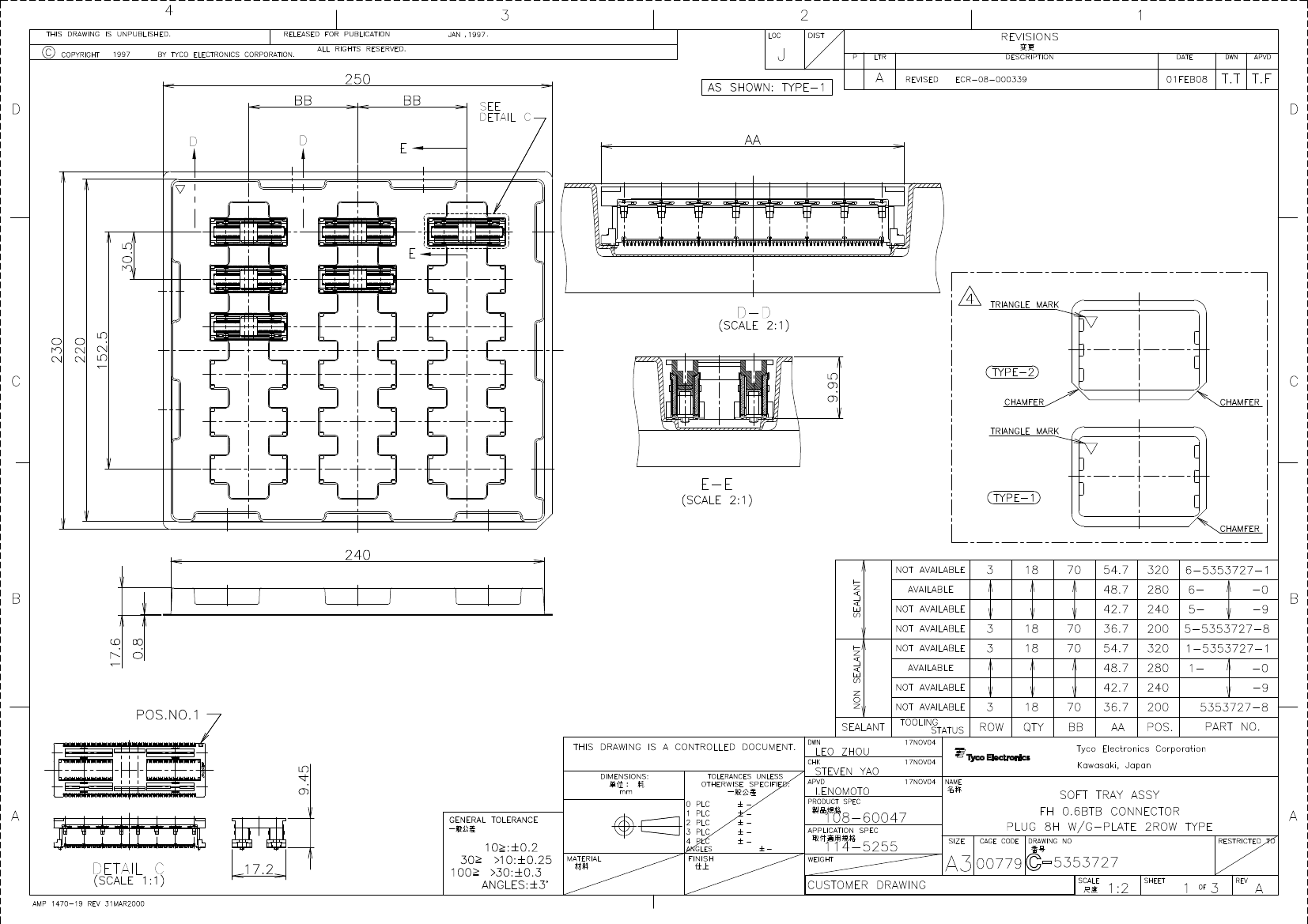

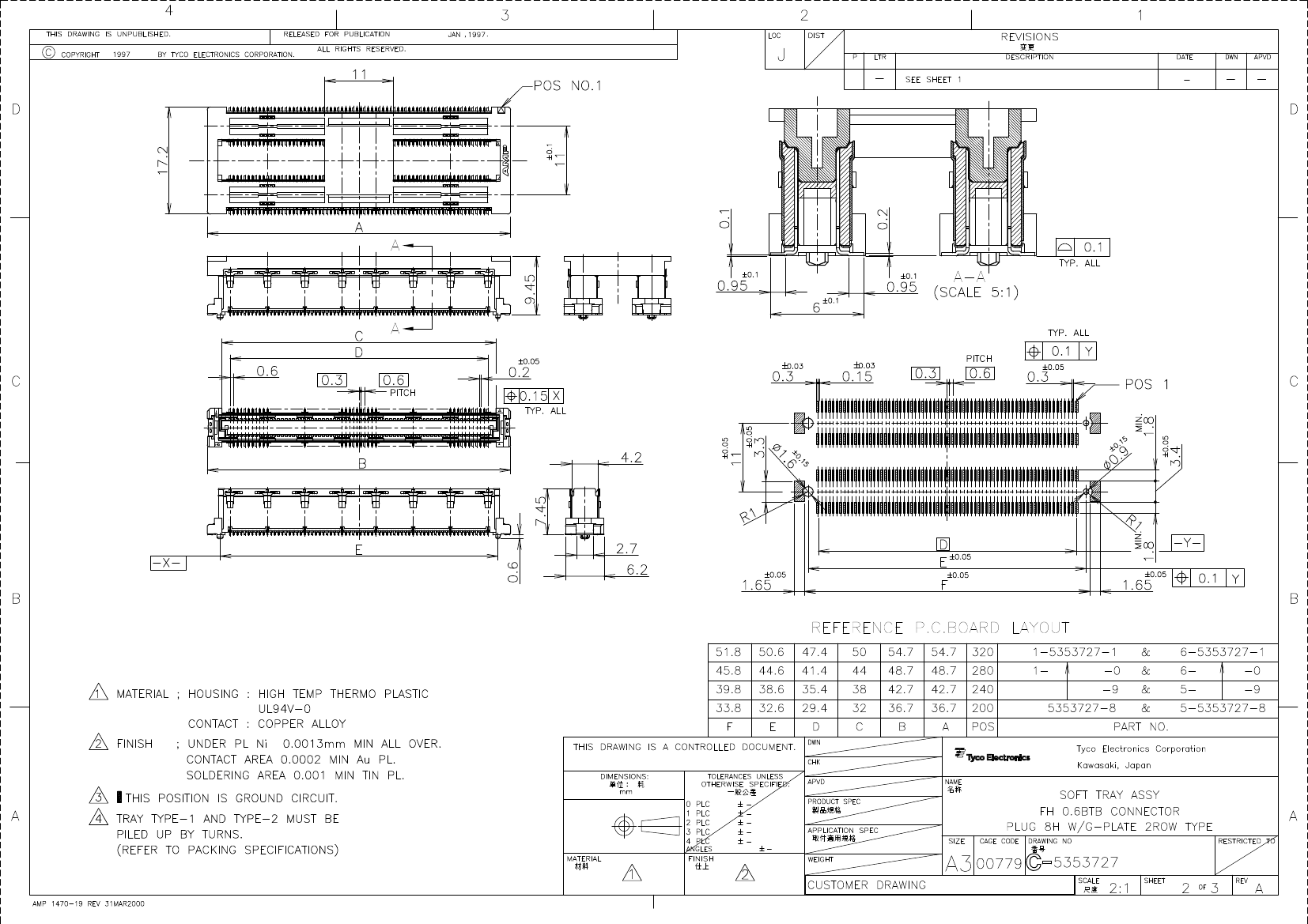

Preview

Download Datasheet

View All

5353727-8 Related Products

	5353727-8	5-5353727-9	5353727-9	5-5353727-8
Description	HEADER CONNECTOR,PCB MNT,PLUG,100+100 CONTACTS,PIN,0.024 PITCH,SURFACE MOUNT TERMINAL,LOCKING	HEADER CONNECTOR,PCB MNT,PLUG,120+120 CONTACTS,PIN,0.024 PITCH,SURFACE MOUNT TERMINAL,LOCKING	HEADER CONNECTOR,PCB MNT,PLUG,120+120 CONTACTS,PIN,0.024 PITCH,SURFACE MOUNT TERMINAL,LOCKING	HEADER CONNECTOR,PCB MNT,PLUG,100+100 CONTACTS,PIN,0.024 PITCH,SURFACE MOUNT TERMINAL,LOCKING
Is it Rohs certified?	conform to	conform to	conform to	conform to
Objectid	312884112	312884107	312884111	312884108
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
YTEOL	8	8	8	8
Board mount options	PEG	PEG	PEG	PEG
body width	0.677 inch	0.677 inch	0.677 inch	0.677 inch
subject depth	0.293 inch	0.293 inch	0.293 inch	0.293 inch
body length	1.445 inch	1.681 inch	1.681 inch	1.445 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	MALE	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	30 mΩ	30 mΩ	30 mΩ	30 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Dielectric withstand voltage	200VAC V	200VAC V	200VAC V	200VAC V
Durability	50 Cycles	50 Cycles	50 Cycles	50 Cycles
Filter function	NO	NO	NO	NO
maximum insertion force	0.9 N	0.9 N	0.9 N	0.9 N
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
insulator material	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE
Plug contact pitch	0.024 inch	0.024 inch	0.024 inch	0.024 inch
Mixed contacts	NO	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Number of connectors	TWO	TWO	TWO	TWO
PCB row number	2+2	2+2	2+2	2+2
Number of rows loaded	2+2	2+2	2+2	2+2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	5.2/5.9 mm	5.2/5.9 mm	5.2/5.9 mm	5.2/5.9 mm
Plating thickness	8u inch	8u inch	8u inch	8u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	0.5 A	0.5 A	0.5 A	0.5 A
Guideline	UL	UL	UL	UL
Terminal pitch	0.6 mm	0.6 mm	0.6 mm	0.6 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	200	240	240	200
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Evacuation force-minimum value	0.1 N	0.1 N	0.1 N	0.1 N
