82321060: DescriptionUSB Connector, 4 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size213KB，2 Pages; ManufacturerW+P Products GmbH

Download Datasheet Parametric Compare View All

82321060 Overview

USB Connector, 4 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking, Receptacle

82321060 Parametric

Parameter Name	Attribute value
Maker	W+P Products GmbH
Reach Compliance Code	compliant
Other features	COLOUR BLACK
Board mount options	PEG
body width	0.417 inch
subject depth	0.63 inch
body length	0.472 inch
Body/casing type	RECEPTACLE
Connector type	USB CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	30 mΩ
Contact style	USB, SER B SQ
Dielectric withstand voltage	500VAC V
Insulation resistance	500000000 Ω
insulator material	THERMOPLASTIC
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of ports	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	BRASS
Terminal pitch	1.2446 mm
Termination type	SURFACE MOUNT
Total number of contacts	4
Base Number Matches	1

Preview

Download Datasheet

View All

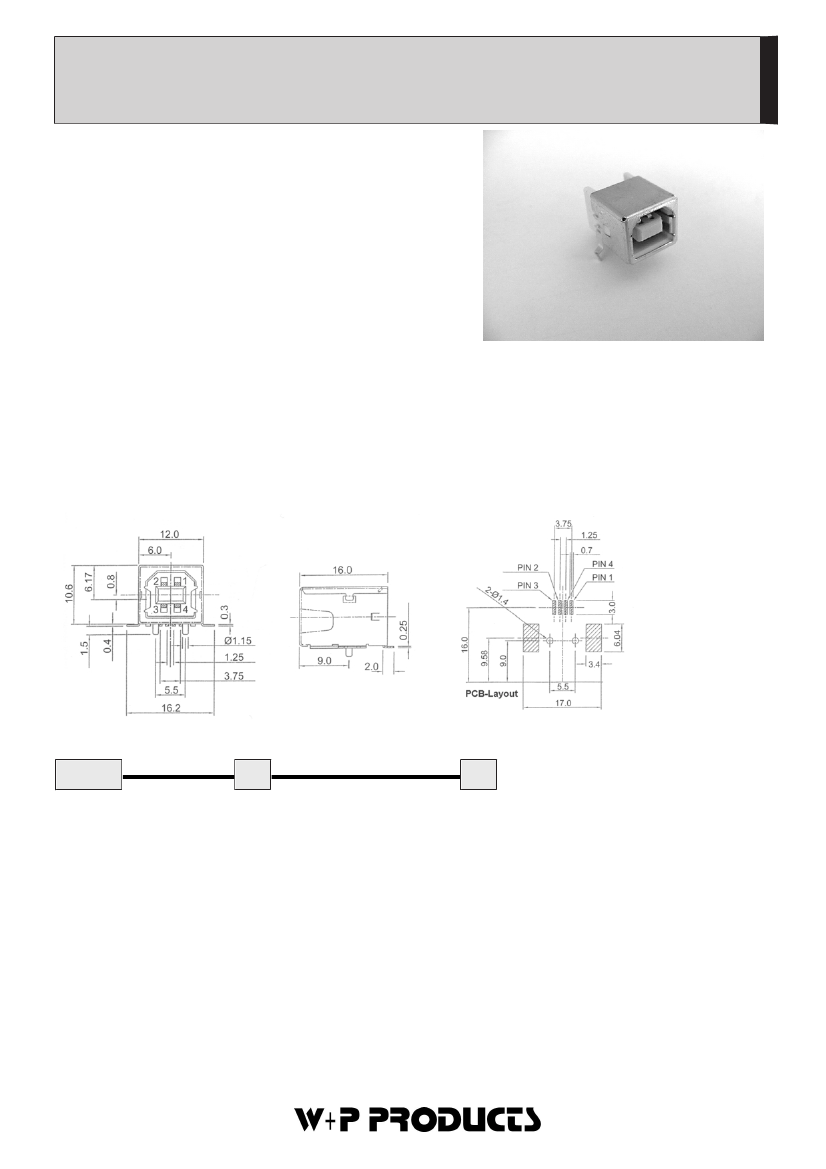

8232

USB Steckverbinder - SMT - Typ B

USB Connector - SMT - Type B

Technische Daten /Technical

Data

Gehäuse

Messing, verzinnt

Shell

Tin plated brass

Isolierkörper

Thermoplastischer Kunststoff, nach UL94 V-0

Insulator

Thermoplastic, rated UL94 V-0

Kontaktmaterial

Phosphorbronze

Contact Material

Phosphor bronze

Kontaktoberfläche

Gold über Nickel (siehe Optionen unten)

Contact Surface

Gold over nickel (see options below)

Oberfläche Lötanschluss

Zinn über Nickel

Plating Solder Side

Tin plated over nickel

Lötbarkeit

IEC512-12A

Solderability

IEC512-12A

Durchgangswiderstand

< 30mΩ

Contact Resistance

< 30mΩ

8

Isolationswiderstand

> 5x10

Ω

8

Insulation Resistance

> 5x10

Ω

Spannungsfestigkeit

500V

AC

Test Voltage

500V

AC

Nennspannung

30V

AC/DC

Voltage Rating

30V

AC/DC

Nennstrom

1A

Current Rating

1A

Temperaturbereich

-40°C ... +105°C

Temperature Range

-40°C ... +105°C

Verarbeitung

Reflow-Lötverfahren; weitere Informationen in Kapitel T

Processing

Reflow-soldering, detailed information in ch. T

Series

Colour

*

Plating

*

8232

20

10

Schwarz

Black

20

Beige

Ivory

60

Sel. Au/Sn

80

Sel. Au 0,75µm / Sn

(

*

Bestellbeispiel - Bitte durch Ihre

Spezifikationen ersetzen.

*

Order example - To be replaced by your

specifications.)

TEL.: +49 5223 98507-0

FAX.: +49 5223 98507-50

E-MAIL: sales@wppro.com

INTERNET: www.wppro.com

1

82321060 Related Products

	82321060	82321080
Description	USB Connector, 4 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking, Receptacle	USB Connector, 4 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking, Receptacle
Maker	W+P Products GmbH	W+P Products GmbH
Reach Compliance Code	compliant	compliant
Other features	COLOUR BLACK	COLOUR BLACK
Board mount options	PEG	PEG
body width	0.417 inch	0.417 inch
subject depth	0.63 inch	0.63 inch
body length	0.472 inch	0.472 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	USB CONNECTOR	USB CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI
Contact point gender	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact resistance	30 mΩ	30 mΩ
Contact style	USB, SER B SQ	USB, SER B SQ
Dielectric withstand voltage	500VAC V	500VAC V
Insulation resistance	500000000 Ω	500000000 Ω
insulator material	THERMOPLASTIC	THERMOPLASTIC
Installation option 1	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
PCB row number	1	1
Number of ports	1	1
Maximum operating temperature	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR
polarization key	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	1 A	1 A
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Shell surface	TIN	TIN
Shell material	BRASS	BRASS
Terminal pitch	1.2446 mm	1.2446 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	4	4
Base Number Matches	1	1
