WTE
POWER SEMICONDUCTORS
ER1600FCT – ER1606FCT
Pb
16A GLASS PASSIVATED DUAL SUPERFAST RECTIFIER
Features
Glass Passivated Die Construction
Super-Fast Switching
Low Forward Voltage Drop
Low Reverse Leakage Current
High Surge Current Capability
Plastic Material has UL Flammability
Classification 94V-O
C
G
PIN1
2
3
B
Dim
Max
A
14.60
15.40
B
9.70
10.30
C
2.55
2.85
D
2.70
3.30
E
13.00
13.80
F
0.50
0.75
G
3.00 Ø
3.50 Ø
H
6.30
6.90
I
4.20
4.80
J
2.50
2.90
K
0.50
0.75
L
2.70
3.15
P
2.29
2.79
All Dimensions in mm
ITO-220
Min
A
D
Mechanical Data
Case: ITO-220, Full Molded Plastic
Terminals: Plated Leads Solderable per
MIL-STD-202, Method 208
Polarity: See Diagram
Weight: 2.24 grams (approx.)
Mounting Position: Any
Mounting Torque: 11.5 cm-kg (10 in-lbs) Max.
Lead Free: For RoHS / Lead Free Version,
Add “-LF” Suffix to Part Number, See Page 4
F
P
I
H
L
E
PIN 1 -
+
PIN 2
J
K
PIN 3 -
Maximum Ratings and Electrical Characteristics
Single Phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
@T
A
=25°C unless otherwise specified
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectified Output Current
@T
C
= 105°C
Non-Repetitive Peak Forward Surge
Current 8.3ms Single half sine-wave
superimposed on rated load (JEDEC Method)
Forward Voltage
@I
F
= 8.0A
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
O
ER
ER
ER
ER
ER
ER
ER
1600FCT 1601FCT
1601AFCT
1602FCT 1603FCT 1604FCT 1606FCT
Unit
50
35
100
70
150
105
200
140
16
300
210
400
280
600
420
V
V
A
I
FSM
V
FM
I
RM
t
rr
C
j
T
j
, T
STG
35
80
0.95
125
1.3
10
500
50
60
-65 to +150
1.7
A
V
µA
nS
pF
°C
Peak Reverse Current
@T
A
= 25°C
At Rated DC Blocking Voltage @T
A
= 125°C
Reverse Recovery Time (Note 1)
Typical Junction Capacitance (Note 2)
Operating and Storage Temperature Range
Note: 1. Measured with IF = 0.5A, IR = 1.0A, IRR = 0.25A.
2. Measured at 1.0 MHz and applied reverse voltage of 4.0V D.C.
ER1600FCT – ER1606FCT
1 of 4
© 2006 Won-Top Electronics
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
20
I
(AV)
, AVERAGE FORWARD CURRENT (A)
100
16
1600 - 1602
1603 - 1604
10
12
8
1606
1.0
4
Pulse width = 300
µ
s
2% duty cycle
0
0
50
100
150
T
C
, CASE TEMPERATURE (
°
C)

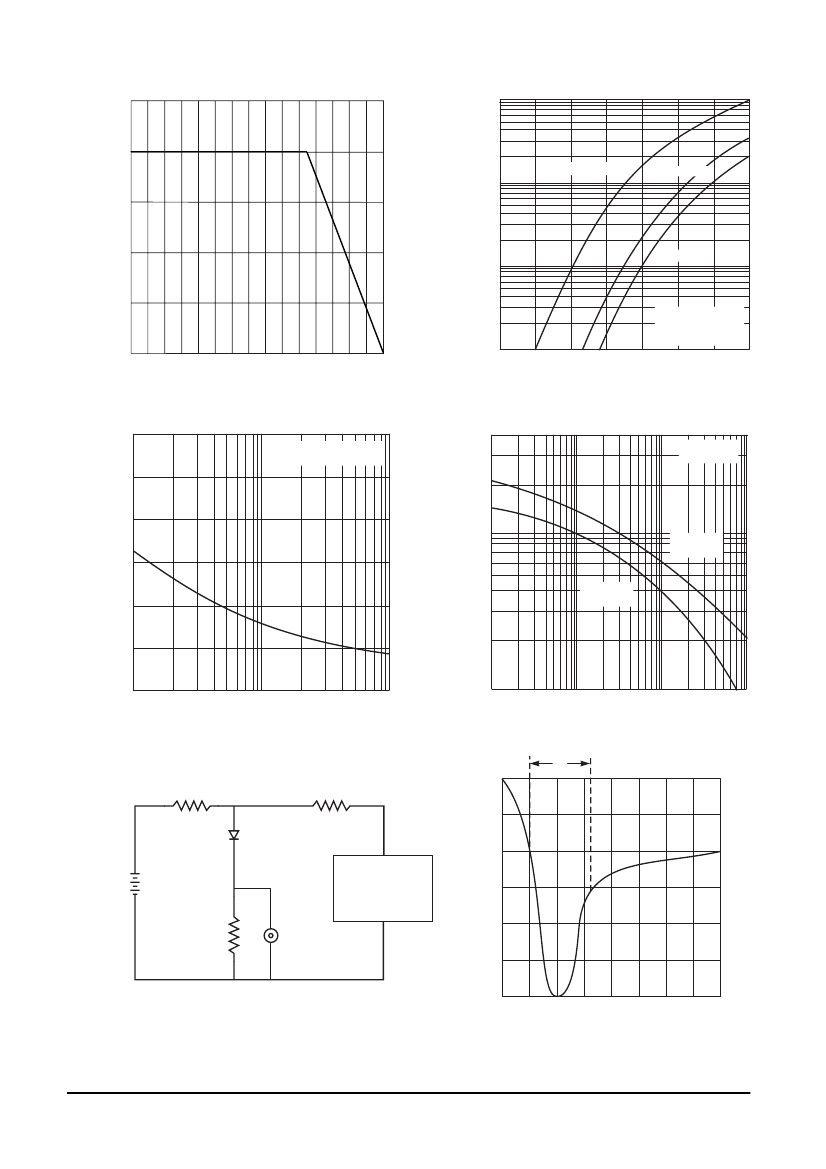

Fig. 1 Forward Current Derating Curve
0.1
0
0.6
1.2
1.8
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 2 Typical Forward Characteristics
225
400
8.3 ms single half-sine-wave
JEDEC method
I
FSM
, PEAK FORWARD SURGE CURRENT (A)
T
j
= 25
°
C
f = 1.0MHz
150
C
j
, CAPACITANCE (pF)
100
ER1600FCT -
ER1602FCT
75
ER1603FCT -
ER1606FCT
0
1
10
NUMBER OF CYCLES AT 60Hz
Fig. 3 Maximum Non-Repetitive Surge Current
100
10
0.1
1.0
10
100
V
R
, REVERSE VOLTAGE (V)
Fig. 4 Typical Junction Capacitance
t
rr
+0.5A
50
Ω
NI (Non-inductive)
10
Ω
NI
Device
Under
Test
(-)
Pulse
Generator
(Note 2)
0A
(+)
50V DC
Approx
-0.25A
(-)
1.0
Ω
NI
Oscilloscope
(Note 1)
(+)
Notes:
1. Rise Time = 7.0ns max. Input Impedance = 1.0M
Ω
, 22pF.
2. Rise Time = 10ns max. Input Impedance = 50
Ω
.
-1.0A
Set time base for 5/10ns/cm
Fig. 5 Reverse Recovery Time Characteristic and Test Circuit
ER1600FCT – ER1606FCT
2 of 4
© 2006 Won-Top Electronics
MARKING INFORMATION
WTE
ER160xFCT
WTE
ER160xFCT
x
Polarity
= Manufacturer’s Logo
= Device Number
= 0, 1, 1A, 2, 3, 4 or 6
= As Marked on Body
PACKAGING INFORMATION
BULK
Tube Size
L x W x H (mm)
525 x 31 x 6
Quantity
(PCS)
50
Inner Box Size
L x W x H (mm)
555 x 145 x 95
Quantity
(PCS)
2,000
Carton Size
L x W x H (mm)
572 x 306 x 218
Quantity
(PCS)
8,000
Approx. Gross Weight
(KG)
19.0
Note:
1. Anti-static tube, water clear color.
RECOMMENDED SCREW MOUNTING ARRANGEMENT
The full molded plastic package affords a
major reduction of hardware as compared
to a standard TO-220 package. However,
precautions should be made in mounting
procedure.
A conical washer should be used to apply
proper force to the device. Screw should
not be tightened with any type of air-forced
torque or equipment that may cause crack
on device package.
A layer of thermal grease or thermal pad in
the interface will be considerably helpful for
heat dissipation.
6-32 HEX Head Screw
Plain Washer
Rectifier
Heatsink
Conical Washer
6-32 HEX Nut
ER1600FCT – ER1606FCT
3 of 4
© 2006 Won-Top Electronics
ORDERING INFORMATION
Product No.
ER1600FCT
ER1601FCT
ER1601AFCT
ER1602FCT
ER1603FCT
ER1604FCT
ER1606FCT
1.
2.
Package Type
ITO-220
ITO-220
ITO-220
ITO-220
ITO-220
ITO-220
ITO-220
Shipping Quantity
50 Units/Tube
50 Units/Tube
50 Units/Tube
50 Units/Tube
50 Units/Tube
50 Units/Tube
50 Units/Tube
Shipping quantity given is for minimum packing quantity only. For minimum
order quantity, please consult the Sales Department.
To order RoHS / Lead Free version (with Lead Free finish), add “-LF” suffix
to part number above. For example, ER1600FCT-LF.
Won-Top Electronics Co., Ltd (WTE) has checked all information carefully and believes it to be correct and accurate. However, WTE cannot assume any
responsibility for inaccuracies. Furthermore, this information does not give the purchaser of semiconductor devices any license under patent rights to
manufacturer. WTE reserves the right to change any or all information herein without further notice.
WARNING:
DO NOT USE IN LIFE SUPPORT EQUIPMENT. WTE power semiconductor products are not authorized for use as critical components in life
support devices or systems without the express written approval.
Won-Top Electronics Co., Ltd.
No. 44 Yu Kang North 3rd Road, Chine Chen Dist., Kaohsiung, Taiwan
Phone:
886-7-822-5408 or 886-7-822-5410
Fax:
886-7-822-5417
Email:
sales@wontop.com
Internet:
http://www.wontop.com
We power your everyday.
ER1600FCT – ER1606FCT
4 of 4
© 2006 Won-Top Electronics
