LC66556ADIP64S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> LC66556ADIP64S

LC66556ADIP64S: DescriptionMicrocontroller, 4-Bit, MROM, CMOS, PDIP64, SDIP-64; CategoryThe embedded processor and controller Microcontrollers and processors; File Size709KB，26 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

LC66556ADIP64S Overview

Microcontroller, 4-Bit, MROM, CMOS, PDIP64, SDIP-64

LC66556ADIP64S Parametric

Parameter Name	Attribute value
Maker	SANYO
Parts packaging code	DIP
package instruction	SDIP,
Contacts	64
Reach Compliance Code	unknown
Has ADC	NO
Address bus width
bit size	4
maximum clock frequency	2.03 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PDIP-T64
length	57.2 mm
Number of I/O lines	58
Number of terminals	64
Maximum operating temperature	70 °C
Minimum operating temperature	-30 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	SDIP
Package shape	RECTANGULAR
Package form	IN-LINE, SHRINK PITCH
Certification status	Not Qualified
ROM programmability	MROM
Maximum supply voltage	5.5 V
Minimum supply voltage	3 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	OTHER
Terminal form	THROUGH-HOLE
Terminal pitch	1.778 mm
Terminal location	DUAL
width	19.05 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

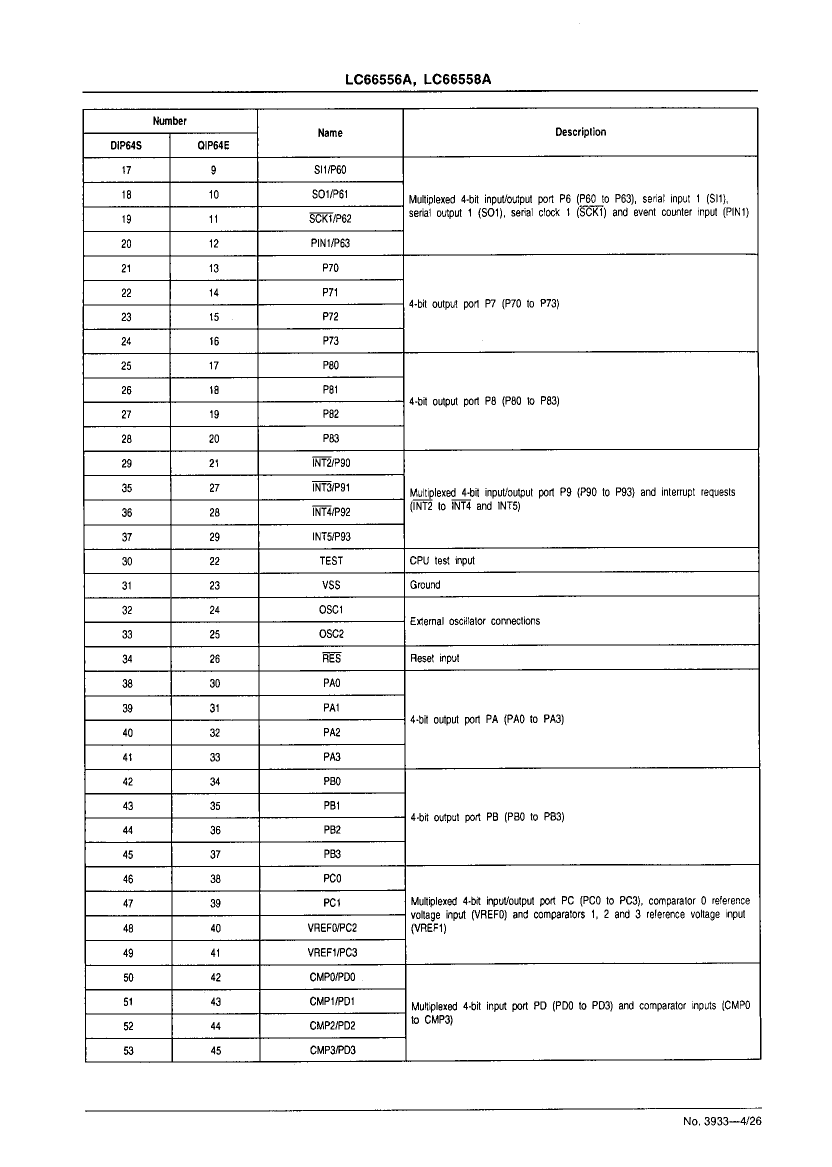

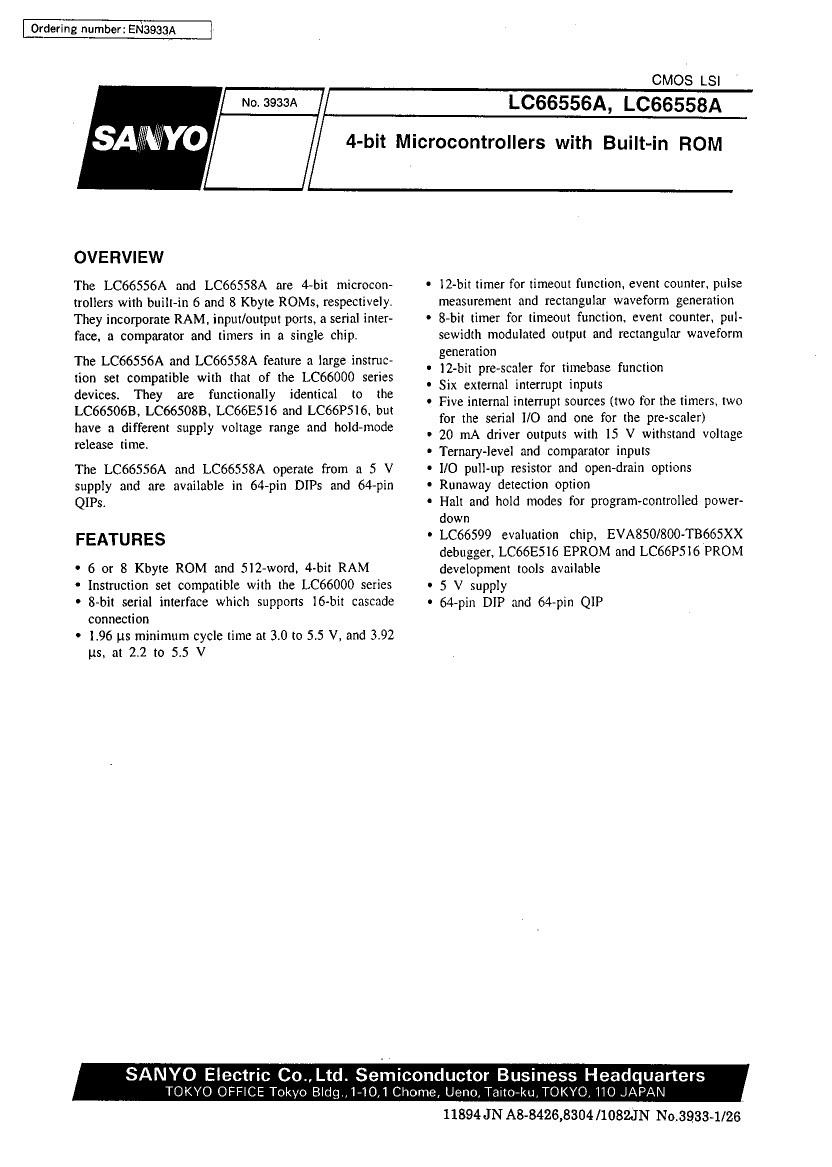

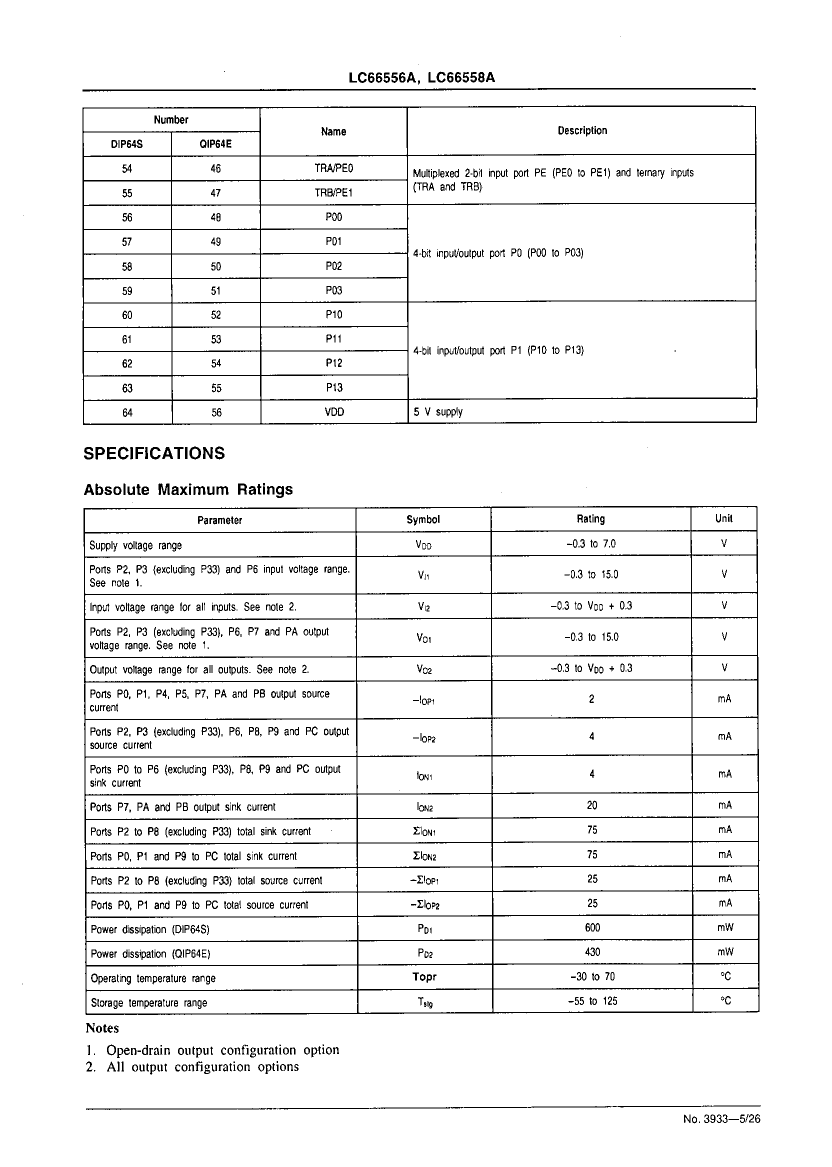

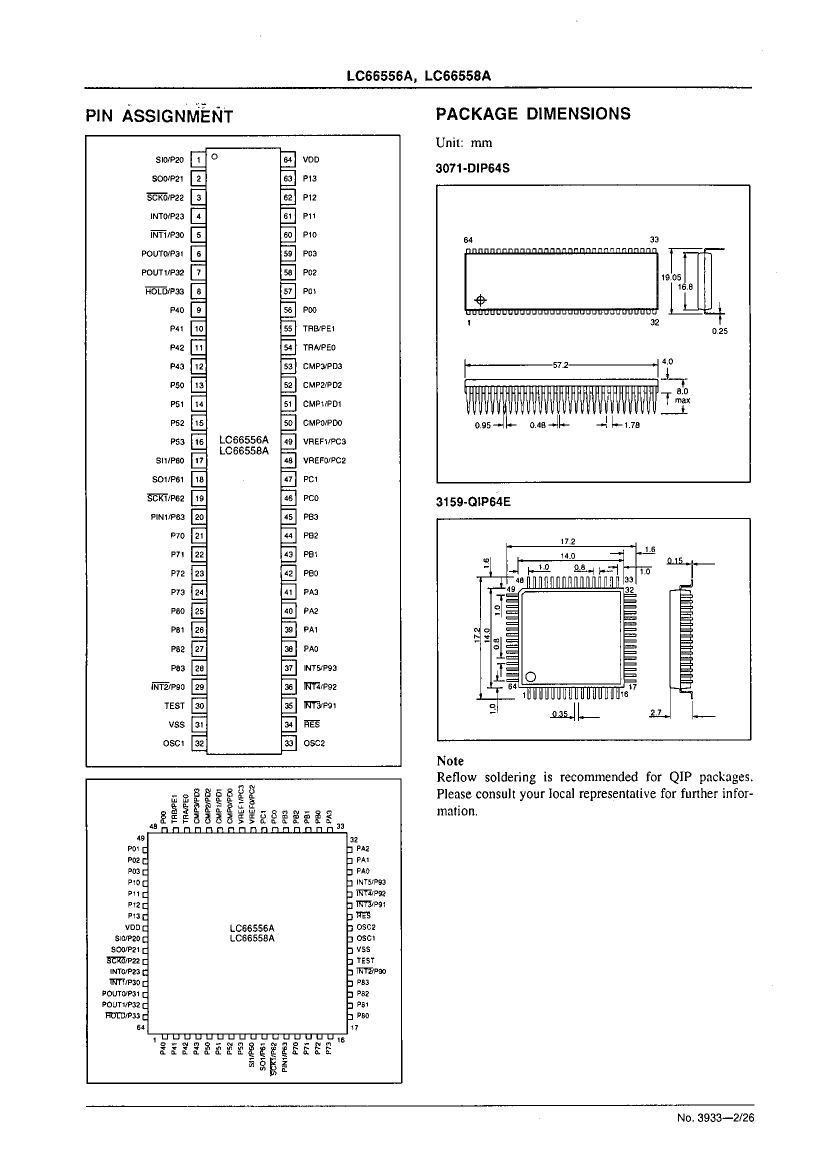

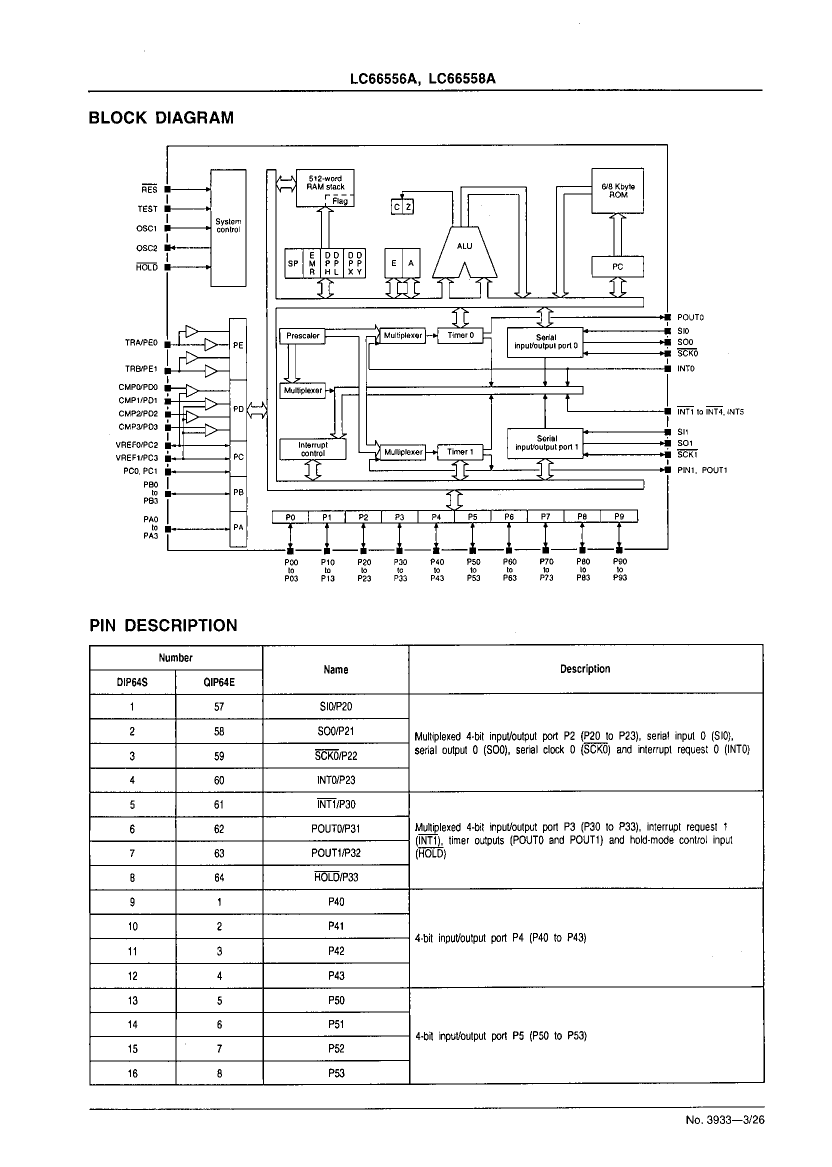

Preview

Download Datasheet

View All

LC66556ADIP64S Related Products

	LC66556ADIP64S	LC66558ADIP64S	LC66556AQIP64E	LC66558AQIP64E
Description	Microcontroller, 4-Bit, MROM, CMOS, PDIP64, SDIP-64	Microcontroller, 4-Bit, MROM, CMOS, PDIP64, SDIP-64	Microcontroller, 4-Bit, MROM, CMOS, PQFP64, QIP-64	Microcontroller, 4-Bit, MROM, CMOS, PQFP64, QIP-64
Maker	SANYO	SANYO	SANYO	SANYO
Parts packaging code	DIP	DIP	QFP	QFP
package instruction	SDIP,	SDIP,	QFP,	QFP,
Contacts	64	64	64	64
Reach Compliance Code	unknown	unknown	unknown	unknown
Has ADC	NO	NO	NO	NO
bit size	4	4	4	4
maximum clock frequency	2.03 MHz	2.03 MHz	2.03 MHz	2.03 MHz
DAC channel	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO
JESD-30 code	R-PDIP-T64	R-PDIP-T64	S-PQFP-G64	S-PQFP-G64
length	57.2 mm	57.2 mm	14 mm	14 mm
Number of I/O lines	58	58	58	58
Number of terminals	64	64	64	64
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C
PWM channel	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SDIP	SDIP	QFP	QFP
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE
Package form	IN-LINE, SHRINK PITCH	IN-LINE, SHRINK PITCH	FLATPACK	FLATPACK
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
ROM programmability	MROM	MROM	MROM	MROM
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	3 V	3 V	3 V	3 V
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	OTHER	OTHER	OTHER	OTHER
Terminal form	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING
Terminal pitch	1.778 mm	1.778 mm	0.8 mm	0.8 mm
Terminal location	DUAL	DUAL	QUAD	QUAD
width	19.05 mm	19.05 mm	14 mm	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Base Number Matches	1	1	1	1
