14.22mm (0.56INCH) DUAL DIGIT
NUMERIC DISPLAY
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
DISCHARGE
SENSITIVE
DEVICES
DC56-11PBWA
BLUE
Features
0.56 INCH DIGIT HEIGHT.
LOW CURRENT OPERATION.
EXCELLENT CHARACTER APPEARANCE.
EASY MOUNTING ON P.C. BOARDS OR SOCKETS.
TWO DIGIT PACKAGE SIMPLIFIESALIGNMENTS
& ASSEMBLY.
I.C. COMPATIBLE.
MECHANICALLY RUGGED.
STANDARD : GRAY FACE, WHITE SEGMENT.
RoHS COMPLIANT.
Description
The Blue source color devices are made with
InGaN on SiC Light Emitting Diode.
Static electricity and surge damage the LEDS.
It is recommended to use a wrist band or
anti-electrostatic glove when handling the LEDs.
All devices, equipment and machinery must be
electrically grounded.

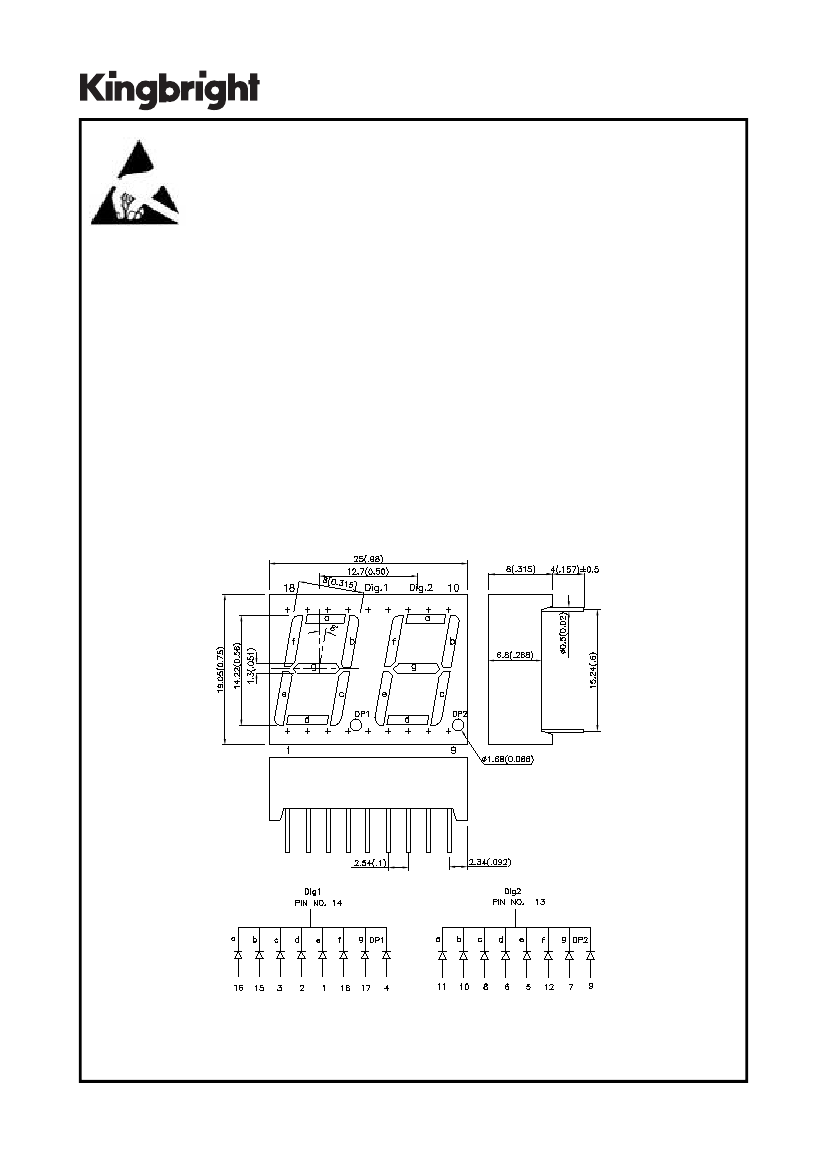

Package Dimensions & Internal Circuit Diagram
Notes:
1. All dimensions are in millimeters (inches), Tolerance is
±0.25(0.01")unless
otherwise noted.
2. Specifications are subject to change without notice.
SPEC NO: DSAE8710
APPROVED: J. Lu
REV NO: V.1
CHECKED: Joe Lee
DATE: DEC/20/2004
DRAWN: B.H.LI
PAGE: 1 OF 3
ERP: 1302000554
Selection Guide
Part No.
Dice
Lens Type
Iv (ucd)
@ 10mA
Min.
DC56-11PBWA
BLUE (InGaN)
WHITE DIFFUSED
8000
Typ.
18000
Common Cathode, Rt.
Hand Decimal.
Description

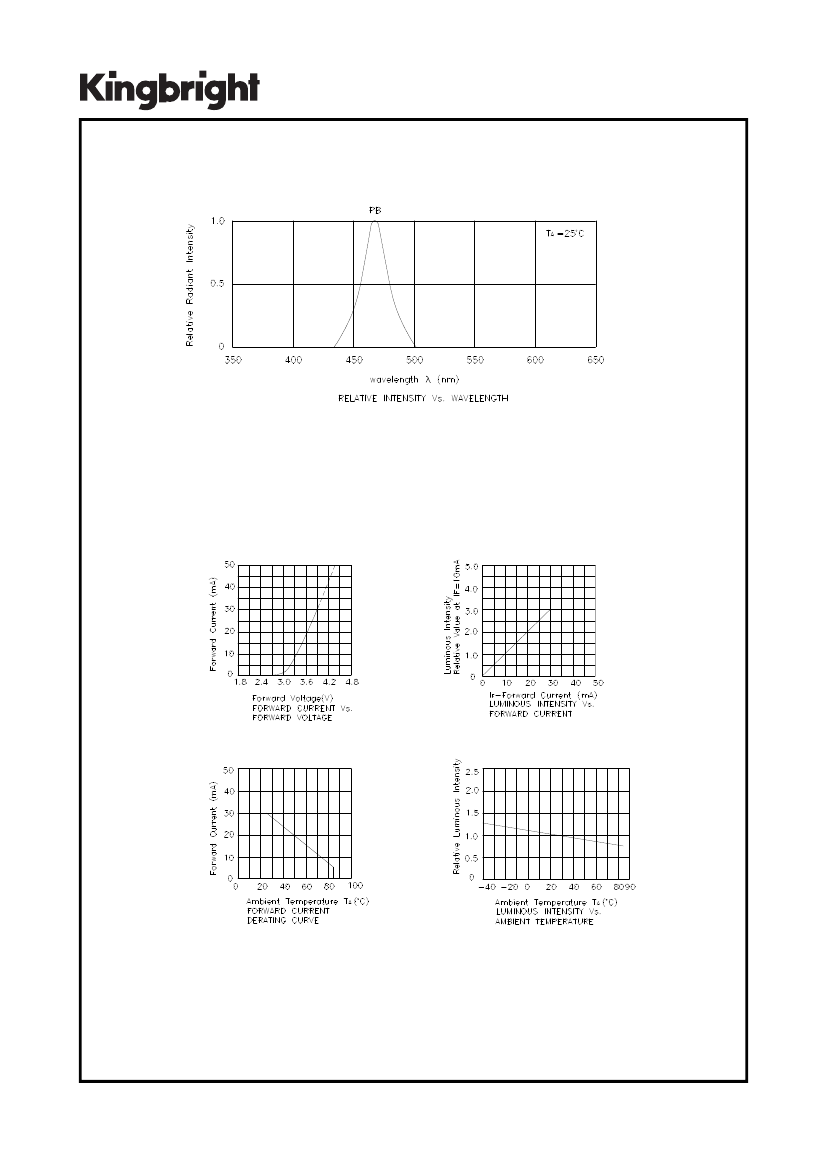

Electrical / Optical Characteristics at T
A
=25°C
Symbol
λpeak
λD
∆λ1/2
C
V
F
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Blue
Blue
Blue
Blue
Blue
Blue
Device
Typ.
468
470
25
65
3.65
4.2
10
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
= 5V
Absolute Maximum Ratings at T
A
=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Lead Solder Temperature [2]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 2mm below package base.
Blue
102
30
160
5
-40°C To +85°C
260°C For 3 Seconds
Units
mW
mA
mA
V
SPEC NO: DSAE8710
APPROVED: J. Lu
REV NO: V.1
CHECKED: Joe Lee
DATE: DEC/20/2004
DRAWN: B.H.LI
PAGE: 2 OF 3
ERP: 1302000554
