3-1617548-9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> 3-1617548-9

3-1617548-9: DescriptionPOWER/SIGNAL RELAY, DPDT, MOMENTARY, 0.014A (COIL), 12VDC (COIL), 169mW (COIL), 1A (CONTACT), THROUGH HOLE-STRAIGHT MOUNT; CategoryMechanical and electronic products relay; File Size108KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

3-1617548-9 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-1617548-9	-	-	View	Buy Now

3-1617548-9 Overview

POWER/SIGNAL RELAY, DPDT, MOMENTARY, 0.014A (COIL), 12VDC (COIL), 169mW (COIL), 1A (CONTACT), THROUGH HOLE-STRAIGHT MOUNT

3-1617548-9 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	WITH COIL SUPPRESSION DIODE
Maximum coil current (DC)	0.014 A
Coil power	169 mW
Coil resistance	850 Ω
Maximum coil voltage (DC)	12 V
Coil/Input Power Type	DC
Maximum contact current (AC)	1 A
Maximum contact current (DC)	1 A
Contact/Output Power Type	AC/DC
Installation features	THROUGH HOLE-STRAIGHT MOUNT
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Relay action	MOMENTARY
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
seal	HERMETICALLY SEALED
surface mount	NO
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

My Account

Tyco Electronics

(C hange)

Se a rch by Ke yword or Pa rt #

Products

Documentation

Resources

My Account

Customer Support

Home

Products

By Type

Relays

Product Feature Selector

> Product Details

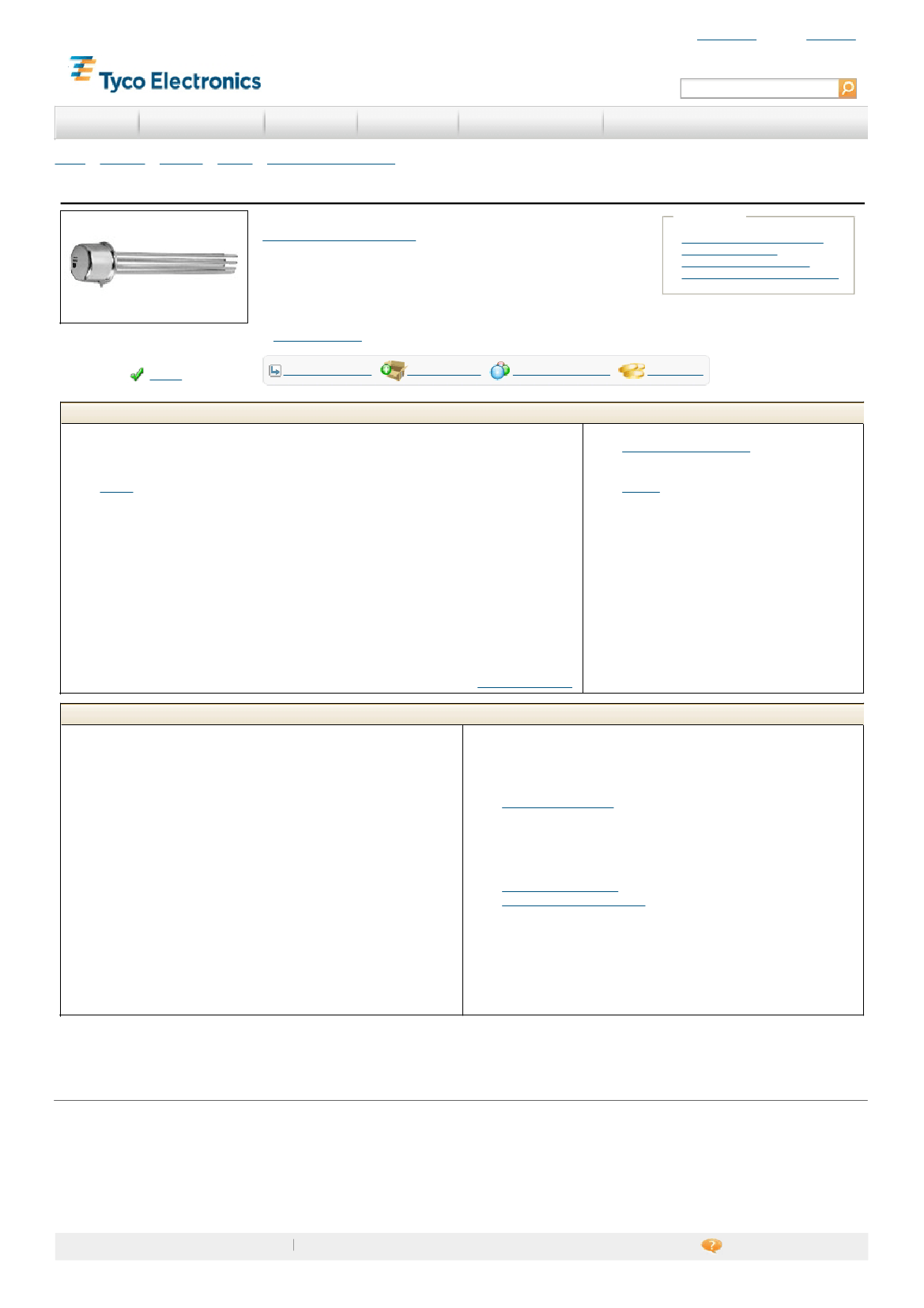

PRMSCD-12Y Product Details

Military/Aerospace High Performance Relays

Not EU R oHS or ELV C om plia nt

Quick Links

C heck Pricing & Availability

Search for Tooling

Product Feature Selector

C ontact Us About This Product

PRMSCD-12Y

(3-1617548-9)

T E I nternal N umber: 3 - 1 6 1 7 5 4 8 - 9

Product Highlights:

PRMSD TO-5 Relay Series

Input Voltage = 12 VDC

C ontact Arrangement = 2 Form C , DPDT, 2 C /O

C ontact C urrent Rating = 1 Amps.

Non Polarized, Monostable C oil Magnetic System

View all Features

A dd to M y P art L is t

Reques t Sample

Find Similar P roduc ts

Active

Buy P roduc t

Documentation & Additional Information

Product Drawings:

None Available

Catalog Pages/Data Sheets:

RELAY

(PDF, English)

Product Specifications:

None Available

Application Specifications:

None Available

Instruction Sheets:

None Available

CAD Files:

None Available

List all Documents

Product Features

(Please use the Product Drawing for all design activity)

Product Type Features:

Termination Type = Long Leads

C omment = Y Level Testing

Electrical Characteristics:

Input Voltage (VDC ) = 12

C ontact C urrent Rating (Amps.) = 1

C oil Polarity Protection Diode = Without

Transistor Driver = Without

C oil Resistance (?) = 850

MOSFET Driver = Without

C oil Power Measurement = Milliwatts

C oil Power, Nominal (mW) = 169

Actuating System = DC

Shock = 75 G's, 6ms

Vibration = 30G's, 10 to 3000Hz

Body Related Features:

Series = PRMSD TO-5 Relay

Contact Related Features:

Mounting Options = PC Board

Enclosure = Hermetically Sealed

Configuration Related Features:

C ontact Arrangement

= 2 Form C , DPDT, 2 C /O

C oil Magnetic System = Non Polarized, Monostable

C oil Suppression Diode = With

Industry Standards:

Government/Industry Qualification = No

RoHS/ELV C ompliance

= Not ELV/RoHS compliant

Lead Free Solder Processes

= Not suitable for lead free processing

Conditions for Usage:

Temperature Range (?C ) = -65 – +125

Other:

Brand = C II

Additional Information:

Product Line Information
