Board Connector, 30 Contact(s), 3 Row(s), Male, Straight, 0.073 inch Pitch, Press Fit Terminal, Guide Pin, Gray Insulator, Receptacle
| Parameter Name | Attribute value |
| Maker | Molex |
| Reach Compliance Code | unknown |
| Other features | DIFFERENTIAL CONTACTS, 4 ROWS OF GROUND BLADE AVAILABLE, PANEL MOUNTABLE, POLARIZED |
| body width | 0.744 inch |
| subject depth | 0.638 inch |
| body length | 0.611 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | AU ON NI |
| Contact completed and terminated | TIN/LEAD OVER NICKEL |
| Contact point gender | MALE |
| Contact material | COPPER ALLOY |
| contact mode | RECTANGULAR |
| Contact resistance | 1 mΩ |
| Contact style | BLADE PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 750VAC V |
| Durability | 250 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | .5838 N |
| Insulation resistance | 10000000000 Ω |
| Insulator color | GRAY |
| insulator material | GLASS FILLED LIQUID CRYSTAL POLYMER |
| MIL compliance | NO |

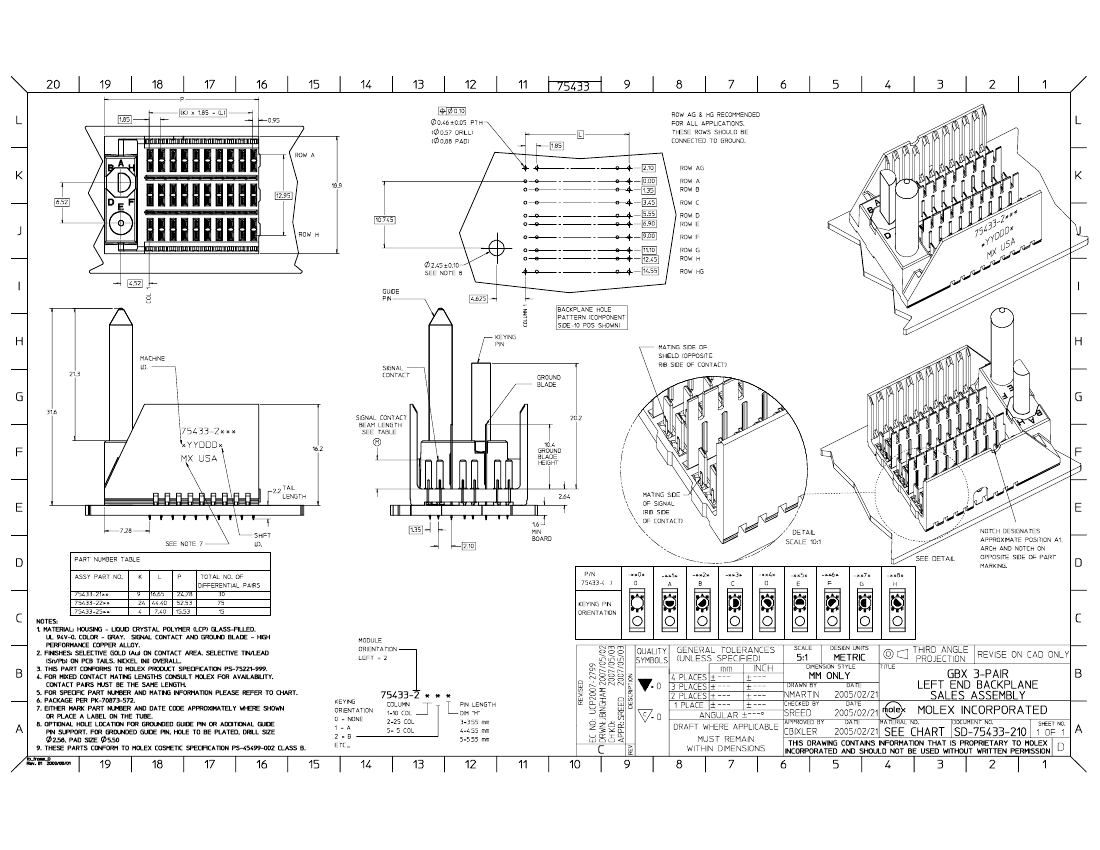

| Manufacturer's serial number | 75433 |
| Plug contact pitch | 0.073 inch |
| Match contact row spacing | 0.073 inch |
| Mixed contacts | NO |
| Installation option 1 | GUIDE PIN |
| Installation option 2 | GUIDE SLOT |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 10 |
| Number of rows loaded | 3 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 1.8288 mm |
| polarization key | POLARIZED KEY |
| Rated current (signal) | 1 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | 0.087 inch |
| Terminal pitch | 1.85 mm |
| Termination type | PRESS FIT |
| Total number of contacts | 30 |
| UL Flammability Code | 94V-0 |
| Evacuation force-minimum value | .278 N |
| Base Number Matches | 1 |
