PS1FS85-206SBB-L datasheet, PDF

Datasheet> All Categories > The connector> The connector> PS1FS85-206SBB-L

PS1FS85-206SBB-L: DescriptionBoard Connector, 12 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Press Fit Terminal, Locking, Black Insulator, Plug; CategoryThe connector The connector; File Size198KB，1 Pages; ManufacturerAmtek Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

PS1FS85-206SBB-L Overview

Board Connector, 12 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Press Fit Terminal, Locking, Black Insulator, Plug

PS1FS85-206SBB-L Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amtek Technology Co., Ltd.
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
body width	0.276 inch
subject depth	0.335 inch
body length	0.5 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	PS1
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	10u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	12
Base Number Matches	1

Preview

Download Datasheet

View All

emale Header 2.54mm

Material

Insulator:Polyester,UL 94V-0

Standard:PBT

Terminal:Copper Alloy

Plating:Gold Plated

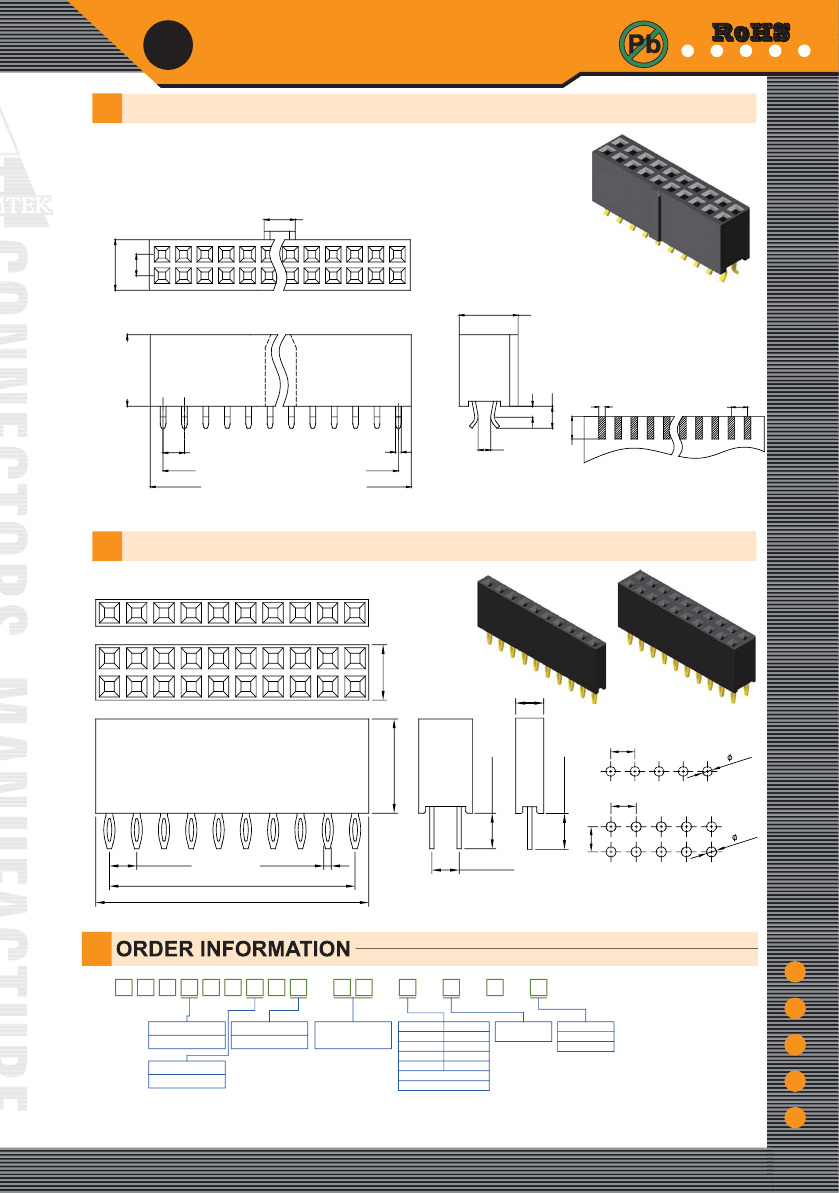

Female Header 2.54mm 2 Row H=8.5mm Straddle Type With Bump

Specifications

Current Rate:3 AMP

Insulation Resistance:1000MΩ Min.

Contact Resistance:20mΩ Max.

Dielectric Voltage:1000V AC for one minute

Operation Temperature:-40°C to +105°C

3.70

6.00±0.15

2.54±0.05

7.00±0.15

8.50±0.15

2.60±0.25

1.30

1.02

2.54

0.64X0.40

2.54±0.10

2.54XNo.of Contacts/2-2.54±0.15

2.54XNo.of Positions+0.40±0.25

1.50±0.20

3.50

Recommended P.C.B Layout(TOP Side)

(PCB BOARD TOLERANCE±0.05)

Part No.:PS1K85B-2XX-L/U

Female Header 2.54mm 1 & 2 Row H=8.5mm Press Fit Type

Part No.:PS1FS85-1/2XX-L

P S 1 X 8 5 X - X

K:Straddle

F:Press Fit

1:Single Row

2:Dual Row

X X

No. of Contacts per row

(02~40)

G:Gold Flash

GA:5u"

GB:10u"

GC:20u"

GD:30u"

S:Selective

SA:5u"

SB:10u"

SC:20u"

SD:30u"

B:Black Insulator

L:RoHS + P.B.T

U:RoHS + Nylon 6T

(U For PS1K85B Only)

B:With Bump

(Straddle Type Only)

T:Tin Plated

TE:Tin 200u"

Standard Recommended

www.amtek-co.com.tw

2-131
