DS1044G-07(TAPE&REEL)

Description

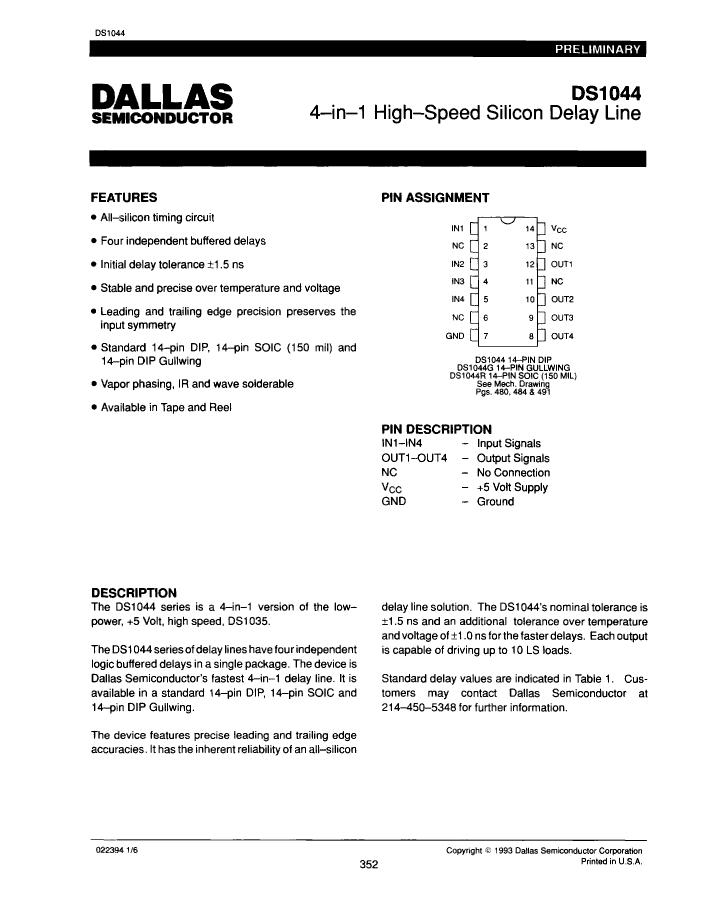

Silicon Delay Line, 4-Func, 1-Tap, True Output, CMOS, PDSO14, 0.300 INCH, GULLWING, DIP-14
Categorylogic    logic
File Size115KB,6 Pages
ManufacturerMaxim
Websitehttps://www.maximintegrated.com/en.html
Download Datasheet Parametric View All

DS1044G-07(TAPE&REEL) Overview

Silicon Delay Line, 4-Func, 1-Tap, True Output, CMOS, PDSO14, 0.300 INCH, GULLWING, DIP-14

DS1044G-07(TAPE&REEL) Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerMaxim
package instructionSOP,
Reach Compliance Codecompliant
Other featuresBOTH LEADING & TRAILING EDGE ACCURACY; MAX FAN OUT OF 10 LS LOAD PER OUTPUT
seriesCMOS/TTL
Input frequency maximum value (fmax)71.4286 MHz
JESD-30 codeR-PDSO-G14
JESD-609 codee0
length12.695 mm
Logic integrated circuit typeSILICON DELAY LINE
Number of functions4
Number of taps/steps1
Number of terminals14
Maximum operating temperature70 °C
Minimum operating temperature
Output polarityTRUE
Package body materialPLASTIC/EPOXY
encapsulated codeSOP
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
programmable delay lineNO
Certification statusNot Qualified
Maximum seat height4.57 mm

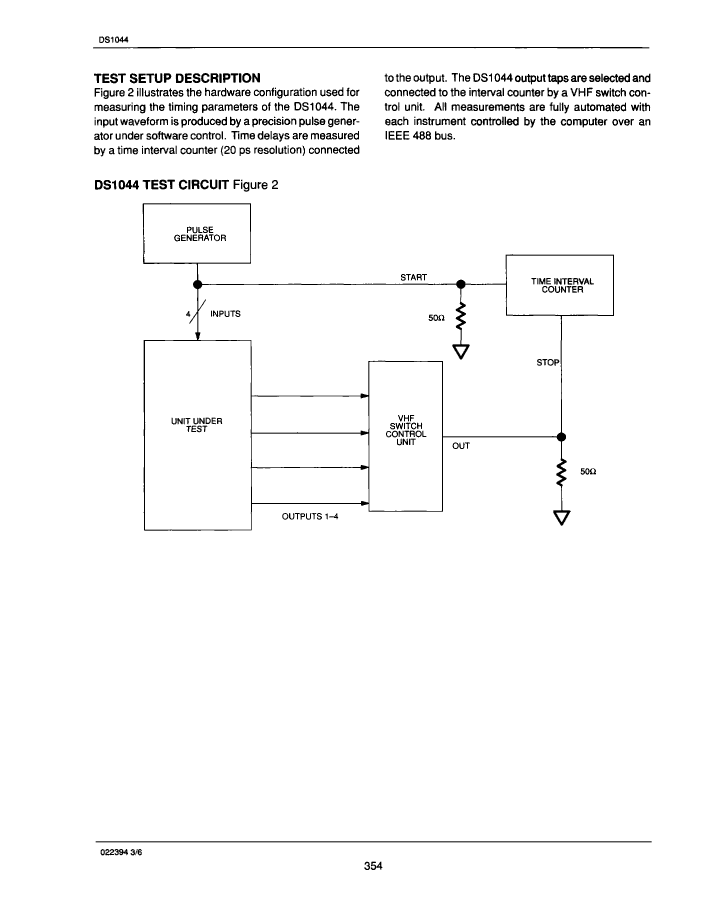

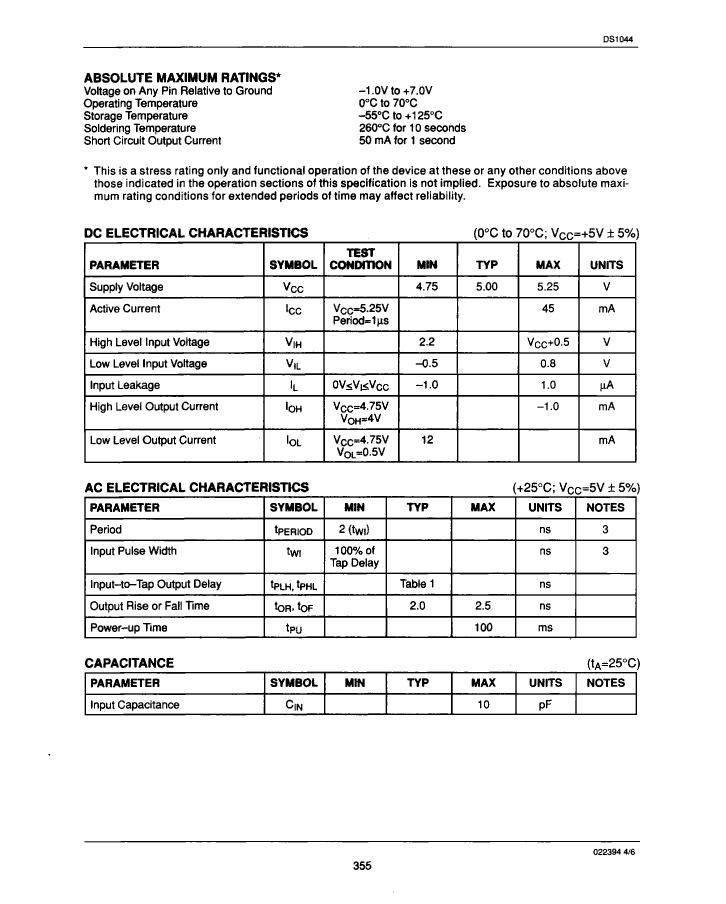

Maximum supply voltage (Vsup)5.25 V
Minimum supply voltage (Vsup)4.75 V
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyCMOS
Temperature levelCOMMERCIAL
Terminal surfaceTIN LEAD
Terminal formGULL WING
Terminal pitch2.54 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED

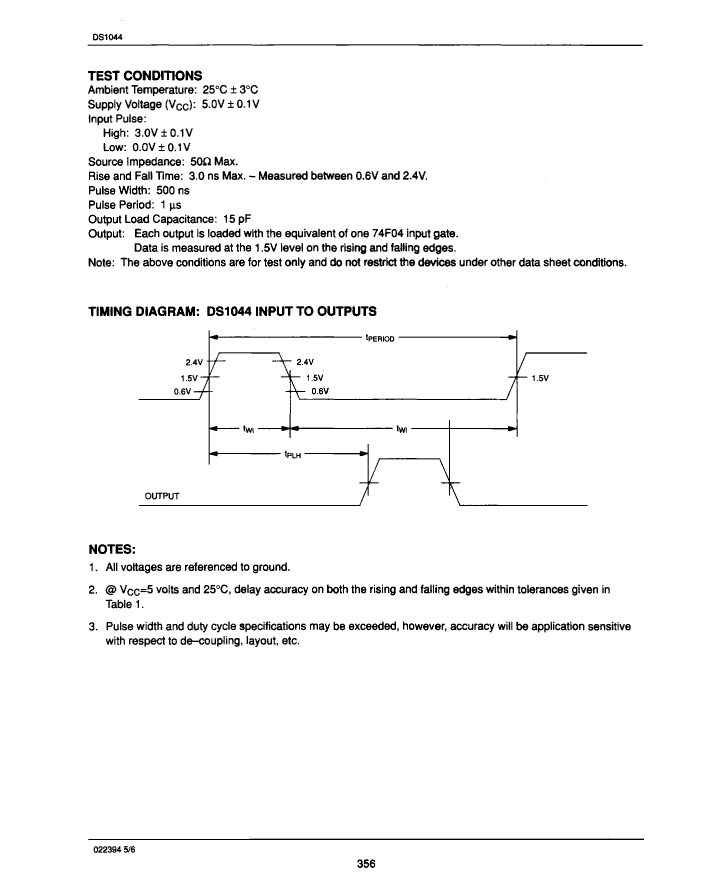

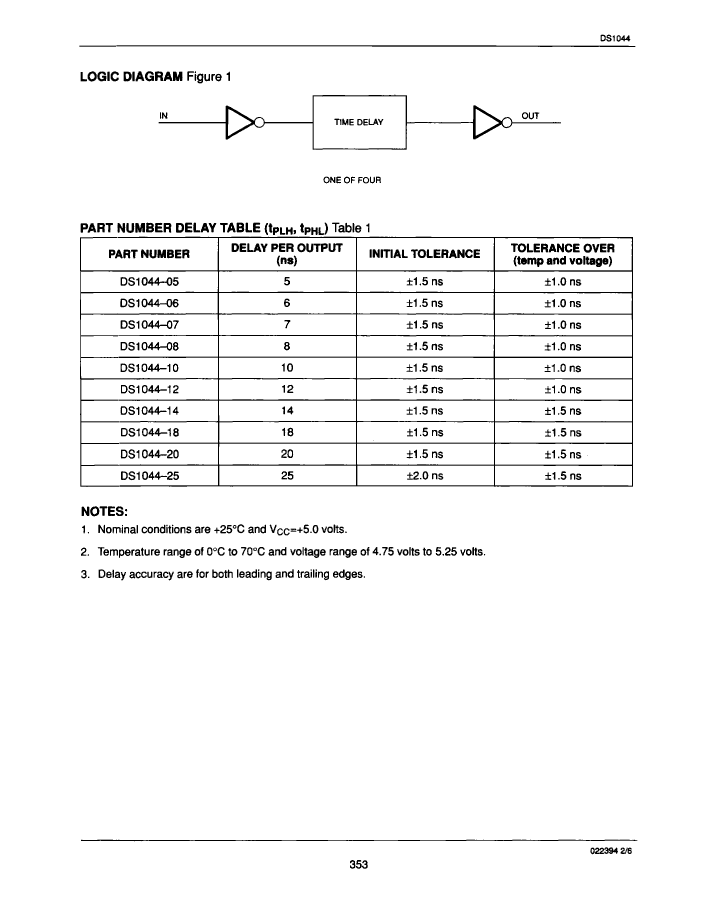

Total delay nominal (td)7 ns
Base Number Matches1
