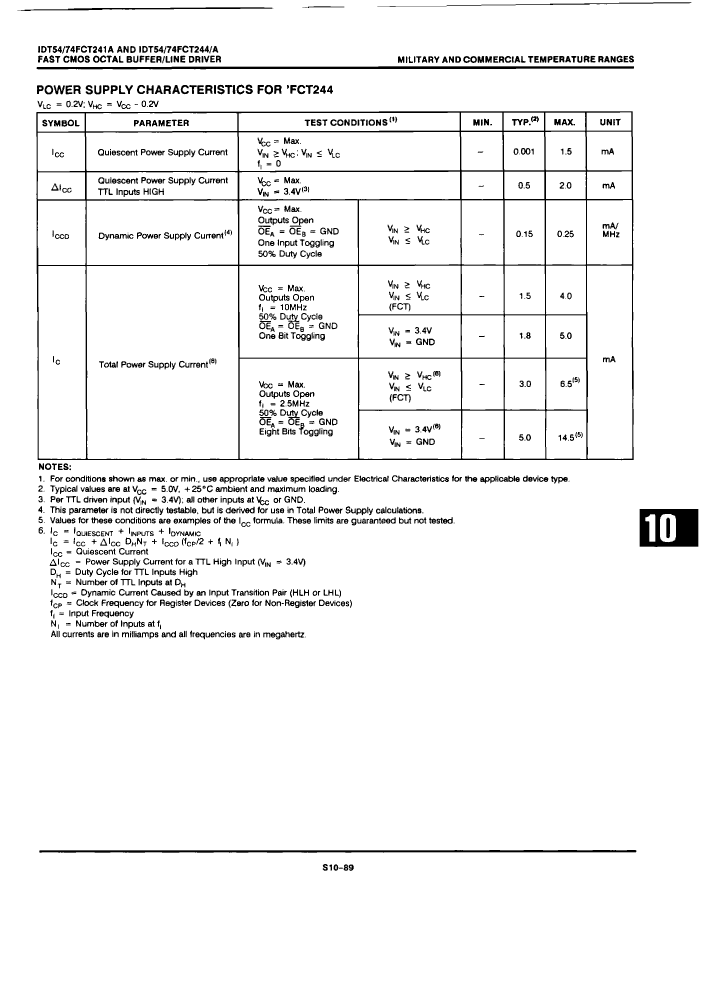

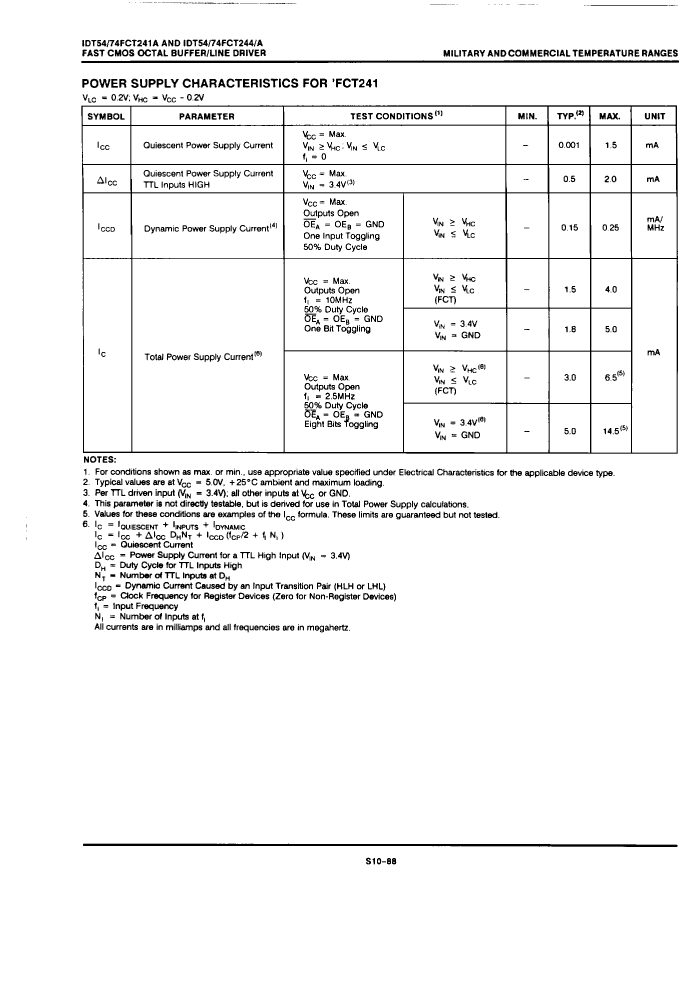

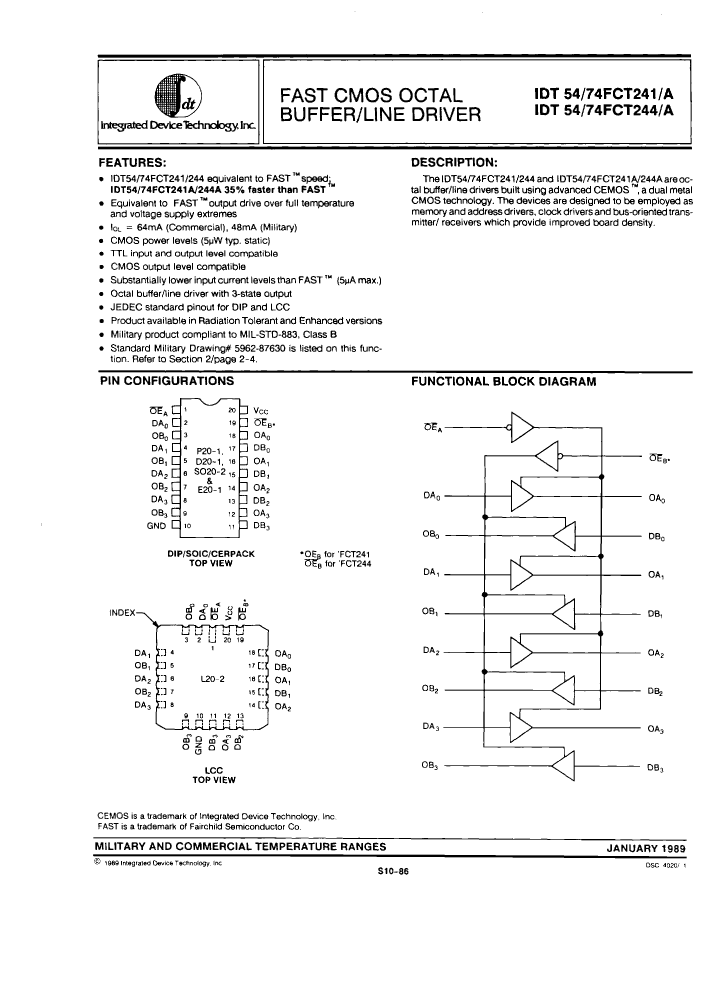

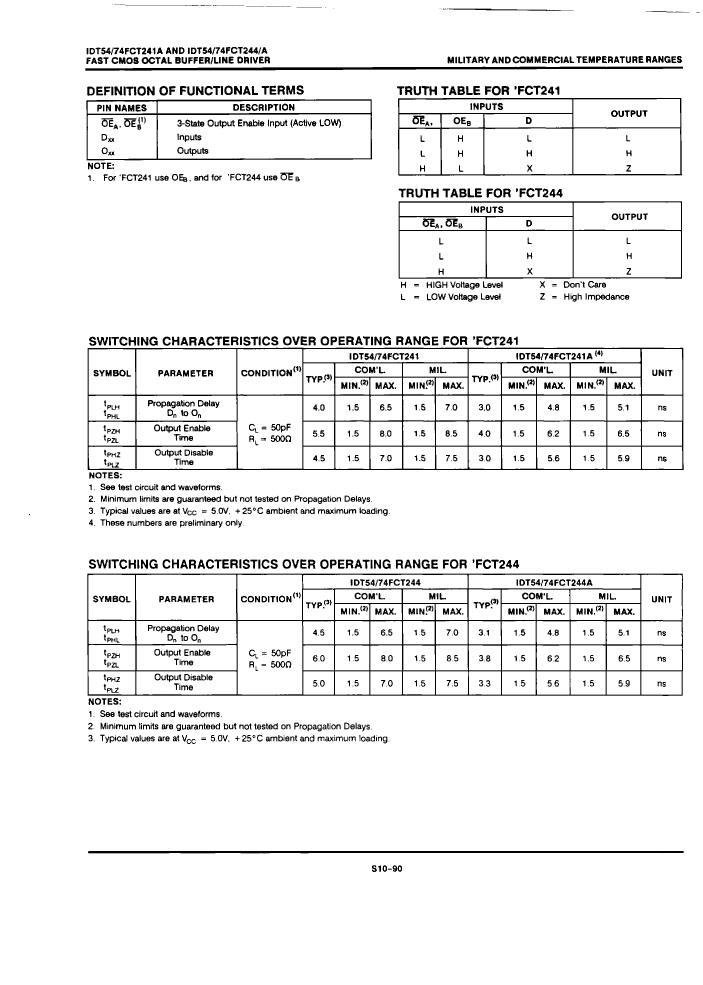

Preview

5962-8763001RX: DescriptionBus Driver, FCT Series, 2-Func, 4-Bit, True Output, CMOS, CDIP20, 0.300 INCH, CERDIP-20; Categorylogic logic; File Size163KB，6 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

5962-8763001RX Overview

Bus Driver, FCT Series, 2-Func, 4-Bit, True Output, CMOS, CDIP20, 0.300 INCH, CERDIP-20

5962-8763001RX Parametric

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	DIP,
Contacts	20
Reach Compliance Code	unknown
Other features	IOH = 0.3MA @ VOH = 4.3V; IOL = 0.3MA @ VOL = 0.2V
series	FCT
JESD-30 code	R-GDIP-T20
JESD-609 code	e0
length	25.3365 mm
Logic integrated circuit type	BUS DRIVER
Number of digits	4
Number of functions	2
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	7 ns
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

5962-8763001RX Related Products

	5962-8763001RX	IDT74FCT241ASO8	5962-8763002SX	5962-8763001SX	5962-87630012X	5962-8763002RX	5962-87630022X	IDT74FCT241SO8	IDT74FCT244SOT/R
Description	Bus Driver, FCT Series, 2-Func, 4-Bit, True Output, CMOS, CDIP20, 0.300 INCH, CERDIP-20	Bus Driver, FCT Series, 2-Func, 4-Bit, True Output, CMOS, PDSO20, SOIC-20	Bus Driver, FCT Series, 2-Func, 4-Bit, True Output, CMOS, CDFP20, CERPACK-20	Bus Driver, FCT Series, 2-Func, 4-Bit, True Output, CMOS, CDFP20, CERPACK-20	Bus Driver, FCT Series, 2-Func, 4-Bit, True Output, CMOS, CQCC20, LCC-20	Bus Driver, FCT Series, 2-Func, 4-Bit, True Output, CMOS, CDIP20, 0.300 INCH, CERDIP-20	Bus Driver, FCT Series, 2-Func, 4-Bit, True Output, CMOS, CQCC20, LCC-20	Bus Driver, FCT Series, 2-Func, 4-Bit, True Output, CMOS, PDSO20, SOIC-20	Bus Driver, FCT Series, 2-Func, 4-Bit, True Output, CMOS, PDSO20, SOIC-20
Parts packaging code	DIP	SOIC	DFP	DFP	QLCC	DIP	QLCC	SOIC	SOIC
package instruction	DIP,	SOIC-20	DFP,	DFP,	QCCN,	DIP,	QCCN,	SOIC-20	SOP, SOP20,.4
Contacts	20	20	20	20	20	20	20	20	20
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	not_compliant
series	FCT	FCT	FCT	FCT	FCT	FCT	FCT	FCT	FCT
JESD-30 code	R-GDIP-T20	R-PDSO-G20	R-GDFP-F20	R-GDFP-F20	S-CQCC-N20	R-GDIP-T20	S-CQCC-N20	R-PDSO-G20	R-PDSO-G20
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	4	4	4	4	4	4	4	4	4
Number of functions	2	2	2	2	2	2	2	2	2
Number of ports	2	2	2	2	2	2	2	2	2
Number of terminals	20	20	20	20	20	20	20	20	20
Maximum operating temperature	125 °C	70 °C	125 °C	125 °C	125 °C	125 °C	125 °C	70 °C	70 °C
Minimum operating temperature	-55 °C	-	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-	-
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP	DFP	DFP	QCCN	DIP	QCCN	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	FLATPACK	FLATPACK	CHIP CARRIER	IN-LINE	CHIP CARRIER	SMALL OUTLINE	SMALL OUTLINE
propagation delay (tpd)	7 ns	4.8 ns	5.1 ns	7 ns	7 ns	5.1 ns	5.1 ns	6.5 ns	6.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	2.65 mm	2.3368 mm	2.3368 mm	2.54 mm	5.08 mm	2.54 mm	2.65 mm	2.65 mm
Maximum supply voltage (Vsup)	5.5 V	5.25 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.5 V	4.75 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	YES	YES	NO	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	COMMERCIAL	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	GULL WING	FLAT	FLAT	NO LEAD	THROUGH-HOLE	NO LEAD	GULL WING	GULL WING
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	QUAD	DUAL	QUAD	DUAL	DUAL
width	7.62 mm	7.5 mm	6.9215 mm	6.9215 mm	8.89 mm	7.62 mm	8.89 mm	7.5 mm	7.5 mm
Other features	IOH = 0.3MA @ VOH = 4.3V; IOL = 0.3MA @ VOL = 0.2V	OUTPUT ENABLE ACTIVE HIGH FOR ONE FUNCTION	IOH = 0.3MA @ VOH = 4.3V; IOL = 0.3MA @ VOL = 0.2V	IOH = 0.3MA @ VOH = 4.3V; IOL = 0.3MA @ VOL = 0.2V	IOH = 0.3MA @ VOH = 4.3V; IOL = 0.3MA @ VOL = 0.2V	IOH = 0.3MA @ VOH = 4.3V; IOL = 0.3MA @ VOL = 0.2V	IOH = 0.3MA @ VOH = 4.3V; IOL = 0.3MA @ VOL = 0.2V	OUTPUT ENABLE ACTIVE HIGH FOR ONE FUNCTION	-
JESD-609 code	e0	e0	e0	e0	e0	-	-	e0	e0
length	25.3365 mm	12.8 mm	-	-	8.89 mm	25.3365 mm	8.89 mm	12.8 mm	12.8 mm
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	-	-	TIN LEAD	Tin/Lead (Sn85Pb15)
Base Number Matches	1	1	1	1	1	1	1	1	-
